Cameras & Imagers

Pioneer of commercial satellite remote sensing in China, operating Beijing satellite constellation for remote sensing big data services.

21st Century Space

Standard Image Products

Sensor-calibrated image products (L1) are generated from satellite raw data, incorporating attitude and orbit data and ground control information.

price on request

World-leading manufacturer of space electronic components using proprietary 3D interconnect technology for extreme miniaturization.

3D Plus (HEICO)

CASPEX 1.3Mpx SWIR Space Camera Head

Space-qualified 1.3-megapixel InGaAs SWIR camera head (3DCM880) with 1280×1024 resolution at 134 fps, global shutter, and FPGA-based processing in a 40×40×44 mm package. Ideal for

Resolution	1280 × 1024 pixels (1.3 Mpx)
Sensor type	Global Shutter InGaAs CMOS (SWIR)
Maximum frame rate	134 fps
Read noise	240 e⁻
Dark current	28 ke⁻/s at 25°C

price on request

3D Plus (HEICO)

CASPEX 12Mpx Space Camera Head

Space-qualified 12-megapixel CMOS camera head with 4096×3000 resolution, 68 frame/s, global shutter, and FPGA-based processing in a 40×40×39 mm package. Available in short and long

Resolution	4096 × 3000 pixels (12 Mpx)
Sensor type	Global Shutter Visible CMOS
Maximum frame rate	68 frame/s at sensor interface
Read noise	2 e⁻
Dark current	10 e⁻/s at 25°C

price on request

3D Plus (HEICO)

CASPEX 4Mpx Space Camera Head

Space-qualified 4-megapixel CMOS camera head with FPGA-based reconfigurable architecture, global shutter, 2048×2048 resolution, and SpaceWire interface in a 35×35×23 mm package. Av

Resolution	2048 × 2048 pixels (4 Mpx)
Sensor type	Global Shutter Visible CMOS
Maximum frame rate	Up to 16 frame/s at sensor interface
Read noise	13 e⁻
Dark current	125 e⁻/s at 25°C

price on request

3D Plus (HEICO)

IRIS 4Mpx Space Camera System

Turn-key 4-megapixel space camera system combining CASPEX 4M camera head with space-grade optics and mechanical casing. SpaceWire interface, <400 g mass, and focal length option

Image sensor	2048 × 2048 Visible CMOS
Resolution	4 Megapixels
Frame rate (Burst)	Up to 5 fps
Frame rate (Continuous)	Up to 2 fps
Interface	SpaceWire (2× MDM 9-pin)

price on requestdatasheet

AAC Clyde Space provides small satellite technologies and space-based data services, offering end-to-end solutions from satellite components to data analytics for various applications.

AAC Clyde Space

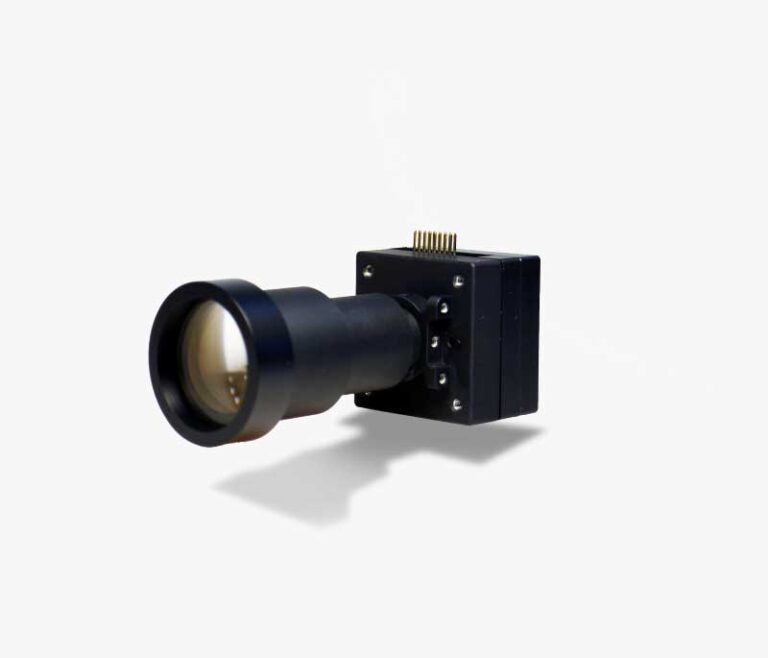

IM200 Smart Optical Imager

The IM200 is a versatile 4 Mpixel smart optical imager for small satellites and CubeSats, offering high-speed data transfer and real-time image processing capabilities.

Resolution	4 Mpixel
Data interface	High-speed USB2.0 (480 Mbps)
Optional data interface	Medium speed RS422/RS485
Frames per second (full resolution)	5 frames
Internal buffer storage	Up to 25 full-frame images

price on requestdatasheet

Aistech Space provides high-resolution thermal imagery from its satellite constellation to monitor human activity and thermal signatures for various industries.

Aistech Space

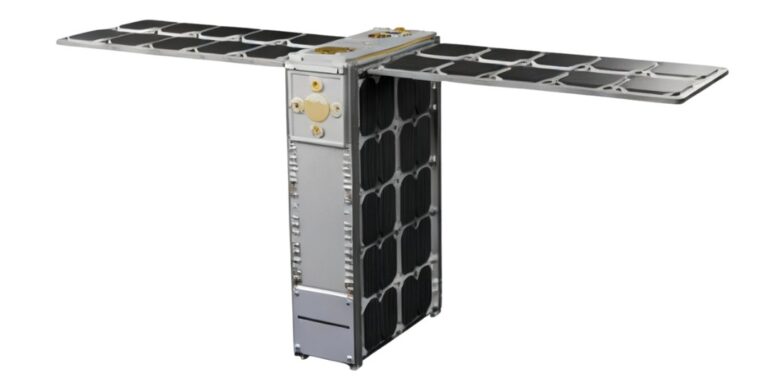

Enabler Multispectral Telescope

Aistech's in-house-developed multispectral thermal telescope payload flown on every Hydra satellite, covering visible, near-infrared and long-wave thermal infrared bands.

Payload generation (2026)	Enabler v1.1 / v1.2
Payload generation (2027, planned)	Enabler v1.3
Payload generation (2028, planned)	Enabler v2.0
Bands (v1.1/v1.2)	BLUE, GREEN, RED, NIR, LWIR 8-14 um
Bands (v1.3)	BLUE, GREEN, RED, NIR, LWIR1 10.5-11.5 um, LWIR2 11.5-12.5 um

price on request

Aistech Space

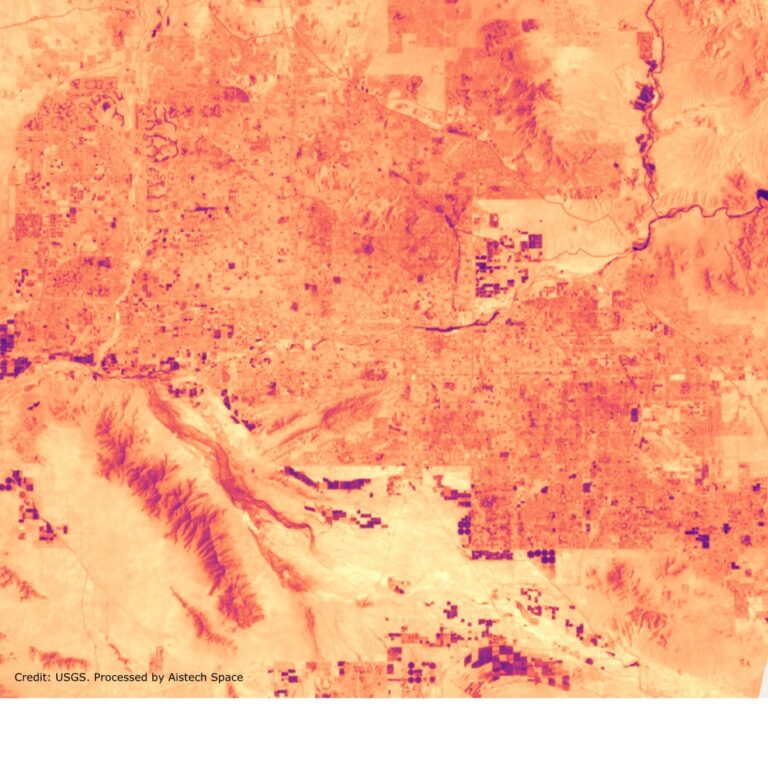

On-Demand Imagery

Pay-as-you-go access to Aistech's thermal infrared satellite imagery for one-time or occasional needs tied to specific events or projects.

Service levels	Standard On-Demand TIR, Priority On-Demand TIR
Data type	Thermal infrared (TIR) imagery
Access model	Pay-as-you-go, transactional
Pricing	Not publicly disclosed - contact sales

price on request

Aistech Space

Priority Tasking

Premium, rapid-activation satellite tasking service for mission-critical thermal ISR scenarios such as wildfire response and security monitoring.

Service levels	Standard Tasking, Priority Tasking
Primary use cases	Wildfire response, security monitoring
Data type	Thermal infrared (TIR) imagery
Access model	Priority on-demand tasking
Pricing	Not publicly disclosed - contact sales

price on request

Aistech Space

TIR Subscription

A recurring subscription service providing scheduled, ongoing access to Aistech's thermal infrared (TIR) satellite imagery, sold in Basic, Standard and Premium tiers.

Subscription tiers	Basic, Standard, Premium
Data type	Thermal infrared (TIR) imagery
Access model	Recurring subscription
Pricing	Not publicly disclosed - contact sales

price on request

Developer of very-low-Earth-orbit (VLEO) imaging satellites providing 10 cm ground resolution — the highest resolution permitted commercially.

Albedo

Albedo VLEO Imagery Products

Albedo's 10 cm commercial satellite imagery data products — the highest resolution available from any commercial satellite — enabling vehicle-level identification from space.

Resolution (PAN)	10 cm (panchromatic)
Resolution (MSI)	20–30 cm (multispectral)
Orbit	~300 km VLEO
Applications	Military ISR, infrastructure inspection, environmental monitoring
Data access	US government classified; commercial access with vetting

price on request

Albedo

Clarity

Albedo's Clarity system offers exquisite resolution imaging, powered by their in-house optical payload Verity, enabling precise observation and certainty in operations.

GSD – Panchromatic	10 cm, 400–700 nm
GSD – Blue	40 cm, 450–510 nm
GSD – Green	40 cm, 510–580 nm
GSD – Red	40 cm, 630–690 nm
GSD – NIR	40 cm, 770–895 nm

price on request

ALTER Technology provides laboratory and engineering services for high-reliability EEE components, specializing in microelectronics and optoelectronics engineering, procurement, assembly, and testing

ALTER Technology

Image Sensor Solutions for Space

ALTER Technology develops and qualifies custom camera systems and image sensor solutions for aerospace and scientific applications, including radiation testing, cryogenic character

Radiation tests	TID, TNID, SEE (heavy ions and protons)
Test environments	Radiation, vacuum, cryogenic temperatures
Packaging options	Hermetic sealing, precision placement, thermoelectric cooler integration
Application range	Machine vision to deep-space exploration

price on request

Arcfield's Orion Space Solutions designs, builds and deploys spacecraft, optical and ionospheric sensors, and space-environment models for defense, civil and commercial space missions, with a focus on very low Earth orbit (VLEO) sustainabil

Arcfield (formerly Orion Space Solutions)

SPECTRE

SPECTRE is a next-generation, multi-spectral optical payload delivering high-resolution weather monitoring and Earth observation performance in a compact, small-SWaP configuration.

Payload type	Multi-spectral EO/IR optical payload
Design focus	Small-SWaP (size, weight, power) miniaturized configuration
Primary applications	High-resolution Earth observation, climate/environmental monitoring, defense weather monit
Power	46 W OAP
Volume	12U

price on requestdatasheet

Spanish space technology company founded 2007 in Leganes, developing MEMS relay switches, SiC power devices, and miniaturized power conditioning units for satellite applications.

Berlin Space Technologies (BST) designs and mass manufactures small satellite systems and technologies, providing end-to-end solutions for space missions.

Berlin Space Technologies

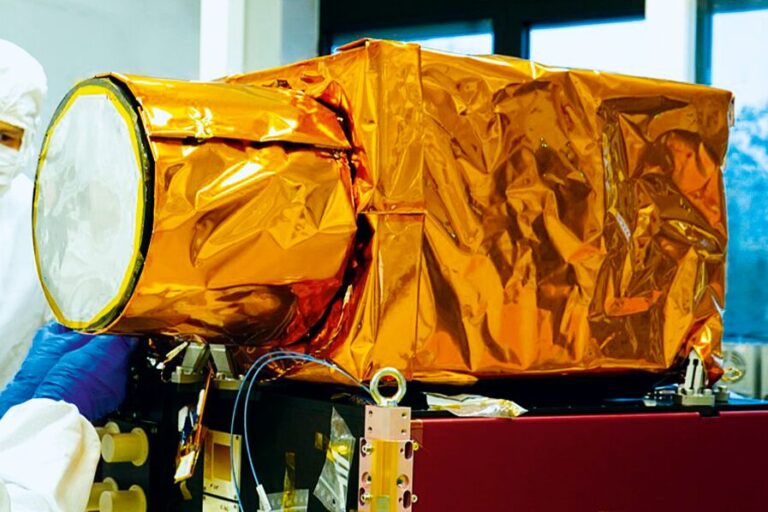

HRVI-2HD

The HRVI-2HD is a high-resolution optical payload system built by Berlin Space Technologies, offering 2m GSD and a 15km swath.

Resolution @500km	1.9m
Swath @500km	15 km
Channels	1 PAN & 4MS
Dpu	JPEG, 2 TB storage, CCSDS, Encryption
In orbit focusing	Yes

price on requestdatasheet

Berlin Space Technologies

HRVI-6HD 2nd Gen

The HRVI-6HD 2nd Generation is a space-proven medium resolution earth observation system providing 4.6m GSD imagery with a 70km swath, and also features a hyperspectral option.

Resolution @500km	4.6m
Swath @500km	70 km
Channels	1 PAN & 4MS
Dpu	JPEG, 2 TB storage, CCSDS, Encryption
In orbit focusing	Yes

price on requestdatasheet

Canon Electronics Inc. develops and manufactures small artificial satellites and their components, alongside a diverse range of precision machinery, electronic equipment, and optical products.

Canon Electronics - Space

Canon Electronics Space Camera Systems

Canon Electronics' satellite-mounted Earth observation cameras and optical systems for commercial and government remote sensing satellites — applying Canon imaging expertise to spa

Technology	Precision optical telescopes, imaging sensors for satellite EO cameras
Applications	Earth observation imaging, satellite camera systems
Space one stake	Founding shareholder of Space One Corporation (KAIROS rocket)
Parent	Canon Inc. (Japan's leading optical imaging company)
HQ	Shimomaruko, Ota, Tokyo, Japan

price on request

CAVU Aerospace designs and manufactures spacecraft avionics, including radiation-tolerant onboard computers, thermal control units, frame grabbers, and flight-proven satellite cameras for space applications.

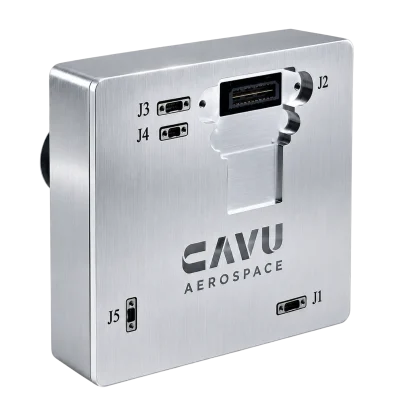

CAVU Aerospace

CubeSat Camera- RavenEye16

CubeSat Camera for 2U, 3U & 12U

Resolution	2,448 * 2,048
Form factor	2U
Mass	1.1 kg
Aperture size	60 mm
Efl	400 mm

price on request

CAVU Aerospace

RavenEye5

The RavenEye5 is a flight-proven, highly reliable optical payload designed for CubeSats, capable of capturing high-resolution images for Earth observation and atmospheric monitorin

Aperture size	60 mm
Available in	5, 16 & 51 Mpixel
Data interface	LVDS + RS422 + Ethernet
Data transmission interface	UART RS485 @6.25
Image format	RAW + JPEG

price on requestdatasheet

Satellite-enabled mineral exploration firm using proprietary AMRT™ technology to detect subsurface resources including precious metals, oil & gas, and groundwater across 50+ countries — non-invasively, without ground crews.

CC Explorations

AMRT™ Satellite Mineral Exploration Survey

Satellite-based subsurface resource detection using AMRT™ (Atomic Mineral Resonance Tomography) — locates precious metals, hydrocarbons, and groundwater across 50+ countries with u

Methodology	Multispectral/hyperspectral imaging + gravitational/magnetic analysis + AI analytics
Reported accuracy	Up to 93% correlation with verified deposits
Turnaround time	15–45 days
Geographic reach	50+ countries
Completed surveys	1,000+

price on request

Operator of China's first commercial remote sensing constellation "Jilin-1", providing sub-meter optical imagery and video for government and commercial clients.

Chang Guang Satellite Technology

Jilin-1 KF01B High-Resolution Optical Satellite

Sub-metre EO satellite — 0.5 m panchromatic, 2 m multispectral, 150 km swath, 2 million km²/day, 535 km SSO, 20 m CE90 without GCP, supports 1:10,000 mapping.

Panchromatic GSD	0.5 m
Multispectral GSD	2 m
Swath width	> 150 km
Orbital altitude	535 km
Orbit type	Sun-synchronous

price on request

Chinese commercial remote sensing company operating the SuperView (Gaojing) high-resolution satellite constellation, providing sub-meter EO imagery and geospatial services.

Dutch space instrumentation company designing optical payloads and hyperspectral imaging systems for satellites.

cosine (Berlin Adlershof)

HyperScout 2

Compact hyperspectral imaging instrument combining VNIR hyperspectral imaging with thermal infrared channels — Intel Myriad 2 onboard AI chip, first flown 2020.

First launch	2020
Orbit	540 km
GSD (channel 1)	75 m
GSD (channel 2)	490 m
Swath	310 x 150 km

price on request

cosine (Berlin Adlershof)

T-Scout

First multi-spectral thermal infrared imager with high spatial resolution for small satellites — 85m resolution from 500km, onboard real-time processing.

FOV	9.9 deg
Focal length	100 mm
Aperture	67 mm
F-number	F/1.5
Spatial resolution	85 m from 500 km

price on request

Crystal Space designs and manufactures cameras and smart cameras for satellites, rovers, landers, and UxS, with over 200 cameras delivered and 12,500+ collective days in space.

Crystal Space

Crystalspace C1U CubeSat Camera

The Crystalspace C1U CubeSat Camera is a versatile imaging solution designed for various space applications, including Earth observation, situational awareness, and navigation.

Resolution	5 MP
FOV	44 x 34 deg
Mass	<50 g
Dimensions	42 x 25 x 45 mm
Power (nominal)	75 mW

price on request

Crystal Space

CS-151 Kodas Monitoring Camera

Space-qualified monitoring camera (270 g, 82x88x39 mm) with up to 5 MP resolution and flight heritage on Maxar's SAMPLR lunar lander for NASA's Artemis mission.

Resolution	VGA (640x480) standard; up to 5 MP; custom 1-10 MP
Mass	270 g
Dimensions	82 x 88 x 39 mm
Power (nominal)	0.5 W
Power (peak)	1 W

price on request

Quantum camera developer whose beyond-diffraction-limit imaging technology was developed for NASA/DARPA and is designed for space-based Earth and space intelligence.

Diffraqtion

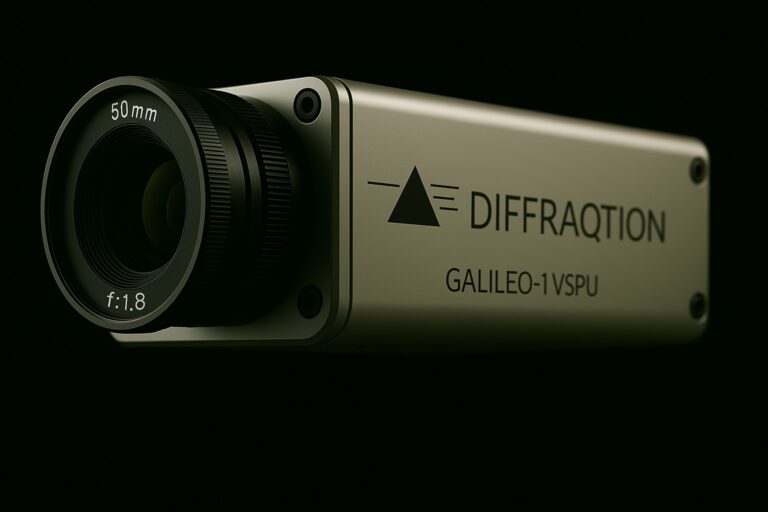

Quantum Camera

Beyond-diffraction-limit quantum imaging camera for satellite and telescope constellations providing 20x greater object identification range.

Technology	Quantum photonics / quantum imaging
Key capability	Imaging beyond the diffraction limit — identifies objects 20× further than any conventiona
Information capture	Captures ~95% more information than conventional cameras
Applications	Space situational awareness, Earth intelligence, astronomical observation (exoplanet detec
Backing	DARPA (2026 demo contract), developed in partnership with NASA

price on request

Diffraqtion

Quantum Camera Platform

The Quantum Camera Platform is an award-winning quantum technology and AI-powered camera designed to see beyond the diffraction limit for Earth and Space Intelligence.

Detection distance	20x further than current CMOS/CCD sensors
Processing speed	1000x faster than conventional GPU/VPU + CMOS
Energy efficiency	1000x more efficient than current GPU/VPUs
Integration	USB-C, M8/M12 or custom outputs
Software	Python library, cloud-based model training

price on request

South African manufacturer of high-performance electro-optical imaging payloads and satellite platforms for Earth observation.

Dragonfly Aerospace

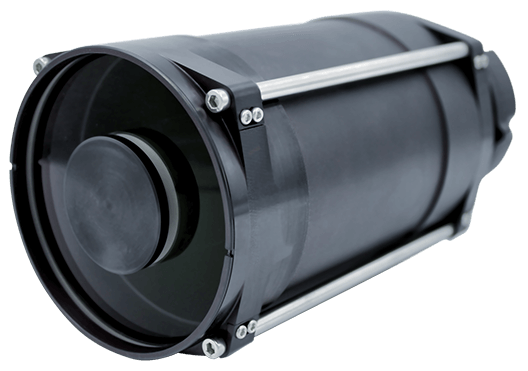

Caiman

The Caiman is a high-resolution multispectral imager for 6U CubeSats, offering maximum achievable resolution within its form factor and unmatched image detail for small satellite p

Spatial resolution (GSD) at 500 km (RGB)	3.25 m
Swath at 500 km (RGB)	13 km
Mass (incl. electronics) (RGB)	1.4 kg
Spectral bands (RGB)	Standard RGB
Imager type (RGB)	Snap shot

price on requestdatasheet

Dragonfly Aerospace

Chameleon

The Chameleon is a high-performance hyperspectral imager with space-qualified control electronics and specialized optics, designed for CubeSats.

Spatial resolution (GSD) at 500 km	10 m (RGB)
Swath at 500 km	39 km (RGB)
Mass (incl. electronics)	1.6 kg (RGB)
Spectral bands	Standard RGB
Imager type	Snap shot (RGB)

price on requestdatasheet

Dragonfly Aerospace

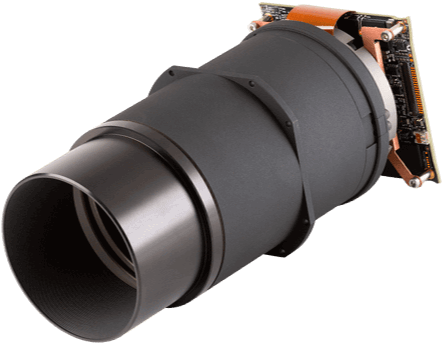

Chameleon SWIR

The Chameleon SWIR is a specialized short-wave infrared camera designed for Earth and space exploration, capturing high-contrast images in the 1000–1750 mm spectral range.

Spatial resolution (GSD) at 500 km	RAW 8.7 m
Swath at 500 km	11.2 km
Mass (Including electronics)	1.6 kg
Spectral bands	4 x SWIR Bands (1000–1750 mm)
Satellite bus size	Compatible with 6U

price on requestdatasheet

Dragonfly Aerospace

DragonEye

DragonEye is a high-resolution imager for microsatellites, offering detailed Earth imagery in panchromatic mode with radiation-resistant optics and a wide field of view.

Spatial resolution (GSD) at 500 km pan	1.4 m
Spatial resolution (GSD) at 500 km ms binned	2.8 m
Swath at 500 km	22.2 km
Mass (Including electronics)	18 kg
Spectral bands	10x MS plus 1x PAN

price on requestdatasheet

Dragonfly Aerospace

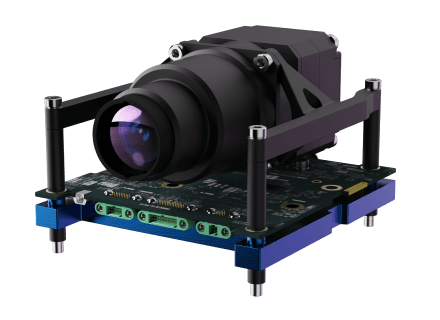

Gecko imager

The Gecko imager is a compact, easily integrated imaging solution for CubeSat missions, offering large data storage and high image quality in a small form factor.

Spatial resolution (GSD) at 500 km	39 m
Swath at 500 km	80 km
Mass (incl. electronics)	<0.5 kg
Spectral bands	Standard RGB
Physical size	1U (65 mm x 90 mm x 105 mm)

price on requestdatasheet

Dragonfly Aerospace

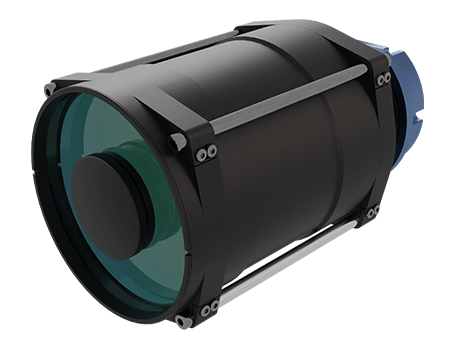

Komodo

Komodo is a compact 12U high-performance Earth observation camera offering multispectral data for diverse uses, supporting both push-broom and RGB snapshot modes.

Spatial resolution (GSD) at 500 km	1.5 m
Swath at 500 km	6.1 km
Mass (incl. electronics)	12 kg
Spectral bands	Standard RGB
Physical size	200 mm x 200 mm x 340 mm

price on requestdatasheet

Dragonfly Aerospace

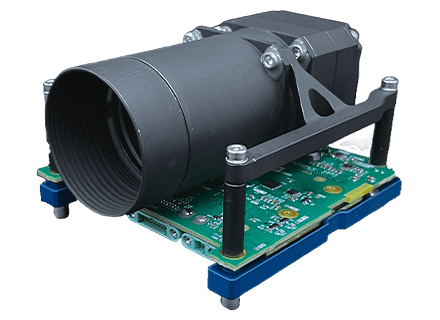

Mantis

The Mantis imager provides advanced multispectral or hyperspectral imaging capabilities for CubeSats, featuring integrated high-speed data storage.

Spatial resolution (GSD) at 500 km	16 m
Swath at 500 km	32 km
Mass (incl. electronics)	<0.5 kg
Spectral bands	Standard RGB
Imager type	Snap shot

price on requestdatasheet

Dragonfly Aerospace

Raptor

The Raptor is an advanced satellite camera system offering industry-leading panchromatic image resolution and targeted spectral data for mapping, analysis, and surveillance applica

Spatial resolution (GSD) at 500 km pan	0.5m
Spatial resolution (GSD) at 500 km ms	2m
Swath at 500 km	8 km
Mass (Including electronics)	≈ 60 kg
Spectral bands	6x MS plus 2x PAN

price on requestdatasheet

US developer of Very Low Earth Orbit (VLEO) 'Stingray' satellites delivering 15cm-resolution imagery.

EOI Space (Earth Observant)

Hyperspectral Earth Observation Satellite

EOI Space's (Earth Observant) hyperspectral LEO satellites providing hundreds of spectral bands for precision agriculture, mineral prospecting, and environmental monitoring.

Technology	Hyperspectral imaging (200+ bands, ~5 nm resolution)
Spectral range	VNIR (400–1,000 nm) + SWIR (1,000–2,500 nm)
Applications	Crop disease detection, mineral prospecting, methane plumes, soil classification
Competitors	Satellogic, Planet Hyperspectral, NASA DESIS (ISS payload)
HQ	USA (Earth Observant Inc.)

price on request

French scientific imaging company developing ultra-sensitive cameras for astronomy, space, and life science applications.

First Light Imaging

C-RED 2 ER Extended SWIR Camera

Extended SWIR camera on 640x512 ER-InGaAs detectors with sensitivity shifted to 1.9 um or 2.2 um, 600 fps full frame.

Full sensitivity range (QE > 10%)	1100-1900 nm (1.9 um model) / 1300-2150 nm (2.2 um model)
Quantum efficiency > 70%	1150-1800 nm (1.9 um model) / 1380-2050 nm (2.2 um model)
Sensor size	640 x 512 pixels ER-InGaAs
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps

price on requestdatasheet

First Light Imaging

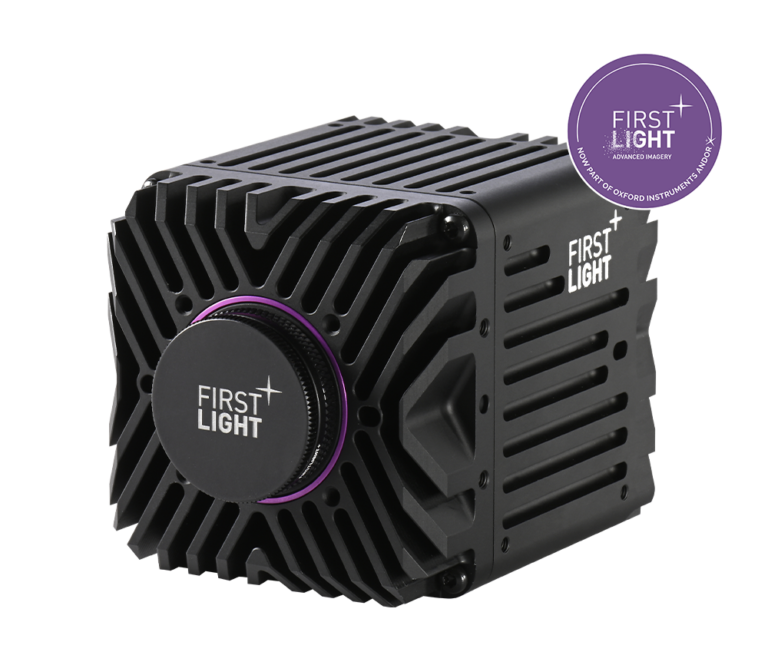

C-RED 2 Lite SWIR Camera

Compact fanless TEC-stabilized SWIR camera running 600 fps with under 30 electrons readout noise, optionally water-cooled.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C

price on requestdatasheet

First Light Imaging

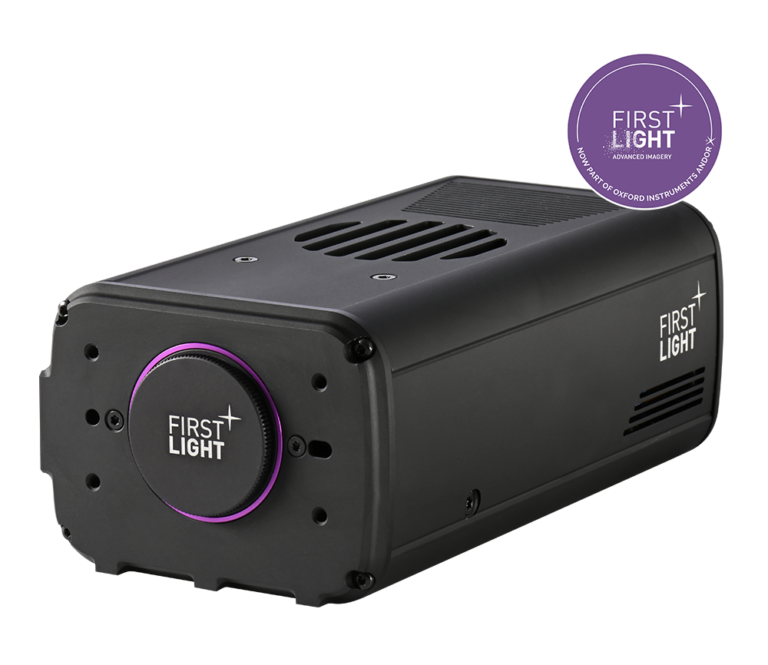

C-RED 2 SWIR Camera

High speed low noise SWIR camera running 600 fps full frame with readout noise under 30 electrons and dark current under 600 e/p/s.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame

price on requestdatasheet

First Light Imaging

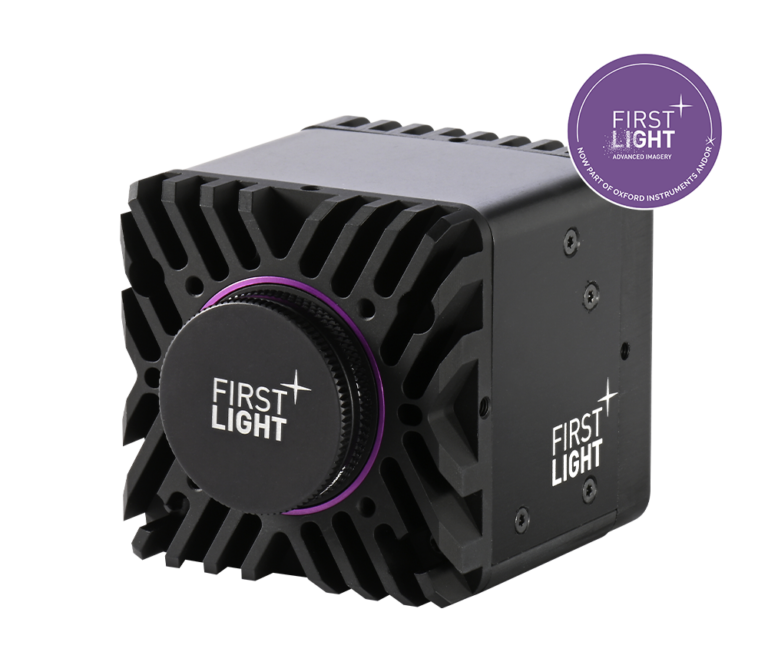

C-RED 3 SWIR Camera

Very compact high-speed uncooled VGA SWIR camera for short exposure times, with patented adaptive bias and OEM core version.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 40 e- at high gain, Tint 50 us, 600 fps full frame

price on requestdatasheet

First Light Imaging

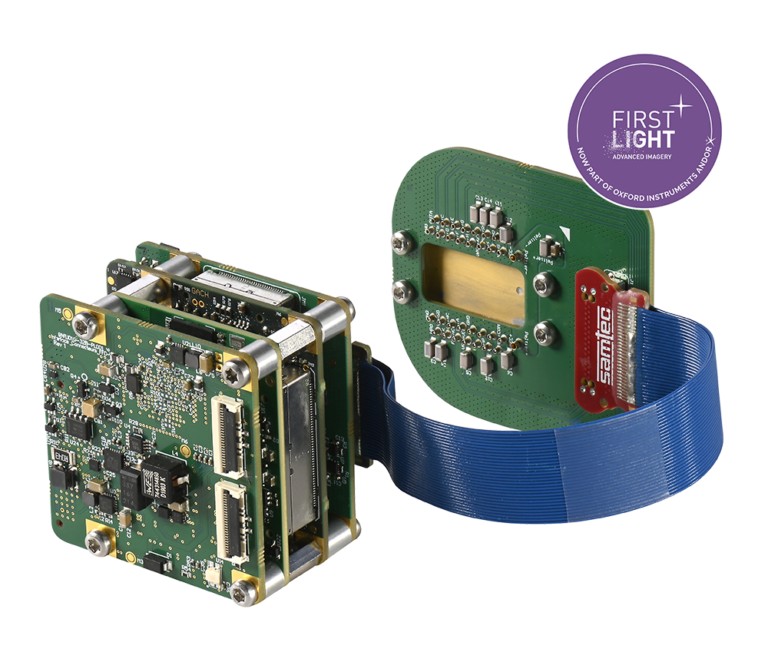

C-RED New Space SWIR Camera Core

SWIR camera core on a space-approved 640x512 InGaAs sensor for satellite optical payloads, 600 fps full frame and up to 32066 fps windowed.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels (0.3 Mp), InGaAs
Pixel pitch	15 micrometres
Quantization	14 bit
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C

price on requestdatasheet

First Light Imaging

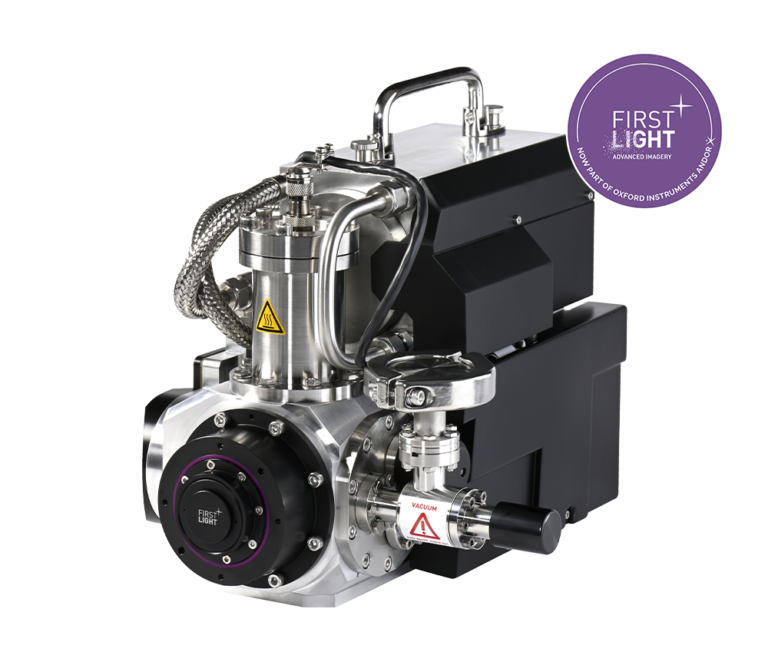

C-RED One SWIR Camera

Ultra high-speed photon counting SWIR camera with 320x256 MCT e-APD array, sub-electron readout noise and up to 3500 fps full frame.

Spectral range	SWIR 0.80 - 2.43 micrometres (J, H, K bands)
Sensor	320 x 256 pixels MCT e-APD array
Pixel pitch	24 micrometres
Maximum speed full frame single readout	3500 fps
Readout noise	< 1 e- at 1720 fps CDS readout, gain x50, black body at 80 K

price on requestdatasheet

GalaxEye Space is an Indian Earth observation company, spun out of IIT Madras, developing OptoSAR — a satellite payload that fuses SAR and multispectral optical imagery from a single co-located sensor to eliminate parallax and time-gap erro

GomSpace is a Danish CubeSat manufacturer producing satellite platforms, subsystems, and end-to-end mission solutions. Products include the NanoCom radio modules, NanoPower EPS, and complete 1U–12U satellite platforms. GomSpace has one of t

GomSpace

NanoCam C1U

The NanoCam C1U is a flexible and modular camera system designed for Earth Observation Projects, offering rapid implementation of tailored imaging systems based on customer require

Sensor	3-megapixel color CMOS
Resolution	2048 x 1536 pixels
Spectral Transmission	400-750 nm
On-board RAM	512 MB DDR2
Image Storage	2 GB solid state

price on requestdatasheet

Hanwha Systems is South Korea's premier defense electronics company and the only Korean firm capable of developing EO/IR and SAR satellite payloads, providing space capabilities from reconnaissance satellite payloads and small SAR constella

Hanwha Systems

KOMPSAT 3A IR Sensor

The KOMPSAT 3A IR Sensor is a world-class infrared sensor payload developed by Hanwha Systems for the KOMPSAT 3A satellite, providing day/night imaging capabilities.

price on request

Chinese commercial Earth observation company operating a multi-spectral and hyperspectral constellation for global change detection and land use monitoring.

HEAD Aerospace

SuperView-1 (GaoJing-1) EO Imagery

0.5 m panchromatic / 2 m multispectral commercial EO imagery from 4-satellite constellation — 12 km swath, 11-bit, 2-day revisit, stereo, multi-strip acquisition, HEAD distributes

Panchromatic GSD	0.5 m
Multispectral GSD	2.0 m
Spectral bands	PAN 450–890 nm; Blue, Green, Red, NIR
Radiometric resolution	11 bit
Swath width	12 km

price on request

HEO delivers non-Earth imaging (NEI) at scale, providing high-volume imagery and insights on satellites and other objects in orbit using a global sensor network and proprietary tasking software.

HEO Robotics

Adler Mk2 Non-Earth Imaging Camera

HEO's larger-aperture flight-proven non-Earth imaging payload, offering higher resolution for hosted-payload NEI missions.

Resolution (GSD @ 100 km)	22 cm
Volume	580 x 230 mm
Mass	8.5 kg
Max power	7.0 W

price on request

HEO Robotics

Holmes Mk2 Non-Earth Imaging Camera

HEO's most compact flight-proven non-Earth imaging payload, designed to operate as a hosted payload with negligible impact on a host satellite's primary mission.

Resolution (GSD @ 100 km)	34 cm
Volume	320 x 140 x 148 mm
Mass	3.8 kg
Max power	7.0 W

price on request

Beijing satellite constellation company partnered with Blue Arrow Aerospace; develops communications, remote sensing, and science satellites plus in-house Jinwu propulsion, Chiyu power, and Baize electronics subsystems.

Hongqing Technology (鸿擎科技)

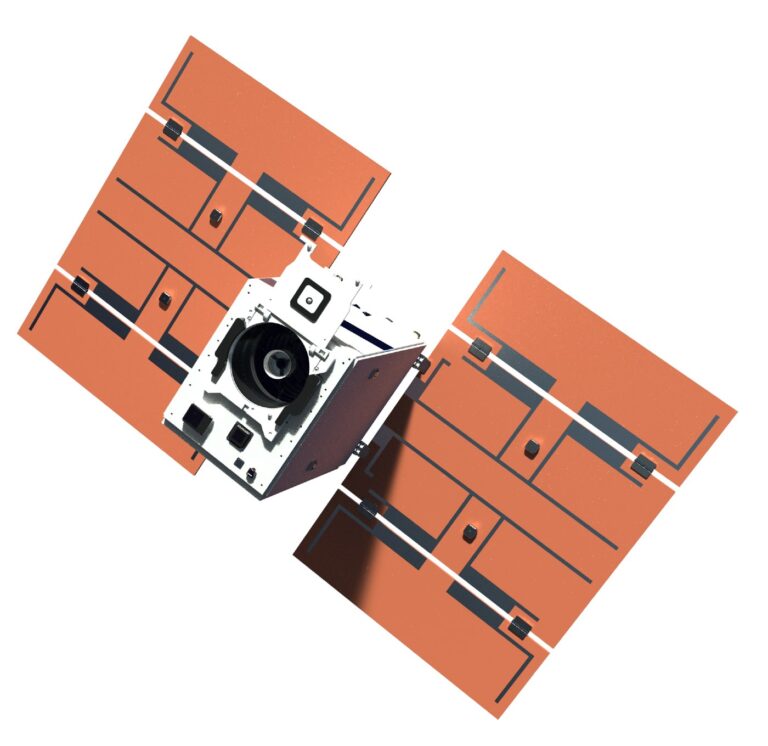

Next-Generation Intelligent Remote Sensing Satellite

Hongqing Technology next-generation intelligent remote sensing satellite represents a paradigm shift from traditional sky sensing and ground computing to sky computing and sky appl

Orbit	Low Earth Orbit (LEO)
Onboard ai computing power	>=200 TOPS @ INT8 per satellite node
Laser inter-satellite link speed	>=100 Gbps
Optical (panchromatic) resolution	0.5 m, 1 m
SAR resolution	0.5 m, 1 m

price on request

HyperSat LLC is a US-based hyperspectral satellite imaging company developing a constellation of advanced hyperspectral imaging satellites delivering persistent, global hyperspectral intelligence for commercial and government customers. The

HyperSat

HyperSat Hyperspectral Imaging Constellation

Six-satellite LEO constellation capturing Earth imagery across 500 narrow spectral bands — AI/ML-processed Metadata Hypercubes, 6m GSD, NOAA-licensed. Selected by the NRO under the

Number of satellites	6 (planned full constellation)
Orbit	Low Earth Orbit (LEO)
Spectral bands	500 narrow contiguous bands
Spectral range	Visible through SWIR; LWIR on later satellites
Ground sample distance (GSD)	~6 meters

price on request

Infinity Avionics designs and manufactures spaceflight-proven camera systems and edge processors for various in-orbit applications, with over 60 payloads in orbit.

Infinity Avionics

Leo2MP Monitor Camera with Image Streaming

Leo2MP is a spacecraft close proximity camera with up to 2MP resolution, image data streaming, and LED illumination for space applications.

Pixel resolution	1200 x 1600, 1024 x 768, 800 x 600, 640 x 480
Pixel size	2.2 µm
Spectral range	VIS
Field of view	110°
Focal length	1 mm

price on request

Infinity Avionics

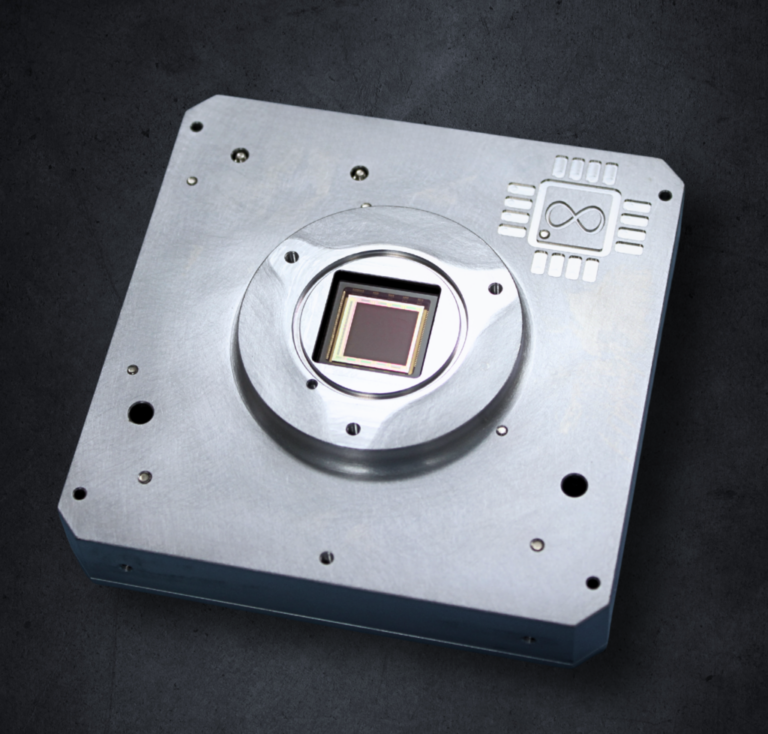

Lynx4MP

Lynx4MP is a TRL 9 modular 4MP RGB/Monochrome space camera system with precise image capture timing and on-board storage, qualified for space applications and compatible with CubeS

Image sensor	CMOS Global shutter
Pixel resolution	2048×2048 (4 MP)
Pixel size	5.5 µm
Spectral bands	RGB Bayer / Monochrome
Image encoding	RAW

price on requestdatasheet

Infinity Avionics

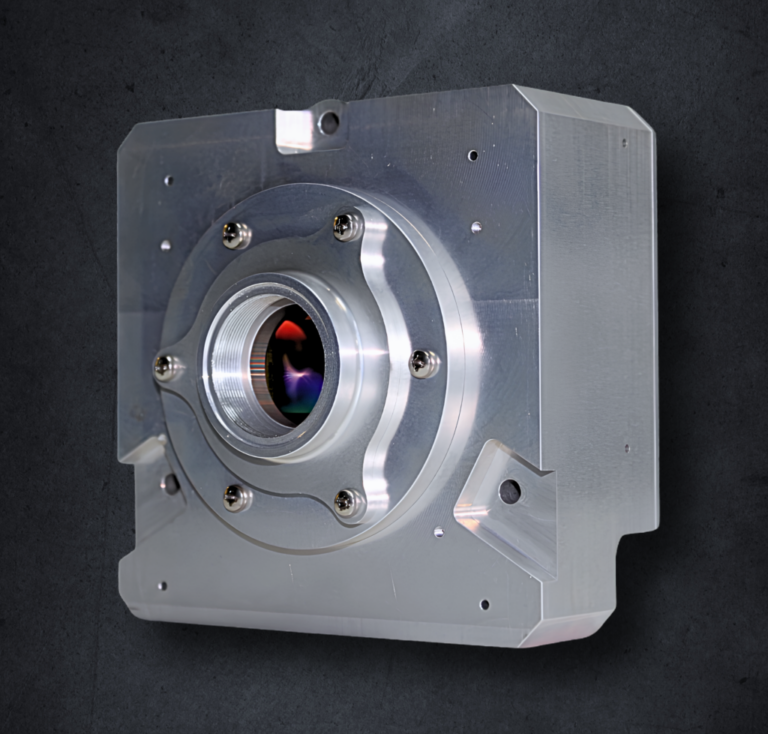

Orion12MP

The Orion12MP is a 12 Megapixel RGB/Monochrome camera backend electronics unit designed for various space applications, featuring a global shutter and up to 100 FPS capture to elim

Image sensor	CMOS Global shutter
Pixel resolution	4096×3072 (12 MP)
Pixel size	5.5 µm
Spectral bands	RGB / Monochrome
Image encoding	RAW

price on requestdatasheet

Infinity Avionics

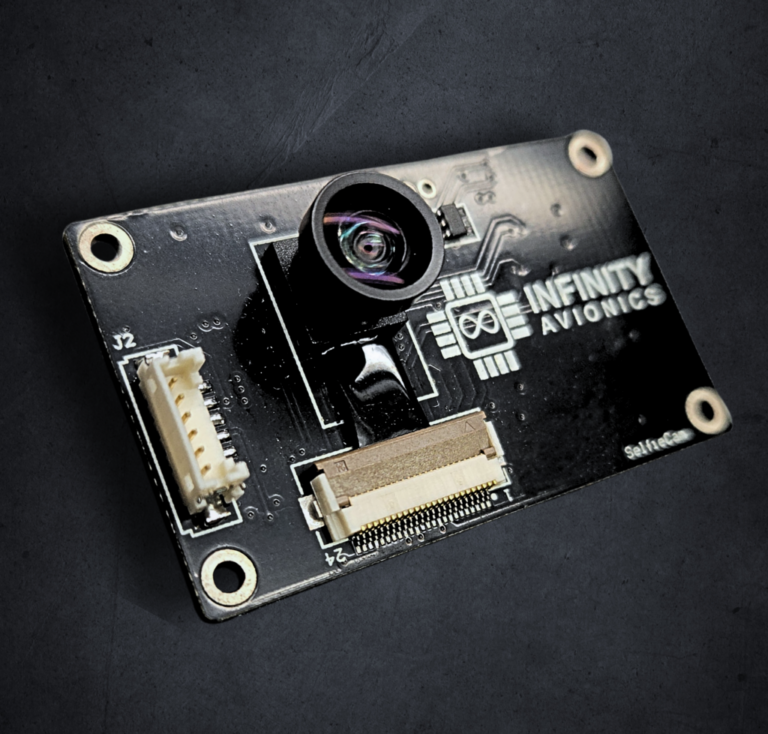

SelfieCam Video

SelfieCam is a small form factor, TRL 9 spacecraft deployment monitoring camera designed for on-orbit imaging, space situational awareness, and In-Space Manufacturing (ISM). It cap

Image sensor	CMOS RGB Rolling shutter
Pixel resolution	1024 x 768 800 x 600 640 x 480
Pixel size	2.2 µm
Spectral range	VIS
Field of view (degrees)	110°

price on requestdatasheet

ispace, inc. is a Japanese commercial lunar exploration company founded in 2010 by Takeshi Hakamada, headquartered in Tokyo, developing lunar landers and rovers to establish a sustained human presence on the Moon by enabling commercial luna

ispace

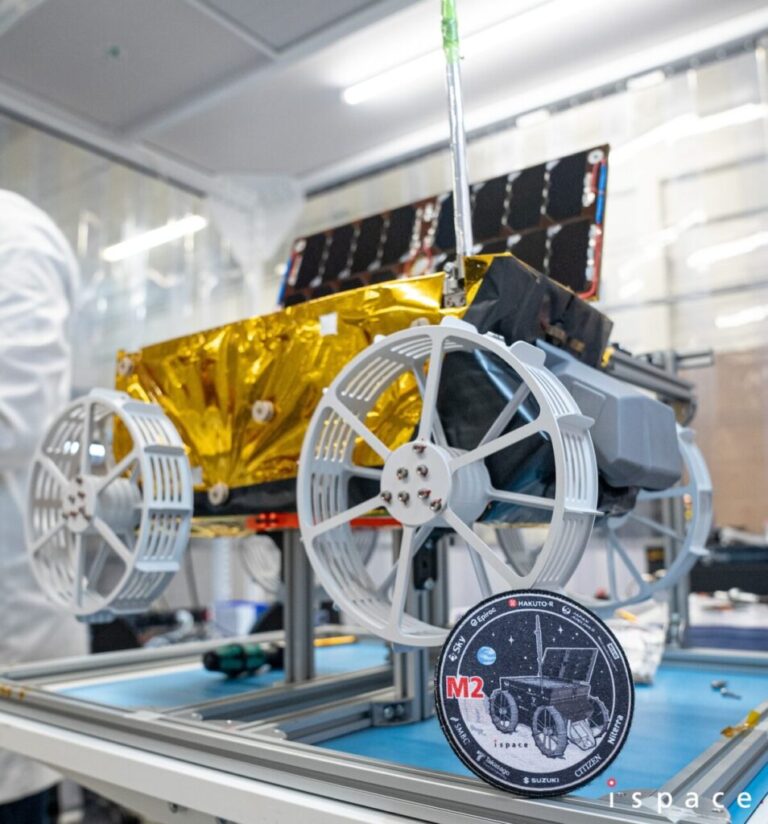

Tenacious Micro Rover

TENACIOUS is a lightweight micro rover developed by ispace-EUROPE (Luxembourg subsidiary), making it the first European-designed, manufactured, and assembled lunar rover, co-funded

Length	54 cm
Width	31.5 cm
Height	26 cm
Mass	~5 kg
Payload capacity	Up to 1 kg

price on request

South Korean nanosatellite manufacturer offering CubeSat platforms, optical imagers, star trackers, solar panels, EPS, structures, and deployers for the commercial small satellite market.

Kairo Space

KSOI-22 Optical Imager (22 mm)

22 mm focal length miniature CubeSat optical imager for visible-band earth observation.

Focal length	22 mm
Band	Visible
Application	Wide-swath earth observation, technology demonstration

price on request

Kairo Space

KSOI-22C Optical Imager (22 mm Compact)

Compact variant of the 22 mm CubeSat optical imager with reduced form factor for tighter integration envelopes.

Focal length	22 mm
Variant	Compact (reduced form factor)
Band	Visible

price on request

Kairo Space

KSOI-300 Optical Imager (300 mm)

300 mm telescope-class CubeSat optical imager for high-resolution sub-meter earth observation.

Aperture	300 mm
Class	Telescope-class high-resolution imager
Band	Visible
Application	High-resolution earth observation, precision monitoring
Datasheet	Available

price on requestdatasheet

Kairo Space

KSOI-90 Optical Imager (90 mm)

90 mm aperture CubeSat optical imager providing high-resolution visible-band earth observation imagery.

Aperture	90 mm
Band	Visible
Compatible platform	6U CubeSat and larger
Datasheet	Available
GSD	5 m PAN @600 km

price on requestdatasheet

Kairo Space

KSOI-VA Optical Imager

Visible-band optical imager for CubeSat earth observation missions.

Band	Visible (RGB)
Compatible platform	3U CubeSat and larger

price on request

L3Harris Technologies designs and manufactures advanced tracking satellites for national security and space-based capabilities.

L3Harris Technologies

L3Harris Space Instruments and EO Sensors

L3Harris's space-grade electro-optical sensors, focal plane arrays, GOES weather imager (ABI), and advanced space surveillance cameras for government and commercial satellites.

Key products	Electro-optical/IR FPAs, ABI weather imager, space surveillance cameras, star trackers
Goes abi	16-band multispectral weather imager on GOES-16/17/18 (NOAA)
Defense programs	SBIRS missile warning FPAs, NGA reconnaissance sensors, Space Force systems
Navigation	Inertial navigation systems for spacecraft
Formed	2019 (L3 Technologies + Harris Corporation merger)

price on request

German developer of compact, high-resolution optical instruments and multispectral cameras for Earth observation nanosatellites and small satellites.

Marble Imaging

Marble Imaging Satellite (Constellation Spacecraft)

Marble Imaging is developing a scalable constellation of very-high-resolution imaging satellites intended to provide daily global coverage. The first satellite targets a product re

Product resolution (first satellite, VIS/NIR)	Up to 0.7 m
SWIR band resolution (first satellite)	Targeted 6 m
Constellation target resolution	0.5 m
Satellite mass class	~150 kg
Planned constellation size	20 satellites by end of 2028, up to 200 long-term

price on request

Materion designs and manufactures advanced materials, including specialty alloys, chemicals, metals, beryllium composites, and optical coatings, for various industries including aerospace and defense.

materion

Beryllium Mirror Substrates for Space Telescopes

Materion Corporation (formerly Brush Engineered Materials) is the world’s leading producer of beryllium and beryllium-based precision materials and components for aerospace a

price on request

Microgic Electronics designs and builds sophisticated cameras for multiple industries, including space, with flight-proven products for spacecraft and satellites.

Microgic

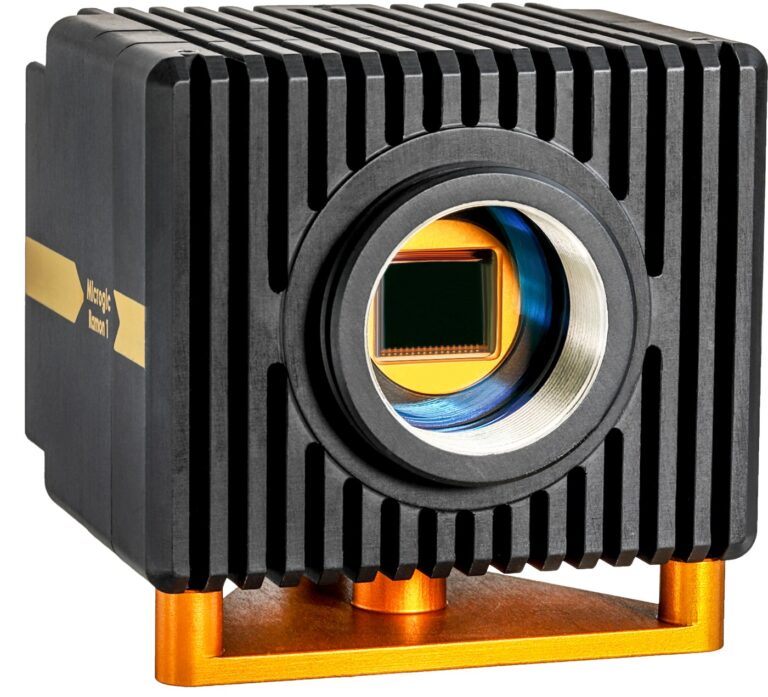

Space-Qualified Camera Systems

Sophisticated cameras for space and aerospace applications by Microgic Electronics.

Type	Custom camera systems and imaging electronics
Applications	Space, aerospace, medical, agriculture

price on request

Chinese commercial satellite manufacturer building Earth observation, communications, and remote sensing satellites, plus payloads, components, and ground terminal systems.

MinoSpace

0.5m panchromatic(PAN) & 2m multispectral(MS) Camera

This Earth observation camera provides 0.5m panchromatic and 2m multispectral imagery with a swath over 12km, featuring high SNR and an integrated design for various remote sensing

Panchromatic resolution	0.5m
Multispectral resolution	2m
Swath	over 12 km
Panchromatic SNR	≥40 dB
Multispectral SNR	≥43.5 dB

price on request

MinoSpace

0.9m panchromatic(PAN) & 3.6m multispectral(MS) camera

This is a high-resolution Earth observation imaging system with panchromatic and multispectral capabilities, featuring a 14.4km swath width and over 40dB SNR.

Panchromatic resolution	0.9m
Multispectral resolution	3.6m
Swath width	over 14.4 km
Signal-to-noise ratio (SNR)	above 40 dB

price on request

MinoSpace

1U visible light camera

A compact, lightweight, and low-power 1U visible light camera designed for microsatellites and nanosatellites, capable of capturing color images or video with 10m ground resolution

Ground resolution

10 m

price on request

MinoSpace

2m panchromatic(PAN) & 8m multispectral(MS) camera

A 2m panchromatic and 8m multispectral camera launched into orbit on the MN30-1 satellite platform, designed for comprehensive remote sensing imagery.

Launch date	April 27, 2021
Satellite platform	MN30-1
Panchromatic resolution	2m
Multispectral resolution	8m
Mass	approximately 2.67 kg

price on request

MinoSpace

5m panchromatic(PAN) & 8-Band multispectral(MS) camera

A 5m panchromatic and 8-band multispectral camera launched aboard the Wenchang-01/02 satellites for high-resolution Earth observation.

Panchromatic resolution	5m
Multispectral bands	8-Band
Launch date	February 27, 2022
Launch vehicle/satellite	Wenchang-01/02 satellites (primary payload of Wenchang-1)
Mass	approximately 6.5 kg

price on request

Muon Space is the Mission Foundry, designing, building, and operating high-performance satellite constellations for defense, civil, and commercial customers.

Muon Space

FireSat

Purpose-built wildfire detection satellite constellation with a six-channel multispectral infrared payload, developed with Earth Fire Alliance.

Spacecraft platform	Condor-M
Payload	Six-channel multispectral infrared imager
Minimum detectable fire size	5 x 5 meters
Revisit (initial 3-satellite operational constellation)	At least twice daily across fire-prone regions
Revisit target (2029)	Hourly global revisit

price on request

Muon Space

Multispectral Infrared (MSIR) Data

Broad-area thermal intelligence across six channels, delivering thermal and environmental intelligence from our Quickbeam instrument.

Channels	Red, NIR, SWIR, MWIR1, MWIR1a, LWIR
Swath Scans	1,500 km
Protoflight Satellite Launch	March 2025
Initial Operational Capability (IOC)	2026 (twice-daily revisit)
Full Operational Capability (FOC)	2030 (hourly global revisit)

price on request

MVP Aerospace manufactures KissCAMs for universities, commercial satellite manufacturers, and research institutions, with over 50 units supplied.

MVP Aerospace

ContextCAM — HD Real-Time Ethernet Video Camera

HD 1280x720 30 FPS real-time Ethernet video camera for space — RTSP/H.264 streaming over 100BASE-T for in-orbit inspection, docking, and AI vision applications. From £3,600.

Resolution	HD, 1280 × 720 pixels
Frame rate	30 FPS
Network interface	100BASE-T Ethernet
Streaming protocol	RTSP over UDP
Video encoding	H.264 (adjustable quality)

$3 600datasheet

MVP Aerospace

KissCAM V1.0 — Entry-Level CubeSat Camera

The simplest space camera for 1U CubeSats with limited downlink bandwidth — 480x360 colour, 10g, RS422 UART, delivers a full image in a single UHF ground station pass. Flight herit

Resolution	Colour, 480 × 360 pixels
Mass	10 g
Dimensions	38 × 20 × 17 mm
Lens	Stock wide-angle (included)
Interface	115200 baud UART (RS422)

$800datasheet

MVP Aerospace

KissCAM V2.0

Miniature space engineering camera for CubeSats used to monitor the state of deployables or take publicity photos, with flight heritage on multiple commercial missions.

Image sensor	Colour/Mono, 1280 x 960 pixels
Mass	10 g
Dimensions	38 x 20 x 17 mm
Lens options	M12 lens and optical filter options
Interface	115200 bd UART interface (RS422/RS485)

from £1 600datasheet

Thai CubeSat subsystems manufacturer and satellite solutions provider.

NBSpace

Camera Processing Module

Image-processing module in NBSPACE's Camera System line, supporting customizable spectral imaging (visible, infrared, multispectral) for small satellites.

Product family	Camera System
Spectral capability	Customizable — visible, infrared, and multispectral imaging
Design goal	Reliable operation in the space environment with minimal power consumption

price on request

OHB System AG is one of Europe's leading space system providers, developing small and medium-sized satellites for Earth observation, navigation, telecommunications, science and exploration.

OHB System AG

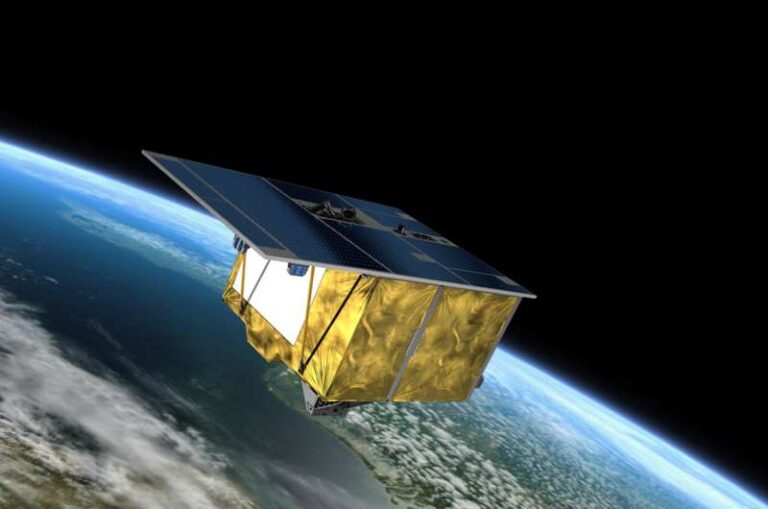

EnMAP Hyperspectral Imager (HSI)

Pushbroom hyperspectral imaging instrument covering 420–2450 nm in 228 spectral bands at 30 m GSD, built for ESA/DLR's EnMAP global environmental monitoring satellite.

Spectral range	420–2450 nm (VNIR + SWIR combined)
Spectral bands	228 bands (VNIR ~5 nm sampling; SWIR ~10 nm sampling)
Ground sample distance	30 m
Swath width	30 km
Orbit altitude	~650 km sun-synchronous

price on request

Indian space-tech company building a constellation of SAR and AIS satellites for persistent maritime surveillance.

US Earth observation company in San Francisco; 200+ Dove/SkySat/Pelican satellites; daily global coverage from 3.7m to 50cm; Planet Platform analytics for agriculture, defence, and finance.

Planet Labs PBC

Commercial Satellite Imagery with Planet

Unlock unparalleled insights with Planet’s commercial satellite imagery, utilizing real-time data to drive innovation and make informed decisions.

price on request

Northern Ireland camera manufacturer supplying CCD, CMOS, and SWIR imaging sensors and cameras with space heritage for LEO CubeSat missions.

Raptor Photonics

Eagle 47-10 Space Camera

Deep-cooled back-illuminated 1MP CCD space camera with 7-year vacuum guarantee and >90% QE at 525 nm for LEO CubeSat optical payloads.

Sensor	Back-illuminated 1 MP CCD (Teledyne e2v)
Pixel size	13 µm x 13 µm
Peak qe	>90% @ 525 nm; 50% @ 380 nm and 720 nm
Cooling	Deep-cooled to -90°C (liquid-assisted) or -80°C (air only)
Vacuum guarantee	7 years

price on request

Raptor Photonics

Hawk 1920

The Hawk 1920 is a ruggedized camera based on Sony's Pregius sensor, offering high sensitivity and QE up to 75% for demanding applications including space, airborne, and surveillan

Resolution	1944 x 1472
Pixel pitch	4.5μm
Technology	CMOS
Spectral range	0.3μm to 1.1μm
Qe	up to 75%

price on requestdatasheet

Raptor Photonics

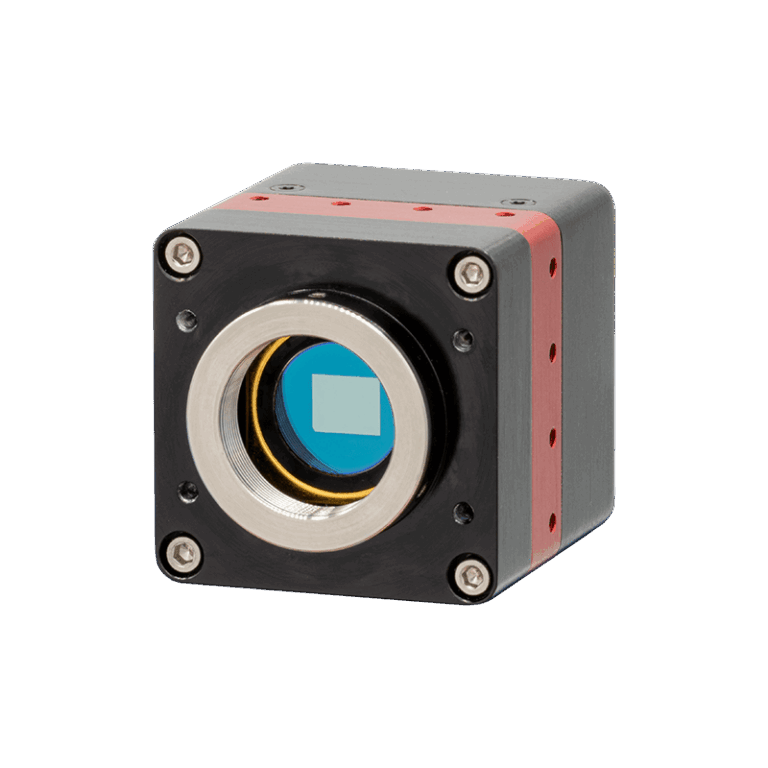

OwL 1280

High-sensitivity 1280 x 1024 InGaAs SWIR camera (0.6–1.7µm) with Camera Link output, 10–60Hz frame rate, and an OEM HD-SDI variant, for surveillance and scientific imaging.

Sensor	1280 x 1024 InGaAs
Spectral range	0.6 µm to 1.7 µm
Pixel pitch	10 µm x 10 µm
Readout noise	<28 electrons (rms)
Intra-scene dynamic range	51 dB

price on requestdatasheet

Raptor Photonics

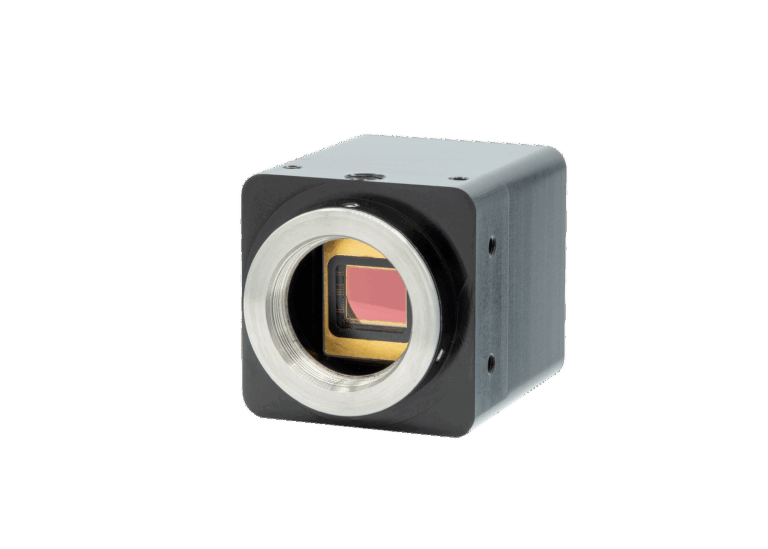

Owl 640 M

TEC-less, low-power (<2.5W) variant of the Owl 640 SWIR camera, designed for compact OEM and machine vision integration.

Detector	InGaAs (VIS-SWIR)
Resolution	640 × 512 pixels
Pixel pitch	15 µm
Spectral range	600–1700 nm
Dynamic range	72 dB intrascene

price on requestdatasheet

Raptor Photonics

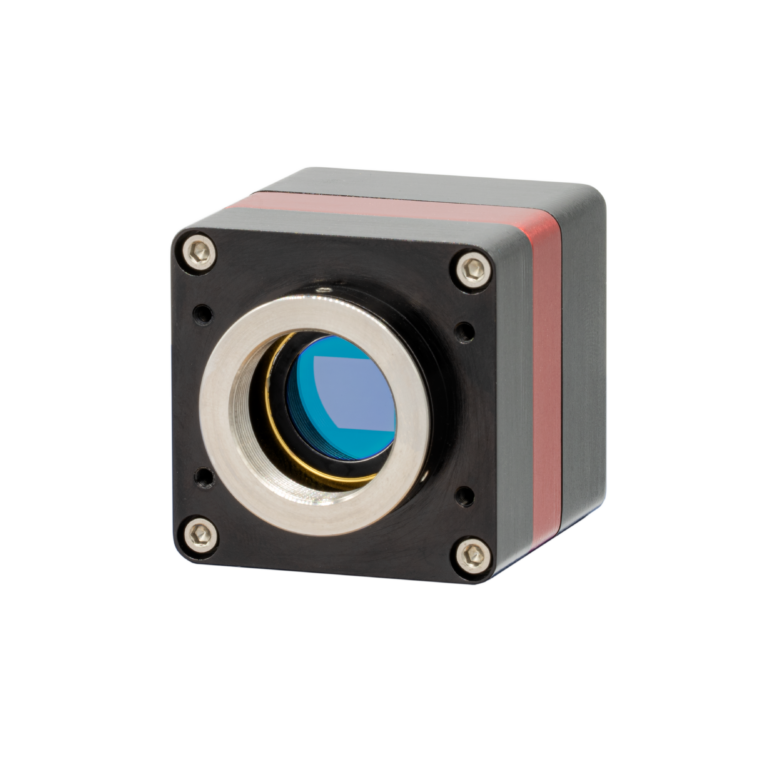

Owl 640 T

The Owl 640 T is a SWaP-optimised ½" VGA InGaAs SWIR camera with 10µm pixel pitch, low readout noise and on-board AGC/NUC, designed for OEM integration into electro-optic systems.

Sensor format	½" / VGA InGaAs
Pixel pitch	10 µm x 10 µm
Spectral response	0.6 µm to 1.7 µm
Readout noise	<50 Electrons
Intra-scene dynamic range	69 dB

price on requestdatasheet

Raptor Photonics

Raptor Photonics Space Camera Solutions

Raptor Photonics offers flight-ready COTS and custom OEM camera solutions for LEO CubeSat missions, covering UV to SWIR wavelengths. These cameras are SWaP optimized, athermalized,

Space heritage	Cameras flying in optical payloads on several live LEO CubeSat missions
Operational duration (LEO)	Over 36 months (some cameras)
Altitude (LEO)	160 to 2,000 kilometers
Speed (LEO)	Approximately 17,000 mph
Wavelength range	UV (180 nm) to SWIR (1700 nm)

price on request

Raptor Photonics

RCMOS Space Camera

Space-qualified CMOS camera for LEO CubeSat integration, combining compact form factor with high sensitivity across 0.3–1.1 µm.

Sensor type	CMOS, global shutter, progressive scan
Spectral range	0.3–1.1 µm (visible + NIR)
Variants	Mono and colour
Form factor	Compact and rugged for CubeSat integration
Space heritage	Operational on LEO CubeSat missions

price on request

Redwire is an integrated aerospace and defense company that designs and manufactures advanced technologies for space and defense, including optical imaging, sun sensors, solar arrays, and spacecraft p

Redwire Corporation

Redwire SpectraCAM High Resolution Flight Camera

GigE Vision LEO flight camera for docking, navigation, inspection, and situational awareness, with 5MP CMOS sensor.

Dimensions (boresight config)	50 x 50 x 47 mm
Mass	<180 g without optics
Power	5 VDC @ 400 mA (full resolution, 10 fps)
Operating temperature	-30C to +55C (mounting plate)
Shutter type	Rolling global reset

price on requestdatasheet

SARsatX designs, manufactures, integrates, and operates advanced Earth Observation satellites with SAR and optical sensors, providing actionable intelligence for various sectors, primarily in the Midd

SARsatX (CubeSat Arabia)

SSX-1 Airborne SAR Payload

Fully-polarimetric X-band airborne SAR demonstrator payload used by SARsatX to validate SAR use cases and refine satellite system design ahead of orbital deployment.

Sensor type	Fully-polarimetric Synthetic Aperture Radar (SAR)
Frequency band	X-band
Slant range resolution	1.5 m
Bandwidth	100 MHz
Peak transmit power	20 W

price on request

Satellogic designs and manufactures Earth Observation satellites, providing high-resolution imagery and geospatial data to agencies, operators, and integrators.

Satellogic

Multispectral Imagery

Satellogic offers affordable, high-frequency, and high-resolution multispectral imagery with low latency access for mission-critical applications.

Resolution	Up to 50cm super resolution
Frequency	Multiple daily revisits
Archive Orders Price	$4 per km²
Archive Orders Delivery Time	1 hr (if available), 12 hrs (if processing required)
Standard Area Coverage Price	$8 per km²

price on requestdatasheet

Spanish Earth observation company developing high and very high-resolution optical payloads (iSIM family) for smallsats and microsatellites, offering end-to-end imaging solutions from space camera to data delivery.

Satlantis

GRAPHIUM Very High Resolution Telescope

50 cm/pixel VHR optical telescope for small satellites with video capability — custom-designed, COTS radiation-tolerant components, advanced manufacturing, unprecedented mass-to-re

Ground resolution	50 cm/pixel
Modes	Imaging and video
Components	COTS radiation-tolerant (LEO)
Design approach	Custom designed for small satellites, first principles
Spectral capability	Panchromatic and multispectral

price on request

Satlantis

iSIM-90 Optical Payload

Lightest and most compact iSIM optical payload for 12U/16U CubeSats — simultaneous VNIR and SWIR imaging, high performance-to-mass ratio. Flight proven.

Platform compatibility	12U / 16U CubeSat
Spectral range	VNIR and/or SWIR (simultaneous)
Technology	iSIM (proprietary, flight proven)
Key characteristic	Lightest and most compact in iSIM family
Design philosophy	High performance-to-mass ratio

price on request

Polish nanosatellite manufacturer and Earth observation company recognized by ESA as a 'Space Tech Rising Star', building CubeSat platforms, subsystems, ground stations, and hosted-payload missions.

Satrev (SatRevolution)

VISION 300 Optical Payload

Space-proven multispectral optical payload for nanosatellites providing 5.8m GSD imagery at 500km altitude across blue, green, and red spectral bands.

Ground sample distance (GSD)	5.8 m @ 500 km altitude
Blue band	450 nm center, 110 nm FWHM
Green band	537 nm center, 125 nm FWHM
Red band	622 nm center, ~100 nm FWHM
Focal length	300 mm

price on requestdatasheet

Poland's first commercial supplier of optical space instruments (Wroclaw), building satellite cameras, telescopes, and in-orbit vision systems, with cameras flown on the Ariane 6 maiden flight.

Scanway S.A.

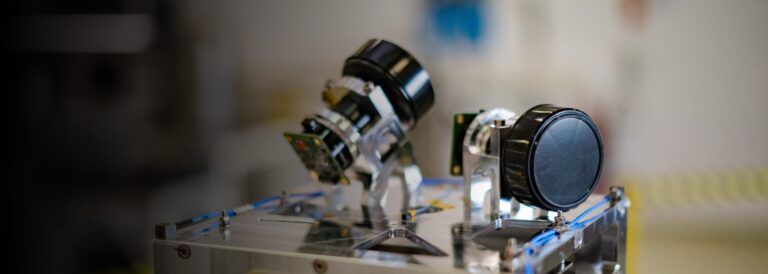

Scanway Camera System (SCS)

The Scanway Camera System (SCS) is a series of vision systems for space applications, providing imaging data for spacecraft monitoring, in-space operations, and docking missions. I

Type	CHARACTERISTICS
Applications	Satellite missions that demand precision, durability, and uncompromising image quality.
Cameras in space	0
Years of experience in the field	0
Missions with our cameras	0

price on request

Scanway S.A.

Scanway Optical Payload (SOP)

The Scanway Optical Payload (SOP) is a product line of satellite cameras for nano- and microsatellites, designed for Earth observation and remote sensing applications, offering var

GSD	<1 to 25 m/pixel
Spectrum	RGB/PAN/NIR/SWIR and multispectral
Cameras in space	0
Years of experience in the field	0
Missions with our cameras	0

price on request

UK space technology company operating the world's first satellite video and Earth observation streaming platform, delivering near-real-time 4K video of Earth from orbit.

South African manufacturer of optical Earth observation payloads (TriScape, MultiScape, HyperScape) for CubeSats and small satellites, with corporate HQ in Leuven, Belgium.

Simera Sense

HyperScape100

The HyperScape100 is a hyperspectral imaging system designed for CubeSats, offering unprecedented imaging capabilities with 32 bands and a 4.75m GSD at 500km.

GSD at 500 km	4.75 m
Swath	19.4 km
Bands	32-Bands From 400 Bands
Form factor	1.5U
Spectral range	460–860

price on request

Simera Sense

HyperScape50

The HyperScape50 is a compact 1U hyperspectral imaging system designed for Earth Observation, capable of capturing spectral content across 32 bands from 460–860 nm.

Focal length	93.9 mm
Aperture	11.75 mm
Full field of view	13.68° (across-track)
Configuration	Pushbroom
Sensor technology	CMOS global shutter

price on request

Simera Sense

MultiScape100

The MultiScape100 is a compact Earth Observation camera designed for small satellites, featuring 8 spectral bands in the VNIR range, high spatial resolution, and digital TDI capabi

Focal length	580 mm
Aperture	95 mm
Full field of view	2.22° (across-track)
Configuration	Pushbroom
Sensor technology	CMOS global shutter

price on request

Simera Sense

MultiScape50

The MultiScape50 is an Earth Observation camera designed to capture multispectral imagery in 8 bands, providing daily insights into environmental changes.

GSD at 500 km	30 m
Swath at 500 km	120 km
Bands	8-Bands In the VNIR range
Volume	1U
Pixels	4096 pixels Across track

price on request

Simera Sense

TriScape100

The TriScape100 is a compact Earth Observation camera designed for rapid and reliable situational and change monitoring from space, offering both snapshot and video modes.

GSD at 500 km	4.75 m
Swath	19.4 km
Resolution	12.6 MP
Form factor	1.5U
Spectral range	450–670 nm

price on request

Simera Sense

TriScape50

The TriScape50 is an Earth Observation camera designed for CubeSats, offering real-time HD video capabilities and covering large areas of Earth quickly.

GSD at 500 km	30 m
Swath at 500 km	120 km
Hd resolution (MPixel)	12.6 MP
Volume	1U
Video	1080p30

price on request

Czech manufacturer (Prague) of Space-Friendly CubeSat and PocketQube subsystems: GNSS/AIS/ADS-B antennas, BusCORE radio terminals, ADCS sensors, and dosimeters, in continuous orbital operation since 2017.

SkyFox Labs s.r.o.

piCAM/FM (Flight Model)

The piCAM/FM is a space-friendly digital CubeSat camera designed to capture images of celestial bodies, docking satellites, or deployable structures, offering easy integration and

Resolution	VGA
Data Output	JPEG in ASCII HEX format
Connector	6 pin Molex
Serial Bitrate	1k2 to 921k6 selectable (115k2 Default)
Image Capture Time	Within 5 seconds

price on request

SLIMOp Space is a Spanish deep-tech startup developing super-lightweight, low-cost, rapid-delivery high-resolution orbital telescopes and imagers for small and nanosatellites, enabling scalable Earth observation constellation deployment.

Beijing Smart Satellite Space Technology Co., Ltd. is a Chinese commercial satellite company and IAF member, specializing in X-band SAR satellites and miniaturized SAR payloads, developing a constellation for millimeter-level deformation mo

Smart Satellite Technology

MiniSAR Airborne Synthetic Aperture Radar System

Lightweight, plug-and-play airborne synthetic aperture radar (SAR) payload for multirotor and VTOL fixed-wing drones and manned aircraft, available in Ku/X/C/L band variants.

Frequency band	Ku / X / C (L-band variant also offered)
Center frequency (Ku)	14.6 GHz
Center frequency (X)	9.6 GHz
Center frequency	5.3 GHz C
Radar type (Ku)	FMCW / pulsed

price on request

French world leader in star trackers (Hydra, Auriga, Horus), space cameras, and neutron technology, an ArianeGroup subsidiary delivering attitude sensors to hundreds of satellites worldwide.

Sodern

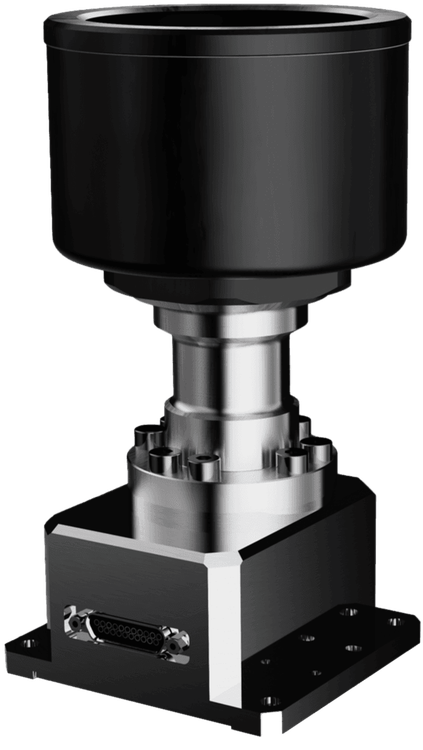

Auricam™

Auricam™ is a compact, off-the-shelf space camera designed for a wide range of missions including space surveillance, in-orbit services, monitoring, and navigation, offering optima

FOV	35 deg diagonal (25 deg square)
Resolution	4 MPx
Sensor	CMOS (B&W or color)
Dimensions	80 x 80 x 140 mm
Mass	420 g

price on requestdatasheet

Space Inventor ApS is a Danish second-generation NewSpace company providing non-ITAR CubeSat, nanosat, and microsat components, platforms, and turnkey satellite missions with full vertical integration, headquartered in Aalborg with offices

Space Inventor ApS

Astro Observatory Microsatellite

Microsatellite configured as an astro observatory with a 300 mm aperture telescope suitable for a range of cameras.

Msrp	From €2,000,000
Telescope aperture	300 mm
Mission focus	Astro observatory - imaging, spectroscopy, stellar classification

$2 000 000

Space x View is a space and metaverse startup that merges satellite remote sensing, metaverse development, and blockchain technology to create next-generation spatial domain services.

Chinese commercial smallsat manufacturer building low-cost cubesats and smallsats, SAR and optical Earth-observation satellites, and shared satellite platforms for hosted payloads.

Spacety

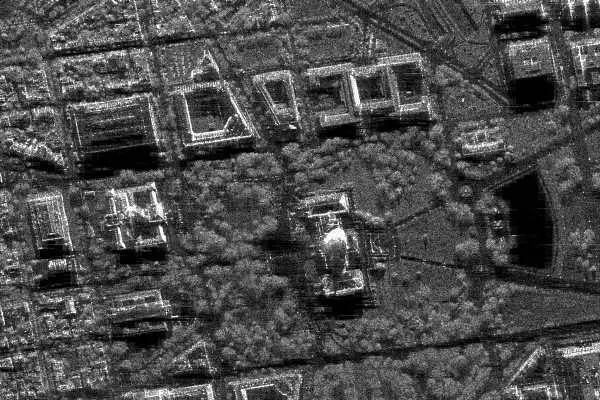

Chaohu-1 SAR Satellite

Second-generation commercial C-band SAR satellite, launched February 2022, with improved resolution, swath, downlink, and onboard AI data processing.

SAR band	C-band
Generation	2nd-generation Spacety commercial SAR satellite (after Hisea-1)
Data delivery time	Within 6 hours of acquisition (emergency imaging)
Onboard processing	AI-based in-orbit data processing
Additional capabilities	Continuous multi-target imaging, precise orbit determination

price on request

Spacety

Hisea-1 SAR Satellite

World's first commercial C-band smallsat SAR satellite with a phased-array antenna, a 185 kg flat-panel foldable design achieving 1 m resolution.

Mass	185 kg
Stowed thickness	7.5 cm (flat-panel foldable design)
SAR band	C-band
Antenna	Active phased-array antenna
Spotlight mode resolution	1 m

price on request

Spacety

TY35 (NCHU-1) Multispectral Ecological Monitoring Satellite

Intelligent multispectral ecological-environment monitoring satellite with an off-axis three-mirror camera and high-QE CMOS detector.

Optical system	Off-axis three-mirror optical system
Detector	High-quantum-efficiency, low-noise CMOS detector
Lead institution	Nanchang Hangkong University
Applications	Water pollution detection, water quality analysis, algal bloom monitoring, soil and vegeta
Launch vehicle	Zhuque-2A (ZQ-2A), Dongfeng Commercial Aerospace Innovation Test Zone

price on request

Spacety

TY42 (Shenqi-2) C-band SAR Satellite

Next-generation lightweight, low-cost C-band SAR satellite with operational InSAR capability for millimeter-level surface deformation monitoring.

SAR band	C-band
Special capability	Operational InSAR (interferometric SAR) for millimeter-level deformation monitoring
Constellation revisit cycle	3-4 days (with Shenqi-1 and Fucheng-1)
Co-developer	Zhangye Constellation Space Technology Co., Ltd.
Launch vehicle	Zhuque-2A (ZQ-2A), Dongfeng Commercial Aerospace Innovation Test Zone

price on request

Beijing-based provider of Earth observation satellite data and geospatial services, operator of the SuperView/SuperView Neo constellation.

SpaceWill (formerly Beijing Space View Technology)

GaoJing / SuperView Commercial EO Imagery

SpaceWill (Beijing Space View Technology)'s GaoJing / SuperView high-resolution optical satellite imagery — 0.5 m resolution available commercially for mapping, urban planning, and

Resolution	0.5 m PAN, 2 m multispectral (4 bands)
Constellation	GaoJing-1 (4 sats, 2016–2019), GaoJing-2 (2023+)
Lead time	Hours from tasking (archive) or next pass (new collect)
Competitors	Airbus Pléiades, Maxar WorldView, Planet SkySat
HQ	Beijing, China (international imagery sales)

price on request

SSTL designs, builds, tests, and operates small satellites, pioneering the use of COTS components and having launched approximately 70 satellites for 22 countries.

SSTL (Surrey Satellite Technology)

DarkCarb

High resolution mid-wave infrared (MWIR) imaging satellite for day and night Earth observation.

GSD	4 m
Swath	4 km
Spectral bands	MWIR (3.7-4.95 µm)
Throughput	~30 GB (SSTL GSN)
Reference orbit	500 km SSO with 10:30 LTAN

price on requestdatasheet

SSTL (Surrey Satellite Technology)

Precision

Very high resolution optical Earth observation satellite for mapping, surveillance and security applications.

GSD	Native 0.6 m PAN at reference orbit; 0.3 m effective pixel sampling (4 half-pixel shifted
Swath	9.7 km at reference orbit
Spectral bands	PAN 450-700 nm; 6 multispectral bands 420-900 nm, up to 4 simultaneous
Throughput	Typically 60,000 km2/day in strip-capture mode (~70 min downlink/day)
Imaging modes	Strip, Single Spot, Area, Along-Track Stereo, Across-Track Stereo

price on requestdatasheet

US manufacturer of optical measurement instruments, hyperspectral imaging systems, and thermal control coatings, founded 1977 in San Diego by former Apollo-program aerospace engineers.

Surface Optics Corporation

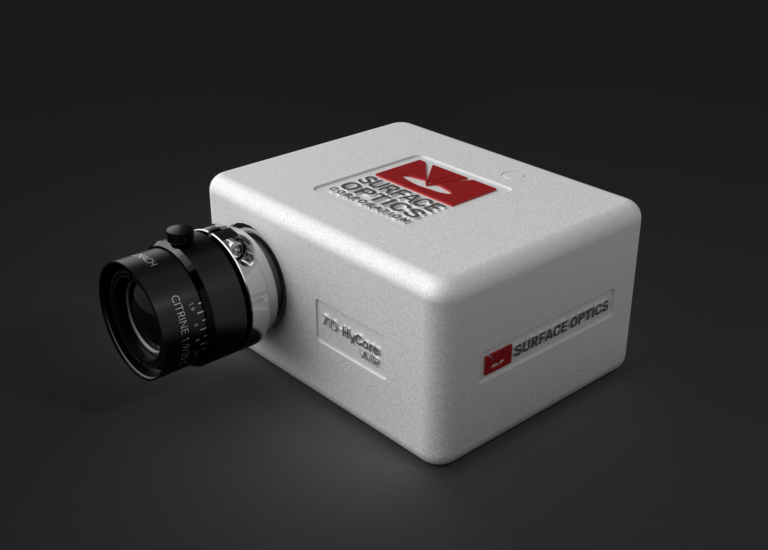

710 Series Hyperspectral Cameras (HyCore / OmniCore VNIR)

The 710-HyCore VNIR is a compact camera built around a proprietary spectrograph with co-engineered optics and sensor, for integrators or use with the 710 Lab Tower. The 710-OmniCor

Spectral range	375-1025 nm
Spectral channels	784
Spectral resolution (FWHM)	1.65 nm
Spatial channels	1500
Sensor type	CMOS

price on requestdatasheet

Surface Optics Corporation

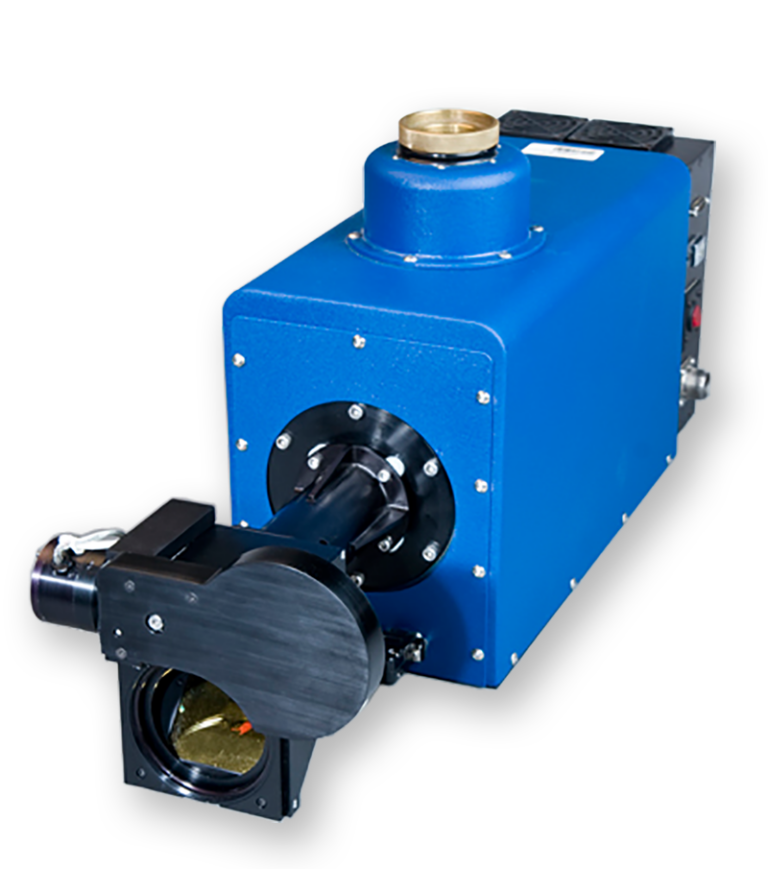

SOC-750 Midwave Infrared Hyperspectral Imager

The SOC-750 is a real-time, military-grade MWIR hyperspectral imaging system combining a high-speed, high-sensitivity MWIR array with an imaging spectrometer for dynamic scene appl

Spectral range	2-5 μm
Cube acquisition/processing rate	11 cubes per second
Cube dimensions	256 x 240 pixels x 42 bands
Bit resolution	14-bit
Configurations	Two configurations available, differing in focal plane, spectral resolution, spatial resol

price on requestdatasheet

Surface Optics Corporation

SOC-760 VNIR-SWIR Hyperspectral Imager

Portable dual-band (VNIR/SWIR) hyperspectral imager, 0.4-2.5 micron, 650 co-registered bands.

Spectral regions	VNIR/SWIR
Range	400-2500 nm
Spectral resolution	VNIR 2.5 nm / SWIR 5 nm
Bands	650
Spatial resolution	640 px vertical, up to 2048 px horizontal

price on requestdatasheet

The world's first incubator dedicated exclusively to the Moon, backed by CNES, supporting entrepreneurs developing solutions for sustainable human presence on the lunar surface.

UK-based developer of radiation-hardened CCDs, processors, ADCs, and memory devices for space applications. Products have decades of flight heritage on ESA, NASA, and commercial satellite missions.

Teledyne e2v

Teledyne e2v Space Imaging Detectors — CCDs and HgCdTe Infrared Sensors for Astronomy

Teledyne Technologies is a US industrial conglomerate whose Teledyne e2v and Teledyne Scientific & Imaging divisions supply precision imaging detectors for space telescopes and

Image Area	92.2 × 92.4 mm
Active Pixels	9216(H) x 9232(V)
Number of output amplifiers	16
Package size	98.5 x 93.7 mm
Focal plane height, above base	20.0 mm

price on requestdatasheet

Canadian space company: Argus infrared spectrometers for nanosatellites, ground stations and deep-space network services.

Thoth Technology

Aurora SWIR Line-Scan Camera

Compact short-wave infrared (SWIR) line-scan camera kit built on Thoth's Argus electronics platform, available in Lab, Space, UAV and Extended-Range grades.

Sensor	InGaAs with integrated optics
Dimensions	46 x 50 x 80 mm
Mass	less than 280 g
Interface	15 mm aperture, 0.15 deg field of view
Operating temperature	Peltier-effect cooled detector

price on requestdatasheet

US femtosatellite access-to-space provider; hosted-payload ThumbSat modules from about $20,000 with launches via CAS Space, supported by the citizen-science ThumbNet ground-station network.

ThumbSat

ThumbSat

Femtosatellite-class hosted-payload module (~48x48x15-32mm, up to 25g) that flies student, research or artistic experiments to low Earth orbit as a shared-bus mission starting at a

Payload envelope	48 x 48 x (15-32) mm
Payload mass	up to 25 g
Camera	CMOS, active array 2048(H) x 1536(V) pixels; optional microscope, macro or telescope lens
Onboard memory	128 MB or 512 MB flash
Transmitter	100 mW, 400 MHz band

from $20 000datasheet

Trans Astronautica Corporation (TransAstra) is a deep space technology company pioneering in-space logistics and asteroid mining. Founded in 2017 and backed by NASA, DARPA, AFRL, Space Force, and Y Combinator, TransAstra develops capabiliti

TransAstra

Sutter TKO™ (Turnkey Observatory)

The Sutter TKO (Turnkey Observatory) is a modular, rapidly deployable sky survey system for space domain awareness in MEO, GEO, and beyond. Designed to outperform every commercial

price on request

US visual intelligence company in Irvine, CA; satellite imaging payloads and mission control software for proximity operations, SDA, and space object characterisation.

TRL11

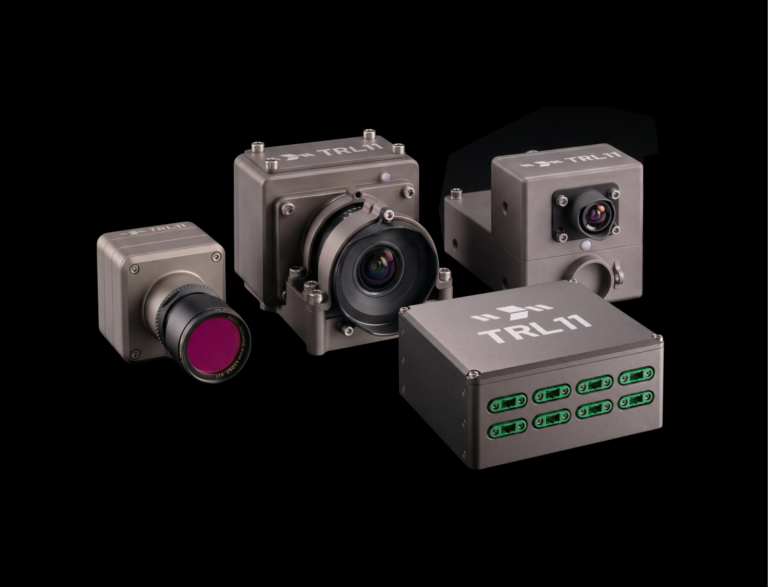

TRL11 Technology Suite (xClops, Modular Payloads, HANS, Fovea, VIPOnly, VIPLink, VIP1ST, BMC3)

TRL11 offers a comprehensive suite of space-qualified technologies for machine vision, data processing, and communication, including AI-enabled payloads, networking hardware, camer

Xclops payloads - cameras	2-4 full-motion 4k video cameras
Xclops payloads - processor	Advanced AI-enabled edge processor
Xclops payloads - rating	GEO rated
Xclops payloads - flight heritage	Proven on orbit for object tracking, and autonomous rendezvous
Xclops payloads - object characterization range	20–50 km

price on request

Italian space imaging and avionics company in Pozzuoli; cameras, focal plane arrays, image compression, OBCs, C&DH systems, power management, and ground segment equipment.

Tsd-space

SMC – Spacecraft Monitoring Camera

The HERA Spacecraft Monitoring Camera (SMC) is a compact, high-performance CMOS camera designed for deep space applications, featuring a 4MP image sensor, real-time image processin

Dimensions	~1U
Mass (including optical system)	900 g
Image sensor	4 MP CMOS
Selectable roi	1600x1600px and 1600x1200px
Frame rate	Up to 10 fps

price on request

Tsd-space

SMC — Spacecraft Monitoring Camera

Very compact deep-space CMOS monitoring camera developed for ESA's HERA mission.

Mass	~900 g including optical system
Volume	~1U
Image sensor	4 MP, selectable ROI 1600x1600px or 1600x1200px
Frame rate	up to 10 fps
Spectral range	400–750 nm (visible), B/W and RGB versions

price on request

Wyvern provides commercial hyperspectral imaging from satellites for various industries, offering high-resolution data for environmental and resource management.

Wyvern

Dragonette Hyperspectral Satellite

Wyvern's Dragonette hyperspectral imaging CubeSats providing 420–1000 nm spectral data for precision agriculture, forestry, water quality, and minerals mapping.

Spectral range	420–1000 nm (VIS + NIR)
Spectral bands	100+ contiguous bands (hyperspectral)
Spatial resolution	1.5 m
Form factor	CubeSat (Dragonette series)
Applications	Precision agriculture, forestry, water quality, mineral exploration

price on request

XCAM designs space-qualified CubeSat cameras, scientific X-ray detectors, in-vacuum cameras, and particle fallout monitors for space and scientific research applications.

XCAM

C3D CubeSat Camera

Space-qualified modular CubeSat imaging system supporting up to three CMOS sensors with TRL 9 flight heritage since 2014.

Spatial resolution (at 650 km)	360 m GSD
Image sensor	1.3 MP CMOS, 5/4 aspect ratio, RGB or B&W
Pixel size	5.3 um
Sensor resolution	1280 x 1024 pixels
Standard lens	9.6 mm F/3.0 COTS

price on request

XCAM

NuSCIS Space Camera

Compact multi-sensor SmallSat/CubeSat imaging payload with CAN-Bus and SpaceWire interfaces, supporting CMOS, CCD, and EMCCD detectors.

Dimensions	9.5 x 9.1 x 2.7 cm
Format	PC104 1/4U
Mass	From 100 g
Peak power consumption	4 W
Power interface	5 V

price on requestdatasheet

Chinese Academy of Sciences research institute in Xi'an developing space optics, precision photonic instruments, and optical remote sensing payloads for China's satellite and space programs.

Xi'an Institute of Optics and Precision Mechanics (XIOPM)

Interference Spectral Imaging System

Space-grade interference spectral imagers for Earth observation and planetary science, developed by XIOPM's Spectral Imaging Technique Laboratory.

Technology	Fourier-transform interference spectral imaging
Spectral range	Visible to near-infrared (VIS-NIR)
Application	Earth observation, planetary science, environmental monitoring
Organization	Key Laboratory of Spectral Imaging Technology, Chinese Academy of Sciences
Flight heritage	Flight heritage on Chinese Earth observation satellites

price on request

Xiomas Technologies develops high-performance air- and space-borne thermal, multispectral, and hyperspectral imaging systems for wildfire mapping, remote sensing, and defense/aerospace applications.

Xiomas Technologies

Xiomas Airborne Multispectral Sensor (AMS / Daedalus Scanner)

Next-generation airborne multispectral scanner built on the legacy Daedalus hyperspectral/multispectral scanner line, acquired by Xiomas in 2023 for commercial remote-sensing use.

Product lineage	Successor to the Daedalus Airborne Hyperspectral Scanner (AHS) and Daedalus multispectral
Sensor type	Airborne multispectral scanner
Target market	Commercial remote sensing, global operation
Heritage applications	Oil-spill detection (Swedish Coast Guard), land-use and urban mapping (Consiglio Nazionale
Development status	In development as of 2023-2026, commercial launch planned

price on requestdatasheet

Xiomas Technologies

Xiomas TBIRD (Three Band IR Detector)

Compact three-band thermal-infrared sensor developed for a multi-layered constellation of CubeSats, high-altitude aircraft, and stratospheric balloons for global fire and thermal m

Sensor type	Three-band thermal-infrared (IR) detector
Platform compatibility	CubeSats, low-Earth polar and elliptical orbit small satellites
Additional deployment	High-altitude, long-endurance solar aircraft; stratospheric balloons; low-altitude aircraf
Mission concept	Multi-layered constellation for global high-precision measurement of fire intensity and ot
Development program	NASA SBIR contracts, 2018-2023 (preliminary design 2018, development contract 2019, Phase

price on requestdatasheet

Xiomas Technologies

Xiomas Wide Area Imager (WAI)

Airborne step-stare multispectral/thermal-infrared imaging system combining high spatial resolution with a wide, programmable field of view for rapid wide-area mapping.

Optical architecture	Step-Stare optical system
Spectral bands	Multi-band system, 2-5 bands
Thermal detector	2-band QWIP for mid-wave and long-wave infrared
Visible/NIR detector	3-band color infrared sensor (green, red, NIR)
Spatial resolution	300 microradian (high resolution)

price on requestdatasheet

Xiphos Technologies designs low-SWaP Zynq and Versal-based computing modules and on-board computers for SmallSats, offering 120+ years of cumulative flight heritage.

Xiphos Technologies

Q8 Optical Payload Processor

High-performance image processing daughterboard for the Q8, featuring dual Camera Link interfaces for space-based Earth observation.

Camera interfaces	1x Base Camera Link, 1x Medium Camera Link (configurable as LVDS)
Serial interfaces	RS-485 / RS-422
Network	Gigabit Ethernet
Timing	PPS input and output
Ancillary functions	Heater power control, temperature sensing

price on requestdatasheet

Space-as-a-service company providing hyperspectral Earth observation data, on-orbit edge computing, and satellite operations software via its XCRAFT satellite platform.

Xplore Inc.

Xplore Space Telescope (XST)

Family of commercial space telescopes built on the XCRAFT bus, developed with W. M. Keck Observatory.

Base platform	XCRAFT ESPA-class bus
Mission regimes	LEO, cislunar space
Science partner	W. M. Keck Observatory

price on request

ZeroG Lab (Zero Gravity Lab) develops integrated satellite systems and space-based intelligence solutions for government and enterprise customers. The company works across the full chain: satellite platforms and payloads, onboard systems, E

ZeroG Lab

Optical Cameras for Earth Observation

Ultra-sensitive imaging payloads with adaptive optics for real-time Earth monitoring.

price on request
