Communications

New Space company designing modular nanosatellite/CubeSat hardware: structures, solar panels, EPS, antennas, OBCs, and deployers/separation systems.

2NDSpace Srl

CHORUS Deployable Antenna

CHORUS deployable antennas are configurable UHF or VHF antennas for CubeSats ranging from 1U to 16U, featuring linear double-dipole or turnstile layouts and a triple-redundant depl

Frequency range	150–930 MHz
Bandwidth	20 dB
Typical vswr	< 1.3
Gain	> 0 dBi
Supply voltage	3.3 V / 5 V

price on request

2NDSpace Srl

CHORUS-01 Deployable Cubesat antenna

The CHORUS-01 is a deployable antenna system for CubeSats, available in multiple configurations to support various polarization and frequency requirements.

Polarization (LP)	Linear
Configuration (LP)	2x Dipoles
Independent Frequencies (LP)	2x
Frequency	150 - 930 MHz
Suggested for	1U-2U-3U

price on requestdatasheet

2NDSpace Srl

CHORUS-06 Deployable Cubesat antenna

The CHORUS-06 is a deployable antenna system for CubeSats, offering various configurations and polarizations for UHF or VHF bands.

Polarization (CHORUS-06-M)	Linear
Configuration (CHORUS-06-M)	2x Monopoles
Independent Frequencies (CHORUS-06-M)	2x
Frequency	150 - 930 MHz
Suggested for	6U-12U-16U

price on requestdatasheet

AAC Clyde Space provides small satellite technologies and space-based data services, offering end-to-end solutions from satellite components to data analytics for various applications.

AAC Clyde Space

AAC Clyde Space PULSAR-XTX X-Band Transmitter

Extremely compact X-Band transmitter in CubeSat Kit PC/104 form factor with data rates up to 50 Mbps, CCSDS-compliant for compatibility with COTS demodulators.

Operating temperature	-25°C to +61°C
Power consumption	< 15 W
Mass	< 130 g
Supply voltage	6.2 V - 17 V
Frequency	8.025 GHz - 8.375 GHz

price on requestdatasheet

AAC Clyde Space

AAC SpaceQuest RX-2000 S-Band Receiver

Adaptable low-power space-qualified FM S-band receiver for MicroSats and small satellites with up to 26 customer-programmable channels, 30+ years of on-orbit heritage.

Frequency	2000-2400 MHz
Data rate	9.6 to 153.6 kbps
Modulation	FM, GFSK
Sensitivity	-117 dBm @ 9600 bps, -110 dBm @ 128 kbps
Noise figure	2 dB nominal

price on requestdatasheet

AAC Clyde Space

AC-2000

The AC-2000 is a compact antenna controller unit from AAC SpaceQuest designed for S-band communication systems on small satellites and CubeSats. It manages the deployment and steer

Frequency band	S-band
Interface	RS-422 / I2C
Power consumption	~2 W
Operating temperature	-40°C to +85°C
Mass	~80 g

price on request

AAC Clyde Space

ANT-100

The ANT-100 is a high-performance, polarized S-band antenna designed for nanosatellites, offering easy system integration, small size, low profile, and rugged design.

Frequency bands	UHF (400-450 MHz), VHF (130-175 MHz)
Deployment mechanism	Burn-wire / shape-memory alloy
Interface	I2C
Power (deployment)	~1.5 W
Mass	~35 g

price on requestdatasheet

AAC Clyde Space

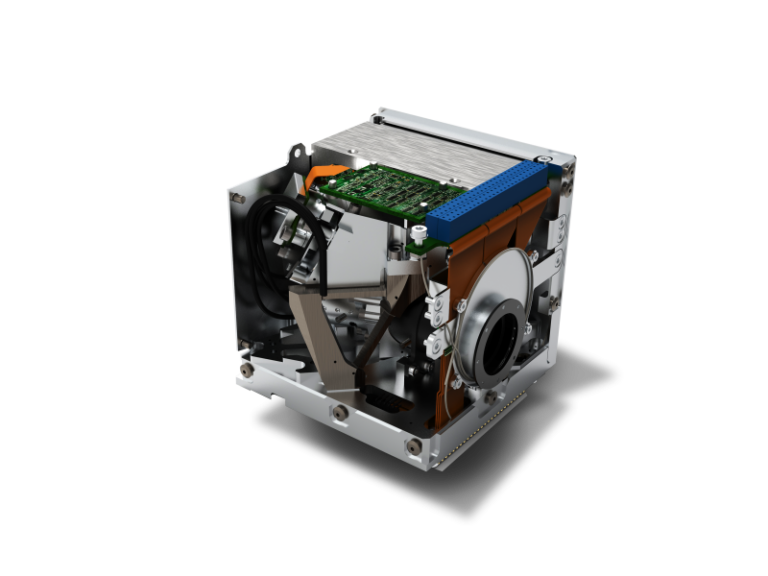

CubeCAT

The CubeCAT is a nanosatellite polarized S-band antenna designed for high performance and easy system integration, featuring a small size, low profile, rugged design, and high dire

Tx frequency	2200-2290 MHz (S-band downlink)
Rx frequency	2025-2120 MHz (S-band uplink)
Tx output power	Up to 1 W
Data rate (downlink)	Up to 4 Mbps
Modulation	BPSK, QPSK

price on requestdatasheet

AAC Clyde Space

GD200 Gigabit Detector

High-speed gigabit optical detector for small satellites enabling fast inter-satellite or satellite-to-ground optical communication links.

Data rate	Up to 1 Gbps
Detector type	Avalanche Photodiode (APD)
Wavelength range	800-1600 nm
Sensitivity	-35 dBm min
Bandwidth	>1 GHz

price on requestdatasheet

AAC Clyde Space

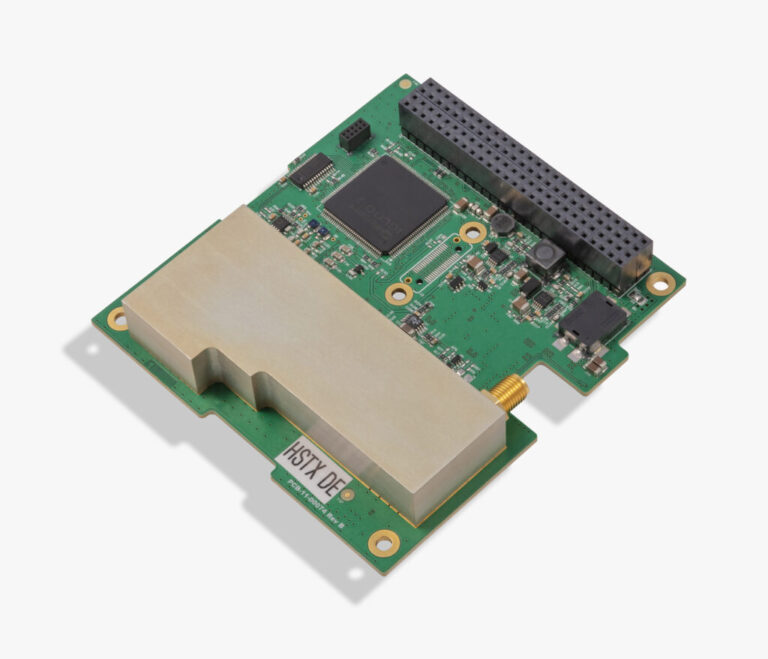

Pulsar HSTX

The Pulsar HSTX is a high-speed S-band transmitter designed for nanosatellites, offering reliable uplink and downlink capabilities for space missions.

Temperature	-25 to +61 C
Power	<5 W
Supply voltage	6 V-12V (5 V alternative)
Mass	<100 g
Tx SNR	20 dB

price on requestdatasheet

AAC Clyde Space

Pulsar STX

The Pulsar STX is an S-band transmitter designed for CubeSats and SmallSats, offering reliable uplink and downlink capabilities for space missions.

Temperature	-25 to +51 C
Power	<5 W
Supply voltage	6 V-12V (5 V alternative)
Mass	<100 g
Tx SNR	20 dB

price on requestdatasheet

AAC Clyde Space

PULSAR-SANT

The PULSAR-SANT is a high-performance, polarized S-band antenna designed for nanosatellites, offering a small size, low profile, and rugged design for easy system integration.

Frequency (SANTC)	2.2-2.3 GHz
Frequency (SANT)	2.4-2.45 GHz
Beamwidth	60 degrees
Gain	7 dBi
S11	<-15 dB

price on requestdatasheet

AAC Clyde Space

Pulsar-UTRX

The Pulsar-UTRX is a UHF/VHF transceiver designed for CubeSats and small satellites, providing reliable uplink and downlink communication.

Operating temperature	-25 to +61 C
Mass	<100 g
Supply voltage	3.3 V, 5 V
Frequency (UTRXC)	400-420 MHz
Frequency (UTRX)	430-440 MHz

price on requestdatasheet

AAC Clyde Space

Pulsar-VUTRX

The Pulsar-VUTRX is a space-qualified transceiver designed for reliable uplink and downlink communication in space missions, offering robust lower data-rate backup capabilities.

Operating temperature	-25 to +61 C
Mass	<100 g
Supply voltage	3.3 V, 5 V
VHF frequency	140-150 MHz
UHF frequency (VUTRXC)	400-420 MHz

price on requestdatasheet

AAC Clyde Space

PULSAR-XANT-PLUS

The PULSAR-XANT-PLUS is a high-performance, polarized S-band antenna designed for nanosatellites, offering high directionality and ease of integration.

Frequency range	8.025-8.45 GHz
Bandwidth (XANT)	200 MHz
Bandwidth (XANT-PLUS)	425 MHz
Gain (XANT)	7.75 dBi +/-0.5 dB
Gain (XANT-PLUS)	11.5 dBi +/-0.5 dB

price on requestdatasheet

AAC Clyde Space

QUASAR-STRX

The QUASAR-STRX is a software-defined radio (SDR) transceiver designed for small satellites and CubeSats, offering a complete plug-and-play TMTC solution.

Temperature	-25 to +60 C
Mass	270 g
Control and data interfaces	CAN, SPI, I2C
Power consumption	3.5 W receive mode
Tx frequency	2.200-2.290 GHz

price on requestdatasheet

AAC Clyde Space

QUASAR-WSANT

The Quasar-WSANT is a compact, wideband S-band antenna designed for SmallSats and CubeSats, offering full ITU-R coverage and selectable dual polarization.

Frequency band	2025-2290 MHz
Gain	>5 dBic
Axial ratio	<3 dB
Half-power beamwidth	60 degrees
Return loss	>13 dB

price on requestdatasheet

AAC Clyde Space

TRX-U

The TRX-U is a space-qualified transceiver designed for reliable uplink and downlink communication in space missions. It can also serve as a robust lower data-rate backup radio.

Tx frequency range	400-450 MHz (UHF)
Rx frequency range	130-175 MHz (VHF)
Tx output power	Up to 2 W
Rx sensitivity	<-118 dBm
Data rate	1.2 to 38.4 kbps (uplink/downlink)

price on requestdatasheet

AAC Clyde Space provides small satellite technologies and space-based data services, offering end-to-end solutions from components to data analytics.

AAC SpaceQuest (AAC Clyde Space subsidiary)

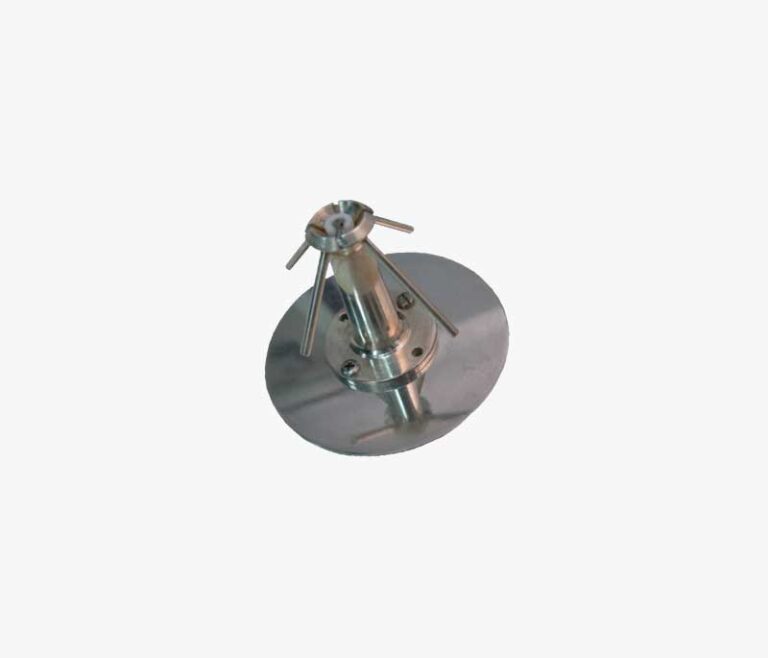

AC-2000 S-Band Polarized Antenna

High-performance, low-profile polarized S-band nanosatellite antenna with high directionality for CubeSat and SmallSat TT&C and payload communications.

Frequency band	S-band
Polarization	Circular (RHCP/LHCP)
Design	Low-profile, high directionality
Target platform	Nanosatellite, CubeSat
Applications	TT&C, payload downlink

price on request

AAC SpaceQuest (AAC Clyde Space subsidiary)

ANT-100 VHF/UHF Whip Antenna

Tunable VHF/UHF static whip antenna for CubeSats and SmallSats. Space-qualified, easy to assemble and mount, covering VHF, UHF, and S-band frequencies.

Frequency bands	VHF, UHF, S-band
Type	Static whip antenna, tunable
Target platform	CubeSat, SmallSat
Deployment	Static (no deployment mechanism)
Applications	TT&C uplink/downlink

price on request

AAC SpaceQuest (AAC Clyde Space subsidiary)

TRX-U UHF Satellite Transceiver

Compact, high-performance UHF transceiver for CubeSat and SmallSat missions requiring low data-rate uplink and downlink TT&C communications.

Frequency band	UHF
Type	Transceiver (TX + RX)
Data rate	Low data-rate (uplink and downlink)
Applications	TT&C — Telemetry, Tracking, and Command
Target platform	CubeSat, SmallSat

price on request

Japanese aerospace electronics manufacturer specializing in wireless communication systems for micro, nano, and CubeSat satellite platforms, producing S-band, X-band, and UHF telemetry transmitters.

ADDNICS Corporation

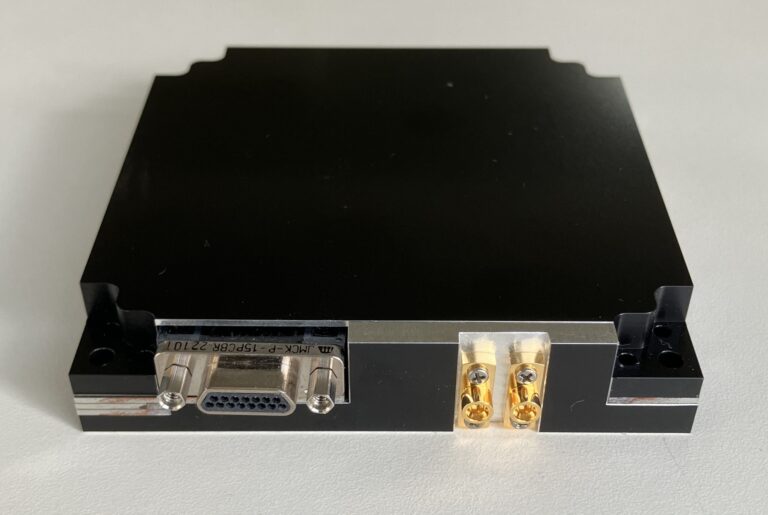

A88 Series S-Band Receiver (A88 SRX)

Compact S-band uplink receiver for small satellite TT&C, 80x80x16 mm, 140 g max, covering -130 to -40 dBm input range with PCM-PSK-PM demodulation.

Frequency band	S-band (customer-specified at order)
Modulation	PCM-PSK-PM
Data rate	1 kbps or 4 kbps (selectable)
Input level range	-40 to -130 dBm
Receive sensitivity	-122 dBm at 1 kbps, BER=1e-4

price on request

ADDNICS Corporation

A88 Series S-Band Telemetry Transmitter (STX)

S-band telemetry transmitter for micro/nano/CubeSat platforms with on-orbit heritage on RISING-2, HODOYOSHI, DIWATA-1/2.

Frequency	2250–2300 MHz (S-band)
RF output power	0.5 W
Modulation	BPSK
Data rate	Up to 2 Mbps
Dimensions	80 x 80 x 15 mm

price on request

ADDNICS Corporation

A88 Series X-Band Telemetry Transmitter (XTX)

X-band high-data-rate telemetry transmitter for small satellite mission data downlink, with DVB-S2 and transponder variants.

Frequency band	X-band (~8–9 GHz)
Variants	XTX (standard), XTX DVB-S2, X-TRP (transponder)
Mission heritage	Procyon deep-space (2014), DIWATA-1 (2016), DIWATA-2 (2018)

price on request

ADDNICS Corporation

UHF-Band Telemetry Transmitter (UHF Com)

Compact UHF-band transmitter for 1U CubeSats providing telemetry downlink in the 430–440 MHz band.

Frequency	430–440 MHz (adjustable)
RF output power	0.8 W
Modulation	GMSK, AFSK
Data rate (GMSK)	9.6 kbps
Data rate (AFSK)	1.2 kbps

price on request

ADDNICS Corporation

X-Band TT&C Transponder (X-TRP)

Full-duplex X-band TT&C transponder combining uplink command reception and downlink telemetry transmission in a single 80x80 mm A88-series unit with approx. 1 W RF output.

Frequency band	X-band (customer-specified at order)
Uplink/downlink ratio	880/749
Modulation	PCM-PSK-PM
Uplink subcarrier	16 kHz
Downlink subcarrier	8.192 kHz

price on request

ADDNICS Corporation

XTX-DVBS2

The XTX-DVBS2 is an X-band transmitter designed for satellite operations, featuring DVB-S2 and CCSDS encoding with a transmission output of up to 0.4W.

Dimensions	80mmx80mmx49.5 mm
Mass	Under 500 g
Transmit power	~0.4 W
Transmit frequency	Single specified X-band frequency (fixed at order)
Channel coding standard	CCSDS、DVB-S2

price on request

Addvalue designs and manufactures satellite-based communication and digital broadband products and solutions for connectivity across various applications, including space.

Addvalue Technologies

ADRS1000 Software Defined Radio Module

Ultra-high performance reconfigurable SDR module on Xilinx Zynq UltraScale+ RFSoC — ARM Cortex-A53 — for accelerating 5G and complex wireless system development.

Platform	Xilinx Zynq UltraScale+ RFSoC
Processor	Arm Cortex-A53
Type	Software Defined Radio (SDR)
Target markets	5G, complex wireless systems

price on request

Addvalue Technologies

IDRS i100 Inter-Satellite Data Relay Terminal

1 kg compact full-duplex LEO satellite transceiver providing always-on IP connectivity via Inmarsat/Viasat I-4 at up to 200 kbps — for sub-50 kg satellites, 5-year orbit design lif

Dimensions	125 × 96 × 70 mm
Mass	1 kg
Data rate	Up to 200 kbps
Power (RX only)	8 W
Operating temperature	-25°C to +55°C

price on request

Designer and manufacturer of rugged, high-performance embedded computing solutions for aerospace, defense, and space applications.

Aitech Systems

S-A6640 Space SFF Managed Ethernet Switch/Router

The space industry's first standalone small form factor managed Ethernet switch/router with 12 ports of 10/100/1000 Base-T connectivity, D38999 mil-spec connectors, and IP54 sealin

Ports	12 × 10/100/1000 Base-T copper
Forwarding	Full wire-speed non-blocking
Features	ACL, QoS scheduling, port mirroring, jumbo frames (10 kB), fast boot
Connectors	D38999 I/O and power connectors
Environmental sealing	IP54

price on request

Aitech Systems

S703 Radiation Tolerant MIL-STD-1553 PMC Card

A radiation-tolerant single-width PMC card providing one dual-redundant MIL-STD-1553B channel (BC/RT/MT, STANAG 3838) with 64k × 16-bit shared RAM in engineering units, consuming l

Protocol	MIL-STD-1553B (STANAG 3838 compliant)
Channels	1 dual-redundant BC/RT/MT
Shared ram	16k × 16 (flight); 64k × 16 (engineering)
Power consumption	< 3.3 W nominal
Pci interface	32-bit PCI 2.1, 33 MHz

price on request

Aitech Systems

S710 Radiation Tolerant Communications PMC

A radiation-tolerant single-wide PMC card featuring IEEE-1394a FireWire (3 ports at 400 Mbps) and 12 RS-422 serial channels with triple-voted memory protection and FPGA-based inter

Firewire ports	3 × 400 Mbps IEEE-1394a with OHCI controller
RS-422 input channels	12
RS-422 output channels	12
Serial i/o modes	NRZ-L, NRZ-M, BiPhase-L configurable
Memory protection	Triple-voted algorithm for I/O buffers

price on request

Aitech Systems

S730 Radiation Tolerant SpaceWire PMC

A radiation-tolerant PMC card providing three full-duplex SpaceWire ports compliant with ESA ECSS-E-50-12C at up to 100 MHz, with 128 MB onboard SDRAM and less than 5 W power consu

Spacewire ports	3 full-duplex, ESA ECSS-E-50-12C compliant
Clock frequency	Up to 100 MHz (selectable per port)
Pci interface	32-bit PCI 2.2, 33.333 MHz, Master/Slave
Onboard memory	128 MB volatile SDRAM
Power consumption	< 5 W (SpaceWire only)

price on request

Aitech Systems

S740 Radiation Tolerant Communications PMC

A radiation-tolerant single-width conduction-cooled PMC card providing 16 RS-422 differential input and 16 output channels with FPGA-based serial I/O control and 128 MB ECC SDRAM f

RS-422 input channels	16 differential
RS-422 output channels	16 differential
Optional i/o	Up to 64 TTL drivers/receivers
Onboard memory	128 MB ECC-protected SDRAM
Pci interface	32-bit PCI 3.0, 33.333 MHz

price on request

Aitech Systems

S910 Rugged 3U CompactPCI MIL-STD-1553B Board

A radiation-tolerant 3U CompactPCI board providing four dual-redundant MIL-STD-1553B channels (BC/RT/MT modes, STANAG 3838 compliant) consuming less than 9.8 W, qualified for LEO t

Mil-std-1553b channels	4 total (2 base + 2 via S911 mezzanine), dual redundant
Protocol modes	BC/RT/MT, STANAG 3838 compliant
Shared ram per channel	16k × 16-bit (flight unit)
Power consumption	< 9.8 W at 50% duty cycle
Pci interface	32-bit PCI 2.1, 33.333 MHz

price on request

US developer of GaN-on-Diamond satellite radios and power amplifiers delivering 3-5x higher data rates through proprietary Diamond Cooling technology.

Akash Systems

Akash Satellite Radio

A compact satellite radio from Akash Systems that uses Diamond Cooling® technology to deliver gigabit-speed data transmission with high energy efficiency and reliability for space

Downlink data rate	700 Mbps, extendable up to 1.4 Gbps
Form factor	10 cm x 10 cm x 3 cm
DC power consumption	Under 28 W
Modulation	Flexible modulation and coding scheme
Thermal management	Diamond Cooling

price on request

Akash Systems

X/S-Band High-Speed LEO Radio

X/S-Band High-Speed LEO Radio transmits data at 650 Mbps for Earth observation and sensing applications.

Data Rate	650 Mbps
Bandwidth	120 MHz
Transmit Frequency	8-8.4 GHz
Receive Frequency	2.0-2.1 GHz
Power Consumption (DC)	less than 25 W

price on request

German developer of liquid-crystal-based electronically steerable flat-panel antennas for satellite (LEO/MEO/GEO) broadband and 5G mmWave connectivity, with no moving parts.

ALCAN Systems

ALCAN’s Satellite Terminals

ALCAN is developing a technologically revolutionary, cost-effective smart antenna that is thin, flat and lightweight without the need for mechanically moving parts.

price on request

ALCAN Systems

Liquid Crystal Phased Array Technology

ALCAN's beam steering capability is implemented using a liquid crystal layer inside a phased-array, ultra-thin antenna, offering affordable and scalable solutions.

price on request

ALTER Technology provides laboratory and engineering services for high-reliability EEE components, specializing in microelectronics and optoelectronics engineering, procurement, assembly, and testing

Brazilian nanosatellite company founded 2019 in Salvador-Bahia developing a planned 216-satellite LEO constellation for environmental monitoring and climate observation.

Alén Space designs, manufactures, and operates small satellites, providing end-to-end mission development services and advanced communication platforms, subsystems, and components for space and ground

Alén Space

S-BAND TRANSCEIVER

The S-Band Transceiver is a high data rate feeder link transceiver for small satellites, based on Alén Space’s SDR technology, designed to maximize information download and shorten

Modulation	BPSK
Gross Data Rate	2 Mbps
Downlink	2200 MHz - 2290 MHz
Uplink	2025-2110 MHz
Protocol	CCSDS 131.0-B-1

price on request

Alén Space

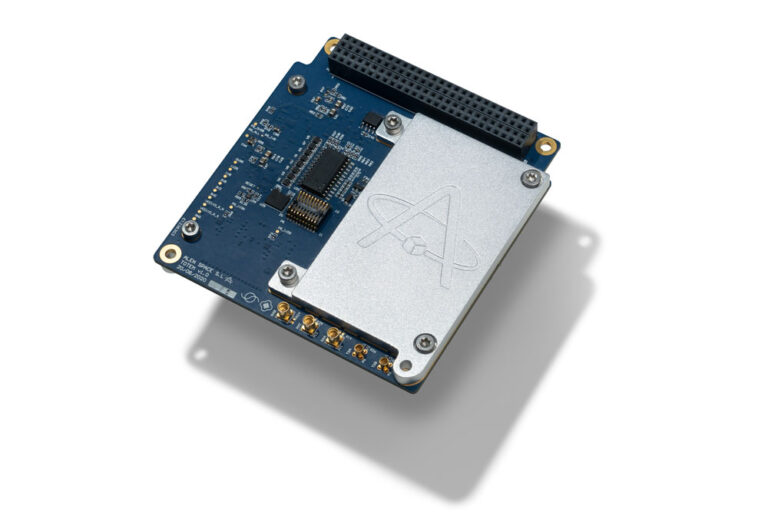

TOTEM — Software Defined Radio

Flight-proven (TRL-9) compact SDR for nanosatellites, based on Zynq 7020 SoC. Supports UHF, VHF, and S-band with GNURadio and in-orbit reconfiguration.

TRL	TRL-9 (Flight Heritage)
Processor	Zynq 7020 SoC (ARM Cortex-A9 + FPGA)
Tx channels	2
Rx channels	3
RF frontends	UHF, VHF, S-band (modular)

price on requestdatasheet

Alén Space

TOTEM nanosatellite SDR platform

TOTEM is a high-performance Software Defined Radio (SDR) platform designed for nanosatellites, featuring an embedded Linux system and a wide frequency range transceiver for various

Flight heritage	since 2018
High-performance system-on-chip (SoC)	Xilinx Zynq-7000 series
Wide frequency range RF transceiver	AD9364
Communication	Full duplex
Interface	FSI-connector based

price on requestdatasheet

Alén Space

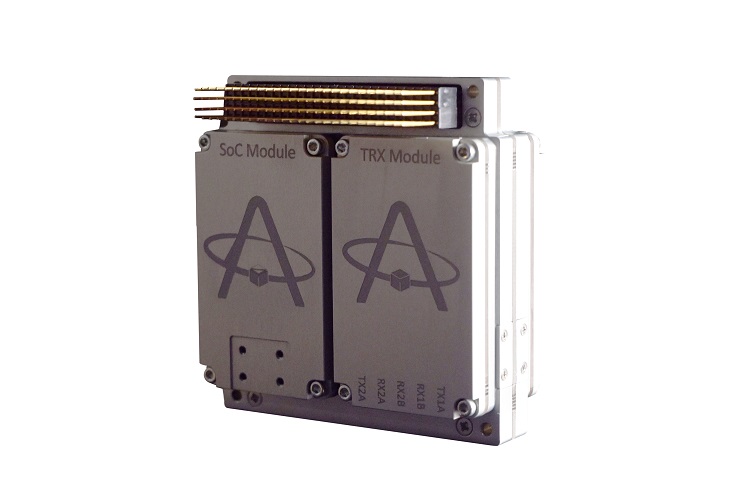

TREVO

TREVO is a modular high-performance Software Defined Radio (SDR) platform designed for small satellites, integrating the radio chain and processing units into a single subsystem.

Socs based on	Zynq UltraScale+ family
Frequency	70 MHz – 6 GHz
Channel bandwidth	56 MHz
External modules	Up to 4
Configuration options	2 x SoC and 2 x TRX

price on requestdatasheet

Alén Space

TREVO — Modular High-Performance SDR

Modular, flight-proven (TRL-9) Software Defined Radio for small satellites. Configurable SoC + transceiver count, covering 47 MHz–6 GHz TX / 70 MHz–6 GHz RX.

TRL	TRL-9 (Flight Heritage)
Processor	Zynq UltraScale+ (ARM + FPGA), up to 2 SoCs
Tx frequency range	47 MHz to 6.0 GHz
Rx frequency range	70 MHz to 6.0 GHz
Transceivers	Up to 2 TRX modules

price on request

UK developer of satellite data storage modules and the Beacon — an independent satellite health monitoring and recovery system using Iridium inter-satellite links, proven in orbit in 2024.

ANT61

ANT61 Beacon L

Large ANT61 Beacon: 216 to 756 MB data volume, 50x100x200 mm, 1000 to 1500 g; offered for pre-order.

Data volume	216 - 756 MB
Dimensions	50 x 100 x 200 mm
Mass	1000 - 1500 g
Lead time	20 weeks
Availability	Pre-order

price on requestdatasheet

ANT61

ANT61 Beacon M

Medium ANT61 Beacon: 22 MB data volume, 50x100x100 mm, 700 g, 16 week lead time.

Data volume	22 MB
Dimensions	50 x 100 x 100 mm
Mass	700 g
Lead time	16 weeks
Availability	Available to order

price on requestdatasheet

ANT61

ANT61 Beacon S

0.25U independent satellite recovery and telemetry module, 375 g, with its own battery, GNSS and two-way Iridium link; TRL-9 since February 2024.

Data volume	2.2 MB
Size class	0.25U
Mass	375 g (without cables)
Dimensions	25.0 x 90.2 x 95.9 mm (+/- 0.2 mm)
Lead time	12 weeks

price on requestdatasheet

ANT61

ANT61 Beacon XL

Extra large ANT61 Beacon: 3.24 to 6.48 GB data volume, 50x150x200 mm, 1500 to 2100 g; offered for pre-order.

Data volume	3.24 - 6.48 GB
Dimensions	50 x 150 x 200 mm
Mass	1500 - 2100 g
Lead time	20 weeks
Availability	Pre-order

price on requestdatasheet

Antcom Corporation, part of Hexagon's Autonomy & Positioning division, designs and manufactures GPS/GNSS, CRPA, satcom, and combo antennas for aerospace, defense, agriculture, survey, and unmanned systems applications.

Antcom Corporation

1.9G15X-XXC-X-S Lightweight GPS L1 Antenna

Lightweight GPS L1 patch antenna qualified for space applications.

Frequency	GPS L1
Application	Space
Design focus	Lightweight, low SWaP
Manufacturing	Made in USA

price on request

Antcom Corporation

G5Ant-1XXX-S Multi-Band GNSS Antenna for Space Applications

Multi-band GNSS antenna qualified for space applications, part of Antcom's G5Ant product family.

Frequency	Multi-band GNSS
Application	Space
Product family	G5Ant
Manufacturing	Made in USA

price on request

French manufacturer of flight-proven space antennas, software-defined radio platforms, and RF payload technologies for satellite and launcher missions, with heritage on 200+ missions.

Anywaves

Choke Ring Ka-band TT&C Antenna

The Anywaves Ka-Band TT&C Antenna is a compact, reliable solution for telemetry, tracking and command operations in the Ka-band, available in Rx, Tx, and Rx/Tx models.

TRL	7
Frequency band	Rx: 29.5–30 GHz | Tx: 19.7–20.2 GHz
Polarization	Option 1 & 2: Left or Right Hand Circular Polarization (LHCP or RHCP) Option 3: LHCP in Rx
Envelope size	Option 1 : (Rx) 108 × 108 × 44 mm Option 2 : (Tx) 150 × 150 × 60 mm Option 3 : (Rx/Tx) 90
Realized gain	Option 1: Rx: > 5 dBi @ boresight | > 0 dBi @ ±80° Option 2: Tx: > 3 dBi @ boresight | > 0

price on requestdatasheet

Anywaves

Compact S-Band TT&C Antenna

The Anywaves Compact S-Band TT&C Antenna is an ultra-compact, TRL 8 antenna for satellite telemetry, tracking and command in the S-Band frequency range of 1.98 to 2.29 GHz, fea

Frequency band	1.98 GHz to 2.29 GHz
Polarization	Left and/or Right Hand Circular Polarization (single or dual simultaneously)
Envelope size	L 70.9 × W 70.9 × H 30.33 mm (connectors included)
Realized gain	> 5.4 dBi @ boresight | > 4.2 dBi @ ±30° | > 0.5 dBi @ ±60°
TRL	8

price on requestdatasheet

Anywaves

Compact Wideband Antennas

Anywaves' Compact Wideband Antennas are custom-designed payload antennas for spectrum monitoring, Space Situational Awareness (SSA), GNSS augmentation, and spectrum surveillance ap

Frequency band	UHF to S-band (custom — defined per project, from ~300 MHz to ~3 GHz)
Polarization	Single-circular polarization (LHCP or RHCP, custom)
Fractional bandwidth	Up to 100%
Size	<1U footprint
TRL	9

price on requestdatasheet

Anywaves

Compact X-Band Dual Polarized Antenna

The Anywaves Compact X-Band Dual-Polarized Antenna is a TRL 7 data downlink antenna for LEO satellites, providing simultaneous LHCP and RHCP on two dedicated SMA connectors from a

Frequency band	8.025 GHz to 8.4 GHz
Polarization	Simultaneous Left and Right Hand Circular Polarization (LHCP + RHCP)
Envelope size without connector	L 100 × W 100 × H 26.8 mm (external protruding height: 9.31 mm)
Realized gain	> 15.5 dBi @ boresight @ 8.2 GHz
TRL	7

price on requestdatasheet

Anywaves

Compact X-Band Payload Telemetry Antenna

The Anywaves Compact X-Band Antenna is a TRL 9, flight-proven antenna for payload telemetry downlink from LEO satellites to ground stations, offering high data rates in an ultra-co

Frequency band	7.9 GHz to 8.5 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 100 × W 100 × H 16.2 mm (protruding height: 6.5 mm)
Realized gain	15.5 dBi @ 8.2 GHz
TRL	9

price on requestdatasheet

Anywaves

Direct Radiating Array Antenna

The Anywaves Direct Radiating Array Antenna is a custom-designed, high-gain flat antenna solution for satellite payload applications in Ku and Ka band, where high power handling an

Frequency band	Ku band to Ka band (custom — defined per project)
Polarization	Left or Right Hand Circular Polarization (custom)
Realized gain	> 30 dBi (design target — scalable per mission)
Fractional bandwidth	~10%
Profile thickness	< 15 mm (without connector)

price on requestdatasheet

Anywaves

GNSS All-Bands Antenna

The Anywaves GNSS All-Bands Antenna is a TRL 9 navigation antenna for LEO satellites, covering the full 1160 MHz to 1610 MHz frequency range to receive all GNSS constellations simu

Frequency band	1160 MHz to 1610 MHz GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2a/
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size without connector	99.4 × 99.4 × 16.2 mm (external protruding height: 8.6 mm)
Realized gain	> 0 dBi @ boresight
TRL	9

price on requestdatasheet

Anywaves

GNSS All-Bands Antenna with LNA Integrated Board

The Anywaves GNSS All-Bands Antenna with LNA Integrated Board is a TRL 7 active navigation antenna for LEO satellites, combining full multi-constellation GNSS coverage with an inte

Frequency band	1160 MHz to 1610 MHz — GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size (antenna + LNA block)	L 99 × W 99 × H 58 mm
LNA block gain	Typical 22 dB (lower bands) / 20.5 dB (upper bands)
Noise figure	Typical 1.8 dB

price on requestdatasheet

Anywaves

GNSS All-Bands Launcher Antenna

The Anywaves GNSS All-Bands Launcher Antenna is a TRL 8 navigation antenna specifically designed for launch vehicles, providing simultaneous multi-constellation GNSS reception from

Frequency band	1.16 GHz to 1.61 GHz — GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size	150 × 150 × 30 mm
Realized gain	> 0 dBi @ boresight > −2 dBi @ ±30° > −6 dBi @ ±60°
TRL	8

price on requestdatasheet

Anywaves

GNSS L1/E1 Bands Antenna

The Anywaves GNSS L1/E1 Bands Antenna is a TRL 8 navigation antenna for LEO satellites, designed for high-accuracy GPS L1 and Galileo E1 positioning with a compact footprint.

Model	ASA-052026
Frequency band	GPS L1 (1 563–1 587 MHz) | Galileo E1 (1 575.42 MHz nominal)
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size with connector	L 96.6 × W 96.6 × H 23.75 mm
Realized gain	> 6.5 dBi @ boresight | > 4.5 @ ±30° | > 0 dBi @ ±60°

price on requestdatasheet

Anywaves

High Gain X-Band Payload Telemetry Antenna

The Anywaves High Gain X-Band Antenna delivers more than 20 dBi of realized gain at 8.2 GHz, enabling maximum data throughput for Earth observation and remote sensing missions.

Realized Gain	> 20 dBi
Configuration options	LHCP, RHCP
Frequency band	7.9 GHz to 8.5 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 200 × W 200 × H 16 mm

price on requestdatasheet

Anywaves

Ka-Band High-Gain Antenna

High-gain Ka-Band antenna enabling Gbps-class data downlink from small Earth observation satellites.

Frequency band	Ka-Band (26.5–40 GHz)
Gain	>30 dBi
Eirp	>40 dBW
Mass	<500 g

price on request

Anywaves

Low-Noise Block Downconverter 1–12 GHz – Space LNB

The Anywaves Low Noise Block Downconverter (LNB) is a compact, fully customisable RF front-end component for satellite and CubeSat communication systems, providing low-noise amplif

Frequency coverage	1 GHz to 12 GHz (three sub-bands: 1–2 / 2–6 / 6–12 GHz)
RF architecture	Dual input RF, Dual output IF & common LO (Local Oscillator)
IF (Intermediate Frequency) bandwidth	Up to 400 MHz
Noise figure	Optimised per band (down to 1.2 dB)
Power consumption	≤ 5 W (dual‑channel)

price on requestdatasheet

Anywaves

Quad-Ridged Horn Antenna

The Anywaves Quad-Ridged Horn Antenna is a custom-designed, full-metal wideband antenna for satellite payload applications requiring simultaneous coverage of a wide frequency range

Frequency band	S to X band — S+C band version: ~2–6 GHz | C+X band version: ~6–12 GHz (custom per project
Polarization	Dual — linear and circular (simultaneous)
Realized gain	S+C band version: > 6 dBi at boresight (S- to C-band) C+X band version: > 8 dBi at boresig
Fractional bandwidth	Up to 100%
Radiation efficiency	> 90% (C+X band version, full-metal design)

price on requestdatasheet

Anywaves

Quadrifilar Helix Antenna

Anywaves Quadrifilar Helix Antennas are custom-designed payload antennas for LEO satellites requiring uniform coverage across their ground footprint, available in deployable and fi

Polarization	Single-circular polarization (LHCP or RHCP, custom)
Frequency range	UHF to C-band (custom — defined per project)
Radiation pattern	Isoflux — customised gain profile to your coverage requirements
Fractional bandwidth	~10% (per frequency version)
TRL	9

price on requestdatasheet

Anywaves

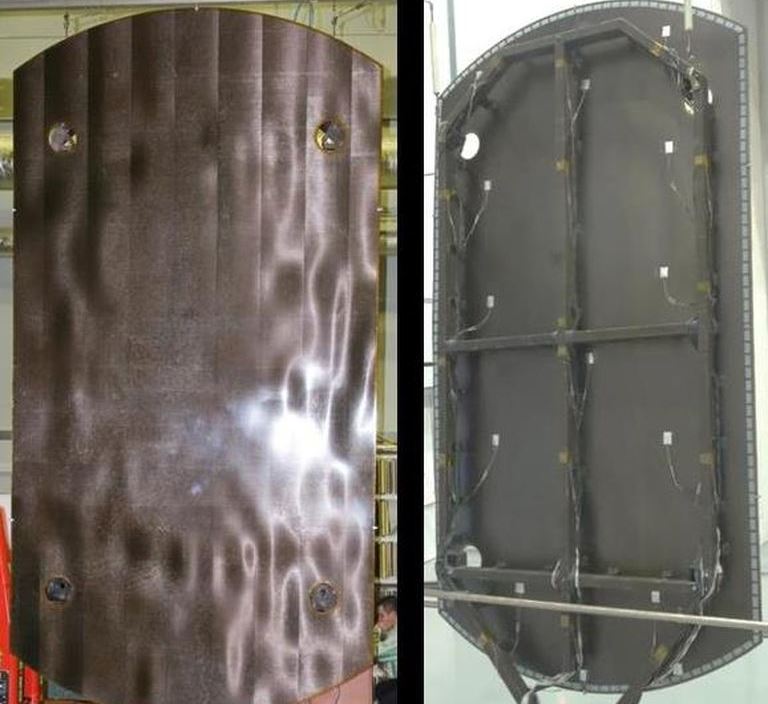

Reflectarray Antenna

The Reflectarray Antenna replicates the performance of a parabolic reflector using a series of flat, foldable panels engineered to reflect and phase-control RF waves, delivering hi

Central frequency	X-band to Ka-band (scalable toward Q/V band)
Polarization	Dual-circular polarization (simultaneous LHCP and RHCP)
Realized gain	Up to 40 dBi (design target — optimised per project)
Fractional bandwidth	Up to 15%
Stowed dimensions	360 × 210 × 30 mm (compact stowed volume for launch)

price on requestdatasheet

Anywaves

S-Band Launcher Antenna

The Anywaves S-Band Launcher Antenna is a compact, TRL 8 antenna for telemetry, tracking and command (TT&C) on launch vehicles, designed to withstand the extreme thermal and me

Frequency band	2.025 GHz to 2.29 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size	145 × 145 × 30 mm
Realized gain	> 6.0 dBi @ boresight > 2.0 dBi @ ±30° > −4.0 dBi @ ±60°
TRL	8

price on requestdatasheet

Anywaves

S-Band TT&C Antenna

The Anywaves S-Band TT&C Antenna is a flagship telemetry, tracking, and control antenna with strong flight heritage and TRL 9, perfectly suited for LEO platforms.

Frequency band	From 2.025 GHz to 2.29 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 84.3 x W 84.3 x H 12.1 mm³
Realized gain	> 6.5 dBi @ boresight > 4.5 dBi @ ± 30° > 0 dBi @ ± 60°
TRL	9

price on requestdatasheet

Anywaves

Slotted Waveguide Array Antenna

A custom-designed, high-gain flat antenna solution for satellite payload applications requiring gains above 20 dBi in the Ku or Ka band, built from a full-metal structure.

Frequency band	Ku band to Ka band (custom — defined per project)
Polarization	Left or Right Hand Circular Polarization (custom)
Realized gain	> 20 dBi (design target — optimised per project)
Fractional bandwidth	~5% (in circular polarization)
Profile thickness	< 10 mm (without connector)

price on requestdatasheet

Anywaves

VILSA SDR — Software Defined Radio Payload

Reconfigurable software-defined radio payload for small satellites supporting multiple waveforms and protocols.

Frequency range	0.3–6 GHz
Instantaneous bandwidth	up to 200 MHz
Mass	<300 g
Power consumption	<10 W
Interface	SpaceWire / UART

price on request

Anywaves

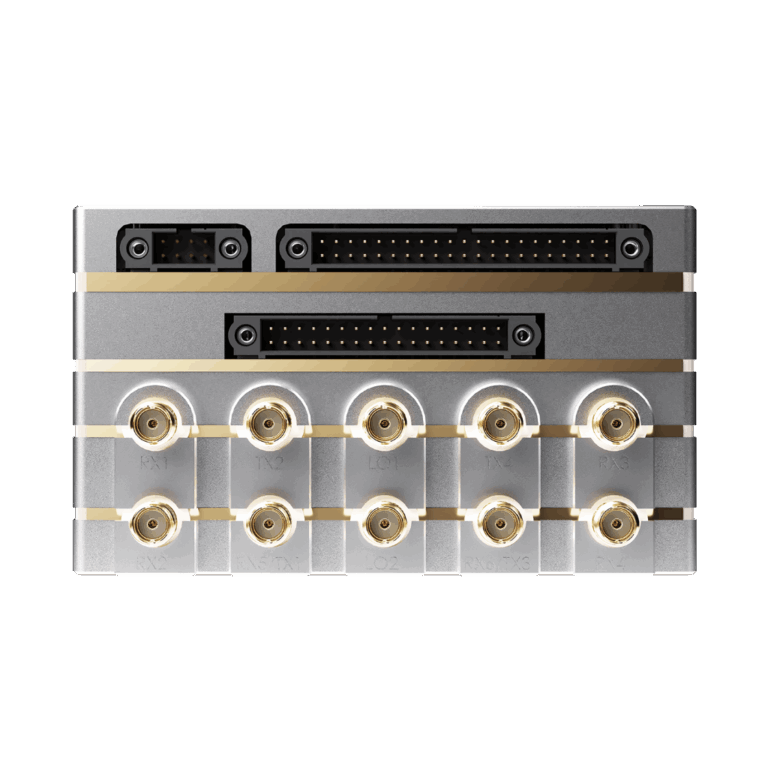

VILSA Software Defined Radio

The VILSA SDR is a versatile, fully reconfigurable Software Defined Radio for space missions, combining a high-performance digital core with a multi-channel RF frontend in a rugged

In-flight reconfigurability	Yes, via Zynq® UltraScale+ SoC
RF channels	Up to six receive and four transmit channels (configurable as 6Rx/2Tx or 4Rx/4Tx)
Architecture	Distributed board architecture (four modular boards)
Mission lifetime	5-year mission lifetime (designed for)
Operating frequency range	50 MHz to 7 GHz (direct sampling mode), up to 10 GHz (integrated superheterodyne receiver)

price on request

Anywaves

VILSA XDL X-Band Downlink Transmitter

The VILSA XDL is a high-speed X-band downlink transmitter designed for high-throughput payload data transfer in demanding space missions, leveraging DVB-S2X adaptive modulation.

Frequency band	X-Band — 8.025 to 8.400 GHz
Transmit power	Configurable from +28 to +38 dBm
Data rate	Up to 800 Mbps (using APSK 32/64)
Supported standard	DVB‑S2X with adaptive modulation
Weight / Dimensions (XDL)	≈ 1,375 g / 88 × 55 × 210 mm

price on requestdatasheet

Anywaves

Wide Beam X-Band Payload Telemetry Antenna

The Anywaves Wide Beam X-Band Antenna provides payload telemetry downlink across a wider field of view than the Compact X-Band Antenna, operating from 8.025 to 8.4 GHz with a Half

Frequency band	8.025 GHz to 8.4 GHz
Envelope size with connector	L 100 × W 100 × H 16.2 mm
Realized gain	> 5.0 dBi @ boresight, > 4.0 dBi @ ±30°, > −1.0 dBi @ ±60°
TRL	8
Mass with connector	67.5 g (±3 g)

price on requestdatasheet

Aphelion Orbitals is a New Jersey-based launch vehicle company developing the Helios nanosatellite launch system for regular, scheduled orbital access at low cost.

Aphelion Orbitals

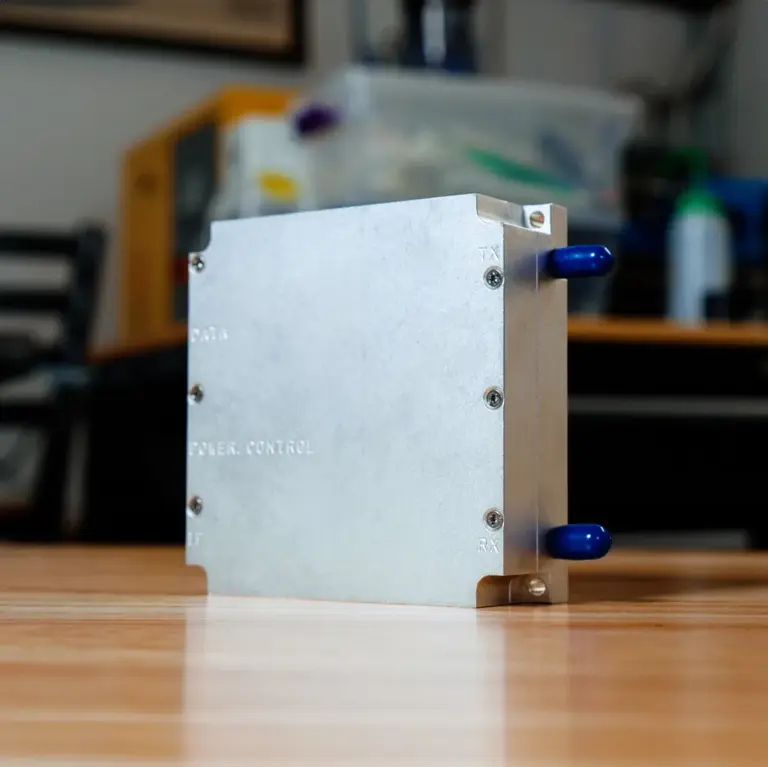

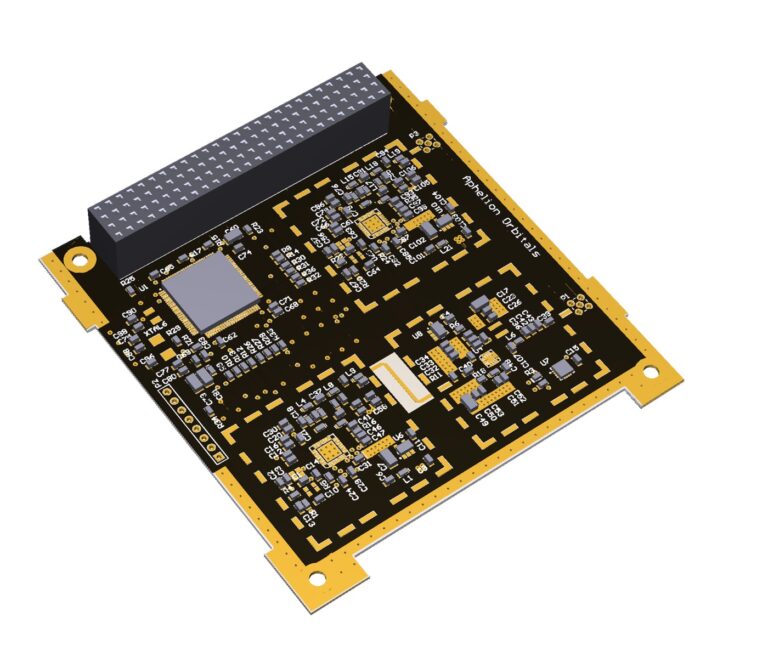

Cubesat UHF/VHF Radio

The Aphelion UHF/VHF radio is a lightweight and highly configurable telemetry, tracking, and command (TT&C) system designed for Cubesat missions, supporting multiple data rates

Mass	72 g
Supported protocols	AX.25, HDLC
Modulation types	OOK, FSK, GFSK
Uplink frequency	143-146 MHz
Downlink frequency	430-438 MHz

price on requestdatasheet

Italian picosatellite manufacturer and IoT connectivity provider building 0.3U–6U CubeSat platforms and antennas for agricultural, industrial, maritime, and environmental monitoring applications.

Apogeo Space

Antenna Cage

Our antenna cage enables to roll up a deployable antenna element in a reduced volume, exploiting the antenna's elastic force for deployment without additional elements.

Mass	3g
Material	PEEK
Bounding box	20 x 44,5 x 21,1 mm
TRL	9
Specification	CubeSat

price on request

Apogeo Space

Cu-Be Deployable Antenna Element

Patented a-magnetic Copper-Beryllium deployable antenna for CubeSats — rolls up for launch, self-deploys elastically in orbit, reduces magnetic disturbance. TRL 9. Customizable fre

Material	Copper-Beryllium (Cu-Be) a-magnetic alloy
TRL	9 (Flight proven)
Standard	CubeSat Specification
Deployment mechanism	Self-deploying (elastic energy, no springs required)
Frequency	Customizable based on mission requirements

price on request

Apogeo Space

IoT satellite connectivity in research activity

Apogeo Space offers IoT satellite connectivity as an ideal solution for a range of research applications, enabling real-time data collection and transmission in remote environments

price on request

Apogeo Space

Livestock monitoring using IoT satellite connectivity

Apogeo Space offers IoT satellite connectivity solutions for near real-time tracking and health surveillance of livestock, enhancing security and optimizing grazing management.

price on request

Apolink is a Y Combinator-backed space startup building a LEO data relay constellation for 24/7 real-time satellite connectivity using hybrid RF and optical links.

Apolink

Apolink

Apolink is an on-demand real-time communications service that keeps satellites continuously connected for telemetry and command links.

Coverage	24/7 persistent, pole-to-pole
Link types	Hybrid RF + optical (FSO)
Target orbits	LEO, any orbit (relay)
Partners	GomSpace (RF), RBC Signals, Space Compass
Regulatory	ITAR/EAR compliant, US operations

price on request

Argotec is an Italian spacecraft manufacturer that designed and operates the ArgoMoon CubeSat and develops satellite platforms and subsystems for ESA and commercial missions.

Argotec Srl

ANDROMEDA

ANDROMEDA is Argotec's pioneering lunar constellation designed to revolutionize lunar communications and support scientific and commercial missions.

MICROSATELLITES PLANNED	24
LIFETIME	years
MASS	kg
DV CAPABILITY	m/s
ATTITUDE CONTROL	-axis

price on request

Argotec Srl

Mars Comm Nav

Mars Comm Nav is Argotec’s constellation designed to create the conditions for advanced exploration of the Red Planet, enabling effective communication between Earth and Mars.

Satellites	24 (18 nominal, 6 spare)
Orbital Planes	6
Communication Bands (Mars users)	S-band, K-band
Communication Bands (Earth relay)	Ka-band

price on request

Argotec Srl

UST-LITE RADIO

Modular Multi-Band/Channel Software Defined Radio for Next-Generation Deep Space Missions, optimized for peak performance in both Deep Space and LEO.

price on request

Spanish space technology company founded 2007 in Leganes, developing MEMS relay switches, SiC power devices, and miniaturized power conditioning units for satellite applications.

Arquimea

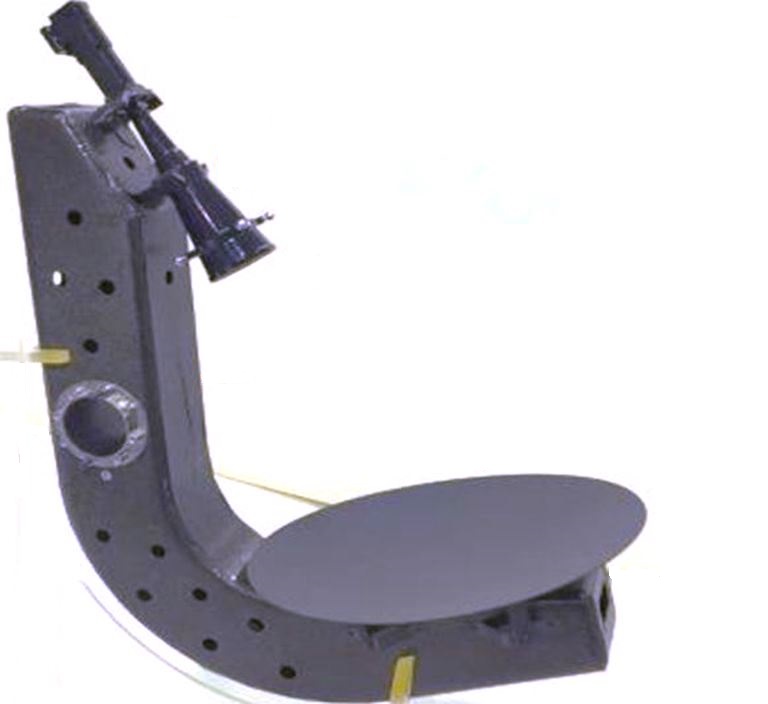

Gimbaled Deployable Ka-Band Antenna for CubeSats and SmallSats

Lightweight, foldable, flight-proven (TRL 9) gimbaled Ka-band deployable antenna for CubeSats and SmallSats in the 26.5–40 GHz range for space-to-ground, ISL, and data relay applic

Frequency band	Ka-band (26.5–40 GHz)
TRL	9 (flight-proven)
Completed missions	3 (ISS and nano-satellite)
Target platforms	CubeSats (6U+), SmallSats
Applications	Space-to-ground connectivity, ISL, data relay (LEO-MEO, LEO-GEO)

price on request

Irish developer of mmWave and RF/microwave MMICs, modules, phased-array antennas, and radar/comms front-end systems for satellite, aerospace and defense markets.

Arralis

K/Ka-Band SATCOM Transceiver Module KKa-TR-DL-1929

The KKa-TR-DL-1929 is a compact K/Ka-band SATCOM transceiver module with TX at 17-21 GHz and RX at 27-30 GHz, delivering 20 dBm linear output power, 2.5 dB noise figure, and sub-6

Tx RF frequency	17-21 GHz
Rx RF frequency	27-30 GHz
Tx if frequency	1-5 GHz
Rx if frequency	1-4 GHz
Lo reference	100 MHz external

price on request

Arralis

X-Band SATCOM Transceiver X-TR-DL-78

The X-TR-DL-78 is a compact X-band SATCOM transceiver covering TX 8-8.5 GHz and RX 7-7.5 GHz, delivering 1 W linear / 2 W saturated output power with a 1.8 dB noise figure, suitabl

Tx frequency	8-8.5 GHz
Rx frequency	7-7.5 GHz
Tx if frequency	200-700 MHz
Rx if frequency	200-700 MHz
Lo reference	10 MHz

price on request

Astranis Space Technologies designs and manufactures small, powerful geostationary satellites with digital processing technology and proprietary SDRs for high orbits.

Astranis Space Technologies

Astranis Vanguard

Vanguard is a satellite-enabled MANET solution combining an Astranis GEO satellite with Persistent Systems MPU5 radios and Kymeta/Satcube terminals, delivering air-gapped, rapidly

System type	Satellite-enabled MANET (Mobile Ad-Hoc Network)
Satellite orbit	Geostationary (GEO)
Beam footprint	~2,250 km diameter
Network architecture	Air-gapped, hubless
Services	Voice, video, broadband data

price on request

AstroGate Labs is a Bengaluru-based space startup pioneering laser communication terminals for nano and small satellites, enabling 1 Gbps space-to-ground data downlinks.

AstroGate Labs

AstroLink Laser Communication Terminal

SWaP-optimized laser communication terminal for CubeSats and NanoSats, 1 Gbps downlink at 1550 nm, integrated fine pointing, ITAR-free, TRL 7.

Data rate (Downlink)	Up to 1 Gbps
Wavelength	1550 nm
Pointing accuracy	±1° bus pointing tolerance
Ground beacon acquisition	±5°
Dimensions	95 × 95 × 80 mm

price on request

Astrolight develops laser communication terminals for space and defense applications. They offer space-to-Earth laser communication terminals and optical ground stations.

Astrolight

ATLAS-2

ATLAS-2 is Astrolight’s second generation SDA compatible low SWaP laser communication terminal designed for space-to-ground and space-to-space links.

Tx/Rx wavelength	1553.3 / 1536.6
Tx Power	< 2 W
Transmit Divergence	±63 μrad at 1/e2
Transmit Data Rate	2.5 Gbps
Fine Pointing Resolution	< 15 µrad

price on request

Astrolight

ATLAS-X-MINI

ATLAS-X-MINI is Astrolight’s gimbal-equipped optical communication terminal for space-to-ground and space-to-space links, building on ATLAS terminals already deployed in orbit.

Transmit (downlink) wavelength	1553.3 nm and 1536.6 nm
Transmit (downlink) optical power	≥ 3500 mW
Communication standard	SDA OCT 3.1 and newer
Tracking & receive (uplink) wavelengths	1536.6 nm and 1553.3 nm
Transmit (downlink) data rate	Up to 2.5 Gbps

price on request

Astrolight

OGS-2.5

Astrolight’s OGS-2.5 is a compact and cost-effective satellite optical communication terminal for high data rate applications.

Aperture Size (Option A)	355 mm (14 ")
Aperture Size (Option B)	508 mm (20 ")
Operational Wavelength	1536 nm & 1553 nm
Supported Modulations	OOK
Downlink Data Rate	1.25/2.5/12.5 Gbps

price on request

Astrolight

POLARIS

POLARIS is a small, gimballed free space optical (FSO) communication solution designed for large naval vessels and smaller unmanned surface vehicles (USVs).

Link Distance	Horizon limited
Data rate	Up to 1 Gbps
Optical Power	Up to 4 W
Electrical Power	200 W
Mass	16 kg

price on request

Deep-tech company building next-generation millimeter-wave wireless and satellite communications products, from E-band terrestrial backhaul to S-band through V/W-band space links.

Astrome Technologies

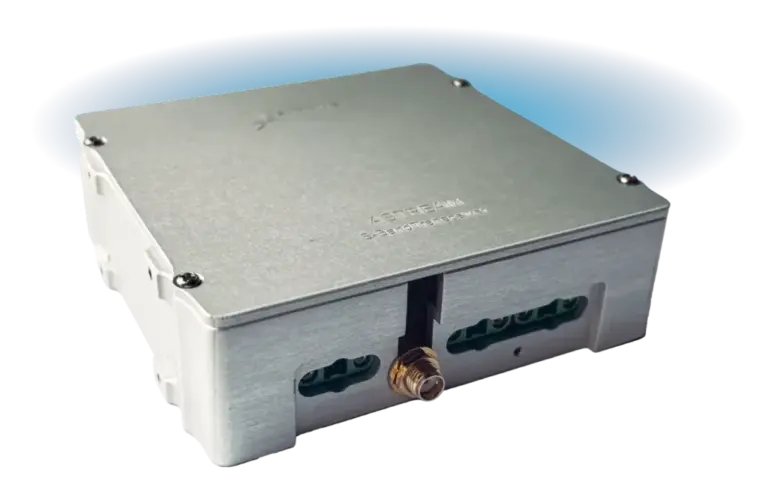

Astream

Astream by Astrome Technologies is a versatile, multiband satellite solution offering high data rates and adaptability for satellites of all sizes.

Type	Multiband satellite communication system
Frequency	Multiband (configurable)
Platform compatibility	Satellites of all sizes

price on request

Astrome Technologies

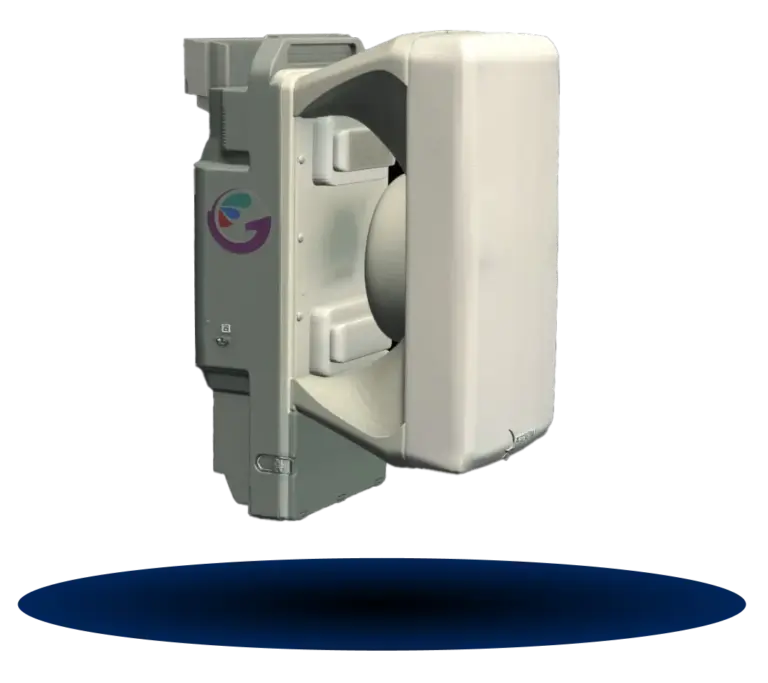

Astrome Technologies Product Portfolio

Astrome Technologies offers a comprehensive suite of next-generation wireless and satellite communication products, including patented flat-panel antennas, software-defined modems,

Frequency	S-band to V/W-band
Frequency (2)	E-Band
Frequency (3)	S, X and K-Band
Frequency (4)	S/Ka/V Band

price on request

AVCOM of Virginia is a satellite communications equipment manufacturer founded in 1976, specializing in spectrum analyzers, satellite beacon receivers, and RF signal monitoring products.

AVCOM of Virginia

LBR-2195A L-Band Satellite Beacon Receiver

Compact L-Band satellite beacon receiver providing DC output proportional to input RF signal level for antenna pointing and uplink power control.

Frequency range	950–2150 MHz
Input level range	-30 to -90 dBm
Detection bandwidth	10–750 kHz
Tracking bandwidth	10–150 kHz
Carrier types	CW, BPSK, DVB (via CEPT)

price on request

AVCOM of Virginia

SBS2-2150E Embedded Satellite Beacon Receiver Board

Compact embedded single-board beacon receiver and spectrum analyzer for integration into satellite terminals and SOTM systems.

Frequency range	950–2150 MHz
Input level range	0 to -115 dBm
Detection bandwidth	10–750 kHz
Tracking bandwidth	10–150 kHz
Tracking types	CW/BPSK beacon, TPT, CEPT

price on request

Indian manufacturer of spaceborne systems, payloads, and satellite-enabled ground systems including SATCOM and hydrometeorology sensors.

Azista Space (Azista Aerospace)

Power Coupler

RF power coupler for satellite RF distribution subsystems.

Type	RF Power Coupler
Application	Satellite RF signal distribution

price on request

Azista Space (Azista Aerospace)

S-Band TM/TC Transceiver

S-Band telemetry and telecommand transceiver for satellite platforms.

Frequency band	S-Band
Function	Telemetry & Telecommand (TM/TC)
Application	Spaceborne satellite platforms

price on request

Azista Space (Azista Aerospace)

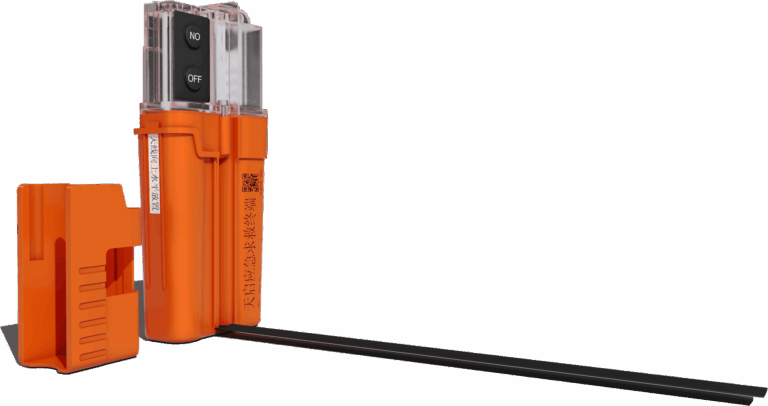

Tethered Black Box Satellite Transmitter (TBSAT)

Compact tethered black-box satellite transmitter for spaceborne telemetry.

Type	Tethered Black Box Satellite Transmitter
Application	Satellite telemetry / RF downlink

price on request

Azista Space (Azista Aerospace)

X-Band TM Transmitter

X-Band telemetry transmitter for high-data-rate downlink from satellite platforms.

Frequency band	X-Band
Function	Telemetry (TM) transmitter / downlink
Application	Satellite Earth observation, scientific missions

price on request

Huali Chuangtong (华力创通, Hwacreate) is a Chinese satellite navigation and IoT technology company listed on the Shenzhen Stock Exchange, headquartered in Beijing, developing GNSS (GPS/BeiDou) navigation modules, IoT terminals, and satellite c

Beijing Huali Chuangtong Technology Co., Ltd.

HTD1010 Direct-to-Mobile Satellite Communication Baseband Chip

The HTD1010 is a fully proprietary satellite mobile communication baseband processor chip supporting direct phone-to-satellite communication. It fully supports the Tiantong-1 satel

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HTD2010 High-Low Orbit Fusion Satellite Baseband Processor Chip

The HTD2010 is a fully proprietary satellite mobile communication baseband processor chip developed by Hwa Create. It fully supports the Tiantong-1 satellite mobile communication s

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HTD3100 High-Low Orbit Fusion Satellite Baseband-RF SoC Chip

The HTD3100 is a fully proprietary satellite mobile communication baseband-RF integrated SoC chip developed by Hwa Create. It fully supports the Tiantong-1 satellite mobile communi

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HTDM1310E Tiantong-1 Handheld Communication Module

The HTDM1310E is a Tiantong satellite mobile communication wireless module providing voice and data services. Based on the HTD3100 chip, it integrates an RF-baseband SoC, power amp

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HTDM3710E Tiantong-1 Automotive-Grade Communication Module

The HTDM3710E is an automotive-grade Tiantong satellite mobile communication wireless module providing voice and data services for vehicle applications. Based on the HTD1001 chip,

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HTQ216S Miniaturized Beidou-3 Short Message Module

The HTQ216S is a miniaturized Beidou-3 regional short message communication module with SMD stamp-hole packaging for easy PCB mounting. It provides Beidou-3 regional short message

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

Navigation-Communication Integrated Baseband Chip

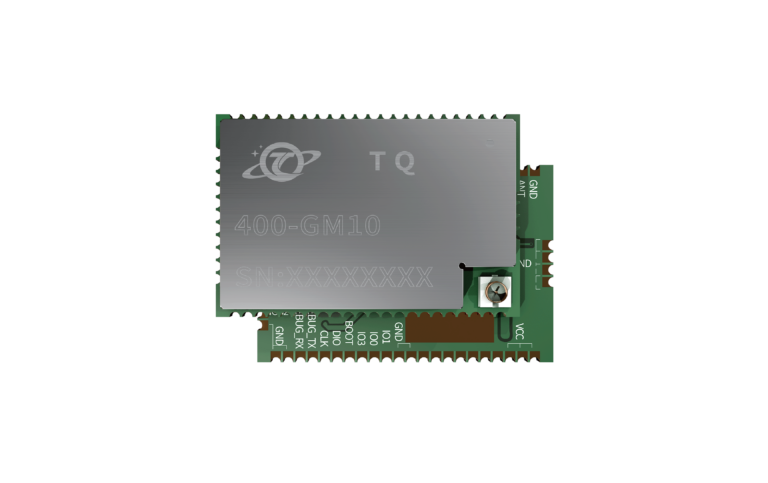

Hwa Create’s satellite mobile communication chip series adopts an SoC architecture with advanced process design, featuring low power consumption, high integration, and comple

price on request

Swiss-Swedish space components manufacturer providing satellite structures, thermal control products, payload electronics, and antennas for commercial and institutional programs.

Beyond Gravity (ex-RUAG Space)

Compact Frequency Converters and Receivers for FSS/BSS Payloads

Modular C-, Ku- and K-band frequency converters and receivers for telecom payloads, using MMIC and hermetic LTCC hybrid miniaturization.

Frequency plans	C to C, C to Ku, Ku to C, Ku to Ku, K to Ku band
Cross links	Supported between C- and Ku-band
Technology	MMIC and hermetic LTCC hybrid miniaturization
Interfaces	Configurable DC-power and TM/TC interfaces
Application	FSS/BSS telecom payloads

price on requestdatasheet

Beyond Gravity (ex-RUAG Space)

Ka-band Compact Frequency Receiver and Converter

Compact Ka-band payload receiver and converter with internal LO generation and EPC for most satellite bus standards.

Band	Ka-band payloads
Local oscillator	Internal LO generation; adaptable to LO frequencies up to 12 GHz
Power conditioning	Integrated EPC for most satellite bus standards
Technology	Latest MMIC technologies
Frequency range, Input	27.5 - 31.0 GHz

price on requestdatasheet

Beyond Gravity (ex-RUAG Space)

Ka-band Low Noise Amplifier (LNA)

Space-qualified Ka-band LNA covering 27.5 to 31 GHz, built on mHEMT MMIC technology, available as single slice or multipack.

Frequency coverage	27.5 to 31 GHz (full Ka-band)
Technology	mHEMT MMIC
Configurations	Single LNA (Slice) with secondary DC power, or Multipacks up to Quad-packs with secondary
Interfaces	Configurable DC-power and TM/TC interfaces
Flight heritage	Beyond Gravity LNAs have accumulated over 10,000 years of operational time in orbit

price on requestdatasheet

Beyond Gravity (ex-RUAG Space)

Master Local Oscillator (MLO) for Telecom Payloads

Dual-redundant master local oscillator for telecom payloads with compact design for 7 to 13 GHz output.

Output frequency	7 to 13 GHz
Redundancy	Dual-redundant
Flight heritage	LO from Beyond Gravity Converters and Receivers
Interfaces	Configurable output frequencies, DC and TM/TC interfaces; compatible with most satellite b
Frequency	7 - 13 GHz

price on requestdatasheet

Beyond Gravity (ex-RUAG Space)

Slice Frequency Converter for Ka-Band Payloads

Lightweight modular Ka-band slice converter (30 GHz to 20 GHz) with external LO and EPC configuration for space-constrained payloads.

Conversion	30 GHz to 20 GHz (Ka-band)
Architecture	External LO and EPC configuration; modular and scalable
Technology	Latest MMIC technologies
Power	Low DC power consumption
Frequency range, Input	27.5 to 31.0 GHz

price on requestdatasheet

Blue Cubed is a US-based deep-tech company specializing in optical intersatellite link (OISL) terminals and RF communication systems for small satellites and CubeSats. Their products combine novel photonics engineering with mission-enabling

Blue Cubed

Cobalt

Cobalt is a self-contained optical communication terminal with an integrated gimbal and star cameras for autonomous orientation, simplifying integration with host spacecraft.

Dimensions	295 mm tall, 255 mm diameter
Mass	5.3 kg
Power	20-30 W
Supply voltage	40 VDC max
Interface	Ethernet (1000BASE-T)

price on requestdatasheet

US developer of free-space optical laser communications systems — optical ground terminals and ground stations for space-to-ground, satellite-to-air, and inter-satellite optical links at speeds up to 1 Tbps.

Celestia Satellite Test & Simulation provides ground-based solutions for satellite simulation, testing, communication, and data processing, including EGSE, TT&C, and Optical Modems.

CELESTIA Satellite Test & Simulation

Eagle-1 Optical Modem

Optical modem optimized for communication with the EAGLE-1 QKD satellite — classical optical terminal validation, programmable tunable seeds.

Form factor	19" rack mountable
Flight heritage	EAGLE-1 QKD satellite (validated)

price on request

Celestial Space Technologies designs high-performance, lightweight satellite antennas for small satellite missions, offering S-band and X-band patch antennas with low mass and broad view angles.

Celestial Space Technologies

Satellite Antennas

Celestial Space Technologies offers high-performance, customizable satellite antennas designed for small satellites, available in two primary operating ranges: 2.05-2.30 GHz and 7.

Operating range	2.05 – 2.30 GHz
Mass	< 50gm
Gain	+7.5 dBi
View angle	Broad
Operating range (2)	7.00 – 8.50 GHz

price on request

Celtonn designs and manufactures space-qualified RF components and custom RF solutions, including W-Band and D-Band hardware, from its facility in Dublin, Ireland.

celtonn

K-Band Components (CLT-KA01A-MXR / Mixer 27GHz)

Connectorized K-Band components for GEO/MEO/LEO satellite payloads — passive IQ mixer, 27-32 GHz with 24 GHz local oscillator.

Frequency	27-32 GHz
Local oscillator	24 GHz

price on request

celtonn

K-Band Passive IQ Mixer (CLT-KA01A-MXR)

High-frequency RF subsystem for satellite communications — high-performance passive IQ mixer for up/down conversion.

Function	Passive IQ mixer for up/down conversion
Target orbits	GEO, MEO, LEO

price on request

celtonn

Ka Band Analog Phase Shifters (16-22 GHz & 25.5-32.5 GHz)

Connectorized Ka-Band analog phase shifters with continuously variable phase control — over 350-400 degrees of phase range for beam steering and phased array calibration.

Frequency (variant 1)	16-22 GHz, >350° phase range
Frequency (variant 2)	25.5-32.5 GHz, >400° phase range

price on request

celtonn

Ka Band High Gain Medium Power Amplifier (26-34 GHz)

Connectorized Ka-Band power amplifier delivering >23dB gain and 20dBm saturated output power across 26-34 GHz — for HTS payloads and feeder links.

Frequency	26-34 GHz
Gain	>23 dB
Saturated output power	20 dBm

price on request

celtonn

Low Noise Amplifier 84-92 GHz (WB-LNA-86/94)

WB-LNA-86 and WB-LNA-94 are Celtonn's banded W-Band low noise amplifier modules covering 84-92 GHz with 35 dB gain and 3.5 dB noise figure, in a WR10 waveguide package.

Frequency range	84 - 92 GHz
Noise figure	3.5 dBm
Input return loss	10 dB
Output return loss	12 dB
P1db	14 dBm

price on requestdatasheet

celtonn

Low Noise Amplifier 89-97 GHz (WB-LNA-86/94)

High-gain, low-noise W-Band LNA modules with WR10 waveguide terminals — 89-97 GHz operation for communication and radar systems.

Frequency	89-97 GHz
Waveguide terminals	WR10

price on request

celtonn

W-Band Bandpass Filter (WB-9296FLTR)

WB-9296FLTR is a compact WR-10 waveguide bandpass filter covering 92-96 GHz with sharp out-of-band rejection, engineered in Dublin for space and aerospace applications.

Frequency range	92–96 GHz
Insertion loss	1.2 dBm
Rejection at 90 ghz	35 dB
Rejection at 86 ghz	>40 dB

price on requestdatasheet

celtonn

W-Band Receiver Module (WB-RX-9296-LN)

WB-RX-9296-LN is Celtonn's highly sensitive W-Band receiver module operating nominally from 92-96 GHz, with a 3.5 dB noise figure and WR10 waveguide interface.

RF input	91–97 GHz
RF output	1-7 GHz
Lo frequency	10.5/21-11.5/23 GHz
Lo power	10-18 dBm
Noise figure	3.5 dB

price on requestdatasheet

celtonn

W-Band Transmitter Module

WB-TX-9296MP is Celtonn's medium-power heterodyned W-Band transmitter module operating nominally from 92-96 GHz, customizable for most W-Band frequencies.

RF output	91–97 GHz
RF input	1-7 GHz
Lo frequency	10.5/21-11.5/23 GHz
Lo power	10-18 dBm
Output power p1db	15 dBm

price on requestdatasheet

US manufacturer of software-defined, phased-array communication systems and payloads for satellite constellations, defense, and space applications.

CesiumAstro

SDR-1001

The SDR-1001 is a TRL 9 high-performance, compact software-defined radio designed for LEO and airborne operations, supporting custom waveform development and standards-based modems

TRL

9

price on request

CesiumAstro

Vireo Ka 288

Vireo Ka 288 is CesiumAstro's TRL 8, multi-beam active phased array Ka-band communications payload for proliferated LEO satellite constellations, shipping today to Rocket Lab for S

Transmit frequency	20.2-21.2 GHz (Ka-band)
Receive frequency	30-31 GHz (Ka-band)
Channels	Up to 4 transmit, up to 4 receive
Polarization	RHCP or LHCP, switchable in orbit
Data throughput	800 Mbps

price on request

Pasadena-based developer of free-space optical communication terminals for drones, balloons, and spacecraft — from gigabit SOT/LROT hardware to the INSPIRE cislunar optical internet.

Chascii

Chascii Single Optical Terminal (SOT)

Compact 1U free-space optical terminal delivering gigabit connectivity for drones, balloons, and spacecraft — 100° steering, dual 850/1550 nm wavelengths, 15W.

Form factor (SOT)	1U
Power consumption	15 W
Data rate	Gigabit
Wavelengths	850 nm, 1550 nm
Steering angle	100 degrees

price on request

Compoxi is a Spanish composite design and manufacturing company delivering turnkey carbon-fiber and glass-fiber structures for space, aeronautics, and industrial applications, including satellite structures, radomes, antennas, and solar arr

Compoxi

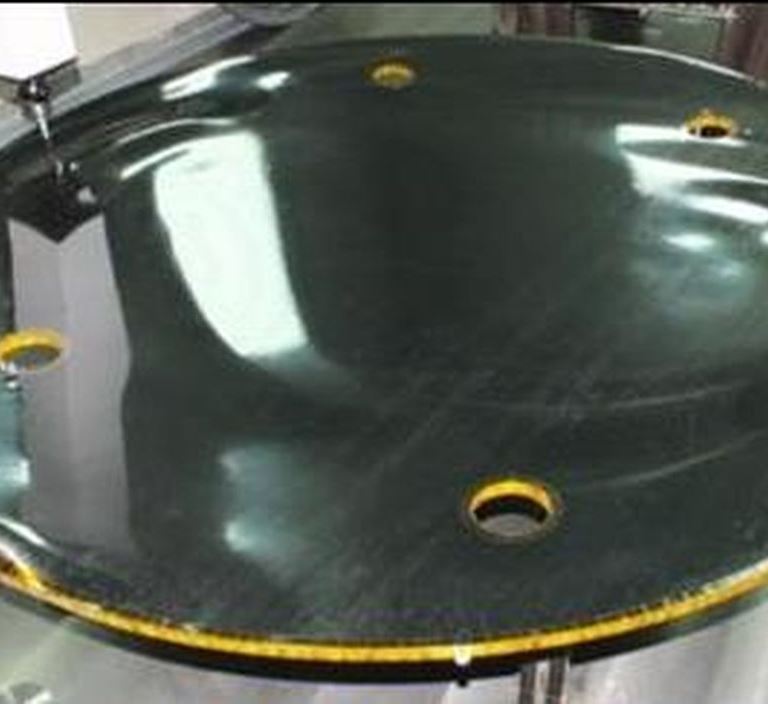

CFRP Antennas for LEO Satellites

Carbon-fiber reinforced polymer (CFRP) antenna structures manufactured for LEO orbit satellites.

price on request

Vertically integrated Indian defence and aerospace electronics company designing and manufacturing avionics, microelectronics, RF/microwave, radar, test equipment and space systems.

Data Patterns (India) Ltd.

Identify Friend & Foe (IFF) Systems

STANAG 4193 compatible IFF transponders and interrogators

price on request

Data Patterns (India) Ltd.

RF & Microwave Products

Data Patterns offers a comprehensive range of RF and Microwave building blocks, including TR Modules, Up/Down Converters, Power Amplifiers, Transmitters, Combiners, Dividers, and v

Frequency	1.44/1.56 GHz
Frequency (2)	1560 MHz
Frequency (3)	7370 to 7970 MHz
Power	5 kW
Power (2)	4 KW

price on request

Ground station marketplace for satellite operators, providing a unified API to a global network of independently operated antennas for TT&C, payload downlink, and mission operations.

DecenSpace

DecenSpace Decentralized Satellite Network

US company developing decentralized satellite network infrastructure combining blockchain and space technology for distributed data services.

Technology	Decentralized satellite network
Country	USA

price on request

Spanish space engineering group (founded as Deimos Space, part of Elecnor 2001-2024) now operating as Indra Space, delivering end-to-end satellite platforms, avionics, ground segment, GNSS and space-surveillance solutions.

Deimos Space (Indra)

Quantum Key Distribution & Optical Communications

Quantum key distribution and optical communication systems for ultra-fast, fully secure data exchange.

Core technology	Quantum Key Distribution (QKD) + optical communications
Target customers	Defence and government secure-network operators
Primary benefit	Confidentiality, resilience and technological sovereignty against emerging threats

price on request

Delta Space Leonis designs and builds nano and pico satellites (PocketQube and Cubesat) for various applications, including Earth-Observation and IoT connectivity, and offers PocketQube launch service

Delta Space Leonis

LEONIS Constellation IoT Connectivity

Satellite constellation providing IoT sensor connectivity beyond terrestrial networks — energy, infrastructure, agriculture, and logistics applications.

Applications	Energy monitoring, infrastructure monitoring, smart farming, logistics/tracking
Coverage	Independent of cellular/internet coverage

price on request

Next-generation LEO satellite constellation company pioneering sustainable global connectivity and space debris mitigation.

E-Space

Global IoT Connectivity & AIoT Platform

Satellite-based global IoT connectivity platform combining AI-driven data processing for real-time monitoring, tracking, and autonomous control of billions of devices.

Connectivity type	Satellite-direct IoT, no cellular required
Device scale	Billions of endpoints globally
Coverage	Global, including oceans and polar regions
Data processing	Direct-to-data-center or on-platform AIoT
Service range	Basic IoT messaging to real-time voice, video, and data

price on request

Norwegian space and defence electronics company specializing in telemetry, secure communications, and mission-critical instrumentation since 1966.

Eidel

Secure Satellite Link (SSL)

Encryption system for secure ground-to-space, space-to-space, and ground-to-ground communications — AES-256-GCM/AEGIS-256, verified to NATO SECRET level.

Protection	CIK for CCI handling, tampering protection, AES-256-GCM and AEGIS-256
Cryptographic primitives	CTR-AES-256, ECIES-521, ECDSA-521
Ncu dimensions	153x35.4x118 mm, mass ~649 g (±10%)
Gcu dimensions	110x56x99 mm, mass <1100 g
Certification level	NATO SECRET

price on request

US manufacturer of airborne and ground-based RF telemetry transmitters, receivers, command equipment and amplifiers for aerospace and defense range telemetry.

Emhiser Research

Custom Amplifiers (EP Custom Series)

Custom-engineered RF power amplifiers built to customer frequency, power and package requirements

Power	50 W
Frequency	3.1 to 3.5 GHz
Power (2)	250 W
Frequency (2)	3.1 to 3.5 GHz
Power (3)	125 W

price on requestdatasheet

Emhiser Research

EDT-01 Series Telemetry Transmitters

The EDT-01 series comprises compact, single-frequency telemetry transmitters available in various power outputs and modulation input types, designed for airborne and other applicat

Package	01 (1.3 Cubic Inches)
Type	Single Freq.
Frequency	1435 - 1540 MHz
Frequency code	D1
Power	1 W

price on requestdatasheet

Emhiser Research

EP-01DE Series Amplifier

The EP-01DE Series is a Class AB amplifier designed for various communication applications, offering multiple power output options and operating across common L- and S-band frequen

Model number	EP-01DE Series
Catgegory	Amplifiers
Series	Class AB Amplifiers
Package	1.3 Cubic Inch
Vcc	12 VDC

price on requestdatasheet

Emhiser Research

EVT-01 Series Transmitters

The EVT-01 Series are compact, single-frequency transmitters available in various power outputs and frequency ranges, designed for telemetry applications.

Package	01 (1.3 Cubic Inches)
Type	Single Freq.
Frequency	1710 - 1850 MHz
Frequency (2)	2200 - 2400 MHz
Power	0.15 W

price on requestdatasheet

Emhiser Research

FSK Transmitters (EFT Series)

Frequency-shift-keyed command/data uplink transmitters, 9 cubic-inch airborne package

Power	2, 5/10/20 Watts Minimum
Input Impedance	50 Ohms
Deviation	+/- 25 KHz Peak
Modulation	FSK
Modulation Index	2.5 Max

price on requestdatasheet

Emhiser Research

Telemetry Transmitters (ETT Series)

Analog FM airborne telemetry transmitters in 1.3 to 36 cubic-inch packages

Output Power	5 Watt
Supply voltage	+28 ±4 Vdc
Frequency	1435.5 to 1710.0, 1850.0 to 2020.0, 2200.5 to 2399.5 MHz
Operating temperature	-20…+70 °C
Dimensions	3.40" x 1.865" x 0.30"

price on requestdatasheet

Emxys is a Spanish space electronics company specialising in advanced onboard computers, power systems, optical transceivers, and complete nanosatellite platforms for data-intensive space missions.

Emxys

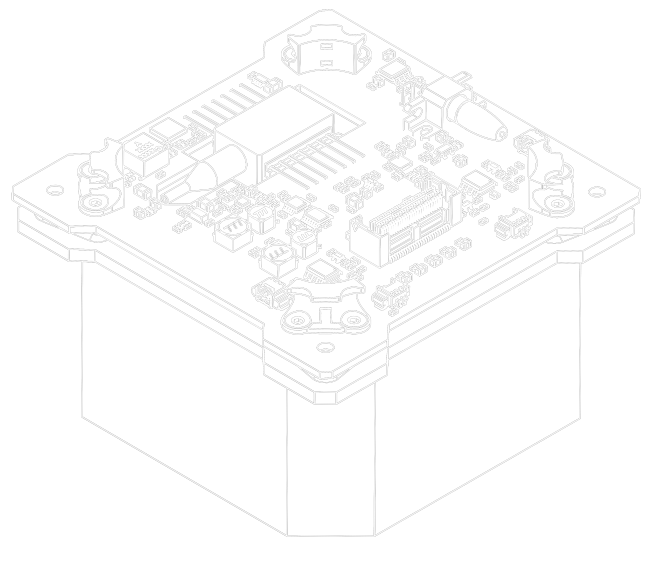

ODALCOM

ODALCOM is a Free-Space C Band laser transceiver designed for small satellite platforms, enabling high-performance optical space-to-ground communication links with high data rates

Tx rate	500 Mbps
Volume	1U
Mass	<1.5Kg
Power consumption	lower than 3 W
Optical power	up to 1 W (100 mw nominal)

price on request

Emxys

ODALISS TTC

The ODALISS TTC is an embedded CubeSat radio communication module designed for space-to-ground communications, featuring a fully configurable half-duplex VHF/UHF transceiver.

Cpu	168 MHz ARM® 32-bit Cortex®-M4, STM32 processor unit
Power supply	Redundant power-supply from regulated and unregulated bus
Power supply range	+5.8 V to +8.4 V (+7.6 V nominal)
Control lines	TTC Enable and Status lines
Communication type	Half-duplex earth-space communications

price on requestdatasheet

Software-flexible CubeSat platforms (1U–16U+), shared-satellite hosted-payload service.

EnduroSat

GNSS Patch Antenna L1+L2+L5

A space-qualified GNSS patch antenna for secure navigation in space for CubeSats, NanoSats, and SmallSats.

Operating frequency	L1+L2+L5
Half power beam width (HPBW)	100-105 deg
Patch gain	2.4-4.1 dBi
Polarization	Right Hand Circular
Mass	38.5 g

price on request

EnduroSat

K-BAND 4×4 PATCH ARRAY

The K-Band 4x4 Patch Array offers ultra high-speed K-Band communication capabilities for CubeSats and SmallSats, featuring industry-leading gain and a compact footprint.

Frequency range	17.7 - 20.2 GHz
Half power beam width (HPBW)	16 deg
Gain	18+ dBi over operational bandwidth
Polarization	Right Hand Circular
Mass	76 g

price on request

EnduroSat

S-Band Antenna Commercial

A flight-proven S-band patch antenna designed for high-speed communication in CubeSats and SmallSats, offering 20% higher gain than previous generations.

Frequency range	2025 - 2110 MHz
Half power beam width (HPBW)	70 deg
Gain	7+ dBi over operational bandwidth
Polarization	Selectable Circular
Mass	77.4 g

price on request

EnduroSat

S-Band Antenna ISM

A flight-proven S-band patch antenna designed for high-speed CubeSat communication, offering 30% higher gain than previous generations and circular polarization.

Frequency range	2400 - 2450 MHz
Half power beam width (HPBW)	71 deg
Gain	> 7.5 dBi
Polarization	Circular with selectable rotation direction
Mass	71 g

price on request

EnduroSat

S-BAND ANTENNA WIDEBAND

High-speed communication for CubeSats and SmallSats with a wide frequency range in S-band.

Frequency range	2025-2110 MHz and 2200-2290 MHz
Half power beam width (HPBW)	70 deg
Gain	5+ dBi
Polarization	Right-hand circular
Mass	96-115 g (configuration dependent)

price on request

EnduroSat

S-band Transceiver

The S-band Transceiver is a communication module designed for satellite applications, operating within the 8000 - 8400 MHz frequency range.

Frequency range

8000 - 8400 MHz

price on request

EnduroSat

UHF ANTENNA 2U

A flight-proven deployable 2U UHF Antenna, fully compliant with the 6U CubeSat standard, providing reliable communication for CubeSats and SmallSats.

Amateur UHF frequency range	435-438 MHz
Commercial UHF frequency range	400-403 MHz
VHF frequency range	144-148 MHz
Type	Omnidirectional
Gain	> 0 dBi

price on request

EnduroSat

UHF Transceiver

Half-duplex UHF data transceiver for CubeSat and SmallSat missions. Features configurable RF settings, AES-256 encryption, and in-orbit reconfigurable parameters for varying operat

Frequency range	400-403 or 435-438 MHz
Maximum data rate	19.6 kbps
Typical tx power	8 W
Voltage supply	5 V
Output power	27 or 33

price on request

EnduroSat

X-Band Patch Antenna

A space-qualified X-band patch antenna offering high-speed connectivity for CubeSats and SmallSats, with industry-leading gain at a 25% smaller footprint.

Frequency range	8025 - 8400 MHz
RF connector	SMP (SMA for 8x12 Array)
Mounting	X/Y or Z
Polarization	Circular with selectable rotation direction
RF power handling	up to 4 W

price on request

EnduroSat

X-band SDR

An X-band software-defined radio (SDR) product from EnduroSat for satellite communications downlink.

Frequency range (Tx)

2200 to 2290 MHz (commercial)

price on request

ETL Systems manufactures RF signal processing equipment for satellite communications, including RF distribution and Digital IF systems. They also provide end-to-end services such as system design, link optimisation, and network management.

ETL Systems

80W Ku-band SSPA

A super compact GaN-powered outdoor BUC/SSPA for Ku-band applications.

Input Frequency	850-3000 MHz (selectable in 1 KHz steps)
Output Frequency	850-3000 MHz (selectable in 1 KHz steps)
Instantaneous Bandwidth	Mode 1: 200 MHz, Mode 2: 400 MHz
Mean Conversion Gain	Max. 30 ± 2 dB / Min. 0 ± 2 dB
Gain steps	0.25 ± 0.15 dB

price on requestdatasheet

ETL Systems

Couplers

ETL Systems offers passive directional and proximity couplers for RF monitoring, designed for compact and cost-effective integration into satellite communication systems.

Frequency Range	50-2450 MHz
Coupling Factor	10 dB
Directivity Typ.	14 dB

price on requestdatasheet

ETL Systems

High-Power Amplifiers

ETL Systems offers a comprehensive portfolio of RF high-power amplifiers (HPAs), including travelling wave tube amplifiers (TWTAs), solid-state power amplifiers (SSPAs), redundant

Frequency	KU1: 13.75 – 14.50 GHz KU2: 12.75 – 14.50 GHz KU3: 13.75 – 14.80 GHz KU4: 12.75 – 13.25 GH
Bandwidth	500 MHz / 750 MHz
Output Power	56.0 dBm (400 W) PEAK
Gain	≥ 70 dB
Gain Adjustment range	30.0 dB typical

price on requestdatasheet

ETL Systems

Scorpion Mounting System

A versatile and compact mounting system for mission-critical RF components, streamlining RF distribution and enhancing system organisation.

Model Number	SCP-1U-11
Description	1U component mounting 2 mm chassis

price on requestdatasheet

ETL Systems

Troposcatter

Troposcatter systems bypass the need for satellite links in areas where infrastructure is damaged or non-existent, facilitating secure, reliable communication links that overcome l

Output Power	20-1000W
High Power BUC/SSPA Output	500-1000W
High Power BUC/SSPA Weight	46KG
High Power BUC/SSPA Dimensions	52x46x27cms
NanoTropo Output Power	40 W

price on requestdatasheet

French SATCOM equipment distributor and integrator; ground station hardware across L to Q band; founded 2003 in Les Ulis.

EUROSATCOM

VialiteHD Fiber Optic RF-over-Fiber Links

RF-over-fiber transmission links for L-Band, wideband, GPS, timing, and UHF/VHF signals up to 500km — 6GHz Mil-Aero module rated Outdoor IP55.

6ghz mil-aero module frequency	10 MHz to 6 GHz
6ghz mil-aero module rating	Outdoor IP55
L-band hts dwdm distance	Up to 500 km
Wideband link	10 MHz-3 GHz, up to 50 km
Ultra wideband link	2KHz-4.2 GHz, up to 50 km

price on request

Ecuadorian civilian space agency and manufacturer of high-energy-density batteries, deployable solar arrays and CubeSat platforms.

EXA (Ecuadorian Space Agency)

EXA GCA01 – Compact GNSS Active Patch Antenna

The EXA GCA01 is a one-stage, compact GNSS active patch antenna solution than works with your GNSS card and link it to GPS, GALILEO, BEIDOU and GLONASS constellations, It is the…

Manufacturer	EXA
Lead time	Immediately.

€1 700

EXA (Ecuadorian Space Agency)

EXA SSA01 – Wide Bandwidth S-band Patch Antenna

A wide bandwidth S-band patch antenna supporting up to 195 MHz of bandwidth, designed for missions requiring higher data speeds and flexible frequency selection.

Bandwidth	up to 195 MHz
Frequency range 1	2025–2120 MHz
Frequency range 2	2200–2300 MHz
Price	€2,200
Availability	immediately

€2 200

EXA (Ecuadorian Space Agency)

EXA SSA02- 34dB Wide Bandwidth amplified S-band Patch Antenna

The EXA SSA02 is the power-amplified version of the SSA01 wide bandwidth S-band antenna than can accommodate a bandwidth of up to 195 MHz for missions that need greater speed…

Manufacturer	EXA
Lead time	immediately.

€9 400

FreeFall Aerospace develops novel antenna systems for high gain communications and remote sensing for space and ground applications.

FreeFall Aerospace

CatSat 10 GHz Patch Antenna

X-band patch antenna flown on NASA's CatSat CubeSat mission as the backup downlink solution.

Frequency	10 GHz (X-band); C-band beacon variant also flown
Type	Patch antenna
Application	Backup downlink on CatSat 6U CubeSat (NASA CSLI)
Flight heritage	Operational on CatSat since July 2024

price on request

FreeFall Aerospace

Inflatable Antenna System

The Inflatable Antenna System is a patented, ultra-lightweight, and compact deployable high-gain antenna designed for efficient communications and remote sensing from space.

Reflector type	Spherical, inflatable membrane
Deployment	On-orbit inflation via flight-proven control systems
Applications	Defense, communications, deep-space science and exploration

price on request

Radiation-hardened microprocessors, IP cores, and software for space and high-reliability embedded systems.

Gaisler

GR718B Rad-Hard 18-Port SpaceWire Router

Rad-hard 18-port SpaceWire router with RMAP configuration, flight-proven on ESA JUICE and other missions.

Ports	18 external SpaceWire ports + internal configuration/test ports
Protocol compliance	ECSS-E-ST-50-12C, RMAP (ECSS-E-ST-50-52C), ECSS-E-ST-50-51C
Package	CQFP-256, ceramic
Quality levels	Flight, engineering, prototype
Flight heritage	ESA JUICE mission and others

price on requestdatasheet
