CubeSat Deployers

New Space company designing modular nanosatellite/CubeSat hardware: structures, solar panels, EPS, antennas, OBCs, and deployers/separation systems.

2NDSpace Srl

OPER CubeSat Deployer

The OPER CubeSat Deployer is a lightweight and customizable separation system designed for CubeSats, featuring redundant non-pyrotechnic actuation and an easy reset procedure.

Form factor	12U/16U
Design	Lightweight
Lateral clearance	High
Customization	Available for OTV and launch service providers
Actuation	Redundant, non-pyrotechnic

price on request

2NDSpace Srl

OPERA 16U Cubesat Deployer

The OPERA Cubesat Deployer by 2NDSpace Srl features a lightweight design, high lateral clearance, and redundant non-pyrotechnic actuation for reliable CubeSat deployment.

price on request

Alba Orbital manufactures PocketQube satellites, provides launch and ground station services, and operates a fleet of nighttime imaging satellites for government and commercial clients.

Alba Orbital

PocketQube Deployer

Alba Orbital's dedicated launch and deployment service for PocketQube satellites (3.5 cm cube form factor) to LEO.

Satellite standard	PocketQube (5 cm × 5 cm × 5 cm)
Orbit	LEO (SSO via SpaceX Transporter and other rideshare)
Services	Deployment, licensing, spectrum coordination
Company location	Glasgow, Scotland, UK

price on request

Swiss-Swedish space components manufacturer providing satellite structures, thermal control products, payload electronics, and antennas for commercial and institutional programs.

Beyond Gravity (ex-RUAG Space)

Satellite Dispenser Systems

Multi-satellite dispenser systems combining structure, separation, harness and thermal subsystems, flown on Galileo, Radarsat Constellation and Eutelsat OneWeb.

Subsystems included	Structure, separation system, electrical harness, thermal subsystem
Launch vehicle interface	Dispenser structure bolted to the launch vehicle upper stage
Release	Separation nuts and spring units at each separation node
Harness	Redundant umbilical cables per spacecraft, pyrotechnical initiator harness, instrumentatio
Options	Beyond Gravity power and sequencing electronics

price on requestdatasheet

South Korean manufacturer of satellite deployers (CubeSat/small-satellite dispensers) and provider of launch integration services.

DALRO Aerospace

DS – POD

The DS-POD (DALRO Standard Deployer) is a satellite deployer available in 1U, 3U, 6U, and 16U models, designed for cube and small satellites.

Model availability	1U / 3U / 6U / 16U Model Available
Testing status	Environmental Testing Completed

price on request

Dhruva Space is an Indian space technology company founded in 2012, providing satellites, Earth stations, and launch services as integrated or individual solutions.

Dhruva Space

Dhruva LEAP Deployer

The LEAP (Launch & Experimental Agnostic Platform) Deployer is a satellite deployment platform developed by Dhruva Space. LEAP is designed to host and deploy small satellites (

price on request

Dhruva Space

DSOD-1U

The Dhruva Space Satellite Orbital Deployer 1U is a TRL 9, space-qualified deployer for CubeSats, featuring a non-pyrotechnic hold-down and release mechanism.

CUBESAT form factor	1U, 2 x 0.5U, etc.
Deployer mass	3.2 kg
Total CUBESAT mass	2 kg
Side volume	Up to 15 mm on all sides
Pointing accuracy	Up to 0.1°

price on request

German manufacturer of reaction wheels, CubeSat picosatellite deployers, and AOCS components for small satellites, based in Berlin-Adlershof.

EXA (Astro-und Feinwerktechnik)

ASTROFEIN PicoSatellite Launcher PSL1U / PSL2U / PSL3U

The ASTROFEIN PicoSatellite Launcher (PSL) series offers deployers for 1U, 2U, and 3U CubeSats, featuring a flight-proven non-explosive lock and release mechanism.

CUBESAT rail length (z)	113.5 (PSL1U), 227.0 (PSL2U), 340.5 (PSL3U)
CUBESAT rail width (x)	100 (PSL1U), 100 (PSL2U), 100 (PSL3U) mm
CUBESAT rail height (y)	100 (PSL1U), 100 (PSL2U), 100 (PSL3U) mm
Number of tuna cans	1 (PSL1U), 1 (PSL2U), 1 (PSL3U)
Maximum satellite mass	<=1.33 (PSL1U), <=2.66 (PSL2U), <=4.0 (PSL3U)

price on requestdatasheet

EXA (Astro-und Feinwerktechnik)

PicoSatellite Launcher PSL12U / PSL12U XL

The ASTROFEIN PSL12U and PSL12U XL are flight-proven CubeSat deployers designed for 1U to 12U CubeSats and combinations, featuring non-explosive lock and release mechanisms and ver

Parameter	PSL12U
CUBESAT rail length (z)	340.5 mm
CUBESAT rail width (x)	226.3 mm
CUBESAT rail height (y)	226.3 mm
Number of tuna cans	5*

price on requestdatasheet

EXA (Astro-und Feinwerktechnik)

PicoSatellite Launcher PSL6U / PSL6U XL

The ASTROFEIN PSL6U and PSL6U XL are CubeSat deployers designed for 1U, 2U, 3U, or 6U CubeSats, featuring non-explosive mechanisms and a user-friendly, resettable system.

Parameter	PSL6U
CUBESAT rail length (z)	340.5 mm
CUBESAT rail width (x)	226.3 mm
CUBESAT rail height (y)	100 mm
Number of tuna cans	2

price on requestdatasheet

Berlin-based launch and deployment services company providing end-to-end rideshare missions, satellite integration, and proprietary separation hardware for small satellites.

Exolaunch

EXOpod AIR

Ultra-lightweight CubeSat deployer at 6.5 kg minimum mass; targets small launchers, OTVs, and mass-critical missions.

Minimum deployer mass	6.5 kg (lightest CubeSat deployer on market)
Available sizes	8U, 12U, 12UXL, 16U
CUBESAT size range	0.25U to 16U
Flight heritage	400+ CubeSat deployments (EXOpod family)
ITAR status	ITAR-Free

price on requestdatasheet

Exolaunch

EXOpod Nova

Advanced CubeSat deployer for 0.25U–16U, with +400% lateral protrusion volume vs CDS; 39 missions, 510 CubeSats deployed.

Available sizes	6U/8U, 12U, 16U (configurable to smaller)
CUBESAT size range	0.25U to 16U
Lateral protrusion volume vs cds	+400%
Mass increase over cds	+30%
ITAR status	ITAR-Free

price on requestdatasheet

Italian company specializing in complete lifecycle management of CubeSats and NanoSatellites: design, manufacturing, subsystems, ground stations and deployers.

GAUSS Srl

GPOD CubeSat Deployer

Flexible 1U-3U+ CubeSat deployment mechanism with accessible side panels and non-explosive Frangibolt actuation, flight-proven on Dnepr launches.

Mass	1.9 kg
Nominal payload mass	4 kg
Maximum payload mass	5.2 kg
Outside envelope (3U)	430 x 132 x 129 mm
Inner envelope (3U)	100 x 100 x 340.5 mm

price on requestdatasheet

System integrator and manufacturer of CubeSat structures, buses, and MyPOD test/transport pods, with space environment test equipment services.

Gran Systems

6U MyPOD2

The 6U MyPOD2 is a versatile CubeSat deployer/dispenser designed for qualification, acceptance testing, dimensional fit-check, storage, and transportation of CubeSats.

Operating temperature	-50°C to +100°C
External size (L x W x H)	268 x 141 x 442.1 mm
Rail size (L x W x H)	100.8 x 227.0 mm
CUBESAT size (L x W x H)	100.0 x 226.3 x 366.0 mm
Empty mass	8.5 kg

price on request

ISISPACE provides launch services, manufactures CubeSat deployers and other launch equipment, and acts as a satellite systems integrator for small satellites.

Innovative Space Logistics

Deep Space Deployer (DSD)

The Deep Space Deployer (DSD) from ISISPACE is an ESA-approved multi-staged separation system designed for deep space exploration, enabling health checks of satellites prior to rel

Satellite Mass	4.9 kg
Closed Envelope	272 x 156.7 x 432.4 mm
Open Envelope	272 x 206.77 x 555.05 mm
Release Speed	3 cm/s
Payload Mass	12.5 kg

price on request

Innovative Space Logistics

ISIPOD

The ISIPOD is ISISPACE's spring-loaded CubeSat deployer, one of the world's most-flown CubeSat launch adapters, available in 1U, 2U and 3U configurations.

Supported CUBESAT sizes	1U, 2U, 3U (and combinations)
1-unit isipod deployer mass	1.5 kg
1-unit isipod maximum payload mass	2 kg
2-unit isipod deployer mass	1.75 kg
3-unit isipod deployer mass	2 kg

price on requestdatasheet

Innovative Space Logistics

QuadPack Deployer

The QuadPack Deployer from ISISPACE is a reliable and proven CubeSat deployer designed for maximum efficiency, supporting the deployment of CubeSats with release velocity under 1.8

Release velocity	under 1.8 m/s
Flight heritage	over a decade
Success rate	100%

price on request

CubeSat deployers, antennas, EPS and small-satellite systems.

ISISPACE Group

Deep Space Deployer

ESA-approved multi-staged separation system for deep space exploration, enabling pre-release health checks of satellites in space.

Compatible satellite size	6UXL
Mass	4.9 kg
Closed envelope (L x W x H)	272 x 156.7 x 432.4 mm
Open envelope (L x W x H)	272 x 206.77 x 555.05 mm
Release speed	3 cm/s (can be modified)

price on request

ISISPACE Group

DuoPack Deployer

Lightweight CubeSat deployer for satellites up to 6UXL, lightest deployer in the market with 10+ years flight heritage.

Type xl configurations	1XL (1x 6UXL satellite), 2XL (2x 3UXL satellite)
Mass	4.1 – 4.8 kg
Closed envelope (L x W x H)	272 x 193.4 x 445.7 mm
Open envelope (L x W x H)	272 x 146.7 x 432.4 mm
Release speed	0.8 – 1.8 m/s

price on request

ISISPACE Group

QuadPack Deployer

Versatile lightest-in-class CubeSat deployer for 1U–16U satellites with 100% success rate over 250+ units delivered.

12uxl quadpack configurations	1XL (1x 12UXL satellite), 2XL (2x 6UXL satellite), 3XL (2x 3UXL + 1x 6UXL), 4XL (4x 3UXL s
16u quadpack configurations	1.4 (1x 16U satellite), 2.4 (2x 8U satellite)
Mass	6.6 – 8.1 kg
Closed envelope (L x W x H)	12UXL: 272 x 273 x 434.4 mm; 16U: 272 x 273 x 524.5 mm
Open envelope (L x W x H)	12UXL: 365.4 x 273 x 547.7 mm; 16U: 365.4 x 273 x 635.8 mm

price on request

ISISPACE Group

TestPod

Flight-representative test and transport container for CubeSats 1U–16U, enabling mission validation and transportation safety.

Operating temperature	-50 to +100°C
Empty mass	5.6 – 13.4 kg
Payload mass (typical) — 3uxl	3.0 kg
Payload mass (typical) — 6uxl–8u	6.0 kg
Payload mass (typical) — 12uxl–16u	12.0 kg

price on request

South Korean nanosatellite manufacturer offering CubeSat platforms, optical imagers, star trackers, solar panels, EPS, structures, and deployers for the commercial small satellite market.

Kairo Space

KSD CubeSat Deployers

CubeSat deployer systems for launch vehicle integration, supporting 1U–6U nanosatellite deployment in LEO.

Compatible payloads	1U, 2U, 3U, 6U CubeSat
Deployment	Spring-ejection
Retention	Positive retention during launch loads
Trigger	Separation command signal

price on request

CubeSat & small-satellite rideshare brokerage — integration, paperwork, launch insurance on PSLV, Falcon 9 Transporter, Ariane 6 and Soyuz.

KOSMOLAB Launch Services

Deployer 12U

The Deployer 12U is a CubeSat deployer designed for the deployment of a single 12U-class spacecraft. It is compatible with various launch vehicles and offers customization options.

Dimensions (L×W×H)	480 × 290 × 299 mm
Mass	8,5 kg
Max. satellite mass	26 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

₽5 000 000datasheet

KOSMOLAB Launch Services

Deployer 12U 2×3U/1×6U

The Deployer 12U 2×3U/1×6U is a CubeSat deployer designed for simultaneous deployment of two 3U and one 6U-class CubeSats in a single launch.

Dimensions (L×W×H)	480 × 290 × 299 mm
Mass	9,5 kg
Max. satellite mass	26 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

₽6 000 000datasheet

KOSMOLAB Launch Services

Deployer 12U 2×6U

The Deployer 12U 2×6U enables simultaneous deployment of two 6U-class CubeSats, compatible with various launch vehicles and customizable to specific requirements.

Dimensions (L×W×H)	480 × 290 × 299 mm
Mass	9 kg
Max. satellite mass	26 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

price on requestdatasheet

KOSMOLAB Launch Services

Deployer 12U 4×3U

The Deployer 12U 4×3U is a CubeSat deployer designed to simultaneously deploy four 3U-class CubeSats. It is compatible with various launch vehicles and offers customization options

Dimensions (L×W×H)	480 × 290 × 299 mm
Mass	10 kg
Max. satellite mass	26 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

₽6 000 000datasheet

KOSMOLAB Launch Services

Deployer 12U SUPER LIGHT EXT

The KosmoLab 12U SUPER LIGHT EXT deployer is a lightweight solution for launching CubeSats, designed to maximize payload mass by minimizing the deployer's own weight.

Mass	6 kg
Max. satellite mass	26 kg
Satellite mass range	up to 26 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

₽5 000 000datasheet

KOSMOLAB Launch Services

Deployer 16U

The Deployer 16U is designed for the deployment of a single 16U-class spacecraft, compatible with various launch vehicles including Angara, Soyuz/Fregat, PSLV, and Start-1M.

Dimensions (L×W×H)	600 × 290 × 299 mm
Mass	12 kg
Max. satellite mass	40 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

price on requestdatasheet

KOSMOLAB Launch Services

Deployer 16U LIGHT EXT

The Deployer 16U LIGHT EXT is a deployment system designed for 16U-class CubeSats, featuring an extended accommodation zone and compatibility with various launch vehicles.

Dimensions (L×W×H)	600 × 290 × 299 mm
Mass	9 kg
Max. satellite mass	40 kg
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

price on requestdatasheet

KOSMOLAB Launch Services

Deployer 16U SUPER LIGHT EXT

The KosmoLab Deployer 16U SUPER LIGHT EXT is the most lightweight deployer available, designed to maximize useful space satellite payload by significantly reducing mass.

Mass	6 kg
Max. satellite mass	40 kg
Satellite mass range	up to 40
Separation time	≤ 1 s
Separation velocity	0.5 – 2.0 m/s

price on requestdatasheet

KOSMOLAB Launch Services

Deployers 3U

The KosmoLab 3U Deployer provides transport and deployment for 3U-class CubeSats, compatible with various launch vehicles.

Dimensions (L×W×H)	557 × 158 × 187 mm
Mass	4.7 kg
Max. satellite mass	6 kg
Separation time	<= 1 s
Separation velocity	0.5 — 2.0 m/s

₽3 500 000datasheet

KOSMOLAB Launch Services

Deployers 4U

The KosmoLab Deployers 4U are designed for the transport and deployment of 4U-class CubeSats, compatible with various launch vehicles.

Dimensions (L×W×H)	557 × 158 × 187 mm
Mass	4.7 kg
Max. satellite mass	6 kg
Separation time	<= 1 s
Separation velocity	0.5 — 2.0 m/s

₽3 500 000datasheet

End-to-end small satellite launch integration and mission management for university, government, and commercial customers; San Luis Obispo, CA.

Maverick Space Systems

Maverick NLAS Ruggedized 6U Dispenser

Ruggedized 6U dispenser drawing on NASA Ames NLAS heritage, also able to accommodate 2x 3U CubeSats.

Form factor	6U, or 2x 3U CubeSats
CUBESAT interface	Rail-type
Design heritage	NASA Ames NLAS
Status	Ruggedized; flight-proven heritage

price on request

Maverick Space Systems

Mercury-12 Lightweight 12U CubeSat Dispenser

12U lightweight dispenser for rail-type CubeSats, available starting Q1 2024.

Form factor	12U
CUBESAT interface	Rail-type
Availability	Available starting Q1 2024

price on request

Maverick Space Systems

Mercury-12T Tab-Based 12U CubeSat Dispenser

12U tab-based CubeSat dispenser delivering over 50% reduction in gRMS environment transmission, available now with flight-proven heritage.

Form factor	12U
CUBESAT interface	Tab-type
Vibration attenuation	Over 50% reduction in gRMS environment transmission
Availability	Available now
Status	Flight-proven heritage

price on request

Maverick Space Systems

Mercury-16 16U CubeSat Dispenser

16U dispenser for rail-type CubeSats, fully qualified to SpaceX Rideshare levels, available Q1 2025.

Form factor	16U
CUBESAT interface	Rail-type
Qualification	Fully qualified to SpaceX Rideshare levels
Availability	Available Q1 2025

price on request

Maverick Space Systems

Mercury-3 Lightweight 3U CubeSat Dispenser

3U lightweight CubeSat dispenser qualified to NASA GEVS levels, for rail-type CubeSats, available now.

Form factor	3U
CUBESAT interface	Rail-type
Qualification	NASA GEVS qualification levels
Availability	Available now
Status	Flight-proven heritage

price on request

Maverick Space Systems

Mercury-6 Lightweight 6U CubeSat Dispenser

6U lightweight CubeSat dispenser qualified to NASA GEVS levels, for rail-type CubeSats, available now.

Form factor	6U
CUBESAT interface	Rail-type
Qualification	NASA GEVS qualification levels
Availability	Available now
Status	Flight-proven heritage

price on request

Maverick Space Systems

Mercury-6T Tab-Based 6U CubeSat Dispenser

6U tab-based CubeSat dispenser delivering over 50% reduction in gRMS environment transmission, available now with flight-proven heritage.

Form factor	6U
CUBESAT interface	Tab-type
Vibration attenuation	Over 50% reduction in gRMS environment transmission
Availability	Available now
Status	Flight-proven heritage

price on request

Naval Postgraduate School Space Systems Academic Group, developer of the NPS CubeSat Launcher (NPSCuL) and multiple military-relevant CubeSat missions.

Naval Postgraduate School

NPSCuL (NPS CubeSat Launcher)

Multi-CubeSat launch adapter developed by the Naval Postgraduate School, capable of deploying up to 24 CubeSats as a secondary payload on Atlas V and similar launch vehicles.

Type	Multi-CubeSat launch adapter / deployer (P-POD based)
Capacity	Up to 24 CubeSats (1U-equivalent) per launch
Interface	Atlas V Aft Bulkhead Carrier (secondary payload)
Variant	NPSCuL-Lite: 8 P-POD canisters for student thesis integration
Flight heritage	OUTSat, GEMSat missions

price on request

German launch brokerage and rideshare aggregator offering access to Ariane, Vega, Falcon 9, PSLV, and Long March vehicles; OHB SE subsidiary.

OHB Cosmos

CubeSat Deployers with stacking interface

OHB Cosmos International offers CubeSat deployers with standardized mechanical interfaces for easy stacking and flexible combinations of 1U, 3U, 6U, 12U, and 27U satellite launches

price on request

Russian NewSpace company providing full lifecycle development and production of CubeSat small satellites, deployment systems, and ground control stations.

Orbital Systems

CubeSat Deployment System (TPK)

CubeSat transport-launch containers for 1U–16U form factors with flight heritage on Soyuz-2/Fregat since 2020.

Supported form factors	1U, 1.5U, 2U, 3U, 6U, 8U, 12U, 16U
Access windows	Both sides
Interface	Launch vehicle command-and-telemetry unit
Flight heritage	Soyuz-2 + Fregat, since 2020
Redundancy	Dual mechanical and electronic systems

price on request

Orbital Systems

Транспортно-пусковые контейнеры

We offer transport and launch containers (TPK) for launching CubeSat format spacecraft of 1U, 1.5U, 2U, 3U, 6U, 8U, 12U, 16U dimensions.

price on request

Manufacturer of the Lightband family of spacecraft separation systems and Canisterized Satellite Dispensers, acquired by Rocket Lab in December 2021 and now operating as PSC by Rocket Lab.

Planetary Systems Corp (Rocket Lab)

Canisterized Satellite Dispenser (CSD)

Non-pyrotechnic, fully encapsulated CubeSat/small-satellite dispenser available in 3U, 6U, and 12U sizes with 100% mission success.

Sizes available	3U, 6U, 12U
Mass capability	~2 kg per U
Deployment mechanism	Non-pyrotechnic, fully encapsulated canister
Mounting	Array of mount points, mountable to any face
Flight heritage	100% mission success across flight history

price on requestdatasheet

Canadian nanosatellite company developing ultra-compact Mini-Cube satellites with onboard sensors for environmental monitoring, tracking atmospheric changes, and measuring Earth's vital signs from orbit.

Quub (Mini-Cubes)

Hyperion PocketQube Deployer

Flight-ready PocketQube deployment system supporting 1P–6P missions for launch providers and satellite developers seeking affordable orbit access.

Compatible formats	1P through 6P PocketQube
Applications	Technology demonstration, scientific payloads, commercial constellations, educational miss
Interfaces	Standardized PocketQube interfaces
Deployment velocity	~1 meter per second
Door opening angle	120°

price on requestdatasheet

Redwire is an integrated aerospace and defense company that designs and manufactures advanced technologies for space and defense, including optical imaging, sun sensors, solar arrays, and spacecraft p

SEOPS (Spaceflight Engineering Operations) is a U.S. launch integration and rideshare services provider offering last-mile delivery to orbit for small satellites and advanced space technologies, including dedicated launch procurement, satel

SEOPS

Ghost Trap Deployer

Lightweight, modular payload deployer with shock-absorbing mount options (upcoming product, detailed specifications not yet published).

price on request

US aerospace engineering firm designing and building hypersonic reentry capsules, spacecraft docking hardware, in-space propulsion stages, and aerospace design software.

US CubeSat and PocketQube deployer maker at NASA Research Park, Moffett Field CA, founded 2013; composite structures, in-space 3D printing research; Gauss Team launch partner.

Tetonsys

MR-FOD Deployer

3D-printed PocketQube deployer, the standard launcher for PocketQubes on the Italian GAUSS Team UniSat micro-satellite.

Type	PocketQube deployer
Manufacturing method	3D printed
Launch partner platform	Italian GAUSS Team UniSat micro-satellite

price on request

Tetonsys

Teton CubeSat Deployer

Next-generation CubeSat deployer offering greater flexibility for solar panel placement.

Type	CubeSat deployer
Design feature	No corner-capturing / square-section requirement, allowing flexible solar panel mounting

price on request

Tetonsys

Tu-POD Deployer

First-generation Teton deployer fitting inside a standard P-POD to launch PicoSats and PocketQubes.

Type	PicoSat / PocketQube sub-deployer
Host interface	Fits inside a standard P-POD

price on request

UK manufacturer of CubeSat deployers (TPOD) and off-the-shelf standardised satellite buses, also offering FlatSat rental and space engineering advisory services.

Third Planet Orbital

TPOD (Third Planet Orbital Deployer)

CubeSat deployer engineered for low mass, fast integration and reduced total cost of ownership, with a TPOD-12XL variant qualified for 12U-XL satellites up to 27.4 kg.

Variant	TPOD-12XL
Mass	<6.75 kg
Satellite size	12U-XL (226.3±0.1 x 226.3±0.1 x 366±0.3 mm)
Volume excursions	3 faces (40 mm), 1 face (15 mm), end face (60 mm)
Payload capacity	27.4 kg

price on requestdatasheet

Czech mission integrator and space hardware builder behind the CAVE CubeSat deployer, TRONE/CRUSOE EGSE, and the TRACE/TROLL NG/TRULY satellite missions.

TRL Space

CAVE Deployer

The CAVE Deployer is a CubeSat deployment system designed for 6U to 16U CubeSats, featuring a redundant HDRM system, deployment telemetry, and customizable rail lengths.

Deploy cubesats sizes	6–16 U
Protrusions size	28 mm
Maximum lead times	18 Weeks
Price starting at	44.9K EUR
Customizable rail length	366 mm to 454 mm

from €44 990datasheet

Italian manufacturer of CubeSat and small satellite platforms and subsystems, a Terran Orbital company with deep flight heritage across scientific and commercial missions.

Tyvak International S.r.l.

CubeSat Dispensers

Deployment dispensers that secure CubeSats to launch vehicles and provide vibration shielding and clean separation.

price on request

PocketQube deployer and vibration test equipment maker, plus mechanical engineering consultancy for small-satellite developers.

Wyrm Engineering

1p VibePOD

The 1p VibePOD is a deployer used for qualifying 1P CubeSats, tested to NASA GEVS7000 standards.

Flight heritage	FOSSA 1P for Rocketlab “Running out of fingers” mission in Q4 2019
Testing standards	NASA GEVS7000
Dimensions	98.00 mm x 97.00 mm x 83.00 mm

price on requestdatasheet

Wyrm Engineering

Claymore 6P PocketQube Deployer

Modular 6P PocketQube deployer with flight-proven release mechanisms for dispensing pico satellites.

Capacity	Up to 6P PocketQube
Compatible satellite sizes	1P, 1.5P, 2P, 3P PocketQube
Mechanical interface	Meets PocketQube mechanical standard
Envelope clearance	10 mm envelope for larger mechanisms
Design	Modular, adaptable to different release mechanisms

price on request

Space logistics enabler providing rideshare dispenser and deployer hardware for flexible, responsive small-satellite launches.

Xtenti

FANTM-RAiL

A lightweight, minimalist satellite deployer for payloads up to 60 kg, usable standalone or integrated within a FANTM-RiDE dispenser.

Maximum payload mass	60 kg
Interface types	Railed and tabbed configurations, multiple sizes
Deployment record	100% successful in-space deployment (per manufacturer)
Optional protection	Payload shields and FANTM-CAGE enclosures
Qualification	Thermal vacuum (TVAC) and industry-standard qualification testing

price on request

Xtenti

FANTM-RAiL Deployer

Lightweight, flight-proven smallsat deployer with railed and tabbed interfaces for payloads up to 60 kg.

Payload capacity	Up to 60 kg
Interface	Railed and tabbed interfaces, multiple industry-standard sizes
Compatibility	Stand-alone on flat launch interface, or containerized inside FANTM-RiDE Dispenser
Optional accessories	FANTM-CAGE enclosures and shields for payload protection during processing and launch
Flight heritage	100% successful in-space deployment record across multiple missions

price on request

Xtenti

FANTM-RiDE

A containerized, tunable-mass rideshare dispenser enabling rapid payload reconfiguration and hotswap capability up to hours before launch.

Capability	Containerized rideshare payload dispensing
Reconfiguration mode	Rideshare Rapid Reconfiguration (R3) — payload hot-swap without altering dispenser dynamic
Interchange mode	Rapid Dispenser Hotswap (RDH) — common interface across launch vehicles
Flight heritage	Selected for Firefly Aerospace Elytra/Alpha responsive space demonstration supporting NRO

price on request

Xtenti

FANTM-RiDE Dispenser

Rideshare dispenser platform enabling responsive launch integration with hot-swappable payloads and deployers.

Interface	Static mechanical, electrical and dynamic-response launch interface
Containerization	Houses FANTM-RAiL deployers or compatible payload containers
Reconfiguration	Rideshare Rapid Reconfiguration (R3) — hot-swap payloads without altering coupled loads dy
Dispenser interchange	Rapid Dispenser Hotswap (RDH) — common interface for fast Dispenser interchange between la

price on request

XTERRA is the satellite deployment systems division of Arrow Science and Technology, building CubeSat dispensers and custom separation systems descended from the Quad-M/Nanoracks deployer heritage.

XTERRA (Arrow Science and Technology)

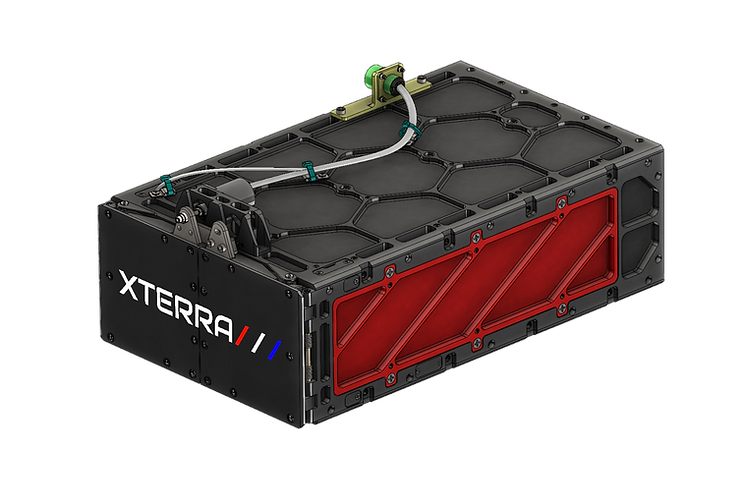

XTERRA CubeSat Dispenser (XCD) Hybrid

The XTERRA CubeSat Dispenser (XCD) Hybrid is a patented, user-convertible CubeSat dispenser system available in two main configurations: XCD-3U/6U Hybrid and XCD-12U/16U Hybrid, of

Model	XCD-3U/6U Hybrid
Compatibility	User convertible 1U, 2U, 3U or 6UXL
Feature	No need for mass model spacers
Feature (2)	More payload access than any other dispenser
Feature (3)	Patented

price on requestdatasheet
