Payloads & Instruments

R&D company providing miniaturized radiation dosimeters and EMC filters for space and ground applications. TRL-9 flight heritage.

27G Technology

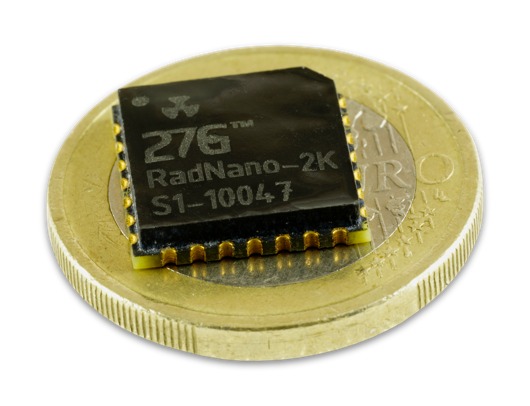

27G RadNano Radiation Sensor

A tiny radiation sensor device designed for space applications, featuring an internal LDO regulator and compliance with space-grade standards. Extensive TRL-9 heritage.

Standby Current (+3.3V supply)	< 5 µA
Additional Current (+5V supply with regulator)	about 1 µA
Outgassing – TML (Typical)	0.16 %
Outgassing – TML (Max)	1.0 %
Outgassing – CVCM (Typical)	0.03 %

price on request

27G Technology

RadNano Dosimeter

A tiny radiation sensor with low power consumption and extensive TRL-9 heritage.

Dimensions	12.7 × 12.7 × 2.5 mm
Dose Range	1 mGy to 100 Gy (0.1 rad to 10 krad)
Power (standby)	< 10 μW
Power (active)	< 10 mW
Sensors	Dual semiconductor sensors

price on request

World-leading manufacturer of space electronic components using proprietary 3D interconnect technology for extreme miniaturization.

3D Plus (HEICO)

CASPEX 1.3Mpx SWIR Space Camera Head

Space-qualified 1.3-megapixel InGaAs SWIR camera head (3DCM880) with 1280×1024 resolution at 134 fps, global shutter, and FPGA-based processing in a 40×40×44 mm package. Ideal for

Resolution	1280 × 1024 pixels (1.3 Mpx)
Sensor Type	Global Shutter InGaAs CMOS (SWIR)
Maximum Frame Rate	134 fps
Read Noise	240 e⁻
Dark Current	28 ke⁻/s at 25°C

price on request

3D Plus (HEICO)

CASPEX 12Mpx Space Camera Head

Space-qualified 12-megapixel CMOS camera head with 4096×3000 resolution, 68 frame/s, global shutter, and FPGA-based processing in a 40×40×39 mm package. Available in short and long

Resolution	4096 × 3000 pixels (12 Mpx)
Sensor Type	Global Shutter Visible CMOS
Maximum Frame Rate	68 frame/s at sensor interface
Read Noise	2 e⁻
Dark Current	10 e⁻/s at 25°C

price on request

3D Plus (HEICO)

CASPEX 4Mpx Space Camera Head

Space-qualified 4-megapixel CMOS camera head with FPGA-based reconfigurable architecture, global shutter, 2048×2048 resolution, and SpaceWire interface in a 35×35×23 mm package. Av

Resolution	2048 × 2048 pixels (4 Mpx)
Sensor Type	Global Shutter Visible CMOS
Maximum Frame Rate	Up to 16 frame/s at sensor interface
Read Noise	13 e⁻
Dark Current	125 e⁻/s at 25°C

price on request

3D Plus (HEICO)

IRIS 4Mpx Space Camera System

Turn-key 4-megapixel space camera system combining CASPEX 4M camera head with space-grade optics and mechanical casing. SpaceWire interface, <400 g mass, and focal length option

Image Sensor	2048 × 2048 Visible CMOS
Resolution	4 Megapixels
Frame Rate (Burst)	Up to 5 fps
Frame Rate (Continuous)	Up to 2 fps
Interface	SpaceWire (2× MDM 9-pin)

price on requestdatasheet

AAC Clyde Space provides small satellite technologies and space-based data services, offering end-to-end solutions from satellite components to data analytics for various applications.

AAC Clyde Space

AAC SpaceQuest STS-300 CubeSat AIS Receiver

6-channel on-board-processing satellite AIS (ship tracking) receiver capable of receiving over 1 million AIS messages per day, 4th-generation design.

Channel coverage	All AIS channels, maritime band 156-162 MHz
Input voltage	2.5V - 5.0V DC
Power consumption	400-650 mW
Data output	115 kHz asynchronous serial, 3.3V TTL
Mass	180 g (incl. aluminium enclosure)

price on requestdatasheet

AAC Clyde Space

FFT2G

The FFT2G is a customisable 2nd-generation FFT spectrometer for ground-based radio astronomy, offering high bandwidth and high resolution spectral analysis.

Outer dimensions (mm)	220 x 115 x 25
Mass (g)	750
Power consumption (W) [Typ]	40
Supply voltage (V) [Typ]	12
General purpose IO voltage (V) [Min/Typ/Max]	0 / 3.3 / 5

price on requestdatasheet

AAC Clyde Space

IM200 Smart Optical Imager

The IM200 is a versatile 4 Mpixel smart optical imager for small satellites and CubeSats, offering high-speed data transfer and real-time image processing capabilities.

Resolution	4 Mpixel
Data Interface	High-speed USB2.0 (480 Mbps)
Optional Data Interface	Medium speed RS422/RS485
Frames per second (full resolution)	5
Internal Buffer Storage	Up to 25 full-frame images

price on requestdatasheet

Aerospace company supporting space exploration missions; partners with ISRO, Skyroot, Orbex, Bellatrix, and Latitude on lunar and Mars programmes.

AADYAH Aerospace

Electro Optics Systems

Advanced electro-optic systems integrating miniaturized electronics, optics, motors, and digital imaging for defense and space — including sun sensors and star trackers, AS9100D ce

Technology	Miniaturized electronics, precision optics, digital imaging
Products include	Sun sensors, star trackers, imaging systems
Sectors	Defence and space
Quality standard	AS9100D certified

price on request

Swiss-Swedish technology company providing sensors, instruments, and automation systems for space applications.

ABB Space Division

ACE-FTS

ABB-built infrared Fourier Transform Spectrometer that is the primary payload of Canada's SCISAT-1 satellite, measuring vertical profiles of ozone and dozens of other atmospheric t

Instrument type	Infrared Fourier Transform Spectrometer (folded double-pass Michelson interferometer) with
Spectral range	2.2 to 13.3 microns
Spectral resolution	0.02 cm-1 (unapodized)
Aperture diameter	100 mm
Suntracker pointing stability	Better than 3 microradians

price on requestdatasheet

Aistech Space provides high-resolution thermal imagery from its satellite constellation to monitor human activity and thermal signatures for various industries.

Aistech Space

Enabler Multispectral Telescope

Aistech's in-house-developed multispectral thermal telescope payload flown on every Hydra satellite, covering visible, near-infrared and long-wave thermal infrared bands.

Payload generation (2026)	Enabler v1.1 / v1.2
Payload generation (2027, planned)	Enabler v1.3
Payload generation (2028, planned)	Enabler v2.0
Bands (v1.1/v1.2)	BLUE, GREEN, RED, NIR, LWIR 8-14 um
Bands (v1.3)	BLUE, GREEN, RED, NIR, LWIR1 10.5-11.5 um, LWIR2 11.5-12.5 um

price on request

Aistech Space

On-Demand Imagery

Pay-as-you-go access to Aistech's thermal infrared satellite imagery for one-time or occasional needs tied to specific events or projects.

Service levels	Standard On-Demand TIR, Priority On-Demand TIR
Data type	Thermal infrared (TIR) imagery
Access model	Pay-as-you-go, transactional
Pricing	Not publicly disclosed - contact sales

price on request

Aistech Space

Priority Tasking

Premium, rapid-activation satellite tasking service for mission-critical thermal ISR scenarios such as wildfire response and security monitoring.

Service levels	Standard Tasking, Priority Tasking
Primary use cases	Wildfire response, security monitoring
Data type	Thermal infrared (TIR) imagery
Access model	Priority on-demand tasking
Pricing	Not publicly disclosed - contact sales

price on request

Al-Farabi Kazakh National University is Kazakhstan leading higher education institution, conducting space-related research including work related to the KazSat satellite program.

Developer of very-low-Earth-orbit (VLEO) imaging satellites providing 10 cm ground resolution — the highest resolution permitted commercially.

Albedo

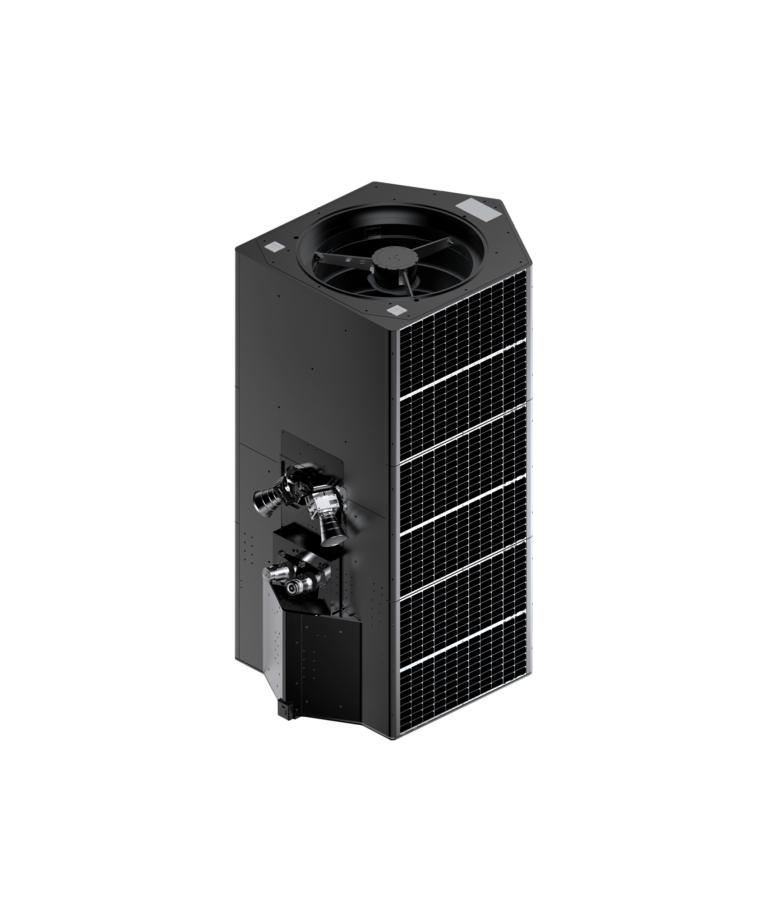

Albedo VLEO Imagery Products

Albedo's 10 cm commercial satellite imagery data products — the highest resolution available from any commercial satellite — enabling vehicle-level identification from space.

Resolution (PAN)	10 cm (panchromatic)
Resolution (MSI)	20–30 cm (multispectral)
Orbit	~300 km VLEO
Applications	Military ISR, infrastructure inspection, environmental monitoring
Data Access	US government classified; commercial access with vetting

price on request

ALE Co., Ltd. is a Tokyo space venture founded in 2011 that created the world's first artificial shooting star technology (SKY CANVAS), using small satellites to release particles that produce on-demand meteor events visible from the ground

ALE Co., Ltd.

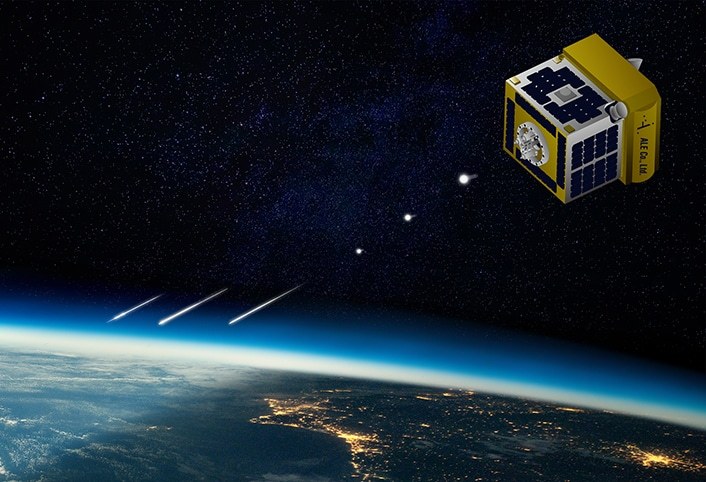

SKY CANVAS Artificial Shooting Star

ALE’s SKY CANVAS creates on-demand artificial shooting star events using small satellites that release 1 cm non-toxic particles from orbit at 60–80 km altitude. The particles

Particle Size	1 cm, non-toxic
Re-entry Altitude	60-80 km
Visible Radius	~200 km
ALE-1 Launch	January 2019, JAXA Epsilon
ALE-2 Launch	December 2019, Rocket Lab Electron

price on request

Physical AI company developing space-grade visual processing and autonomous decision-making systems for satellites and rovers.

Aliensense

Aliensense Space Situational Awareness & Rendezvous Vision System

FPGA-based, radiation-hardened onboard AI vision system for space situational awareness, rendezvous & docking, and rover visual navigation.

Architecture	FPGA-based parallel processing
Radiation tolerance	Radiation-hardened components
SSA capability	Simultaneous multi-object tracking, real-time collision probability calculation
Rendezvous & docking precision	Centimeter-level
Rover navigation	Visual odometry, real-time terrain analysis, hazard avoidance

price on request

ALTER Technology provides laboratory and engineering services for high-reliability EEE components, specializing in microelectronics and optoelectronics engineering, procurement, assembly, and testing

ALTER Technology

Image Sensor Solutions for Space

ALTER Technology develops and qualifies custom camera systems and image sensor solutions for aerospace and scientific applications, including radiation testing, cryogenic character

Radiation Tests	TID, TNID, SEE (heavy ions and protons)
Test Environments	Radiation, vacuum, cryogenic temperatures
Packaging Options	Hermetic sealing, precision placement, thermoelectric cooler integration
Application Range	Machine vision to deep-space exploration

price on request

ALTER Technology

Photonic Integrated Circuit (PIC) Characterization

ALTER Technology provides comprehensive characterization, testing, qualification, packaging, and reliability assessment services for Photonic Integrated Circuits (PICs) for space,

Testing Capabilities	Optical characterization, thermal cycling, radiation testing
Quantum Technologies	QKD, quantum processors, atomic clocks, gravimeters, single-photon detectors
Packaging Services	Optical alignment, thermal management, mechanical robustness
Quantum Projects	QUEST, SLAM, rAmpart, QPICPAC

price on request

ALTER Technology

Photonics Components Testing

ALTER Technology provides a full suite of photonics component testing including optoelectronic characterization, environmental and mechanical testing, precision optical alignment,

Spectral Range	UV to mid-infrared
Thermal Cycling Range	−263 °C to +430 °C
Optical Alignment Accuracy	Sub-micron
Cleanroom Class	ISO-5 (Class 100)
Characterization Equipment	Tunable lasers, integrating spheres, spectrum analysers

price on request

UK-based nanosatellite kit company making space accessible through open-source 1U CubeSat education kits.

AmbaSat

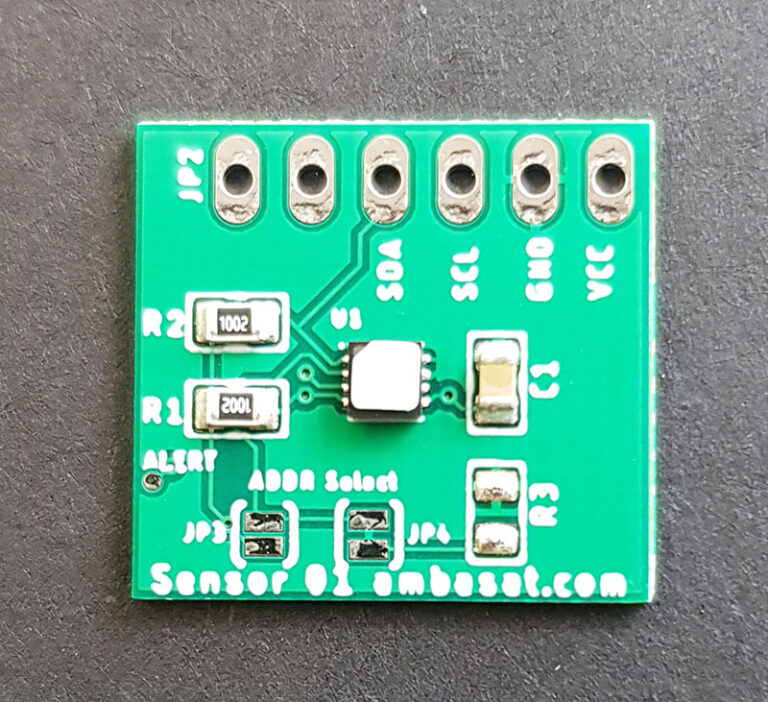

AmbaSat-1 Sensor 01

The AmbaSat-1 Sensor 01 is a humidity and temperature sensor board designed to integrate with the AmbaSat-1 main satellite board via an I2C interface.

Humidity accuracy	1.5 %RH
Temperature accuracy	0.1 °C
Interface	I2C
Communication speed	up to 1MHz
Package	8-Pin DFN

price on request

AmbaSat

AmbaSat-1 Sensor 02

The AmbaSat-1 Sensor 02 pack includes an STS21 digital temperature sensor and an AmbaSat-1 Daughterboard with all necessary components, designed to plug into the AmbaSat-1 main sat

price on request

AmbaSat

AmbaSat-1 Sensor 03

The AmbaSat-1 Sensor 03 is a daughterboard featuring a BME680 4-in-1 multi-functional MEMS environmental sensor for measuring gas, pressure, temperature, and humidity.

price on request

AmbaSat

AmbaSat-1 Sensor 04

The AmbaSat-1 Sensor 04 is an ambient light sensor module, featuring the OPT3001DNPT, designed to integrate with the AmbaSat-1 main satellite board via an I2C interface.

price on request

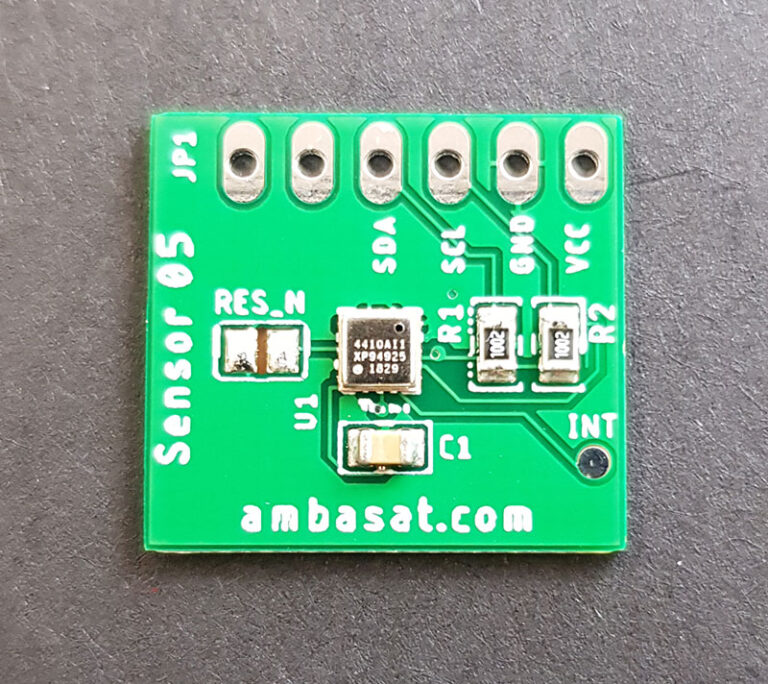

AmbaSat

AmbaSat-1 Sensor 05

A sensor pack for the AmbaSat-1 satellite, designed to detect Total Volatile Organic Compounds (TVOC) using the ZMOD4410AI1V module.

ZMOD4410AI1V Assembly	12-pin LGA
ZMOD4410AI1V Dimensions	3.0 x 3.0 x 0.7 mm

price on request

AmbaSat

AmbaSat-1 Sensor 06

The AmbaSat-1 Sensor 06 is a UV and ambient light sensor daughterboard designed for the AmbaSat-1 satellite, featuring an I2C digital interface.

price on request

Belgian satellite communication system integrator providing RF payload equipment, telemetry systems, and ground terminal technology for institutional and commercial space programs.

Antwerp Space

Satellite RF Communication Payload Equipment

Satellite RF communication payload units — S/X/Ka-band transponders, TT&C equipment, data relay units, and digital signal processing hardware for ESA and commercial satellites.

Frequency Bands	S-band, X-band, Ka-band
Functions	TT&C transponders, data transmitters, channelizers, amplifiers
Standards	ESA ECSS, ESCC qualified
Parent Group	OHB SE
Customers	ESA, European satellite manufacturers

price on request

Spanish space technology company founded 2007 in Leganes, developing MEMS relay switches, SiC power devices, and miniaturized power conditioning units for satellite applications.

Arquimea

Optical Payloads: Space Camera and Imaging Systems

Modular, flight-proven single-camera and multi-camera digital video systems for space imaging covering visible SD to 4K, LWIR, SWIR, VNIR, MWIR, multispectral, and hyperspectral co

Single Camera — spectral options	Visible SD/Full HD/4K, LWIR, SWIR, VNIR, Cooled MWIR, multispectral, hyperspectral, Star T
Multi-Camera DVS — camera count	8 or more cameras per unit
Host interfaces	MIL-STD-1553B (CMD & TLM), LVDS, RS422, UART
Processing	Optional sandbox with customer algorithms (AI-driven apps supported)
Cameras launched to date	>500

price on request

Deep-tech company building next-generation millimeter-wave wireless and satellite communications products, from E-band terrestrial backhaul to S-band through V/W-band space links.

Astrome Technologies

CubeInt

Strategic ELINT/SIGINT satellite constellation for real-time intelligence using DSP and AI/ML for detection and analysis of electromagnetic signals.

Mission type	ELINT/SIGINT intelligence from space
Signal processing	Advanced DSP and AI/ML algorithms
Coverage	Persistent wide-area surveillance via multi-satellite constellation
Applications	Security, defence, early warning, tactical intelligence

price on request

Indian manufacturer of spaceborne systems, payloads, and satellite-enabled ground systems including SATCOM and hydrometeorology sensors.

Azista Space (Azista Aerospace)

Dust Sensor

Spaceborne dust sensor for measuring particulate in space and atmospheric environments.

Type	Dust/particulate sensor
Application	Spaceborne payload, atmospheric and space environment monitoring

price on request

Former US space and defence contractor in Boulder, CO; now part of BAE Systems (2024); legacy of JWST mirrors, Landsat, Hubble servicing missions, weather satellites, and missile defense sensors.

Huali Chuangtong (华力创通, Hwacreate) is a Chinese satellite navigation and IoT technology company listed on the Shenzhen Stock Exchange, headquartered in Beijing, developing GNSS (GPS/BeiDou) navigation modules, IoT terminals, and satellite c

Beijing Huali Chuangtong Technology Co., Ltd.

Complex Electromagnetic Environment Monitoring System

The complex electromagnetic environment monitoring system includes a monitoring management subsystem, portable radar environment monitoring equipment, and portable communication en

price on request

Beijing Huali Chuangtong Technology Co., Ltd.

HWA-QJ100 Integrated Tilt and Acceleration Monitoring Station

The HWA-QJ100 is an integrated tilt and acceleration monitoring station using a one-piece design with highly integrated device and mounting. It features a clean and compact appeara

price on request

Belarusian State University (BSU) is the largest university in Belarus, with space research activities including participation in BelKA and BelSat satellite programs.

Berlin Space Technologies (BST) designs and mass manufactures small satellite systems and technologies, providing end-to-end solutions for space missions.

Berlin Space Technologies

HRVI-2HD

The HRVI-2HD is a high-resolution optical payload system built by Berlin Space Technologies, offering 2m GSD and a 15km swath.

Resolution @500km	1.9m
Swath @500km	15km
Channels	1 PAN & 4MS
DPU	JPEG, 2TB storage, CCSDS, Encryption
In Orbit Focusing	Yes

price on requestdatasheet

Berlin Space Technologies

HRVI-2HD High-Resolution Imager

High-resolution optical imager achieving 1.9 m GSD with 15 km swath from LEO for Earth observation missions.

Ground Sampling Distance	1.9 m
Swath Width	15 km
Mass	19 kg

price on request

Berlin Space Technologies

HRVI-6HD 2nd Gen

The HRVI-6HD 2nd Generation is a space-proven medium resolution earth observation system providing 4.6m GSD imagery with a 70km swath, and also features a hyperspectral option.

Resolution @500km	4.6m
Swath @500km	70km
Channels	1 PAN & 4MS
DPU	JPEG, 2TB storage, CCSDS, Encryption
In Orbit Focusing	Yes

price on requestdatasheet

Berlin Space Technologies

HRVI-6HD 2nd Gen High-Resolution Imager

Wide-swath high-resolution imager with 4.6 m GSD and 70 km swath for broad-area Earth observation.

Ground Sampling Distance	4.6 m
Swath Width	70 km
Mass	10.45 kg

price on request

Birla Institute of Technology and Science, Pilani (BITS Pilani) is one of India's premier technical universities. Founded in 1964, it has a strong tradition of student-led innovation in space technology. The student satellite team Team Anan

Blink Astro develops a low-power satellite IoT network that links remote ground sensors to a compact LEO nanosatellite constellation for daily connectivity in hard-to-reach places.

Blink Astro

AquaBlinkR

Rugged low-power satellite-linked sensor for long-term waterway monitoring, reporting GPS position and water temperature via daily satellite passes.

Frequency	1616 - 1626.5 MHz
Sensitivity	-116 dBm
Max EIRP	29.8 dBm
Max Data Rate	2.4 kbps
Max Download	270 bytes

price on request

Defense technology company specializing in directed energy, C2, and space domain awareness systems.

BlueHalo (Applied Technology Associates)

ARS-16 Angular Rate Sensor / Dynapak-16

Precision angular rate sensors for line-of-sight stabilization and jitter measurement — measures angular motion as low as 40 nanoradians.

Minimum measurable angular motion	40 nanoradians
Dynamic range	>120 dB
Cross-axis angular sensitivity	Low
Warranty	1 year (sensors), 90 days (cables)

price on request

US space mission developer and integrator based at NASA Research Park, Moffett Field, currently operating in stealth mode.

Swedish green propulsion pioneer; HPGP / LMP-103S thrusters using ADN propellant with 12% higher Isp than hydrazine; Bradford ENOVIA group.

Bradford Space

Acceleration Measurement Unit (AMU)

Precision instrument for measuring microgravity acceleration levels aboard crewed and uncrewed spacecraft.

Application

Microgravity acceleration monitoring

price on request

Canon Electronics Inc. develops and manufactures small artificial satellites and their components, alongside a diverse range of precision machinery, electronic equipment, and optical products.

Canon Electronics - Space

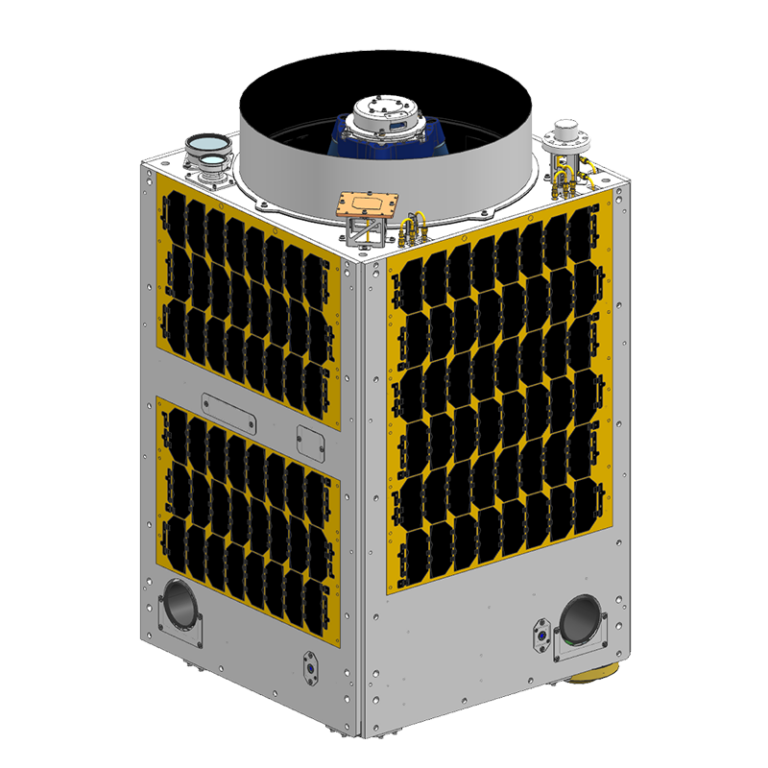

Canon Electronics Space Camera Systems

Canon Electronics' satellite-mounted Earth observation cameras and optical systems for commercial and government remote sensing satellites — applying Canon imaging expertise to spa

Technology	Precision optical telescopes, imaging sensors for satellite EO cameras
Applications	Earth observation imaging, satellite camera systems
Space One Stake	Founding shareholder of Space One Corporation (KAIROS rocket)
Parent	Canon Inc. (Japan's leading optical imaging company)
HQ	Shimomaruko, Ota, Tokyo, Japan

price on request

CAVU Aerospace designs and manufactures spacecraft avionics, including radiation-tolerant onboard computers, thermal control units, frame grabbers, and flight-proven satellite cameras for various spac

CAVU Aerospace

RavenEye5

The RavenEye5 is a flight-proven, highly reliable optical payload designed for CubeSats, capable of capturing high-resolution images for Earth observation and atmospheric monitorin

Aperture Size	60 mm
Available in	5, 16 & 51 Mpixel
Data Interface	LVDS + RS422 + Ethernet
Data Transmission Interface	UART RS485 @6.25
Image format	RAW + JPEG

price on requestdatasheet

Satellite-enabled mineral exploration firm using proprietary AMRT™ technology to detect subsurface resources including precious metals, oil & gas, and groundwater across 50+ countries — non-invasively, without ground crews.

CC Explorations

AMRT™ Satellite Mineral Exploration Survey

Satellite-based subsurface resource detection using AMRT™ (Atomic Mineral Resonance Tomography) — locates precious metals, hydrocarbons, and groundwater across 50+ countries with u

Methodology	Multispectral/hyperspectral imaging + gravitational/magnetic analysis + AI analytics
Reported accuracy	Up to 93% correlation with verified deposits
Turnaround time	15–45 days
Geographic reach	50+ countries
Completed surveys	1,000+

price on request

Chaitanya Bharathi Institute of Technology (CBIT) is a leading engineering college in Hyderabad, India. CBIT is known for its rigorous academic programs and growing emphasis on cutting-edge research in aerospace, electronics, and satellite

Operator of China's first commercial remote sensing constellation "Jilin-1", providing sub-meter optical imagery and video for government and commercial clients.

Chang Guang Satellite Technology

Jilin-1 GP Hyperspectral Satellite

26-band hyperspectral EO satellite — 5 m visible, 100–150 m infrared, 450 nm to 13.5 µm, 110 km swath, 528 km SSO, 600 Mbps phased-array downlink, 2–3 day revisit.

Visible GSD	5 m
SWIR/MWIR GSD	100 m
LWIR GSD	150 m
Spectral bands	26
Spectral range	450 nm – 13.5 µm

price on request

Chang Guang Satellite Technology

Jilin-1 KF01B High-Resolution Optical Satellite

Sub-metre EO satellite — 0.5 m panchromatic, 2 m multispectral, 150 km swath, 2 million km²/day, 535 km SSO, 20 m CE90 without GCP, supports 1:10,000 mapping.

Panchromatic GSD	0.5 m
Multispectral GSD	2 m
Swath width	> 150 km
Orbital altitude	535 km
Orbit type	Sun-synchronous

price on request

Chinese commercial remote sensing company operating the SuperView (Gaojing) high-resolution satellite constellation, providing sub-meter EO imagery and geospatial services.

CICESE (Center for Scientific Research and Higher Education of Ensenada) is a leading Mexican research center located in Baja California. Its space science division conducts research in oceanography, atmospheric sciences, and remote sensing

Collins Aerospace, an RTX company, delivers advanced avionics, communication systems, and space technology solutions to commercial aviation, defense, and space customers worldwide.

Collins Aerospace

Space Sensors

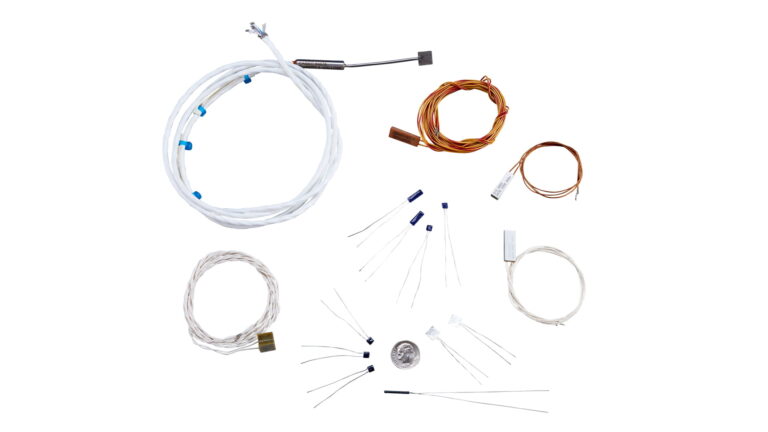

Flight-proven temperature, speed, and pressure sensors for launch vehicles and spacecraft, with heritage across NASA, ESA, and commercial programs since the 1960s.

Types	Temperature (surface & immersion), speed, level, pressure, conductivity sensors
Applications	Launch vehicles, propulsion, payload thermal, attitude control
Heritage programs	Space Shuttle, JWST, SLS, Orion, Parker Solar Probe, Voyager
Launch vehicles	Atlas V, Delta IV, Vulcan, Ariane 5/6, H3, Electron, Terran
Heritage since	Early 1960s (Rosemount Engineering origin)

price on request

Comat is a French aerospace equipment manufacturer, part of the Hemeria group, designing flight hardware and mechanisms for small satellites, telecommunications/observation payloads, and space exploration missions.

Comat

DECLIC Fluid Physics Hardware

Mechanical and optical support hardware for the DECLIC fluid physics experiment facility operated aboard the International Space Station.

price on request

Comat

Dust Removal System

Mechanical dust mitigation system for lunar and planetary surface instruments, protecting optical and sensor surfaces from regolith accumulation.

price on request

Comat

Euro Material Ageing (EMA) Facility Hardware

Mechanical hardware for the Euro Material Ageing facility aboard the International Space Station, exposing material samples to the space environment for degradation testing.

price on request

Comat

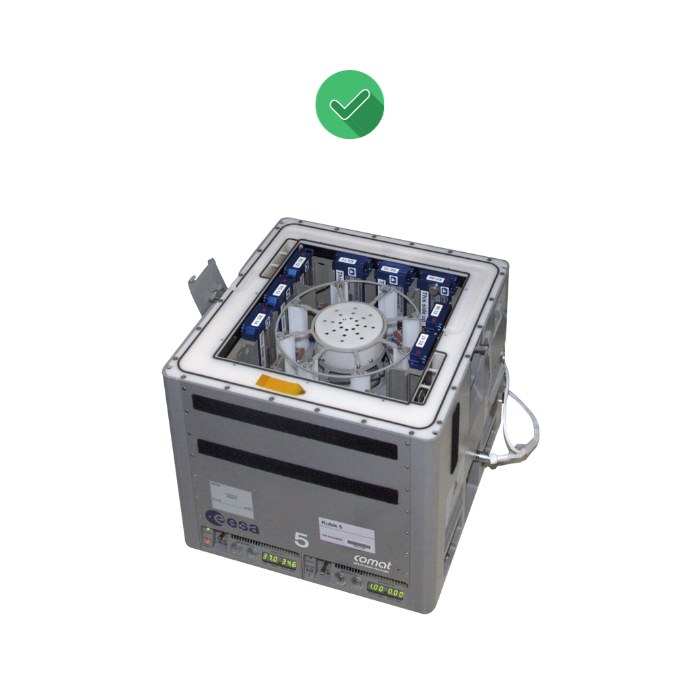

KUBIK Incubator Hardware

Mechanical hardware for the KUBIK biology incubator facility operated aboard the International Space Station for microgravity life science research.

price on request

Comat

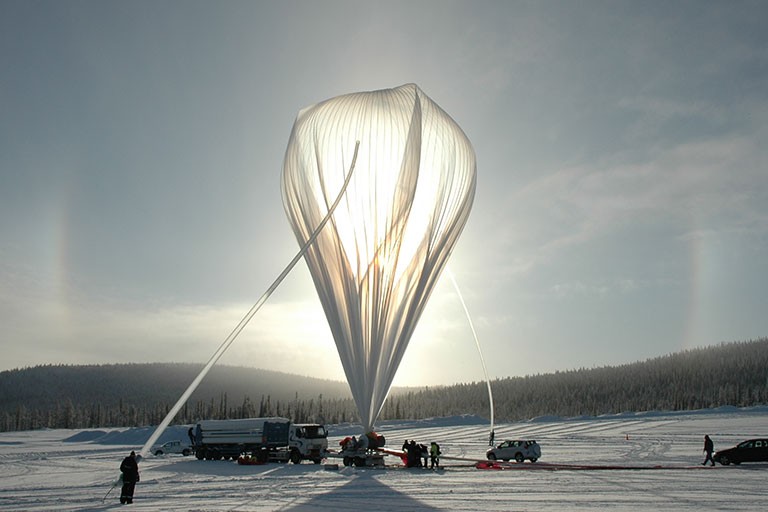

Stratospheric Balloon Hardware

Precision mechanical hardware supplied by Comat for stratospheric balloon-borne scientific instrument platforms.

price on request

Comat

SuperCam Flight Hardware

Precision mechanical flight hardware supplied by Comat for the SuperCam instrument aboard NASA's Mars Perseverance rover.

price on request

Dutch space instrumentation company designing optical payloads and hyperspectral imaging systems for satellites.

cosine (Berlin Adlershof)

HyperScout 2

Compact hyperspectral imaging instrument combining VNIR hyperspectral imaging with thermal infrared channels — Intel Myriad 2 onboard AI chip, first flown 2020.

First launch	2020
Orbit	540 km
GSD (channel 1)	75 m
GSD (channel 2)	490 m
Swath	310 x 150 km

price on request

cosine (Berlin Adlershof)

Silicon Pore Optics (SPO)

Most lightweight high-quality X-ray optics in the world — stacked X-ray mirror modules forming small X-ray lenses for X-ray astronomy instruments.

Application	X-ray astronomy instruments
Design	Stacked X-ray mirror modules

price on request

cosine (Berlin Adlershof)

T-Scout

First multi-spectral thermal infrared imager with high spatial resolution for small satellites — 85m resolution from 500km, onboard real-time processing.

FOV	9.9 deg
Focal length	100 mm
Aperture	67 mm
F-number	F/1.5
Spatial resolution	85 m from 500 km

price on request

cosine (Berlin Adlershof)

Valk

Valk is cosine's new Very High Resolution (VHR) Earth observation electro-optical instrument line, first flying as the primary sensor on the Dutch Ministry of Defence's PAMI-1 sate

Instrument class	Very High Resolution (VHR) Earth observation electro-optical instrument
Primary mission	PAMI-1 (Dutch Ministry of Defence), expected launch early 2028
Mission role	Primary ISR sensor, gathering visible and spectral data
Co-manifested payload	TScout HP (high-resolution thermal imaging), same PAMI-1 mission
Program status	Unveiled 12 June 2025; showmodel presented at 4S Symposium 2026

price on request

Cowboy Space Corporation (formerly Aetherflux) is building a power grid in outer space for AI — a constellation of solar-powered orbital data centers providing 1 MW per node of GPU compute in LEO.

Cowboy Space Corporation (formerly Aetherflux)

Galactic Brain Orbital Data Center

Galactic Brain is Aetherflux's orbital AI compute platform: a constellation of solar-powered LEO satellites providing GPU-class processing in space, bypassing terrestrial energy co

Orbit	Low Earth Orbit (LEO)
First Node Commercial Operation	Q1 2027
Initial Compute Class	Teraflop-class (2027)
Scale-up Compute Class	Petaflop-class constellation
Connectivity	Multi-gigabit bandwidth via optical inter-satellite links

price on request

Crystal Space designs and manufactures cameras and smart cameras for satellites, rovers, landers, and UxS, with over 200 cameras delivered and 12,500+ collective days in space.

Crystal Space

Crystalspace C1U CubeSat Camera

The Crystalspace C1U CubeSat Camera is a versatile imaging solution designed for various space applications, including Earth observation, situational awareness, and navigation.

Resolution	5 MP
FOV	44 x 34 deg
Mass	<50 g
Dimensions	42 x 25 x 45 mm
Power (nominal)	75 mW

price on request

Crystal Space

CS-151 Kodas Monitoring Camera

Space-qualified monitoring camera (270 g, 82x88x39 mm) with up to 5 MP resolution and flight heritage on Maxar's SAMPLR lunar lander for NASA's Artemis mission.

Resolution	VGA (640x480) standard; up to 5 MP; custom 1-10 MP
Mass	270 g
Dimensions	82 x 88 x 39 mm
Power (nominal)	0.5 W
Power (peak)	1 W

price on request

Vertically integrated Indian defence and aerospace electronics company designing and manufacturing avionics, microelectronics, RF/microwave, radar, test equipment and space systems.

Data Patterns (India) Ltd.

Electronic Warfare Systems

Integrated ECM/ESM, spectrum monitoring and direction finding solutions

price on request

Data Patterns (India) Ltd.

Laser and Electro-Optic Systems

Electro-optical products for surveillance, imaging and missile test

price on request

Quantum camera developer whose beyond-diffraction-limit imaging technology was developed for NASA/DARPA and is designed for space-based Earth and space intelligence.

Diffraqtion

Quantum Camera

Beyond-diffraction-limit quantum imaging camera for satellite and telescope constellations providing 20x greater object identification range.

Technology	Quantum photonics / quantum imaging
Key capability	Imaging beyond the diffraction limit — identifies objects 20× further than any conventiona
Information capture	Captures ~95% more information than conventional cameras
Applications	Space situational awareness, Earth intelligence, astronomical observation (exoplanet detec
Backing	DARPA (2026 demo contract), developed in partnership with NASA

price on request

Diffraqtion

Quantum Camera Platform

The Quantum Camera Platform is an award-winning quantum technology and AI-powered camera designed to see beyond the diffraction limit for Earth and Space Intelligence.

Detection distance	20x further than current CMOS/CCD sensors
Processing speed	1000x faster than conventional GPU/VPU + CMOS
Energy efficiency	1000x more efficient than current GPU/VPUs
Integration	USB-C, M8/M12 or custom outputs
Software	Python library, cloud-based model training

price on request

South African manufacturer of high-performance electro-optical imaging payloads and satellite platforms for Earth observation.

Dragonfly Aerospace

Caiman

The Caiman is a high-resolution multispectral imager for 6U CubeSats, offering maximum achievable resolution within its form factor and unmatched image detail for small satellite p

Spatial Resolution (GSD) at 500 km (RGB)	3.25 m
Swath at 500 km (RGB)	13 km
Mass (incl. electronics) (RGB)	1.4 kg
Spectral Bands (RGB)	Standard RGB
Imager Type (RGB)	Snap shot

price on requestdatasheet

Dragonfly Aerospace

Chameleon

The Chameleon is a high-performance hyperspectral imager with space-qualified control electronics and specialized optics, designed for CubeSats.

Spatial Resolution (GSD) at 500 km	10 m (RGB)
Swath at 500 km	39 km (RGB)
Mass (incl. electronics)	1.6 kg (RGB)
Spectral Bands	Standard RGB
Imager Type	Snap shot (RGB)

price on requestdatasheet

Dragonfly Aerospace

Chameleon SWIR

The Chameleon SWIR is a specialized short-wave infrared camera designed for Earth and space exploration, capturing high-contrast images in the 1000–1750 mm spectral range.

Spatial Resolution (GSD) at 500 km	RAW 8.7 m
Swath at 500 km	11.2 km
Mass (Including electronics)	1.6 kg
Spectral bands	4 x SWIR Bands (1000–1750 mm)
Satellite Bus Size	Compatible with 6U

price on requestdatasheet

Dragonfly Aerospace

DragonEye

DragonEye is a high-resolution imager for microsatellites, offering detailed Earth imagery in panchromatic mode with radiation-resistant optics and a wide field of view.

Spatial Resolution (GSD) at 500 km PAN	1.4 m
Spatial Resolution (GSD) at 500 km MS Binned	2.8 m
Swath at 500 km	22.2 km
Mass (Including electronics)	18 kg
Spectral bands	10x MS plus 1x PAN

price on requestdatasheet

Dragonfly Aerospace

Gecko imager

The Gecko imager is a compact, easily integrated imaging solution for CubeSat missions, offering large data storage and high image quality in a small form factor.

Spatial Resolution (GSD) at 500 km	39 m
Swath at 500 km	80 km
Mass (incl. electronics)	<0.5 kg
Spectral Bands	Standard RGB
Physical Size	1U (65 mm x 90 mm x 105 mm)

price on requestdatasheet

Dragonfly Aerospace

Komodo

Komodo is a compact 12U high-performance Earth observation camera offering multispectral data for diverse uses, supporting both push-broom and RGB snapshot modes.

Spatial Resolution (GSD) at 500 km	1.5 m
Swath at 500 km	6.1 km
Mass (incl. electronics)	12 kg
Spectral Bands	Standard RGB
Physical Size	200 mm x 200 mm x 340 mm

price on requestdatasheet

Dragonfly Aerospace

Mantis

The Mantis imager provides advanced multispectral or hyperspectral imaging capabilities for CubeSats, featuring integrated high-speed data storage.

Spatial Resolution (GSD) at 500 km	16 m
Swath at 500 km	32 km
Mass (incl. electronics)	<0.5 kg
Spectral Bands	Standard RGB
Imager Type	Snap shot

price on requestdatasheet

Dragonfly Aerospace

Raptor

The Raptor is an advanced satellite camera system offering industry-leading panchromatic image resolution and targeted spectral data for mapping, analysis, and surveillance applica

Spatial Resolution (GSD) at 500 km PAN	0.5m
Spatial Resolution (GSD) at 500 km MS	2m
Swath at 500 km	8 km
Mass (Including electronics)	≈ 60 kg
Spectral bands	6x MS plus 2x PAN

price on requestdatasheet

Belgian NewSpace company developing in-orbit edge AI computing solutions; makes the EDGX Sterna Computer — Europe's first NVIDIA-based onboard payload data processing unit for satellites.

EDGX

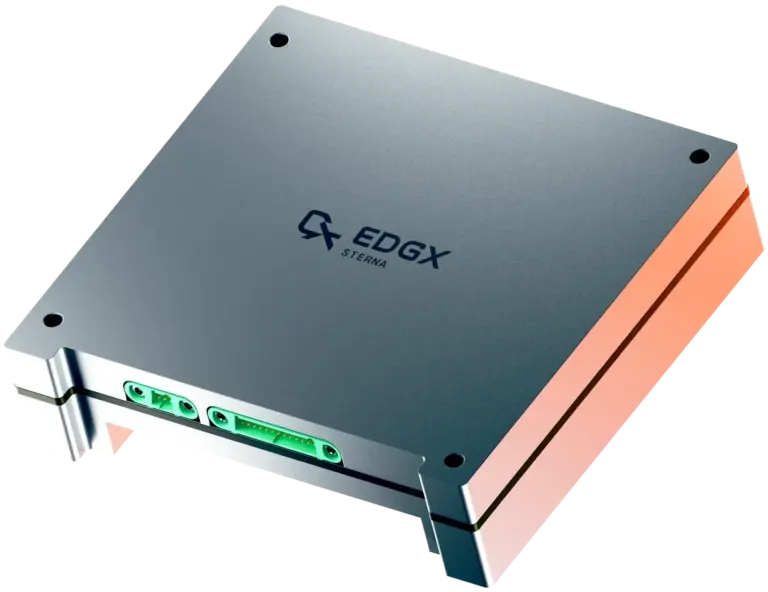

Defense Electronics and Space Systems

EDGX's defense electronics and space sensor systems for ISR (intelligence, surveillance, and reconnaissance) satellite applications.

Products	EO/IR sensor subsystems, signal processing electronics for ISR satellites
Technology	Focal plane array integration, high-throughput image processing, data compression
Customers	US defense and intelligence community (cleared contractor)
Compliance	ITAR controlled (US government satellite programs)
Market	Government ISR space systems — high reliability, radiation-tolerant electronics

price on request

Norwegian space and defence electronics company specializing in telemetry, secure communications, and mission-critical instrumentation since 1966.

Eidel

mNLP (multi-Needle Langmuir Probe)

The mNLP is a miniaturized, space-proven instrument designed to measure ionospheric plasma density with sub-meter resolution and an exceptionally high sampling frequency.

Sampling Rate	Up to 10 kHz.
Resolution	Sub-meter plasma scale.
Measurement Method	Multi-needle simultaneous sampling (no voltage sweep required).
Platforms	Sounding rockets, CubeSats, and research satellites.
Development	In collaboration with the University of Oslo (UiO).

price on request

US developer of Very Low Earth Orbit (VLEO) 'Stingray' satellites delivering 15cm-resolution imagery.

ETH Zurich is Switzerland premier technical university with a strong space research program focused on satellite geodesy, satellite navigation, and space instrumentation. The institute contributes to ESA missions including CHEOPS and advanc

ETH Zurich - Space Geodesy

CHEOPS Photometer

High-precision photometer developed by ETH Zurich for the ESA CHEOPS exoplanet characterization mission, launched in 2019.

Type	Space photometer
Host mission	ESA CHEOPS
Launch	December 18, 2019
Launch vehicle	Soyuz-Fregat
Orbit	LEO, SSO ~700 km

price on request

Polish SAR payload developer; world's first satellite-agnostic SAR sensor enabling independent all-weather imaging constellations; offices in Warsaw and Bristol.

Eycore

SAR sensor

The Eycore SAR sensor is presented as the world's first SAR sensor designed for integration with any satellite, facilitating the creation of independent SAR constellations.

Integration	Compatible with any satellite bus
Applications	Defence, climate monitoring, commodity trading, disaster response

price on request

Fantana develops satellite-based sensor systems for Earth observation, communication, and space surveillance, utilizing integrated optoelectronics for various applications.

fantana

Doppler Wind Lidar

Highly integrated, single-photon-based Doppler wind lidar — ultra-compact sensors for aviation, industry, and renewable energy applications.

Development started	2021
Detection technology	Single-photon detection
Applications	Aviation, industrial, renewable energy

price on request

fantana

Satellite Optical Systems for Earth Observation

Optical systems for earth observation satellites — high-resolution, scalable sensor technology for environmental monitoring and security applications.

Division established	2024
Applications	Earth observation, security, environmental monitoring

price on request

US developer of advanced photonics, laser systems, and electro-optics solutions for DoD, NASA, and aerospace customers, including space-qualified lidars, laser transceivers, and photon-counting receivers.

Fibertek, Inc.

Laser Technologies

Fibertek offers mission-differentiating laser systems for space, air, and ground domains, specializing in remote sensing (lidar) and optical communications technologies.

Flight Heritage	NASA’s ICESat-2 mission (space-qualified laser transmitters and photon-counting detector e
Laser Wavelength (ICESat-2)	532 nm
Laser Repetition Rate (ICESat-2)	10 kHz
Operational Altitude (ICESat-2)	500 km
Elevation Measurement Accuracy (ICESat-2)	Sub-decimeter

price on request

French scientific imaging company developing ultra-sensitive cameras for astronomy, space, and life science applications.

First Light Imaging

C-RED 2 ER Extended SWIR Camera

Extended SWIR camera on 640x512 ER-InGaAs detectors with sensitivity shifted to 1.9 um or 2.2 um, 600 fps full frame.

Full sensitivity range (QE > 10%)	1100-1900 nm (1.9 um model) / 1300-2150 nm (2.2 um model)
Quantum efficiency > 70%	1150-1800 nm (1.9 um model) / 1380-2050 nm (2.2 um model)
Sensor size	640 x 512 pixels ER-InGaAs
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps

price on request

First Light Imaging

C-RED 2 Lite SWIR Camera

Compact fanless TEC-stabilized SWIR camera running 600 fps with under 30 electrons readout noise, optionally water-cooled.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C

price on request

First Light Imaging

C-RED 2 SWIR Camera

High speed low noise SWIR camera running 600 fps full frame with readout noise under 30 electrons and dark current under 600 e/p/s.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame

price on request

First Light Imaging

C-RED 3 SWIR Camera

Very compact high-speed uncooled VGA SWIR camera for short exposure times, with patented adaptive bias and OEM core version.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels, InGaAs PIN photodiode
Pixel pitch	15 micrometres
Maximum speed full frame	600 fps
Readout noise	< 40 e- at high gain, Tint 50 us, 600 fps full frame

price on request

First Light Imaging

C-RED New Space SWIR Camera Core

SWIR camera core on a space-approved 640x512 InGaAs sensor for satellite optical payloads, 600 fps full frame and up to 32066 fps windowed.

Spectral range	SWIR 0.9 - 1.7 micrometres
Sensor size	640 x 512 pixels (0.3 Mp), InGaAs
Pixel pitch	15 micrometres
Quantization	14 bit
Readout noise	< 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C

price on request

First Light Imaging

C-RED One SWIR Camera

Ultra high-speed photon counting SWIR camera with 320x256 MCT e-APD array, sub-electron readout noise and up to 3500 fps full frame.

Spectral range	SWIR 0.80 - 2.43 micrometres (J, H, K bands)
Sensor	320 x 256 pixels MCT e-APD array
Pixel pitch	24 micrometres
Maximum speed full frame single readout	3500 fps
Readout noise	< 1 e- at 1720 fps CDS readout, gain x50, black body at 80 K

price on requestdatasheet

GalaxEye Space is an Indian Earth observation company, spun out of IIT Madras, developing OptoSAR — a satellite payload that fuses SAR and multispectral optical imagery from a single co-located sensor to eliminate parallax and time-gap erro

GalaxEye Space

OptoSAR

OptoSAR is an end-to-end system of hardware and software that combines optical and Synthetic Aperture Radar (SAR) imagery to provide comprehensive Earth Observation data from a sin

price on requestdatasheet

Gazprom Space Systems develops and operates the Yamal satellite communication system and the SMOTR aerospace monitoring system, providing telecommunication and geo-information services.

Gazprom Space Systems (GKS)

Smotr Remote Sensing System

Satellite-based aerospace monitoring system for Earth observation and infrastructure surveillance, particularly of oil and gas assets.

Type	Satellite Earth Observation / Aerospace Monitoring
Primary use	Oil & gas infrastructure monitoring
Coverage	Russia and CIS region
Operator	Gazprom Space Systems

price on request

GHGSat is the global leader in high-resolution satellite-based remote sensing of greenhouse gas emissions, pinpointing methane and CO2 leaks down to individual industrial facilities worldwide.

GHGSat

DATA.AIR Airborne Methane Monitoring

GHGSat's proprietary satellite sensor technology adapted for aircraft, delivering high-resolution, responsive, localized methane emissions monitoring campaigns down to individual s

Instrument	GHGSat-AV patented airborne methane sensor
Minimum detection rate	Down to 10 kg/hr from individual sources
Linear survey rate	Up to 800 km/day at up to 3,000 m altitude
Across-track swath width	Up to 750 m
Area survey rate	Up to 385 km2/day at up to 3,000 m altitude

price on request

GHGSat

GHGSat Satellite Constellation & DATA.SAT

GHGSat's commercial constellation of small satellites carrying a patented high-resolution imaging spectrometer, delivering year-round, worldwide methane and CO2 emissions monitorin

Satellites in orbit	15 commercial satellites (as of 2025)
Spatial resolution	~25 m per pixel
Orbital altitude	~500 km
Satellite dimensions	~20 x 30 x 40 cm (small satellite form factor)
Sensor technology	Patented Wide-Angle Fabry-Perot (WAF-P) imaging interferometer

price on requestdatasheet

GITAI develops robotic technologies for space exploration, including solutions for satellite construction, lunar settlements, and Martian cities, with a robot currently on the ISS.

GITAI

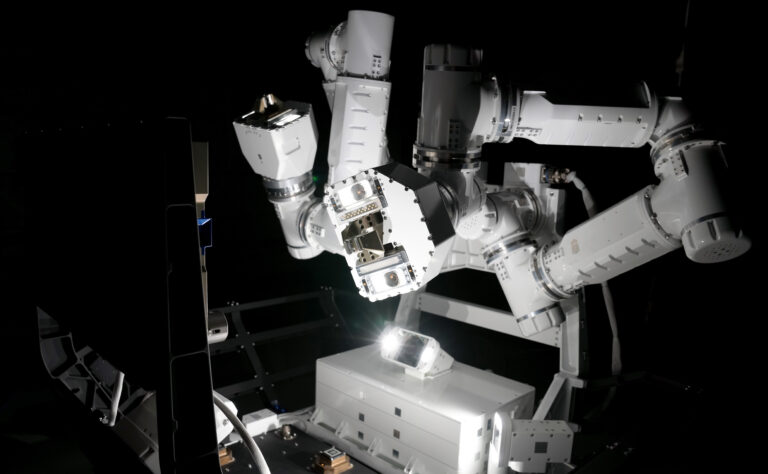

GITAI Lunar/Space Robotic Arm System

GITAI's autonomous dual-arm robotic system is designed for in-space servicing, assembly and manufacturing, lunar surface construction, and ISS external maintenance tasks, reducing

Arm reach	~1.5 meters (flagship dual-arm system)
Control modes	Autonomous and teleoperated
Target applications	In-space servicing, assembly, and manufacturing (ISAM); lunar surface construction; ISS ex
Demonstrated tasks	Panel assembly, switch operation, cable connection, tool-use
Flight heritage	ISS technology demonstration in 2021 aboard the Bishop Airlock under a Nanoracks contract

price on request

Glavkosmos coordinates international human spaceflight projects, facilitates satellite launches, develops and supplies rocket components, and provides equipment for space crews.

Glavkosmos

Apochromatic Lenses

Apochromatic lens objectives for astronomic telescopes, forming a complete telescope set with clear apertures from 100 to 500 mm.

Purpose	Telescopes complete set
Year of release	1997
Guaranteed service life (years)	15
Estimated production / delivery time (months)	12
Flight qualification of the product	No

price on request

Glavkosmos

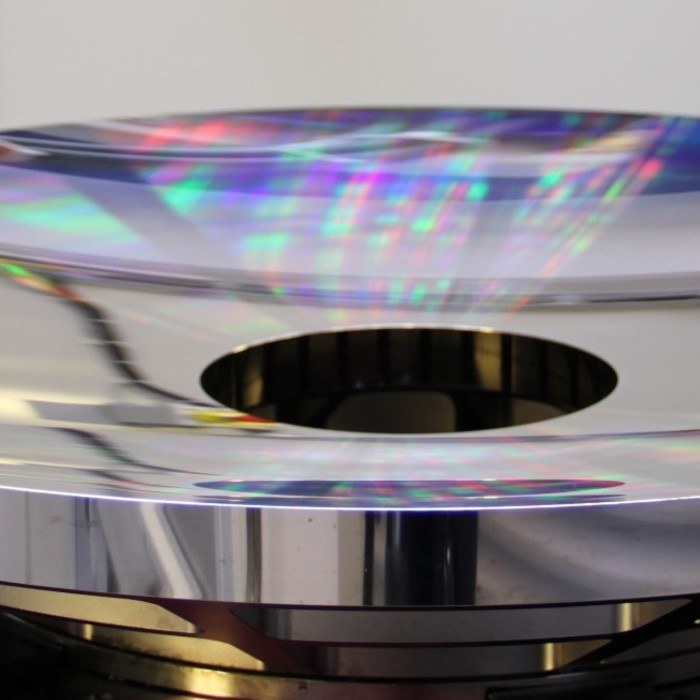

Aspherical Light-weighted Mirrors

Light-weighted aspherical mirrors made of low-CTE Sitall glass-ceramic for ground-based and space optical systems.

Purpose	Complete set of objectives for ground-based dynamic opto-electronic components (OEC) and E
Year of release	1993
Production / delivery time	14 months (estimated)
TRL	Not flight qualified — contained in customer's apparatus
Customization	Adaptable to customer requirements; produced per customer's WDD

price on request

Glavkosmos

Aspherical Monolithic Mirrors

Aspherical monolithic mirrors designed as objectives for Optical-Electronic Complexes (OEC), featuring extra-low CTLE material, lightweighting, and high surface quality.

Purpose	Complete set of objectives of OEC (telescopes)
Year of release	1998
Estimated production / delivery time (months)	9
Flight qualification of the product	No
Brief history of flight qualification	Contained in Customer's apparutus.

price on request

Glavkosmos

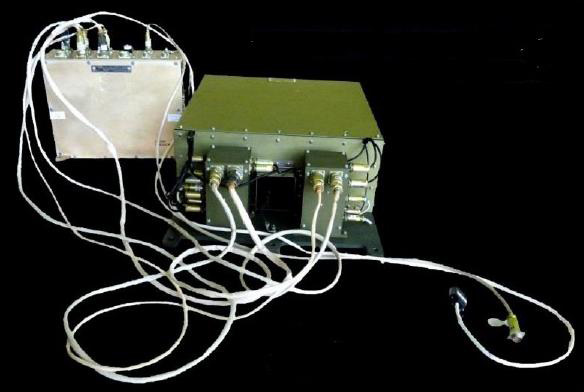

BELKA-2 Research Equipment

BELKA-2 is a bio-crystallizer designed for research on protein crystal growth in zero-gravity conditions using liquid (counter) and gas diffusion methods.

Purpose	Research related to growth of protein crystals by method of liquid (counter) and gas diffu
Guaranteed service life	2 years
Flight qualification of the product	No
Brief history of flight qualification	net
Possibility to adapt the product to customer requirements	Yes

price on request

Glavkosmos

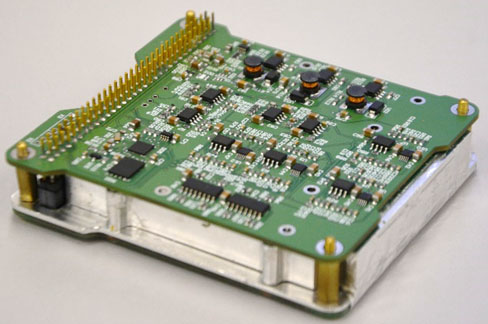

Charged Particles Detector

A charged particles detector developed by Sputnix and SINP for mid-size satellites, capable of monitoring and measuring single event parameters of gamma and electron particles.

Purpose	Charged particles researches, spectrometry.
Year of release	2017
Guaranteed service life (years)	1
Estimated production / delivery time (months)	6
Flight qualification of the product	Yes

price on request

Glavkosmos

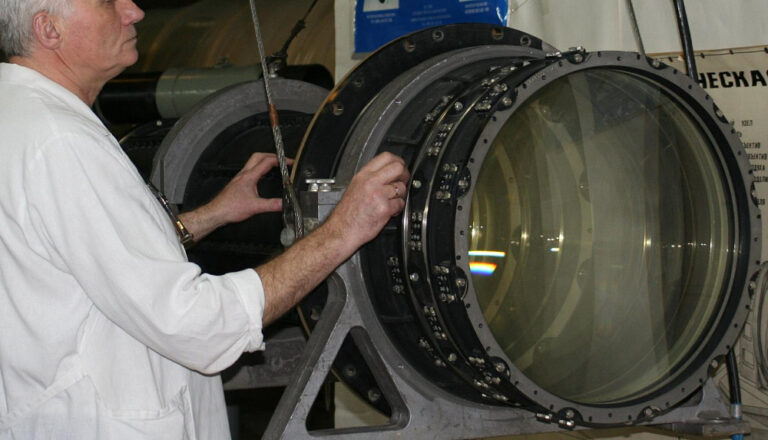

Large-dimensioned Lens Objective

A large-dimensioned, long-focus lens objective designed for Earth Remote Sensing (ERS) equipment, featuring a 500 mm clear aperture and 4000 mm focal distance.

Purpose	Complete set of ERS equipment.
Year of release	1990
Guaranteed service life (years)	7
Estimated production / delivery time (months)	24
Flight qualification of the product	No

price on request

Glavkosmos

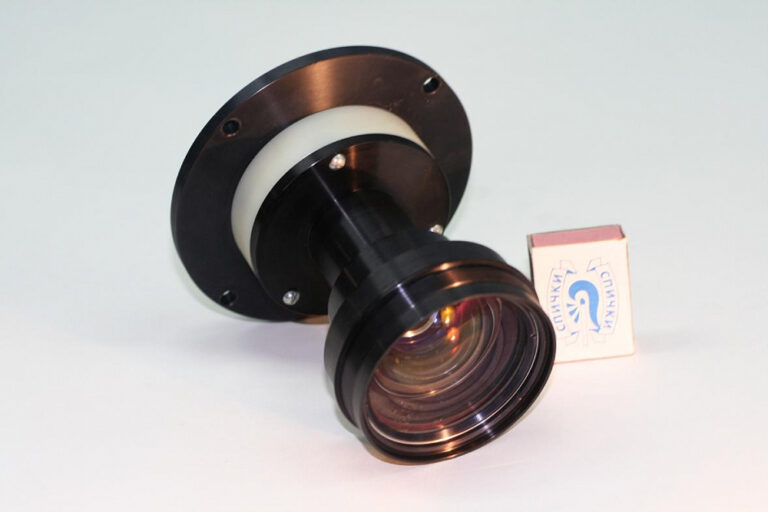

Lens Objectives for ERS Equipment

A set of short-focus lens objectives designed for Earth Remote Sensing (ERS) equipment, offering a clear aperture of 40 mm and a focal distance range of 40-200 mm.

Purpose	Complete set of ERS equipment.
Year of release	2000
Guaranteed service life (years)	7
Estimated production / delivery time (months)	18
Flight qualification of the product	No

price on request

Glavkosmos

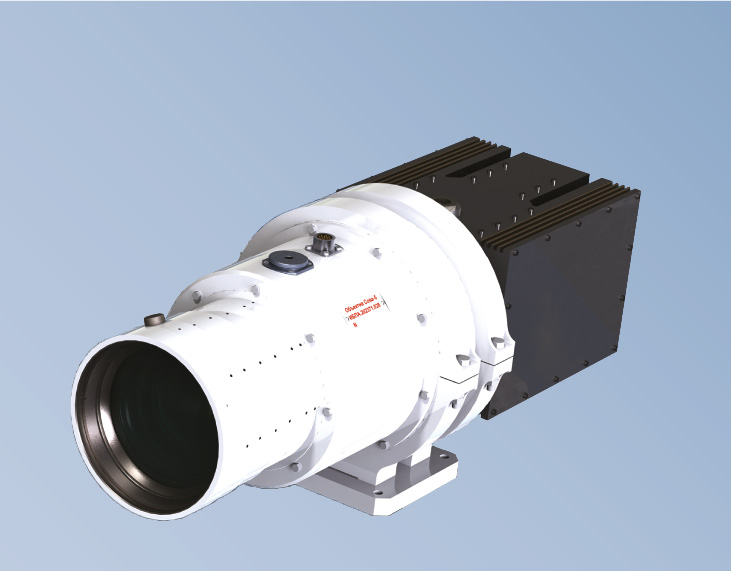

Lens SOVA-5

The SOVA-5 is a wide-angle lens designed for detecting low-orbital space objects at altitudes ranging from 120 to 500 km, featuring a 40° viewing angle and a 0.7 transmission facto

Purpose	Wide lens lens for detection of low-orbital space objects at altitudes from 120 to 500 km
Year of release	2007
Guaranteed service life (years)	10 years
Estimated production / delivery time (months)	9
Focal length	100 mm

price on request

Glavkosmos

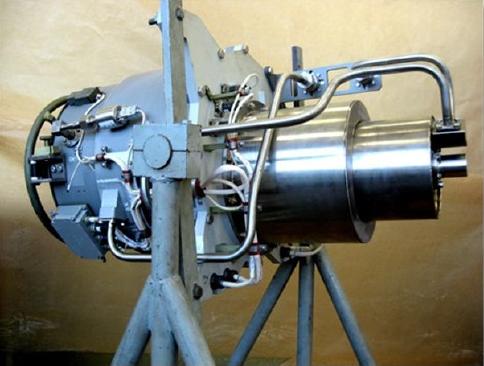

Multi-zone Electrical Furnace «MEF-01»

The MEF-01 is a multi-zone electrical furnace designed for conducting research on the International Space Station (ISS), primarily for experiments involving the cultivation of semi

Purpose	Conducting research on the ISS. It is intended for experiments on cultivation of semicondu
Temperature of the heater	up to 1200 °C
Guaranteed service life	2 years
Flight qualification of the product	No
Brief history of flight qualification	No

price on request

Glavkosmos

Onboard Infrared Fourier Spectrometer

An infrared Fourier spectrometer designed for spacecraft to measure outgoing thermal radiation spectra with high spectral resolution for operational meteorology and climatology.

Operation specrtal range	5-15 mkm
Spectral resolution, no more	0,5 1/sm
Threshold spectral brightness (NESR), (mW*sm)/(m2*average)	0,15-0,45
The measurement error of the spectral brightness of the object (in terms of equivalent temperature) at a wavelength of 11 ... 12 microns and at an object temperature of 280 ... 300 K	0,5 K
Swath width	to 2500 km

price on request

Glavkosmos

Photomultiplier Tube (PMT-175)

A photomultiplier tube (PMT-175) for multispectral research, special purpose equipment, and gas sensors, featuring an SbKCs photocathode and a 14-dynode linear multiplication syste

Purpose	Multispectral research. Special purpose equipment. Gas sensors.
Year of release	2005
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

Photomultiplier Tube 1

A photomultiplier tube for registering pulse signals in the visible and near-infrared ranges, used in multispectral research instrumentation.

Purpose	Registration of pulse signals within visible and near IR ranges for multispectral research
Year of release	2005
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

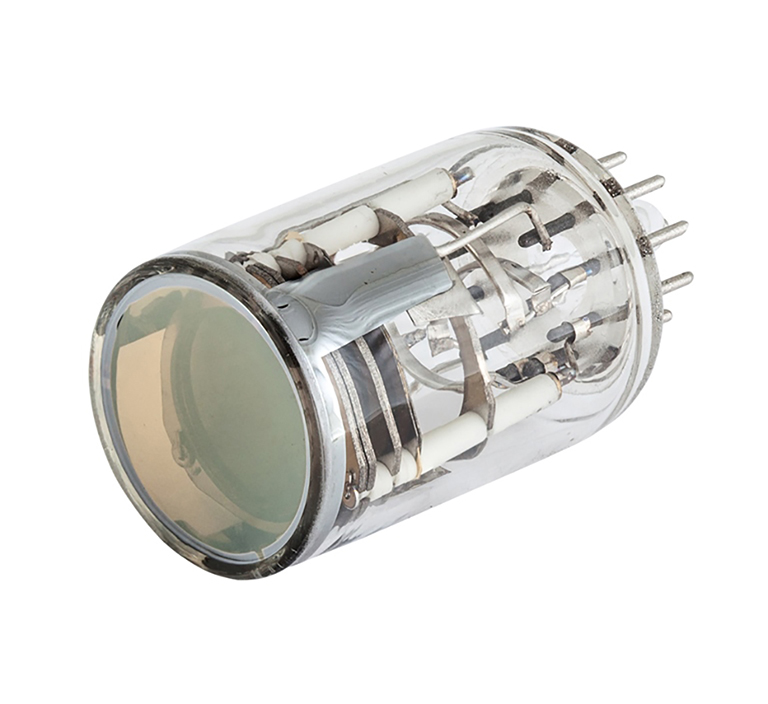

Photomultiplier Tube of High Immunity to Magnetic Fields (tetrode)

A radiation- and magnetic-field-tolerant photomultiplier tube (tetrode design) used for scintillation irradiation detection in high energy physics.

Purpose	Scintillation irradiation detection in high energy physics under conditions of magnetic fi
Year of release	2009
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

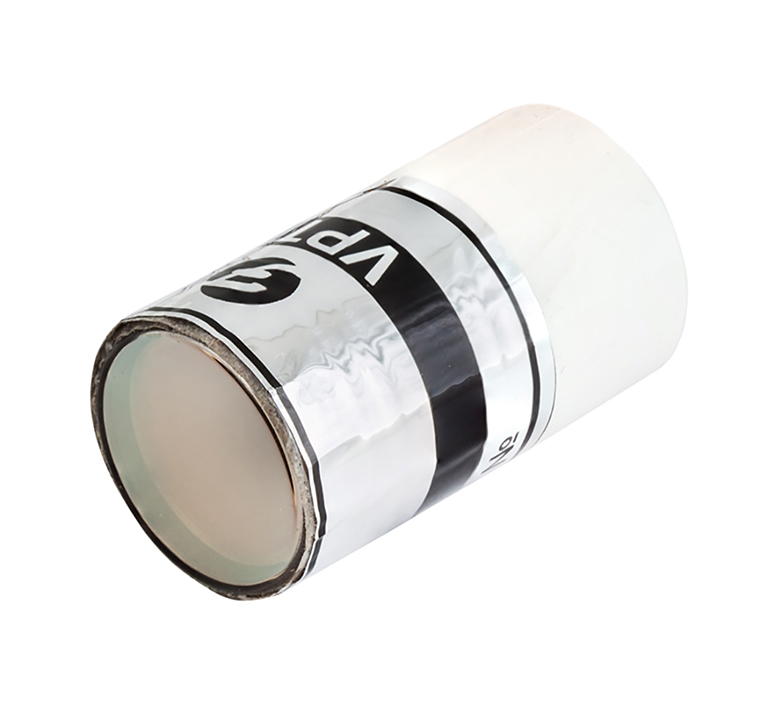

PMT-188 (Photomultiplier Tube of High Immunity to Magnetic Fields)

PMT-188 is a photomultiplier tube photodetector designed to operate reliably under strong magnetic fields (up to 4T) and radioactive exposure (up to 2kGy), for use in scientific in

Purpose	Photodetectors operating under exposure of strong magnetic (up to 4T) and radioactive fiel
Year of release	2001
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

Pressure Sensor

Thin-film strain-gauge pressure sensor for rocket/space systems (0–60 MPa range, 0.25% error, 0.15 kg, -196 to +50 °C, high vibration/shock resistance).

Purpose	Static-dynamic pressure measurement for rocket and space technology information-measuring
Estimated production/delivery time	6 months
Customization	Can be adapted to customer requirements
Measurement ranges, MPa	0–1; 0–1.5; 0–2; 0–3; 0–4; 0–6; 0–8; 0–10; 0–15; 0–25; 0–40; 0–60
Basic error, % of measuring range	≤0.25

price on request

Glavkosmos

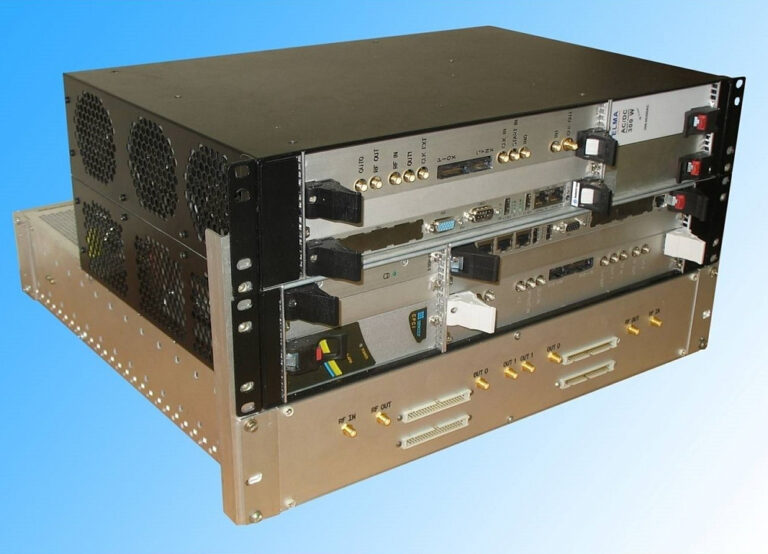

Quad-band Synthetic Aperture Radar (SAR)

A small-size quad-band (X, L, P, VHF) synthetic aperture radar for Earth remote sensing surveying, designed for operation aboard various types of aircraft.

Purpose	ERS SAR is designed for radar surveying in different bands, in the interests of various cu
Year of release	1997
Guaranteed service life (years)	7
Estimated production / delivery time (months)	12
Flight qualification of the product	No

price on request

Glavkosmos

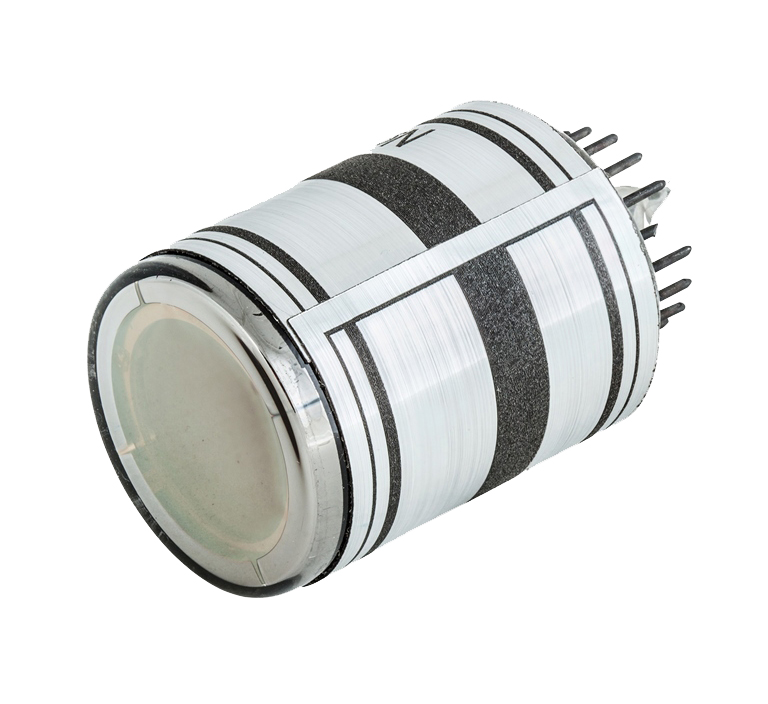

Radiation Hard Photomultiplier of High Immunity to Magnetic Fields (PMT-187)

PMT-187 is a radiation-hard photomultiplier tube designed for scintillation counting in high-energy physics systems that operate under simultaneous exposure to strong magnetic fiel

Year of release	1998
Guaranteed service life	4 years
Estimated production / delivery time	3 months
Flight qualification of the product	No
Possibility to adapt the product to customer requirements	Yes

price on request

Glavkosmos

Radiation Hard Photomultiplier of High Immunity to Magnetic Fields 1 (PMT-187)

A radiation-hard photomultiplier tube (PMT-187) designed for scintillation counting in high-energy physics systems that must operate under simultaneous exposure to strong magnetic

Purpose	Scintillation counting in high-energy physics. Systems working under simultaneous exposure
Year of release	1998
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

Radiation Hard Vidicon LI501-1MK

The Radiation Hard Vidicon LI501-1MK is a radiation-hardened vidicon camera tube designed for TV cameras operating in high radiation environments up to 5·10^7 rad, featuring magnet

Purpose	TV cameras in conditions of high radiation up to 5·107 rad.
Year of release	2009
Guaranteed service life (years)	4
Estimated production / delivery time (months)	2
Flight qualification of the product	No

price on request

Glavkosmos

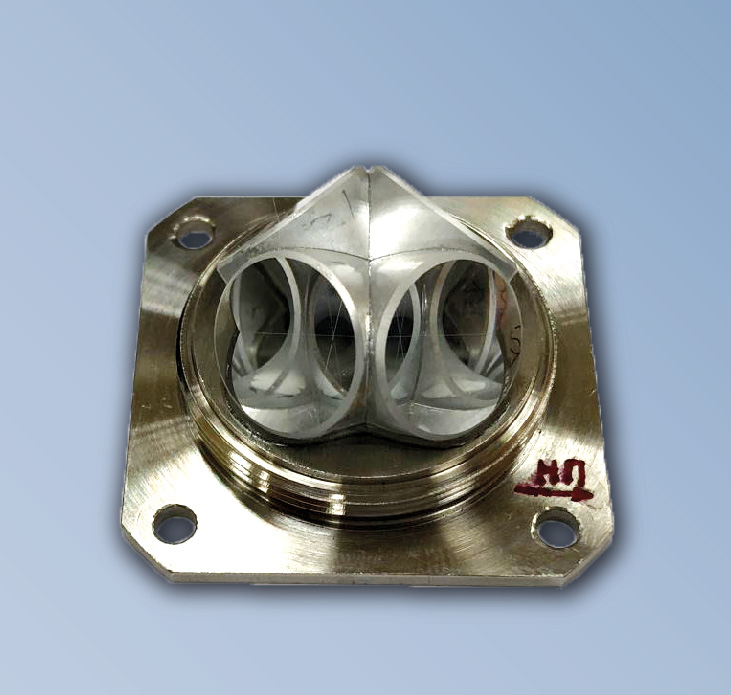

Retroreflector system “Pyramid” for “Condor-FKA” spacecraft

The "Pyramid" retroreflector system is a small-sized assembly of four angle reflectors designed for the 'Condor-FKA' spacecraft to re-reflect laser radiation for on-board equipment

Purpose	Re-reflection of laser radiation in direction of quantum-optical station photodetector in
Year of release	2016
Composition	Small-sized retroreflector system consisting of four angle reflectors

price on request

Glavkosmos

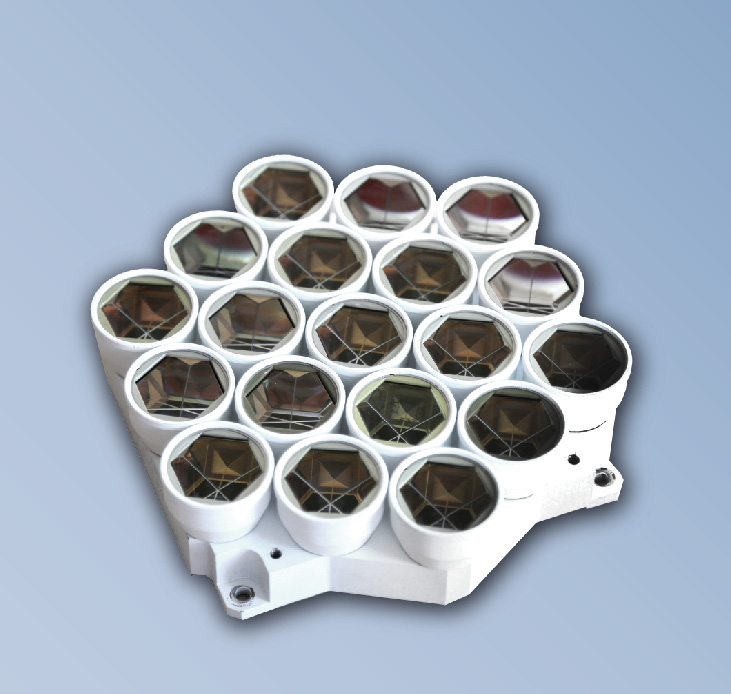

Retroreflector system for “Luna-Globe” spacecraft

A retroreflector system designed for the Luna-Globe spacecraft, used for re-reflecting laser radiation to measure range from ground quantum-optical stations.

Purpose	Designed for re-reflection of laser radiation when measuring the range from ground quantum
Year of release	2013
Type	Panel of angle reflectors with interference coating of reflecting faces.

price on request

Glavkosmos

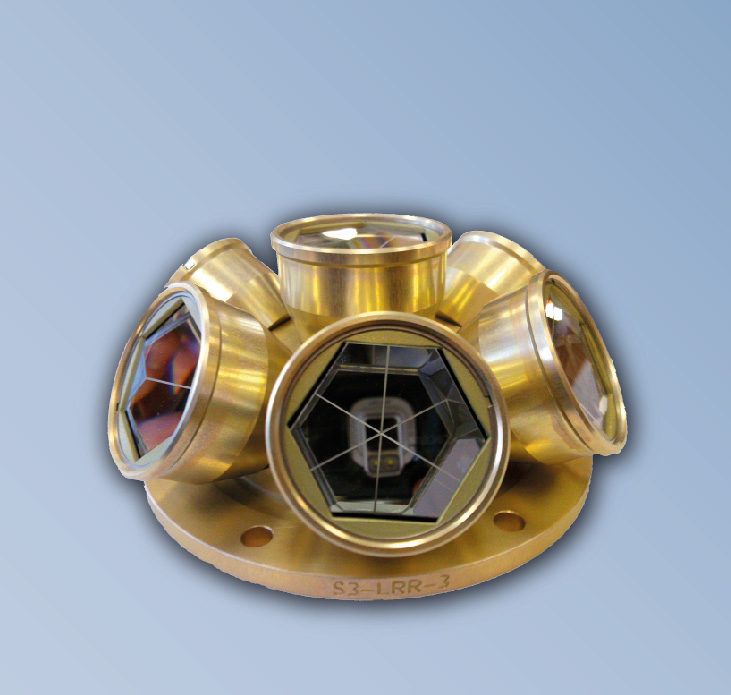

Retroreflector system for AC (spacecraft) Sentinel-3 (ESA)

A retroreflector system designed for the Sentinel-3 spacecraft, consisting of seven angle reflectors with a double-spot directional pattern.

Purpose	Reflection of quantum-optical station radiation for the purpose of precision determination
Year of release	2011

price on request

Glavkosmos

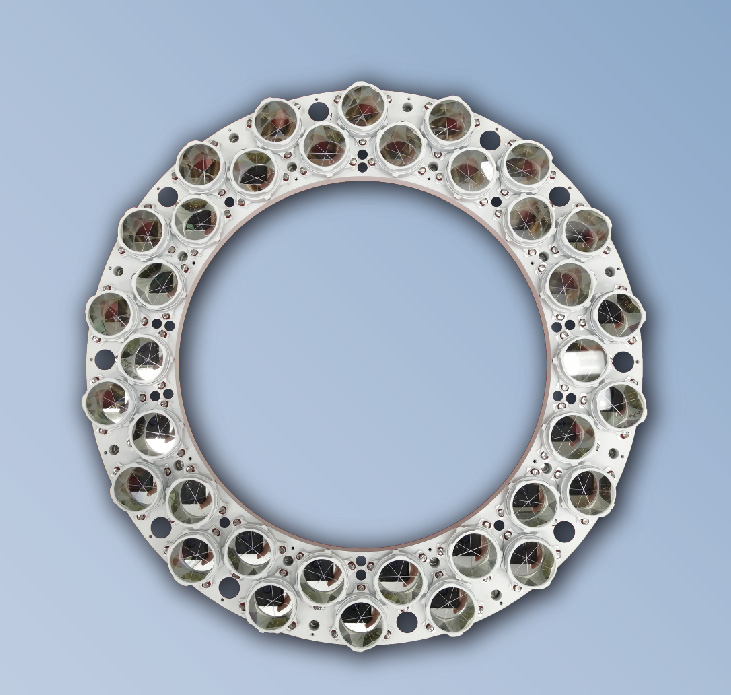

Ring retroreflector system for “Glonass-K2” spacecraft

A ring retroreflector system designed for the GLONASS-K2 spacecraft, consisting of 36 angle reflectors to form a double-spot directional pattern.

Purpose	Metrological control of GLONASS space complex characteristics and calibration of measuring
Year of release	2017
Configuration	A panel consisting of 36 angle reflectors, forming a double-spot directional pattern.

price on request

Glavkosmos

Satellite Multiband Imaging System

The Satellite Multiband Imaging System is an optoelectronic instrument designed for Earth and water surface surveys in three spectral bands (visible and near-IR). It consists of tw

Purpose	The system is designed for an optoelectronic survey of the earth and water surface in thre
Year of release	2012
Guaranteed service life (years)	5 (LEO)
Estimated production / delivery time (months)	24
Flight qualification of the product	Yes

price on request

Glavkosmos

Space-borne Television System

An onboard digital imaging system for stationary spacecraft that captures video/images of the environment and objects in the field of view and stores them for later downlink.

Year of release	2019
Guaranteed service life (years)	5
Estimated production / delivery time (months)	24
Flight qualification of the product	No
Possibility to adapt the product to customer requirements	Yes

price on request

Glavkosmos

Spectrometric Photomultiplier Tube 1

PMT-183 spectrometric PMT (300–850 nm, 72 mm cathode Ø, S20 multialkali, 100 µA/lm, 8 ns rise time, venetian-blind 12-dynode). For gamma detection.

Purpose	Photometry, spectrometry, γ-radiation scintillation detection, nuclear and high-energy phy
Year of release	2004
Guaranteed service life, years	4
Estimated production/delivery time	3 months
Flight qualification	No

price on request

Glavkosmos

Spectrometric Photomultiplier Tube 1-1

A spectrometric photomultiplier tube designed for research of fast processes, featuring a 40 mm SbKCs photocathode and sub-3 ns pulse rise time.

Purpose	Research of fast processes
Year of release	2015
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

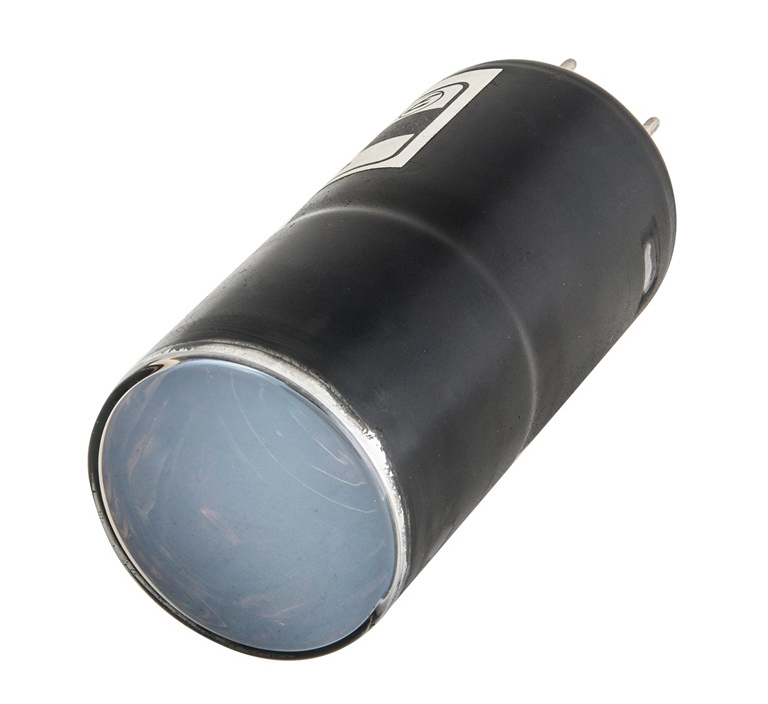

Spectrometric Photomultiplier Tube PMT-176

A spectrometric photomultiplier tube (PMT-176) used for photometry, spectrometry, and scintillation-based gamma-radiation detection.

Purpose	Photometry. Spectrometry. γ-radiation detection by scintillation method. Diagnostic radioi
Year of release	1986
Guaranteed service life (years)	4
Estimated production / delivery time (months)	3
Flight qualification of the product	No

price on request

Glavkosmos

Strain Gage Pressure Sensor

A strain-gauge pressure transducer for measuring rapidly changing pressures of liquid and gaseous media, used together with LH 5514/LH 5515 amplifiers.

Range of measurements, MPa	0-6, 0-8, 0-10, 0-15, 0-25, 0-40, 0-60
The given value of the basic error, %	0.8
Supply voltage	12±2.4
Medium temperature, °C	±50 (short-term up to 2700 with the use of a transition tube)
Weight, kg	0.22

price on request

Glavkosmos

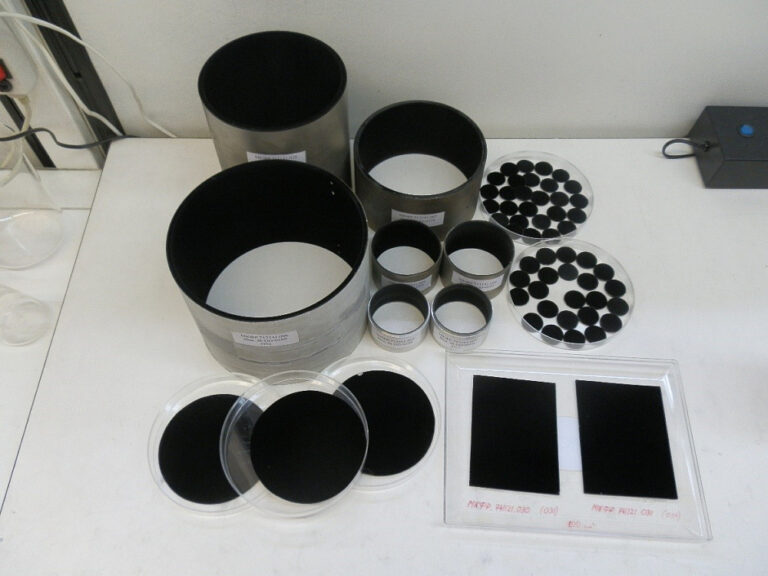

Ultra-black coatings

Ultra-black coatings designed to suppress non-information radiation on lens parts of optoelectronic space systems, operating in the 0.42-2.5 micron spectral range.

Spectral range of operation	0,42 – 2,5 mkm
Part coverage area	150 – 1000 sm2
The ratio of spectral reflectance	0,5 – 1,0 %
Part material	Aluminum, titanium alloys
Coating thickness	40 – 60 mkm

price on request

Hanwha Systems is South Korea's premier defense electronics company and the only Korean firm capable of developing EO/IR and SAR satellite payloads, providing space capabilities from reconnaissance satellite payloads and small SAR constella

Hanwha Systems

KOMPSAT 3A IR Sensor

The KOMPSAT 3A IR Sensor is a world-class infrared sensor payload developed by Hanwha Systems for the KOMPSAT 3A satellite, providing day/night imaging capabilities.

price on request

Hanwha Systems

Space & Air Solutions (Hanwha Systems)

Hanwha Systems provides core solutions for space and air, including military reconnaissance satellite payloads (EO/IR and SAR), micro-satellite development, and advanced avionics.

price on request

Chinese commercial Earth observation company operating a multi-spectral and hyperspectral constellation for global change detection and land use monitoring.

HEAD Aerospace

DailyVision High-Frequency Revisit EO Imagery

75 cm EO imagery with up to 18 revisits/day from 64+ satellite constellation — 17 km swath, every 15 min (9am–5pm), for near real-time monitoring of infrastructure, ports, and agri

GSD	75 cm
Swath width	17 km
Satellite mass	~40 kg
Daily revisit frequency	Up to 18×/day
Revisit interval	Every 15 minutes (09:00–17:00)

price on request

HEAD Aerospace

SuperView-1 (GaoJing-1) EO Imagery

0.5 m panchromatic / 2 m multispectral commercial EO imagery from 4-satellite constellation — 12 km swath, 11-bit, 2-day revisit, stereo, multi-strip acquisition, HEAD distributes

Panchromatic GSD	0.5 m
Multispectral GSD	2.0 m
Spectral bands	PAN 450–890 nm; Blue, Green, Red, NIR
Radiometric resolution	11 bit
Swath width	12 km

price on request

German defence and security technology company providing radar, optronics, and sensor systems across land, air, sea, cyber, and space domains.

Hensoldt

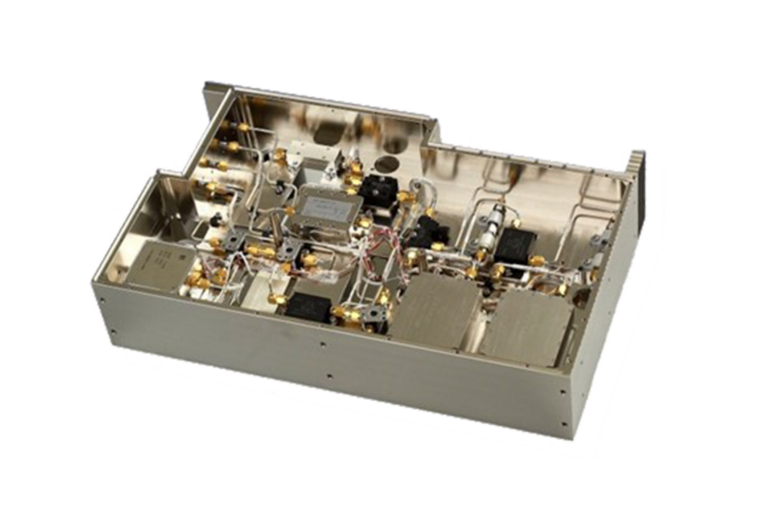

Hensoldt Space-Based Sensor Systems

German defense and sensor technology company developing space-based radar, optical, and electronic sensor payloads for reconnaissance satellites.

Products	Radar, optical, electronic sensor payloads
Applications	Reconnaissance, defense satellites
Country	Germany

price on request

HEO delivers non-Earth imaging (NEI) at scale, providing high-volume imagery and insights on satellites and other objects in orbit using a global sensor network and proprietary tasking software.

HEO Robotics

Adler Mk2 Non-Earth Imaging Camera

HEO's larger-aperture flight-proven non-Earth imaging payload, offering higher resolution for hosted-payload NEI missions.

Resolution (GSD @ 100 km)	22 cm
Volume	580 x 230 mm
Mass	8.5 kg
Max Power	7.0 W

price on request

HEO Robotics

Holmes Mk2 Non-Earth Imaging Camera

HEO's most compact flight-proven non-Earth imaging payload, designed to operate as a hosted payload with negligible impact on a host satellite's primary mission.

Resolution (GSD @ 100 km)	34 cm
Volume	320 x 140 x 148 mm
Mass	3.8 kg
Max Power	7.0 W

price on request

Hisdesat Servicios Estratégicos S.A. is a Spanish government satellite communications company specializing in secure, encrypted satellite communications services for government, military, and civil security customers. Founded in 2001 and he

Hisdesat

PAZ X-Band SAR Earth Observation Satellite

Spain's national X-band SAR satellite — >100 images/day, up to 25 cm resolution, >300,000 km²/day coverage, all-weather day/night imaging with integrated AIS maritime surveil

Orbit	Sun-synchronous (SSO), ~514 km altitude
Launch date	22 February 2018
Launch vehicle	SpaceX Falcon 9, Vandenberg AFB
SAR frequency	X-band (9.65 GHz)
Best resolution	25 cm (Staring Spotlight mode)

price on request

Honeybee Robotics, Ltd. is a US robotics company founded in 1983 and headquartered in Altadena, California, developing robotic systems, actuators, drilling mechanisms, and sample acquisition systems for planetary exploration, mining, and sp

Honeybee Robotics (Blue Origin)

PlanetVac Pneumatic Surface Sampling System

Pneumatic regolith sampling system with one moving part — fires a gas blast from the lander footpad to collect, sieve, and transfer surface material. First lunar demonstration Marc

Sampling method	Pneumatic (pressurized gas blast)
Working fluid	Nitrogen gas
Operating pressure (demonstrated)	6 psia
Moving parts	1 (gas release valve)
Sample mass per event	>20 g regolith

price on request

Beijing satellite constellation company partnered with Blue Arrow Aerospace; develops communications, remote sensing, and science satellites plus in-house Jinwu propulsion, Chiyu power, and Baize electronics subsystems.

Hongqing Technology (鸿擎科技)

Next-Generation Intelligent Remote Sensing Satellite

Hongqing Technology next-generation intelligent remote sensing satellite represents a paradigm shift from traditional sky sensing and ground computing to sky computing and sky appl

Orbit	Low Earth Orbit (LEO)
Onboard AI Computing Power	>=200 TOPS @ INT8 per satellite node
Laser Inter-Satellite Link Speed	>=100 Gbps
Optical (Panchromatic) Resolution	0.5 m, 1 m
SAR Resolution	0.5 m, 1 m

price on request

Horizon Technologies is a UK-based satellite radio intelligence company headquartered in Woodstock, Oxfordshire, operating a constellation of small satellites carrying HF (High Frequency) radio intelligence payloads to track and monitor mar

Horizon Technologies

Amber Space-Based Maritime SIGINT Constellation

24-satellite CubeSat constellation providing 24/7 global maritime domain awareness via passive detection of vessel RF emissions — Iridium, Thuraya, Inmarsat, and radar signatures.

Constellation size	24 planned CubeSats
Continuous coverage area	12 million km²
Satellite footprint	2.6% of Earth's surface per satellite
Collection frequency	3–12 looks per day per area (single satellite)
Operating cadence	24/7, no tasking required

price on request

Horizon Technologies

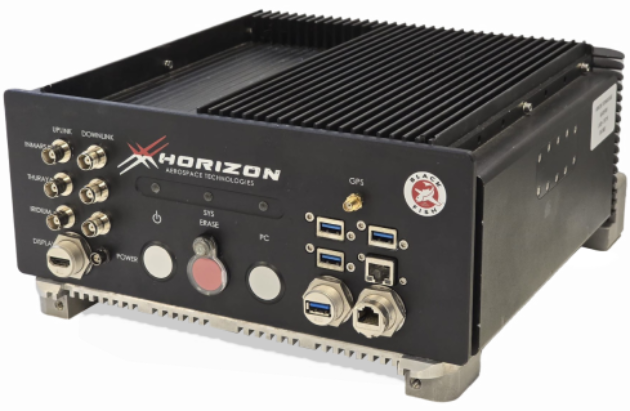

BlackFish Airborne SIGINT System

Passively cooled SDR-based airborne SIGINT system for simultaneous Iridium, Thuraya, and Inmarsat satellite phone interception — DO-160 qualified, 23+ platform types, ~100 deployed

Architecture	Software Defined Radio (SDR) with CPU and GPU processing
Cooling	Passive (no moving parts)
Airborne certification	DO-160 qualified
Channel capacity	60 duplex / 120 simplex channels simultaneously
Intelligent channel management	Up to 3,200 channels

price on request

HyperSat LLC is a US-based hyperspectral satellite imaging company developing a constellation of advanced hyperspectral imaging satellites delivering persistent, global hyperspectral intelligence for commercial and government customers. The

US developer of cutting-edge optical sensing instruments for chemical and environmental analysis — from deep ocean to deep space, including portable Raman spectrometers for field and space applications.

Impossible Sensing

Impossible Sensing Space Instrumentation Suite

Flight-ready LIBS, Raman, and SERS spectroscopy instruments for planetary surface analysis — DiSCO (drill+dual spectroscopy), PERISCOPE (astrobiology), L3VIN (lunar ISRU), MERLIN (

DiSCO	Dual LIBS + Raman + integrated drill; novel optoelectronics; in-situ depth analysis
PERISCOPE	Organic/biosignature/water/REE detection; surface and borehole deployment
L3VIN	LIBS elemental mapping; adjustable standoff; lunar ISRU support
MERLIN	Back-illuminated SERS; 2-D molecular imaging; astrobiology life detection
FLEW.ID	Trace contaminant/heavy metal detection; ISS hydroponic/water recycler control

price on request

Impossible Sensing

Quantum-Enhanced Sensing for Space Missions

Next-generation quantum optical enhancements integrated into Impossible Sensing's LIBS and Raman instruments — sub-ppb molecular detection, microgravity-extended quantum coherence,

Technology basis	Quantum-optical enhancements to LIBS and Raman spectroscopy
Target sensitivity	Sub-ppb molecular and elemental detection
Quantum advantage	Microgravity-extended coherence, EM-isolated environment
Mission applicability	Landed planetary missions, lunar surface, Mars, deep space
Collaborators	Washington University in St. Louis, NASA Ames Research Center

price on request

India's premier space university, established by ISRO in 2007 in Thiruvananthapuram, Kerala. IIST provides specialized education in space science and technology, with students working on real ISRO missions, satellite systems, and space rese

Infinity Avionics designs and manufactures spaceflight-proven camera systems and edge processors for various in-orbit applications, with over 60 payloads in orbit.

Infinity Avionics

Lynx4MP

Lynx4MP is a TRL 9 modular 4MP RGB/Monochrome space camera system with precise image capture timing and on-board storage, qualified for space applications and compatible with CubeS

Image sensor	CMOS Global shutter
Pixel resolution	2048×2048 (4 MP)
Pixel size	5.5 µm
Spectral bands	RGB Bayer / Monochrome
Image encoding	RAW

price on requestdatasheet

Infinity Avionics

Orion12MP

The Orion12MP is a 12 Megapixel RGB/Monochrome camera backend electronics unit designed for various space applications, featuring a global shutter and up to 100 FPS capture to elim

Image sensor	CMOS Global shutter
Pixel resolution	4096×3072 (12 MP)
Pixel size	5.5 µm
Spectral bands	RGB / Monochrome
Image encoding	RAW

price on requestdatasheet

Infinity Avionics

SelfieCam Video

SelfieCam is a small form factor, TRL 9 spacecraft deployment monitoring camera designed for on-orbit imaging, space situational awareness, and In-Space Manufacturing (ISM). It cap

Image sensor	CMOS RGB Rolling shutter
Pixel resolution	1024 x 768 800 x 600 640 x 480
Pixel size	2.2 µm
Spectral range	VIS
Field of view (degrees)	110°

price on requestdatasheet

InspeCity is an Indian space technology company developing satellite-based inspection and monitoring platforms for Earth observation and on-orbit inspection applications. The company is building small satellite systems capable of providing

InspeCity

CHAKSU — AI-Enhanced Satellite Tracking and Inspection System

AI-enhanced sensing and tracking suite for close-proximity in-space inspection — feeds relative navigation data to InspeCity's RIG and VEDA platforms, works with both cooperative a

System name	CHAKSU (Comprehensive AI-Enhanced Satellite Tracking Sensor Unit)
Function	Relative navigation, tracking, and close-proximity visual/sensor inspection
Guidance support	Feeds RIG and VEDA for precision docking
Navigation	AI-enhanced, real-time tracking
Target compatibility	Cooperative and non-cooperative resident space objects

price on request

Indian startup developing in-orbit servicing, satellite life extension, and green propulsion; $5.6M seed funded (2025).

Inspecity Space Laboratories

CHAKSU — Comprehensive AI-Enhanced Satellite Tracking Sensor Unit

CHAKSU (CompreHensive Artificial Intelligence Enhanced Satellite TracKing Sensor Unit) is InspeCity’s navigation and tracking guidance system developed for in-orbit satellite

price on request

ispace, inc. is a Japanese commercial lunar exploration company founded in 2010 by Takeshi Hakamada, headquartered in Tokyo, developing lunar landers and rovers to establish a sustained human presence on the Moon by enabling commercial luna

ispace

Tenacious Micro Rover

TENACIOUS is a lightweight micro rover developed by ispace-EUROPE (Luxembourg subsidiary), making it the first European-designed, manufactured, and assembled lunar rover, co-funded

Length	54 cm
Width	31.5 cm
Height	26 cm
Mass	~5 kg
Payload capacity	Up to 1 kg

price on request

US bioastronautics consulting and access-to-space firm; founder managed 25+ ISS and Artemis I payloads.

Jaguar Space

MICROBREW-1

ISS microgravity fermentation study investigating how top-fermenting yeast behaves during the brewing process in weightlessness.

Mission	NASA Crew-11 / ISS Expedition 73
Launch date	31 July 2025
Return vehicle	NASA Crew-10
Research organism	Top-fermenting yeast (Saccharomyces cerevisiae)
Growth medium	Brewing wort

price on request

KAI (Korea Aerospace Industries, Ltd.; Korean: 한국항공우주산업) is South Korea's primary integrated aerospace and defence manufacturer, established in 1999 and headquartered in Sacheon, South Gyeongsang Province. As the flagship of South Korea's a

KAI (Korea Aerospace Industries)

KOMPSAT-6

KOMPSAT-6 (Arirang-6) is a South Korean synthetic aperture radar (SAR) Earth observation satellite developed by KARI and manufactured by KAI. It features an X-band SAR sensor with

Mass	480
SAR Resolution (Spotlight)	0.3
SAR Band	X-band
Launch Year	2024

price on request

South Korean nanosatellite manufacturer offering CubeSat platforms, optical imagers, star trackers, solar panels, EPS, structures, and deployers for the commercial small satellite market.

Kairo Space

KSOI-22 Optical Imager (22 mm)

22 mm focal length miniature CubeSat optical imager for visible-band earth observation.

Focal Length	22 mm
Band	Visible
Application	Wide-swath earth observation, technology demonstration

price on request

Kairo Space

KSOI-22C Optical Imager (22 mm Compact)

Compact variant of the 22 mm CubeSat optical imager with reduced form factor for tighter integration envelopes.

Focal Length	22 mm
Variant	Compact (reduced form factor)
Band	Visible

price on request

Kairo Space

KSOI-300 Optical Imager (300 mm)

300 mm telescope-class CubeSat optical imager for high-resolution sub-meter earth observation.

Aperture	300 mm
Class	Telescope-class high-resolution imager
Band	Visible
Application	High-resolution earth observation, precision monitoring
Datasheet	Available

price on requestdatasheet

Kairo Space

KSOI-90 Optical Imager (90 mm)

90 mm aperture CubeSat optical imager providing high-resolution visible-band earth observation imagery.

Aperture	90 mm
Band	Visible
Compatible Platform	6U CubeSat and larger
Datasheet	Available

price on requestdatasheet

Kairo Space

KSOI-VA Optical Imager

Visible-band optical imager for CubeSat earth observation missions.

Band	Visible (RGB)
Compatible Platform	3U CubeSat and larger

price on request

Kayser Space designs, manufactures, integrates, and tests hardware and platforms for space programs, supporting over 100 missions and microgravity research.

Kayser Space

Life Science Equipment

Kayser Space develops a broad range of life science equipment designed for human spaceflight and biological research in microgravity. These systems address the need to monitor astr

Instruments	APHRODITE, IRIS, MIDASS, BIOPACK, BOREALIS, ALCYONE
Application	Astronaut monitoring, space biology research

price on request

KT SAT is South Korea's sole satellite communication operator, operating a fleet of five geostationary KOREASAT satellites covering over 60% of the world's population with transponder leasing, broadband, broadcast, maritime, and Earth obser

KT SAT

Spacedata Earth Observation Services

Multi-source satellite Earth observation imagery and analytics via BlackSky (optical), Vantor/Maxar (ultra-HD), and ICEYE (SAR) partnerships.

price on request

L3Harris Technologies designs and manufactures advanced tracking satellites for national security and space-based capabilities.

L3Harris Technologies

L3Harris Space Instruments and EO Sensors

L3Harris's space-grade electro-optical sensors, focal plane arrays, GOES weather imager (ABI), and advanced space surveillance cameras for government and commercial satellites.

Key Products	Electro-optical/IR FPAs, ABI weather imager, space surveillance cameras, star trackers
GOES ABI	16-band multispectral weather imager on GOES-16/17/18 (NOAA)
Defense Programs	SBIRS missile warning FPAs, NGA reconnaissance sensors, Space Force systems
Navigation	Inertial navigation systems for spacecraft
Formed	2019 (L3 Technologies + Harris Corporation merger)

price on request

Leonardo SpA (Space Division) designs, develops, and produces space launchers, propulsion systems, satellites, and provides space system services including launch management and satellite control.

Leonardo SpA (Space Division)

PHM Passive Hydrogen Maser

The Leonardo PHM (Passive Hydrogen Maser) is the master clock of the Galileo Navigation Satellite System and the most precise spaceborne atomic clock ever developed for an operatio

Output Frequency	10.00285741 MHz (fH/142)
Output Level	+7 dBm
Frequency Drift/Day	<=1e-14 (after 1 week); <1e-15 (after 30 days)
ADEV @ 1 s	1.8e-12
ADEV @ 100 s	7e-14

price on request

Madrid-based aerospace engineering company specialising in opto-mechanical systems, flexible thermal straps, and cryogenic units for space missions.

Lidax

Focal Plane Assemblies (FPA)

Custom-designed focal plane assemblies carrying detector arrays for space telescopes and X-ray/IR/UV/visible instruments, flown on ESA's PLATO and BepiColombo missions.

Flight heritage	26 Focal Plane Assemblies delivered for ESA PLATO mission (all telescopes); focal plane fo
Interface	Custom detector array integration (CCD/CMOS) tailored to host instrument
TRL	9 (flight-proven on PLATO and BepiColombo)

price on request

Lidax

Space Optical Systems

Custom-engineered optical systems for space and scientific applications, including telescopes, laser collimators, and focal plane assemblies.

Products	Telescopes, laser collimators, focal plane assemblies (FPAs)
Wavelength coverage	IR, VIS, UV, X-ray
Applications	Earth observation, deep space exploration, FSO communications
Flight heritage	PLATO, Meteosat-3G, ExoMars, Bepi Colombo, EarthCARE
Standards	ECSS space qualification

price on request

South Korean defense and aerospace electronics company developing advanced precision weapons systems, electronic warfare equipment, and space technology for the Republic of Korea Armed Forces.

LIG Nex1

Synthetic Aperture Radar (SAR) for Multi-Purpose Satellites

SAR payload developed for multi-purpose satellite platforms, part of LIG Nex1's ISR radar product line.

Payload type	Synthetic Aperture Radar (SAR)
Application	Multi-purpose satellite platforms

price on request

Lunasonde develops and deploys aerial low-frequency radar technology for high-resolution 3D subsurface imaging and critical mineral exploration from aerial platforms.

Lunasonde

aGRT Aerial Georadiotomography

Aerial radar technology generating 3D subsurface composition maps from the air with zero drilling or ground disturbance — operates at frequencies 1000x lower than traditional radar

Operating frequency	~1000x lower than traditional radar
Demo survey altitude	Up to 10,000 ft
Permittivity readings	Copper ore 10.2, granite 3.0
Claimed efficiency	10x faster and cheaper exploration
Ground disturbance	Zero (fully aerial, no drilling)

price on request

Magson GmbH is a Berlin-based manufacturer of high-performance digital fluxgate magnetometers for terrestrial and space applications, including spacecraft attitude control systems.

Magson GmbH

Ocean Bottom Magnetometer

Titanium-encapsulated ocean bottom magnetometer with mass memory for submarine gas hydrate exploration and basic research.

Housing	Titanium pressure tube (deep-sea rated)
Data storage	Onboard mass memory
Optional extension	Inertial measurement unit (IMU)
Power	Battery-powered variant available
E-field sample rate (battery variant)	Up to 10 kHz

price on request

Magson GmbH

Science Magnetometer (Space Payload Fluxgate Magnetometer)

Space-qualified tri-axial fluxgate magnetometer used as a scientific payload instrument on spacecraft missions.

Sensor type	Tri-axial vector-compensated fluxgate (ringcore, dual crossed ringcores)
Noise level	< 15 pT/sqrt(Hz) @ 1 Hz
Long-term stability	Offset drift < 3 nT/year
Feedback coil material	Copper and aluminum (matched ~20 ppm/K thermal expansion)
Signal processing	FPGA-based instrument control and digital data processing

price on request

Magson GmbH

Ship-Board Magnetometer

Waterproof, thermally isolated dual-sensor magnetometer for geomagnetic vector measurement mounted on research vessels.

Configuration	Dual-sensor fluxgate magnetometer
Housing	Seawater-resistant, waterproof, thermally isolated
Thermal stabilization	Optional dedicated heating unit
Correction inputs	Ship IMU, sensor-internal inclinometer, GPS
Deployment	Hull-mounted on research vessels

price on request

Magson GmbH

Tow Fish Magnetometer

Towed single or dual-sensor fluxgate magnetometer housed in a fiberglass tow fish for ocean floor magnetic surveys.

Configuration	One or two fluxgate sensors
Housing	Fiberglass tow fish body (Marine Magnetics)
Auxiliary sensor	Inclinometer
Power/data link	Umbilical tow cable
Primary application	Ocean floor magnetic signature survey

price on request

German developer of compact, high-resolution optical instruments and multispectral cameras for Earth observation nanosatellites and small satellites.

Marble Imaging

Marble Imaging Satellite (Constellation Spacecraft)

Marble Imaging is developing a scalable constellation of very-high-resolution imaging satellites intended to provide daily global coverage. The first satellite targets a product re

Product resolution (first satellite, VIS/NIR)	Up to 0.7 m
SWIR band resolution (first satellite)	Targeted 6 m
Constellation target resolution	0.5 m
Satellite mass class	~150 kg
Planned constellation size	20 satellites by end of 2028, up to 200 long-term

price on request

Materion designs and manufactures advanced materials, including specialty alloys, chemicals, metals, beryllium composites, and optical coatings, for various industries including aerospace and defense.

materion

Beryllium Mirror Substrates for Space Telescopes

Materion Corporation (formerly Brush Engineered Materials) is the world’s leading producer of beryllium and beryllium-based precision materials and components for aerospace a

price on request

MethaneSAT is a non-profit satellite mission developed and operated by the Environmental Defense Fund (EDF) to detect and measure methane emissions from the global oil and gas industry.

MethaneSAT

MethaneSAT Satellite

362 kg Earth observation satellite measuring atmospheric methane at 100m x 400m resolution across 200 km swaths — detects diffuse emission sources missed by other satellites, opera

Payload mass	183 kg
Observatory mass	362 kg
Orbit altitude	590 km
Swath width	200 km
Ground sample distance	100 m x 400 m

price on request

Microgic Electronics designs and builds sophisticated cameras for multiple industries, including space, with flight-proven products for spacecraft and satellites.

Microgic

Space-Qualified Camera Systems

Sophisticated cameras for space and aerospace applications by Microgic Electronics.

Type	Custom camera systems and imaging electronics
Applications	Space, aerospace, medical, agriculture

price on request

Chinese commercial satellite manufacturer building Earth observation, communications, and remote sensing satellites, plus payloads, components, and ground terminal systems.

MinoSpace

0.5m panchromatic(PAN) & 2m multispectral(MS) Camera

This Earth observation camera provides 0.5m panchromatic and 2m multispectral imagery with a swath over 12km, featuring high SNR and an integrated design for various remote sensing

Panchromatic Resolution	0.5m
Multispectral Resolution	2m
Swath	over 12km
Panchromatic SNR	≥40 dB
Multispectral SNR	≥43.5 dB

price on request

MinoSpace

0.9m panchromatic(PAN) & 3.6m multispectral(MS) camera

This is a high-resolution Earth observation imaging system with panchromatic and multispectral capabilities, featuring a 14.4km swath width and over 40dB SNR.

Panchromatic resolution	0.9m
Multispectral resolution	3.6m
Swath width	over 14.4km
Signal-to-noise ratio (SNR)	above 40dB

price on request

MinoSpace

1U visible light camera

A compact, lightweight, and low-power 1U visible light camera designed for microsatellites and nanosatellites, capable of capturing color images or video with 10m ground resolution

Ground resolution

10 m

price on request

MinoSpace

2m panchromatic(PAN) & 8m multispectral(MS) camera

A 2m panchromatic and 8m multispectral camera launched into orbit on the MN30-1 satellite platform, designed for comprehensive remote sensing imagery.

Launch Date	April 27, 2021
Satellite Platform	MN30-1
Panchromatic Resolution	2m
Multispectral Resolution	8m
Weight	approximately 2.67kg

price on request

MinoSpace

5m panchromatic(PAN) & 8-Band multispectral(MS) camera

A 5m panchromatic and 8-band multispectral camera launched aboard the Wenchang-01/02 satellites for high-resolution Earth observation.

Panchromatic Resolution	5m
Multispectral Bands	8-Band
Launch Date	February 27, 2022
Launch Vehicle/Satellite	Wenchang-01/02 satellites (primary payload of Wenchang-1)
Mass	approximately 6.5kg

price on request

Space weather forecasting company combining satellite constellations and AI to protect space and ground assets.

Mission Space

Mission Space Radiation Monitoring Instruments (ZOHAR, SOLARIS, LEEMR)

Ultra-compact radiation monitoring payloads under 1 W: ZOHAR-I silicon telescope and Cherenkov monitor (flight proven), SOLARIS deep-space suite, LEEMR lunar dust and surface-charg

PL-1f dimensions / mass / power	85 x 50 x 70 mm / < 0.6 kg / < 1 W
PL-1m dimensions / mass / power	85 x 50 x 75 mm / < 0.6 kg / < 1 W
PL-2 dimensions / mass / power	147 x 95 x 30 mm / < 0.7 kg / < 1 W
PL-3m dimensions / mass / power	85 x 50 x 60 mm / < 1 kg / < 1.5 W (preliminary)
PL-1 charged particle ranges	Electrons 0.1 to 10 MeV, protons 1 to 250 MeV

price on request

MMA Design manufactures deployable solutions for space and terrestrial missions, including de-orbit systems and solar arrays, and is headquartered in Broomfield, Colorado.

MMA Design

NeuSAR — Deployable SAR Small Satellite Antenna

Next-generation deployable high-gain reflectarray for a 160 kg fully polarimetric Synthetic Aperture Radar small satellite — images day/night through cloud, rain, and haze.

Satellite mass	160 kg
Payload type	Fully polarimetric SAR
Antenna architecture	Deployable High-Gain Reflectarray (DaHGR)
Imaging conditions	Day/night, cloud cover, rainfall, haze

price on request

Muon Space is the Mission Foundry, designing, building, and operating high-performance satellite constellations for defense, civil, and commercial customers.

Muon Space

FireSat

Purpose-built wildfire detection satellite constellation with a six-channel multispectral infrared payload, developed with Earth Fire Alliance.

Spacecraft platform	Condor-M
Payload	Six-channel multispectral infrared imager
Minimum detectable fire size	5 x 5 meters
Revisit (initial 3-satellite operational constellation)	At least twice daily across fire-prone regions
Revisit target (2029)	Hourly global revisit

price on request

MVP Aerospace manufactures KissCAMs for universities, commercial satellite manufacturers, and research institutions, with over 50 units supplied.

MVP Aerospace

ContextCAM — HD Real-Time Ethernet Video Camera

HD 1280x720 30 FPS real-time Ethernet video camera for space — RTSP/H.264 streaming over 100BASE-T for in-orbit inspection, docking, and AI vision applications. From £3,600.

Resolution	HD, 1280 × 720 pixels
Frame rate	30 FPS
Network interface	100BASE-T Ethernet
Streaming protocol	RTSP over UDP
Video encoding	H.264 (adjustable quality)

$3 600

MVP Aerospace

KissCAM V1.0 — Entry-Level CubeSat Camera

The simplest space camera for 1U CubeSats with limited downlink bandwidth — 480x360 colour, 10g, RS422 UART, delivers a full image in a single UHF ground station pass. Flight herit

Resolution	Colour, 480 × 360 pixels
Weight	10 g
Dimensions	38 × 20 × 17 mm
Lens	Stock wide-angle (included)
Interface	115200 baud UART (RS422)

$800datasheet

MVP Aerospace

KissCAM V2.0

Miniature space engineering camera for CubeSats used to monitor the state of deployables or take publicity photos, with flight heritage on multiple commercial missions.

Image Sensor	Colour/Mono, 1280 x 960 pixels
Mass	10g
Dimensions	38 x 20 x 17 mm
Lens Options	M12 lens and optical filter options
Interface	115200 bd UART interface (RS422/RS485)

from £1 600datasheet

Spanish developer of multi-frequency microwave space payloads, radars, radiometers, and GNSS reflectometers for space and airborne platforms.

MWSE - Microwave Sensors and Electronics

MWSE Space Microwave Payloads (GASPER / FMPL-2 / GBSAR)

Spanish company developing L-band radiometers, GNSS reflectometers, software-defined radio payloads and ground-based synthetic aperture radars for small satellite and nanosatellite

Space payload: GASPER	Galileo-enabled in-orbit receiver for IOD/IOV missions
Space payload: FMPL-2	L-band radiometer + GNSS-Reflectometer SDR; flown on 3Cat-5/A nanosatellite
Space payload: FSSCat RF front-end	L-band radiometer and GNSS-R reflectometer channels for FSSCat mission
Ground system: MFFP-GBSAR	Multi-frequency full-polarization ground-based SAR for InSAR deformation monitoring
Frequency bands	L-band (primary); multi-frequency radar

price on request

Australian satellite IoT company providing direct-to-orbit connectivity for ultra-low-power sensors and devices, enabling affordable global asset tracking and environmental monitoring.

Myriota

AssetHawk — Hybrid Satellite Asset Tracker

Rugged IP68 hybrid satellite asset tracker with 10-year battery life — LTE-M/NB-IoT in 190+ countries plus HyperPulse 5G satellite fallback, 4 m GNSS accuracy, BLE sensor gateway.

Connectivity	LTE-M/NB-IoT + HyperPulse 5G satellite
Terrestrial coverage	190+ countries
Battery life	Up to 10 years (2 AA batteries)
GNSS accuracy	Typical 4 meters
Enclosure rating	IP68 (1m immersion)

$199

Thailand's national public organization for astronomical research, operating the country's largest optical and radio telescopes and leading regional astronomy technology development.

NARIT (National Astronomical Research Institute of Thailand)

2.4-metre Thai National Telescope

Southeast Asia's largest optical telescope, a 2.4m Ritchey-Chretien reflector at the Thai National Observatory.

price on request

NARIT (National Astronomical Research Institute of Thailand)

EXOhSPEC Exoplanet High-Resolution Spectrograph

Echelle-type spectrograph exceeding R=70,000 resolving power for exoplanet research.

price on request

NARIT (National Astronomical Research Institute of Thailand)

Low-Resolution Spectrograph (LRS)

High-sensitivity long-slit spectrograph on the 2.4m TNT for faint-object spectroscopy.

price on request

NARIT (National Astronomical Research Institute of Thailand)

Medium-Resolution Echelle Spectrograph (MRES)

Fiber-fed echelle spectrograph on the 2.4m TNT for spectroscopy of bright sources.

price on request

NARIT (National Astronomical Research Institute of Thailand)

ULTRASPEC High-Speed Imaging Photometer

High-precision EMCCD photometer on the 2.4m Thai National Telescope for high-speed time-series photometry.

price on request

Thai CubeSat subsystems manufacturer and satellite solutions provider.

NBSpace

Camera Processing Module

Image-processing module in NBSPACE's Camera System line, supporting customizable spectral imaging (visible, infrared, multispectral) for small satellites.

Product family	Camera System
Spectral capability	Customizable — visible, infrared, and multispectral imaging
Design goal	Reliable operation in the space environment with minimal power consumption

price on request

OHB System AG is one of Europe's leading space system providers, developing small and medium-sized satellites for Earth observation, navigation, telecommunications, science and exploration.

OHB System AG

EnMAP Hyperspectral Imager (HSI)

Pushbroom hyperspectral imaging instrument covering 420–2450 nm in 228 spectral bands at 30 m GSD, built for ESA/DLR's EnMAP global environmental monitoring satellite.

Spectral range	420–2450 nm (VNIR + SWIR combined)
Spectral bands	228 bands (VNIR ~5 nm sampling; SWIR ~10 nm sampling)
Ground sample distance	30 m
Swath width	30 km
Orbit altitude	~650 km sun-synchronous

price on request

Indian deep-tech company building autonomous space, aerial and robotic systems, including SAR satellites, onboard edge-computing payloads and AI perception software for defense and commercial use.

Omnipresent Robot Technologies

OmniSAR3D

High-resolution SAR satellite payload for 3D digital elevation models and precision mapping.

price on request

Microsatellite company building compact microwave-radiometer payloads (GEMS) for near-real-time global weather and atmospheric data

Orbital Micro Systems

MiniRad

MiniRad is a miniaturized passive microwave radiometer built by Orbital Micro Systems (OMS) that measures atmospheric temperature, humidity and precipitation from a 3U CubeSat, flo

Mission type	EO
Agency	Orbital Micro Systems Ltd.
Mission status	Mission complete
Launch date	17 Apr 2019
End of life date	17 Apr 2021

price on request

Arcfield's Orion Space Solutions designs, builds and deploys spacecraft, optical and ionospheric sensors, and space-environment models for defense, civil and commercial space missions, with a focus on very low Earth orbit (VLEO) sustainabil

Orion Space Solutions

IONOSPHERIC SENSORS (TRIDENT, OSIRIS, RIO)

Orion's ionospheric sensors provide advanced monitoring and analysis of the ionosphere, delivering real-time data for satellite communications, navigation, and scientific research.

Receiver type	Software-based, dual-frequency GPS receiver
Primary application	Ionospheric disturbance / space weather characterization
Impact areas monitored	Power grids, GPS position/timing accuracy, tactical communications

price on requestdatasheet

Orion Space Solutions

TRIDENT Doppler Radar Ionospheric Sensor

Doppler radar system that measures traveling ionospheric disturbances (TIDs) in near-real-time.

Sensor type	Doppler radar, ground-based synchronized receiver network
Measurement target	Traveling ionospheric disturbances (TIDs), gravity waves
Key use cases	Hypersonic object detection, scientific research, surveillance

price on request

German NewSpace company operating thermal satellite constellation for global wildfire early detection, monitoring, and climate analytics.

Paras Defence and Space Technologies designs and manufactures components and systems for space research, rocket/missile programs, naval systems, armoured vehicles, and electronic warfare.

Paras Defence and Space Technologies

Paras Defence Optical Sighting and Space Systems

Indian defense and space technology company producing optical instruments, imaging systems, and space electronics for satellite and defense applications.

Products	Optical instruments, imaging systems, space electronics
Country	India

price on request

Indian space-tech company building a constellation of SAR and AIS satellites for persistent maritime surveillance.

US commercial weather intelligence company operating a GNSS Radio Occultation (GNSS-RO) satellite constellation to deliver high-resolution atmospheric profiling data for weather forecasting, climate research, and ionospheric monitoring.

PlanetiQ

GNSS-RO Atmospheric and Ionospheric Data

High-resolution GNSS Radio Occultation data from LEO constellation delivering global atmospheric profiles at 100m vertical resolution with SNR 1500 V/V — 7.5× higher than competing

Instrument	Pyxis GNSS-RO receiver (4th generation, NASA-heritage, rad-hard)
Signal sources	GPS, GLONASS, Galileo, BeiDou
SNR	1,500 V/V (60 dB-Hz) — 7.5× higher than competing instruments
Vertical resolution	100 metres
Data products	Temperature, pressure, humidity profiles; ionospheric TEC

price on request

Hungarian lunar technology company developing the Puli Lunar Water Snooper neutron spectrometer and Puli rover for lunar south pole water ice mapping and ISRU support.

Puli Space Technologies

Puli Lunar Water Snooper (PLWS)

NASA-prize-winning miniature neutron spectrometer for mapping water ice in lunar south polar soil, flight-proven on Intuitive Machines' IM-2 mission in 2025.

Instrument type	Miniature neutron spectrometer
Measurement	Albedo neutron count rates (subsurface hydrogen / water ice proxy)
Mission heritage	IM-2 (Intuitive Machines), launched February 2025, Micro Nova Hopper
Location	Lunar south pole, permanently shadowed region
Award	NASA JPL 'Honey, I Shrunk the NASA Payload, The Sequel' 2nd prize (2022)

price on request

British defence technology company delivering mission-critical space capabilities — domain awareness, secure communications, PNT, electric propulsion, and test & evaluation — with over half a century of heritage from the Royal Aircraft Esta

QinetiQ Space

Space Domain Awareness (Observe) Services

SDA sensing suite including distributed coherent RF tracking networks, space weather sensors, software-defined laser, and transportable optical ground stations for characterising s

Sensing Modes	Distributed coherent RF, optical, space weather
Deployable Asset	Transportable Optical Ground Station
Laser Capability	Software-Defined Laser / Synthetic Aperture Lidar (SAL)
Integration	NATO IAMD sensor network

price on request

Danish pioneer of drone-based RF testing and antenna measurement solutions for satellite antennas and electronic warfare, enabling cost-effective SATCOM ground segment testing without satellite access.

Quadsat ApS

SpectraLoc Payload

Compact airborne RF payload for passive threat detection, direction-finding, and geolocation, built for small UAV integration.

Capabilities	Passive emitter detection, classification, direction-finding, geolocation
Detection range	Extended line-of-sight
Platform compatibility	Fixed-wing drones, quadcopters, VTOL platforms (small UAVs)
Form factor	Low SWaP, easy-to-mount

price on request

Canadian nanosatellite company developing ultra-compact Mini-Cube satellites with onboard sensors for environmental monitoring, tracking atmospheric changes, and measuring Earth's vital signs from orbit.

Quub (Mini-Cubes)

Quub Earth Observation Constellation

PocketQube constellation delivering high-frequency Earth observation imagery for water, agriculture, disaster response, and air quality monitoring.

Platform	PocketQube-class microsatellites
Applications	Water resources, forests, crops, air quality monitoring
Ground systems	AI-powered imagery processing
Customers	Water utilities, agriculture, disaster response, infrastructure monitoring

price on request

Northern Ireland camera manufacturer supplying CCD, CMOS, and SWIR imaging sensors and cameras with space heritage for LEO CubeSat missions.

Raptor Photonics

Eagle 47-10 Space Camera

Deep-cooled back-illuminated 1MP CCD space camera with 7-year vacuum guarantee and >90% QE at 525 nm for LEO CubeSat optical payloads.

Sensor	Back-illuminated 1MP CCD (Teledyne e2v)
Pixel size	13 µm x 13 µm
Peak QE	>90% @ 525 nm; 50% @ 380 nm and 720 nm
Cooling	Deep-cooled to -90°C (liquid-assisted) or -80°C (air only)
Vacuum guarantee	7 years

price on request

Raptor Photonics

Hawk 1920

The Hawk 1920 is a ruggedized camera based on Sony's Pregius sensor, offering high sensitivity and QE up to 75% for demanding applications including space, airborne, and surveillan

Resolution	1944 x 1472
Pixel Pitch	4.5μm
Technology	CMOS
Spectral Range	0.3μm to 1.1μm
QE	up to 75%

price on requestdatasheet

Raptor Photonics

OwL 1280

High-sensitivity 1280 x 1024 InGaAs SWIR camera (0.6–1.7µm) with Camera Link output, 10–60Hz frame rate, and an OEM HD-SDI variant, for surveillance and scientific imaging.

Sensor	1280 x 1024 InGaAs
Spectral range	0.6µm to 1.7µm
Pixel pitch	10µm x 10µm
Readout noise	<28 electrons (rms)
Intra-scene dynamic range	51dB

price on requestdatasheet

Raptor Photonics

Owl 640 M

TEC-less, low-power (<2.5W) variant of the Owl 640 SWIR camera, designed for compact OEM and machine vision integration.

Detector	InGaAs (VIS-SWIR)
Resolution	640 × 512 pixels
Pixel Pitch	15 µm
Spectral Range	600–1700 nm
Dynamic Range	72 dB intrascene

price on requestdatasheet

Raptor Photonics

Owl 640 T

The Owl 640 T is a SWaP-optimised ½" VGA InGaAs SWIR camera with 10µm pixel pitch, low readout noise and on-board AGC/NUC, designed for OEM integration into electro-optic systems.

Sensor Format	½" / VGA InGaAs
Pixel Pitch	10µm x 10µm
Spectral Response	0.6µm to 1.7µm
Readout Noise	<50 Electrons
Intra-scene Dynamic Range	69dB

price on requestdatasheet

Raptor Photonics

Raptor Photonics Space Camera Solutions

Raptor Photonics offers flight-ready COTS and custom OEM camera solutions for LEO CubeSat missions, covering UV to SWIR wavelengths. These cameras are SWaP optimized, athermalized,

Space Heritage	Cameras flying in optical payloads on several live LEO CubeSat missions
Operational Duration (LEO)	Over 36 months (some cameras)
Altitude (LEO)	160 to 2,000 kilometers
Speed (LEO)	Approximately 17,000 mph
Wavelength Range	UV (180nm) to SWIR (1700nm)

price on request

Raptor Photonics

RCMOS Space Camera

Space-qualified CMOS camera for LEO CubeSat integration, combining compact form factor with high sensitivity across 0.3–1.1 µm.

Sensor type	CMOS, global shutter, progressive scan
Spectral range	0.3–1.1 µm (visible + NIR)
Variants	Mono and colour
Form factor	Compact and rugged for CubeSat integration
Space heritage	Operational on LEO CubeSat missions

price on request

Redwire is an integrated aerospace and defense company that designs and manufactures advanced technologies for space and defense, including optical imaging, sun sensors, solar arrays, and spacecraft p

Redwire Corporation

Redwire SpectraCAM High Resolution Flight Camera

GigE Vision LEO flight camera for docking, navigation, inspection, and situational awareness, with 5MP CMOS sensor.

Dimensions (boresight config)	50 x 50 x 47 mm
Mass	<180 g without optics
Power	5 VDC @ 400 mA (full resolution, 10 fps)
Operating temperature	-30C to +55C (mounting plate)
Shutter type	Rolling global reset

price on requestdatasheet

Belgian satellite systems facility in Kruibeke, formerly QinetiQ Space nv, acquired by Redwire Space in 2022; delivers entire satellites, avionics, and the International Berthing and Docking Mechanism (IBDM).

Redwire Space Belgium (ex-QinetiQ Space)

ISS Science Instruments & Life Support Systems

Sophisticated science instruments and life-support hardware for the International Space Station, built at Redwire's Kruibeke, Belgium facility.

Application	International Space Station (ISS) infrastructure
Product types	Science instruments, life-support systems
Certifications	ISO27001, EN9100
Facility features	Biological materials processing area, KUKA robot area, machine shop

price on request

ReliaSat is a UK manufacturer of Ka-band RF and mm-wave systems, transceivers, phased array antennas, and MMICs for satellite, aerospace, defence, and 5G markets.

ReliaSat

Radar Signal Processing Board RADSP-22-A

The RADSP-22-A is a universal FMCW radar baseband processing board generating swept LO output at 20.9-23.9 GHz and supporting up to three receive channels, designed to simplify the

TX LO Frequency	20.9-23.9 GHz (swept)
RX IF Frequency	5.4 GHz (centered)
Beat Signal Output	Sub-13 MHz
Receiver Channels	Up to 3
Radar Mode	FMCW

price on requestdatasheet

SARsatX designs, manufactures, integrates, and operates advanced Earth Observation satellites with SAR and optical sensors, providing actionable intelligence for various sectors, primarily in the Midd

SARsatX (CubeSat Arabia)

SSX-1 Airborne SAR Payload

Fully-polarimetric X-band airborne SAR demonstrator payload used by SARsatX to validate SAR use cases and refine satellite system design ahead of orbital deployment.

Sensor type	Fully-polarimetric Synthetic Aperture Radar (SAR)
Frequency band	X-band
Slant range resolution	1.5 m
Bandwidth	100 MHz
Peak transmit power	20 W

price on request

The Shanghai Academy of Spaceflight Technology (SAST) is a major Chinese aerospace research and manufacturing organization founded in 1961, responsible for developing Long March launch vehicles, Fengyun weather satellites, Tianzhou cargo sp

London-based space company capturing high-resolution thermal infrared imagery from its own HotSat satellite constellation for climate, security, and economic monitoring applications.

Satellite Vu

Thermal Imagery

High-resolution day and night thermal infrared satellite imagery at up to 3.5m resolution with 60-second thermal video capability from the HotSat constellation.

Wavelength (day)	4.5-5 μm
Wavelength (night)	3.7-5 μm
Geolocation accuracy	15m CE90
Pixel resolution	Up to 3.5m at nadir
Scene size	16 km² (~3.5 x 4.5 km at nadir)

price on request

Danish manufacturer (Aalborg) of compact, radiation-tolerant SDR and RF transceivers for satellite TT&C and payload data, including S-band, X-band, AIS, ADS-B, LoRa, and maritime VDES products.

Satlab A/S

Polaris AIS

The Satlab Polaris AIS is a self-contained software-defined radio receiver for the maritime VHF band, designed for CubeSats and larger LEO satellites to receive standard and long-r

Frequency coverage	156.000 to 162.025 MHz
AIS channel frequencies	156.775, 156.825, 161.975, 162.025 MHz
Sensitivity	-121 dBm (80% reception rate)
Co-channel rejection	7 dB (80% reception rate)
Time tagging accuracy	3.6 µs @ −121 dBm, 1 µs @ −110 dBm

price on requestdatasheet

Spanish Earth observation company developing high and very high-resolution optical payloads (iSIM family) for smallsats and microsatellites, offering end-to-end imaging solutions from space camera to data delivery.

Satlantis

GRAPHIUM Very High Resolution Telescope

50 cm/pixel VHR optical telescope for small satellites with video capability — custom-designed, COTS radiation-tolerant components, advanced manufacturing, unprecedented mass-to-re

Ground Resolution	50 cm/pixel
Modes	Imaging and video
Components	COTS radiation-tolerant (LEO)
Design Approach	Custom designed for small satellites, first principles
Spectral Capability	Panchromatic and multispectral

price on request

Satlantis

iSIM-90 Optical Payload

Lightest and most compact iSIM optical payload for 12U/16U CubeSats — simultaneous VNIR and SWIR imaging, high performance-to-mass ratio. Flight proven.

Platform Compatibility	12U / 16U CubeSat
Spectral Range	VNIR and/or SWIR (simultaneous)
Technology	iSIM (proprietary, flight proven)
Key Characteristic	Lightest and most compact in iSIM family
Design Philosophy	High performance-to-mass ratio

price on request

Satlyt is building a shared coordination layer for orbit that connects satellite tasking, on-orbit compute and data processing across constellations, letting satellites and ground systems operate as a single interoperable network rather tha

Satlyt

Shuri Lab AI-Native Spaceborne Instrumentation

AI-native onboard instrumentation stack for spaceborne science, providing real-time telemetry summarization, autonomous task management and inter-satellite communications parsing,

Core capabilities	Real-time telemetry summarization, autonomous task management, inter-satellite comms parsi
AI model demonstrated in orbit	Google Gemma 3 small language model
Demonstrated functions	Onboard imagery interpretation, encrypted downlink-ready output generation, injected fault
Architecture	Decentralized, no single point of failure; edge-based processing
Research partners	UC Berkeley Capstone program; NASA (Goddard, Ames, Johnson, Marshall, Glenn)

price on request

Polish nanosatellite manufacturer and Earth observation company recognized by ESA as a 'Space Tech Rising Star', building CubeSat platforms, subsystems, ground stations, and hosted-payload missions.

Satrev (SatRevolution)

VISION 300 Optical Payload

Space-proven multispectral optical payload for nanosatellites providing 5.8m GSD imagery at 500km altitude across blue, green, and red spectral bands.

Ground Sample Distance (GSD)	5.8 m @ 500 km altitude
Blue band	450 nm center, 110 nm FWHM
Green band	537 nm center, 125 nm FWHM
Red band	622 nm center, ~100 nm FWHM

price on requestdatasheet

Poland's first commercial supplier of optical space instruments (Wroclaw), building satellite cameras, telescopes, and in-orbit vision systems, with cameras flown on the Ariane 6 maiden flight.

Scanway S.A.

Scanway Camera System (SCS)

The Scanway Camera System (SCS) is a series of vision systems for space applications, providing imaging data for spacecraft monitoring, in-space operations, and docking missions. I

TYPE	CHARACTERISTICS
Applications	Satellite missions that demand precision, durability, and uncompromising image quality.
Cameras in space	0
Years of experience in the field	0
Missions with our cameras	0

price on request

Scanway S.A.

Scanway Optical Payload (SOP)

The Scanway Optical Payload (SOP) is a product line of satellite cameras for nano- and microsatellites, designed for Earth observation and remote sensing applications, offering var

GSD	<1 to 25 m/pixel
Spectrum	RGB/PAN/NIR/SWIR and multispectral
Cameras in space	0
Years of experience in the field	0
Missions with our cameras	0

price on request

US space domain awareness (SDA) company developing sensor systems and autonomy software for real-time on-orbit sensing, rendezvous, proximity operations, and threat avoidance.

Scout Space

Sparrow RPO-D Sensor

Low-SWaP close-range optical sensor for rendezvous, proximity operations, and docking (RPO-D) in LEO.

Type	Low-SWaP close-range optical sensor
Application	Rendezvous, proximity operations, docking (RPO-D)
Orbit	LEO

price on request

UK space technology company operating the world's first satellite video and Earth observation streaming platform, delivering near-real-time 4K video of Earth from orbit.

Sen

SpaceTV-1 — Live 4K ISS Earth Streaming Camera Payload

Sen's SpaceTV-1 is a 3-camera 4K UHD video payload on the ISS Bartolomeo external platform (Columbus module): nadir Earth camera (~60 m GSD, ~240×180 km scene), horizon camera, and

Host platform	Airbus Bartolomeo external ISS platform (ESA Columbus module)
Camera count	3 cameras
Video resolution	4K UHD
Nadir camera scene	~240 × 180 km; ~60 m GSD; with real-time AR mapping overlay
Additional cameras	Horizon/limb camera; ISS docking port camera (Harmony forward port)

price on request

SERENUM Space is a CubeSat component and BUS manufacturer, integrator, and service provider based in Brno, Czech Republic, and a commercially oriented subsidiary of VZLU AEROSPACE.

Serenum Space

Space X-Ray Detector (SXD)

Compact digital spectrometer and dosimeter using a space-rated silicon detector for radiation measurement on CubeSats and SmallSats.

Detector type	Space-rated silicon ionizing radiation detector
Function	Dosimeter and spectrometer
Target platforms	CubeSats, SmallSats, drones, handheld applications
Availability	12 weeks

price on request

Chinese developer and manufacturer of small solid rockets, weather-modification rocket systems, sounding rockets, guided rockets, and advanced aerospace materials.

Shaanxi Zhongtian Rocket Technology Co., Ltd.

TK-1 Low Altitude Sounding Rocket

The TK-1 Low Altitude Sounding Rocket system is designed to detect real-time atmospheric temperature, humidity, and air pressure changes up to 1000m, offering a faster and more sta

Altitude range

1000m

price on request

South African manufacturer of optical Earth observation payloads (TriScape, MultiScape, HyperScape) for CubeSats and small satellites, with corporate HQ in Leuven, Belgium.

Simera Sense

HyperScape100

The HyperScape100 is a hyperspectral imaging system designed for CubeSats, offering unprecedented imaging capabilities with 32 bands and a 4.75m GSD at 500km.

GSD at 500 km	4.75 m
Swath	19.4 km
Bands	32-Bands From 400 Bands
Form Factor	1.5U
Spectral Range	460–860

price on request

Simera Sense

HyperScape50

The HyperScape50 is a compact 1U hyperspectral imaging system designed for Earth Observation, capable of capturing spectral content across 32 bands from 460–860 nm.

Focal length	93.9 mm
Aperture	11.75 mm
Full field of view	13.68° (across-track)
Configuration	Pushbroom
Sensor technology	CMOS global shutter

price on request
