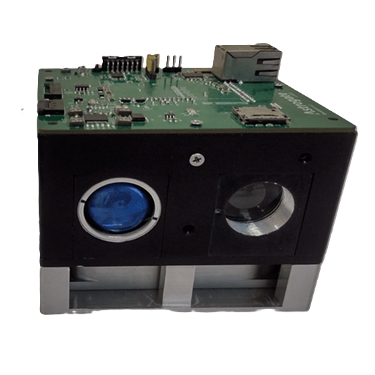

AstroLink Laser Communication Terminal
SWaP-optimized laser communication terminal for CubeSats and NanoSats, 1 Gbps downlink at 1550 nm, integrated fine pointing, ITAR-free, TRL 7.
Description
AstroLink is a fully integrated, SWaP-optimized laser communication terminal for CubeSats and NanoSats. Provides up to 1 Gbps satellite-to-ground downlink on 1550 nm wavelength with integrated fine pointing, tracking, and ground beacon acquisition (±5°). Resistant to jamming and eavesdropping. ITAR-free with flight heritage from a 3U nanosatellite space-to-ground link mission (2021). Fits in 95 × 95 × 80 mm volume.
Specifications
| Data rate (Downlink) | Up to 1 Gbps |
|---|---|
| Wavelength | 1550 nm |
| Pointing accuracy | ±1° bus pointing tolerance |
| Ground beacon acquisition | ±5° |
| Dimensions | 95 × 95 × 80 mm |
| ITAR status | ITAR-free |
| TRL | 7 |
| Flight heritage | Flight heritage 2021 (3U nanosatellite) |
