12U CubeSat platform with up to 800,000 mm3 payload volume, 115-190 Wh battery, 40 W average payload power, and flexible payload shape and positioning.

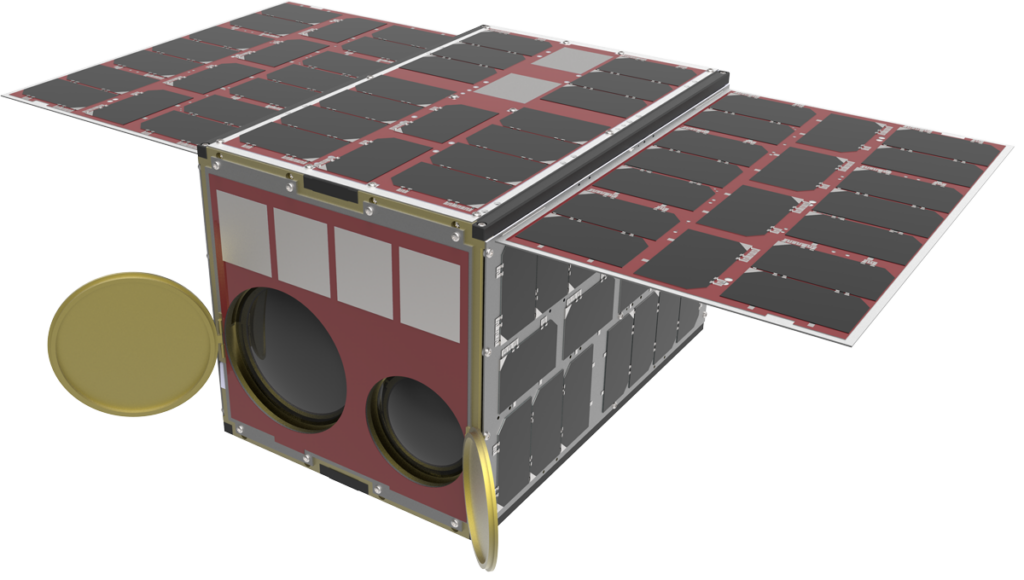

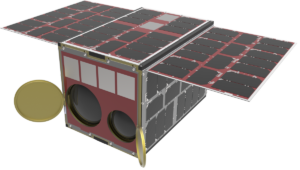

12U CubeSat Bus
12U CubeSat platform with up to 800,000 mm3 payload volume, 115-190 Wh battery, 40 W average payload power, and flexible payload shape and positioning.
Description
The C3S 12U CubeSat Bus provides optimized thermal design with high payload flexibility in shape and positioning. Features 115-190 Wh configurable battery, up to 40 W average and 165 W peak payload power, and 12.3-13.1 U payload volume (up to 800,000 mm3). CAN command buses, M-LVDS data buses, 399-401 MHz communications, and 2 degree pointing accuracy. 5-year LEO design lifetime.
Specifications
| Dimensions | 226.3 x 226.3 x 366 mm |
|---|---|
| Battery Capacity | 115-190 Wh (configurable) |
| Platform Peak Power | 25 W |
| Payload Volume | 12.3-13.1 U (up to 800,000 mm3) |
| Payload Avg Power | up to 40 W |
| Payload Peak Power | up to 165 W |
| Communications | 399-401 MHz, up to 150 kbps |
| Pointing Accuracy | 2 deg |
| Design Lifetime | 5 years (LEO) |
