RIGEL Multi-Orbit Satcom Terminal is an advanced user terminal offering superior performance, low SWaP, and no scan-loss for LEO/GEO satellite network constellations across global Satcom markets.
RIGEL
RIGEL Multi-Orbit Satcom Terminal is an advanced user terminal offering superior performance, low SWaP, and no scan-loss for LEO/GEO satellite network constellations across global Satcom markets.
Description

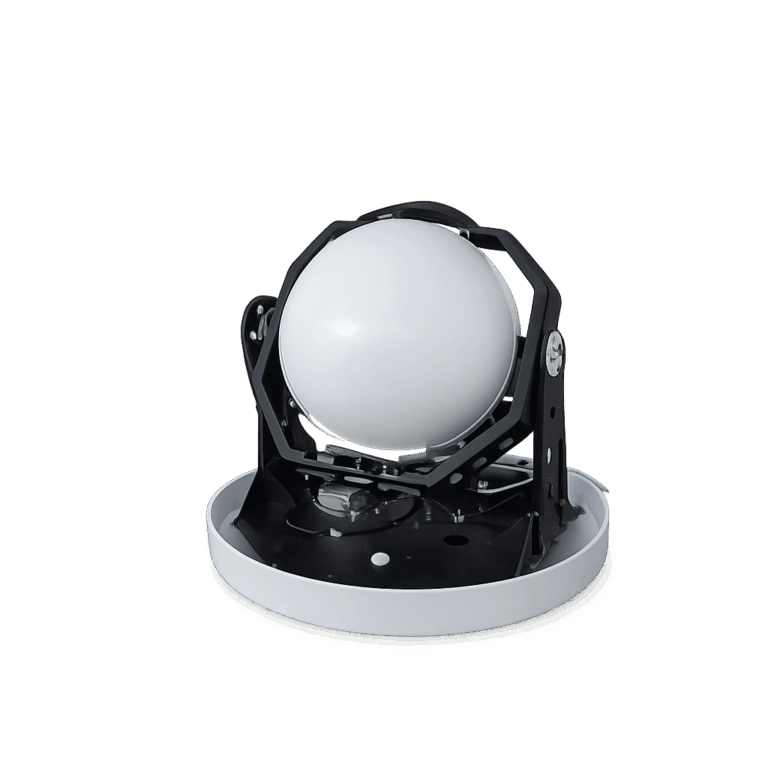

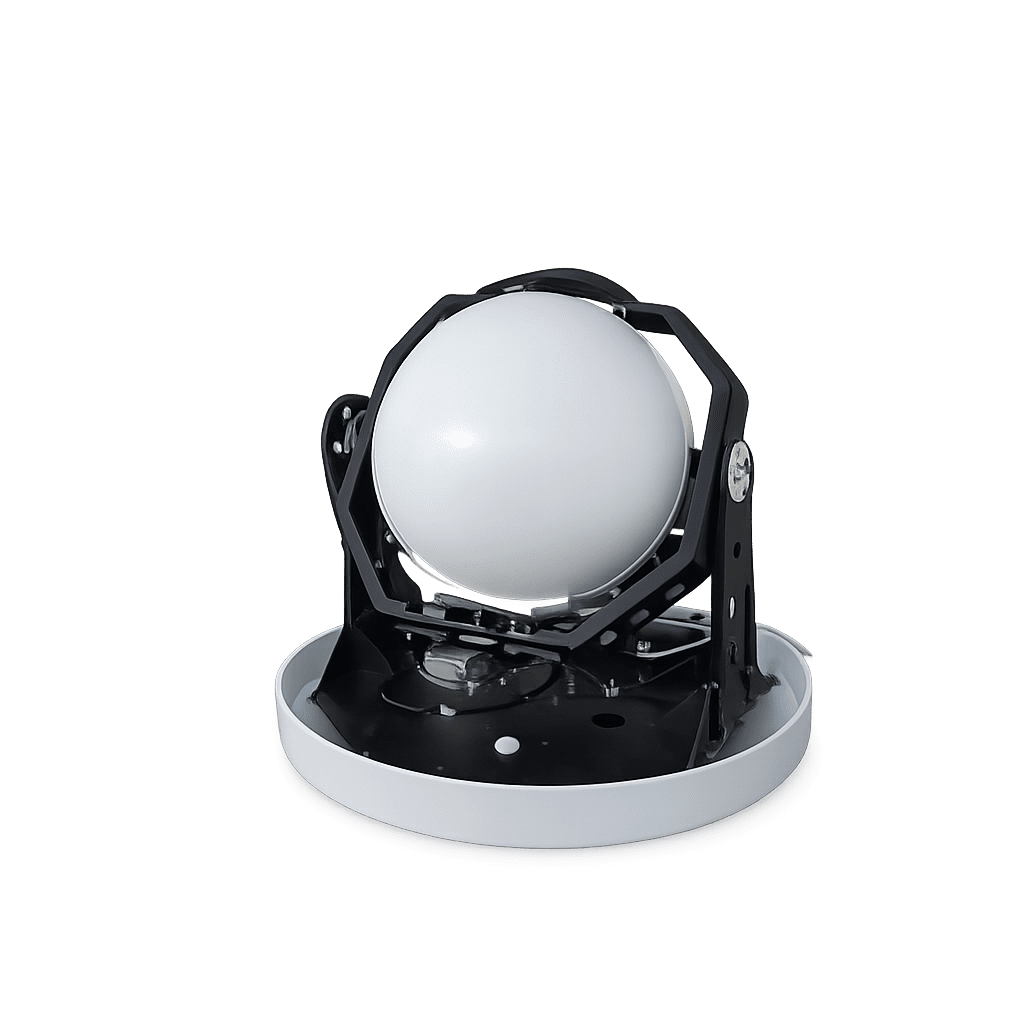

The RIGEL Multi-Orbit Satcom Terminal from Cassiopeia Space Systems is engineered to provide high-gain, lightweight performance across LEO, MEO, and GEO satellite constellations. This advanced user terminal is designed to meet the demands of modern, multi-orbit networks, enabling seamless satellite handover and uninterrupted global connectivity. It offers superior performance, low Size, Weight, and Power (SWaP), and eliminates scan-loss, making it ideal for various applications within the global Satcom market, including Maritime, Airborne, COTM (Communications On-The-Move), and Ground Stations. As LEO satellites orbit faster than the earth’s rotation, the RIGEL terminal is specifically designed to capably switch from one satellite to another without dropping the link, ensuring resilient communications across diverse and demanding operational environments.
Specifications
| Antenna type | Luneburg Lens antenna |
|---|---|
| Antenna size | 45 cm |
| Stabilizer/Tracking positioner | X/Y/Azimuth |
| Elevation angle | -10° to +120° |
| Cross angle | ± 75° |
| Azimuth range | Unlimited |
| Frequency | TX: 7.90- 8.40 GHz |
| Frequency (RX) | RX: 7.25- 7.75 GHz |
| Frequency (TX) | TX: 13.75- 14.50 GHz |
| Frequency (RX) (Rx) | RX: 10.70- 12.75 GHz |
| Frequency (TX) (Tx) | TX: 29.00- 31.00 GHz |
| Frequency (RX) (Rx) | RX: 19.20- 21.20 GHz |
| System power consumption | 280 W |
| Mass | 55 kg |
| Operating temperature | -40°C to 60°C |
