Dual-link Ka-band multi-orbit terminal delivering simultaneous full-performance GEO and MEO connections for defense mobility applications.
Hydra 2 — Dual-Link Ka Satellite Terminal
Dual-link Ka-band multi-orbit terminal delivering simultaneous full-performance GEO and MEO connections for defense mobility applications.
Description
The Hydra 2 is All.Space's dual-link Ka-band communications-on-the-move (COTM) terminal, capable of connecting simultaneously to two satellites across Military Ka-band and Commercial Ka-band networks in GEO and MEO orbits, with future-proof compatibility for LEO Ka-band constellations including Amazon Kuiper, Viasat 3/GX, WGS, and Telesat Lightspeed. Unlike traditional mechanically steered antennas, the Hydra 2 uses solid-state electronic beam steering with no moving parts, achieving sub-0.1° pointing accuracy even while the platform is in motion at sea or on land. Each of the two simultaneous links operates at full performance — neither is degraded by the presence of the other — enabled by proprietary RF optics and lens-array beamforming technology that also provides integrated anti-jamming resistance. The terminal features a modular swappable bay architecture supporting a customizable transmit/receive ratio and link throughput per mission requirement, a web-based management GUI, and full MIL-STD compliance for the most demanding military environmental conditions. It is deployed with the U.S. Army and U.S. Navy as a ruggedized, plug-and-play satcom solution for land vehicles and naval vessels.
Specifications
| Simultaneous links | 2 |
|---|---|
| Frequency bands | Military Ka-band + Commercial Ka-band |
| Orbit support | GEO, MEO (future: LEO Ka-band) |
| Azimuth coverage | 360° |
| Elevation scan range | 20° to 90° |
| Pointing accuracy | <0.1° (on-the-move) |
| Beam steering | Electronic solid-state, no moving parts |
| Anti-jamming | Integrated lens-array beamforming |
| Design standard | MIL-STD compliant |
| Management interface | Web-based GUI |

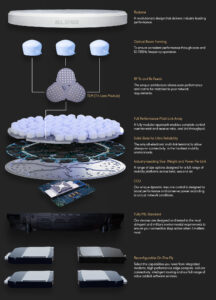

| Architecture | Modular swappable bays |

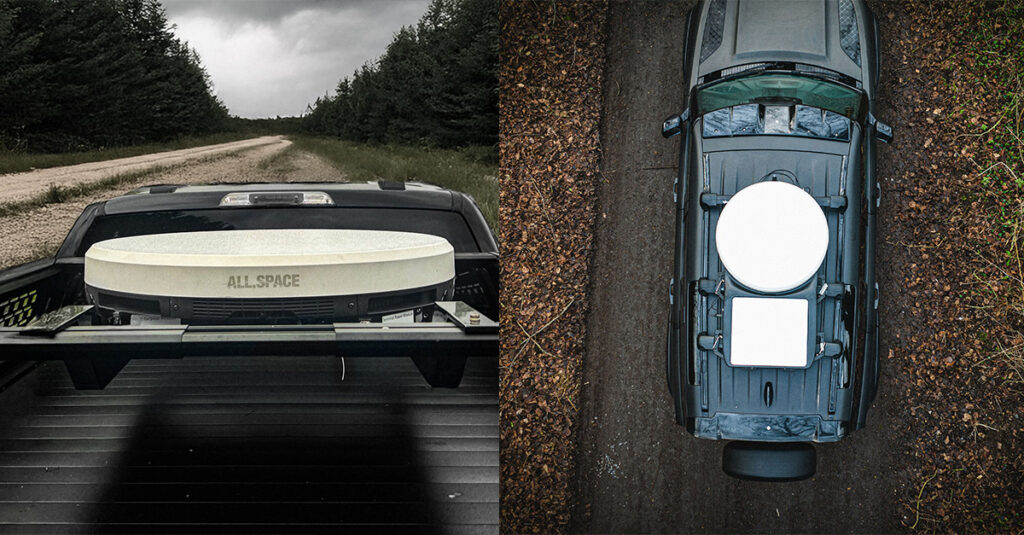

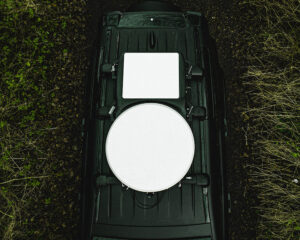

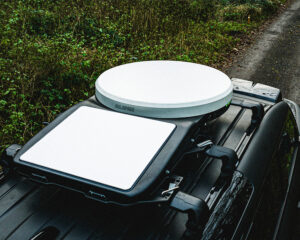

| Deployment | Land vehicles, naval vessels |
