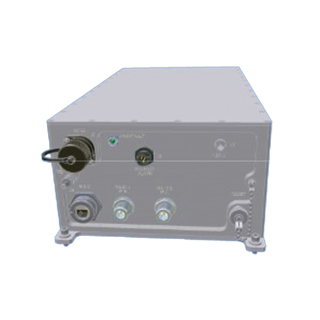

Dual-Band V-Band Block Upconverter (UC-47A251A4DU-1023)
Price on request
Dual-band V-band block upconverter for satellite earth stations — converts L-band (1000-3100MHz) to 47.2-51.4GHz V-band output, ISO 9001/AS9100D certified.
Description
The UC-47A251A4DU-1023 is a satellite earth station block upconverter accepting dual L-band inputs (1000-3100 MHz, two ports) with single-conversion to V-band output across two bands. It features an outdoor, temperature-controlled enclosure for antenna hub installation, with remote monitor and control via 10/100 Base-T Ethernet, manufactured to ISO 9001:2015 and AS9100D standards.
Specifications
| L-band input | 1000-3100 MHz (x2) |
|---|---|
| Input return loss | >=14 dB |
| V-band output | 47.20-49.30 GHz & 49.30-51.40 GHz |
| Output return loss (WR-22) | >=16 dB |
| P1db | >=+10 dBm |
| Ip3 | >=+18 dBm |
| Gain | +23±3 dB |
| Noise figure | <=14 dB |
| AC supply | 90-264VAC 47-63 Hz |
| Mass | ~26 lbs |
| Operating temperature | -30 to +50°C |
| Certification | ISO 9001:2015, AS9100D |
