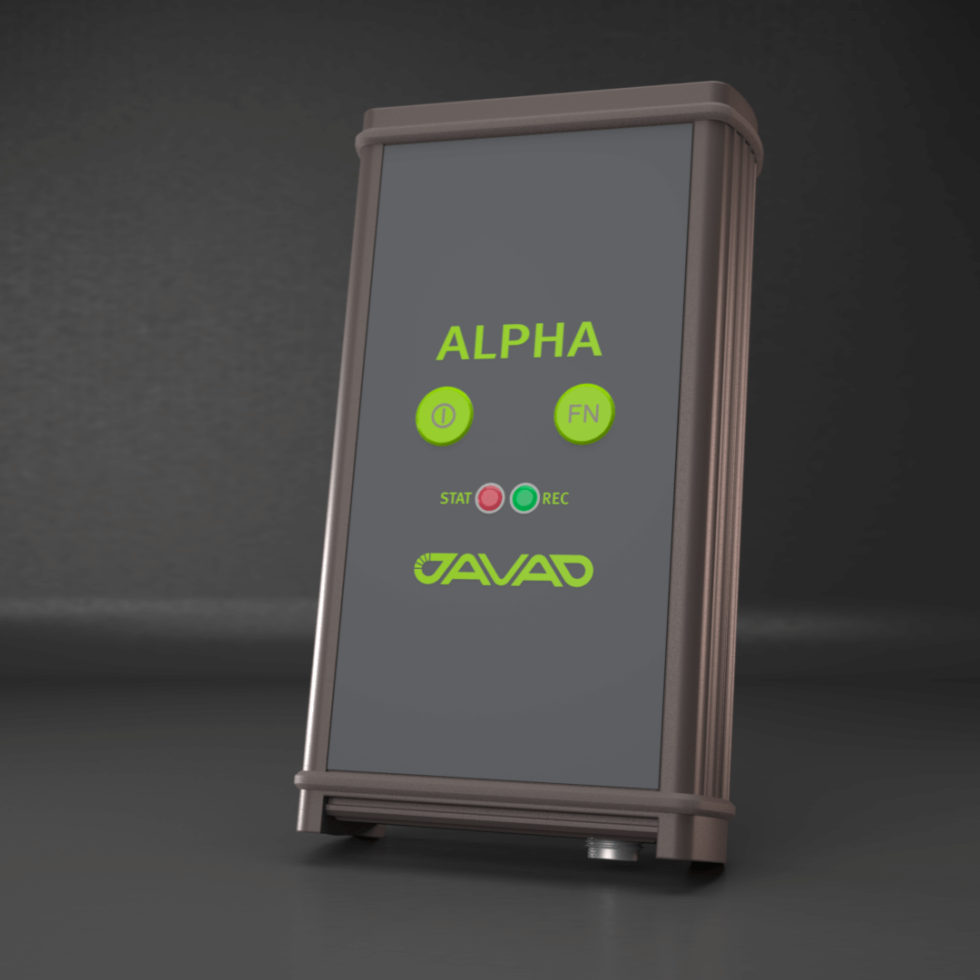

ALPHA Series OEM GNSS Receiver
Compact IP66/MIL-standard OEM GNSS receiver offering up to 200Hz RTK output — 874-channel triple-frequency tracking of GPS, Galileo, GLONASS, BeiDou, QZSS, NavIC.
Description
The ALPHA series is billed as the first GNSS receiver offering up to 200Hz RTK, based on the TRIUMPH ASIC (TR-2S/TR-3S/TR-3S DUO boards) for 874-channel triple-frequency tracking across all major GNSS constellations. Housed in a small IP66-rated MIL-standard enclosure, it includes a TriPad interface, Bluetooth, and onboard flash storage, offered in 3 pre-built configurations or custom builds, with an ALPHA INS variant adding an IMU.
Specifications
| Channels | 874, triple-frequency multi-GNSS |
|---|---|
| RTK update rate | 10/20/50/100/200Hz (optional) |
| Heading rate (3S DUO) | 20/50/100Hz |
| Enclosure | IP66, MIL-standard |
| Input voltage | +4.5 to +40VDC |
| Memory | Up to 16GB eMMC |
| Serial | RS232 460.8kbps |
| Dynamic calibration accuracy (optional) | 0.2mm |
