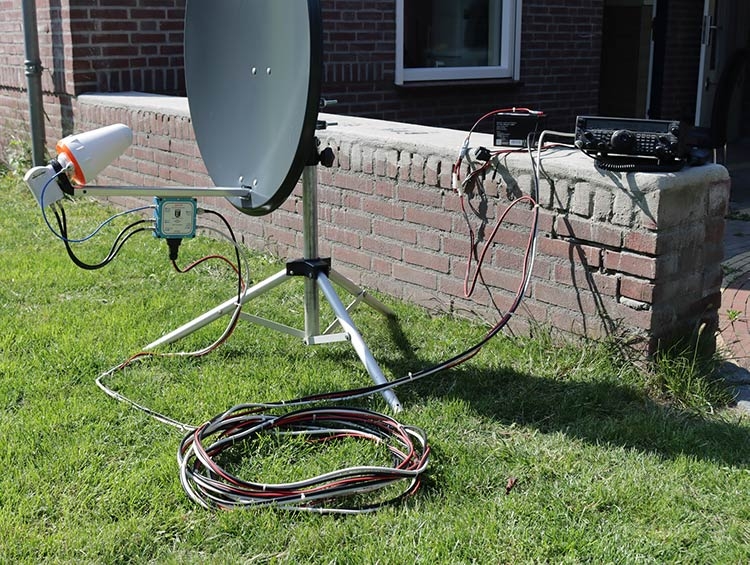

LE016-R5 QO-100 Full-Duplex Transverter System
Compact full-duplex transverter system enabling communication via the QO-100 geostationary amateur satellite using a standard VHF/UHF transceiver — 650g, aluminum enclosure.
Description
The LE016-R5 is a small-form-factor transverter that lets a standard VHF/UHF transceiver radio communicate through the QO-100 geostationary amateur satellite. It uses compact electronics for a small footprint and can be set up in minutes, making it useful as an emergency communication device, backup radio system in remote areas, or an educational tool for junior satellite/microwave operators. It pairs with a modified external LNB for the first downconversion of the 10 GHz downlink and is sold only as a complete system — transverter, modified LNB, Ice-Cone feed antenna, interconnect cables, and aluminum mounting plate — since total system performance depends on matched components.
Specifications
| Up-converter input frequency | 435 MHz (N-connector) |
|---|---|
| Up-converter output frequency | 2400 MHz (SMA connector) |
| Nominal input power | 5 W average |
| Minimum output power at 2400MHz | 4 W |
| Down-converter | 10 GHz to 1st IF via modified LNB |
| Output frequency (SSB mode) | 144.500 MHz |
| Output frequency (DVB mode) | 1580 MHz |
| Power supply range | 12-32 Vdc (9-pin DSUB) |
| Reference oscillator | OCXO (±10 ppb) |
| Enclosure | Aluminum milled, 10x10x3 cm |
| Weight | 650 g |
| Price | 1200 EUR (excl. VAT, shipping) |
