MS3100A 18 Wall mounting receptacle

• A Thread1 1/8-18 NEF
• B (Min)15.88
• K Min /Max2.39/5.15

A wall mounting receptacle with 1 1/8-18 NEF A Thread.

MS3100A 16 Wall mounting receptacle

• A Thread1-20 UNEF
• B (Min)15.88
• K Min /Max1.58/3.96

A wall mounting receptacle with 1-20 UNEF A Thread and 7/8-20 UNEF V Thread.

MS3100A 16S Wall mounting receptacle

• A Thread1-20 UNEF
• B (Min)9.53
• K Min /Max1.58/3.96

A wall mounting receptacle with 1-20 UNEF A Thread and 7/8-20 UNEF V Thread.

MS3100A 14 Wall mounting receptacle

• A Thread7/8-20 UNEF
• B (Min)15.88
• K Min /Max1.58/3.96

A wall mounting receptacle with 7/8-20 UNEF A Thread and 3/4-20 UNEF V Thread.

MS3100A 14S Wall mounting receptacle

• A Thread7/8-20 UNEF
• B (Min)9.53
• K Min /Max1.58/3.96

A wall mounting receptacle with 7/8-20 UNEF A Thread and 3/4-20 UNEF V Thread.

MS3100A 12 Wall mounting receptacle

• A Thread3/4-20 UNEF
• B (Min)15.88
• K Min /Max1.58/3.96

A wall mounting receptacle with 3/4-20 UNEF A Thread and 5/8-24NEF V Thread.

MS3100A 12S Wall mounting receptacle

• A Thread3/4-20 UNEF
• B (Min)9.53
• K Min /Max1.58/3.96

A wall mounting receptacle with 3/4-20 UNEF A Thread and 5/8-24NEF V Thread.

MS3100A 10SL Wall mounting receptacle

• A Thread5/8-24 UNF
• B (Min)9.53
• K Min /Max1.58/3.96

A wall mounting receptacle with 5/8-24 UNF A Thread and 5/8-24NEF V Thread.

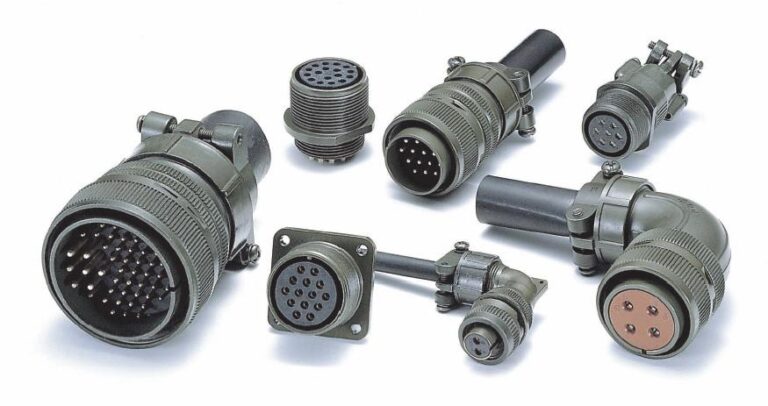

MIL-C-5015 series connector

A series of military standard circular connectors designed for various applications, offering different shell types, service classes, and…

Hyperboloid Socket Contacts

• Contact TechnologyHyperboloid (springtac)
• MaterialCopper alloy CuZn40 C28000 or per specification
• Surface TreatmentGold plating 0.2-1.27 um, silver plating, or per specification

Copper-alloy hyperboloid (springtac) socket contacts with gold or silver plating for military circular connectors.

Twist Pin Contacts

• No. 1 Outer Diameter D0.72 mm
• No. 1 Inner Diameter d0.42 mm
• No. 1 Length L01.3 mm

Military-grade twist pin contacts for circular connectors in three standard dimensions, approx. 10-15 day lead time.

J36 Series Rectangle Electrical Connector

• StandardQ/HD20038-2007 (Chinese military)
• TypeA (standard), E (low magnetism)
• Contact Count9, 15, 26, 38, 52, 62, 74

Chinese military standard Q/HD20038-2007 rectangular connector with low-magnetism variant.

J30J Series Micro-D Rectangle Electrical Connector

• StandardMIL-C-83513 / J30J
• Contact Counts9, 15, 21, 25, 31, 37, 51, 66, 74, 100
• Connector TypeTJ (plug with pin), ZK (receptacle with socket)

MIL-C-83513 compatible micro-D rectangular connector mateable with US MDM series, in 9 to 100 contact configurations.

J14 Series Rectangle Electrical Connector

• StandardQ/HD20037-2007 (Chinese military)
• Shell MaterialHigh-strength composite
• Contact TypeJ (pin), K (socket)

High-strength composite shell rectangular connector conforming to Chinese military standard Q/HD20037-2007.

J7B Series Rectangle Electrical Connector

Chinese military standard GJB176A-97 rectangular connector, backward-compatible with J7A series.

XC Series Circular Connector (Springtac Socket)

• StandardGJB2889 (Chinese military)
• Shell Sizes14, 18, 22, 24, 27, 30, 33, 36, 39
• Connector TypesT (plug with crimp), F (square flange receptacle), Y (circular receptacle), S (jam nut hermetic), S1/S2 (square flange hermetic)

Chinese military standard GJB2889 circular connector with springtac hyperboloid socket contacts and bayonet coupling.

Y4 Series Circular Connector

• StandardQ/Ag1.004-2000 (Chinese military)
• Number of Contacts2, 3, 4, 5, 7
• Connector TypeT (plug), Z (receptacle)

Thread-coupled Chinese military standard Y4 circular connector with hermetic receptacle option, conforming to Q/Ag1.004-2000.

Y2 Series Circular Connector

• StandardQ/321283LSC02-2007 (Chinese military)
• Number of Contacts2, 3, 4, 5, 7, 10, 14, 19, 24, 32, 36, 37, 50, 65, 81, 120
• Connector TypeT (plug), Z (receptacle)

Chinese military standard Y2 circular connector with bayonet coupling conforming to Q/321283LSC02-2007, up to 120 contacts.
