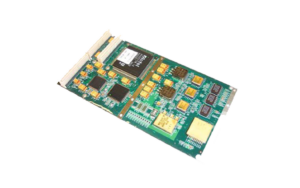

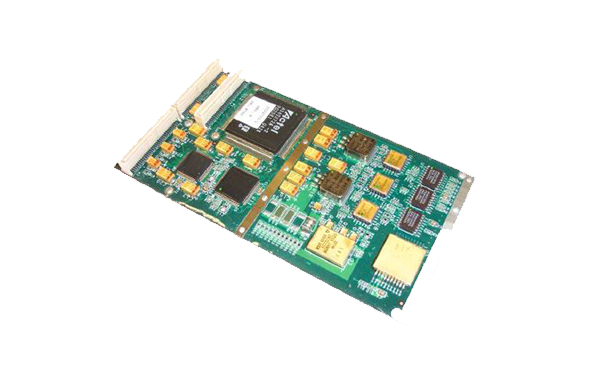

S710 Radiation Tolerant Communications PMC
Aitech Systems
A radiation-tolerant single-wide PMC card featuring IEEE-1394a FireWire (3 ports at 400 Mbps) and 12 RS-422 serial channels with triple-voted memory protection and FPGA-based interface control, consuming less than 3.5 W.
Key figurescomparable across the catalogue
- Power
- 3.5 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Firewire ports
- 3 × 400 Mbps IEEE-1394a with OHCI controller
- RS-422 input channels
- 12
- RS-422 output channels
- 12
- Serial i/o modes
- NRZ-L, NRZ-M, BiPhase-L configurable
- Memory protection
- Triple-voted algorithm for I/O buffers
- Pci interface
- 32-bit PCI 2.1, 33.333 MHz
- Power consumption
- < 3.5 W nominal
- Cooling
- IEEE 1101.2 conduction-cooled
- Form factor
- Single-wide PMC
About
The S710 is a radiation-tolerant communications PCI mezzanine card that combines IEEE-1394a FireWire high-speed serial bus capability with traditional RS-422 differential serial interfaces in a compact single-wide format. It provides three IEEE-1394a FireWire ports at 400 Mbps each with OHCI controller support, enabling high-bandwidth data transfer between spacecraft subsystems, alongside 12 RS-422 input and 12 RS-422 output channels for standard spacecraft serial communication.
Onboard FPGA logic controls the interface to external spacecraft sensors and devices, with configurable serial data encoding modes (NRZ-L, NRZ-M, BiPhase-L). A triple-voted algorithm is applied to input and output buffers to mitigate single event upsets in memory, providing enhanced data integrity. A full-featured IEEE-1394 software library is available for VxWorks integration.
The card interfaces via a 32-bit PCI 2.1 bus at 33.333 MHz, complies with IEEE 1101.2 conduction-cooling standards, and consumes less than 3.5 watts nominal. NASA GSFC 311-INST-001A Level-2 component qualification is available for flight programs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
