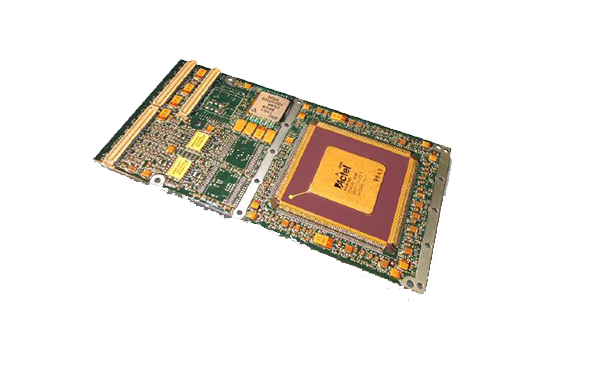

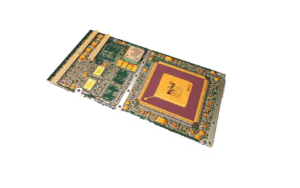

S740 Radiation Tolerant Communications PMC
Aitech Systems
A radiation-tolerant single-width conduction-cooled PMC card providing 16 RS-422 differential input and 16 output channels with FPGA-based serial I/O control and 128 MB ECC SDRAM for spacecraft sensor interfaces.
Key figurescomparable across the catalogue
- Power
- 5 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- RS-422 input channels
- 16 differential
- RS-422 output channels
- 16 differential
- Optional i/o
- Up to 64 TTL drivers/receivers
- Onboard memory
- 128 MB ECC-protected SDRAM
- Pci interface
- 32-bit PCI 3.0, 33.333 MHz
- Serial i/o modes
- NRZ-L, NRZ-M, BiPhase-L
- Power consumption
- < 5 W nominal
- Cooling
- IEEE 1101.2 conduction-cooled
- Form factor
- Single-width PMC
About
The S740 is a radiation-tolerant communications PCI mezzanine card designed for space systems integration. It features 16 RS-422 differential input channels and 16 RS-422 differential output channels, with optional expansion to up to 64 TTL drivers and receivers supporting mixed interface standards including LVDS and MLVDS.
Onboard FPGA logic controls the serial I/O interface to external spacecraft sensors and devices, with configurable serial I/O modes including NRZ-L, NRZ-M, and BiPhase-L encoding. The 128 MB ECC-protected SDRAM provides buffering for data packets, managed by dual DMA controllers, with software-configurable interrupt capability for event-driven architectures.
The card is a single-width PMC format compliant with PCI 3.0 at 33.333 MHz (32-bit), cooled via IEEE 1101.2 conduction-cooled mounting. Power consumption stays below 5 watts nominal. Custom and standard FPGA control logic variants are available to meet mission-specific interface requirements.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
