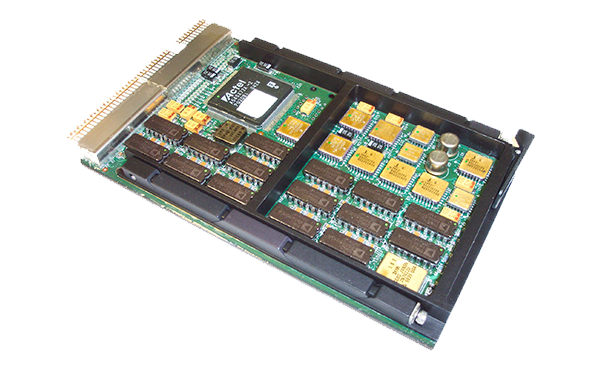

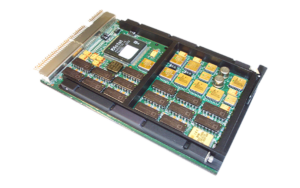

S930 Radiation Tolerant 3U CompactPCI Analog I/O Board
Aitech Systems
A radiation-hardened 3U CompactPCI analog I/O board providing 51 12-bit ADC input channels (±10V), 2 DAC output channels, 11 bus voltage monitors, and triple-voted SRAM buffers for reliable space-grade analog signal acquisition.
Technical specifications
- ADC resolution
- 12-bit
- Analog input channels
- 51
- ADC input range
- -10 V to +10 V
- Analog output channels
- 2 × 12-bit DAC, -10 V to +10 V
- Bus voltage monitors
- 11 channels
- Low pass filter cutoff
- < 50 Hz
- Reference output
- 10 V, 200 mA
- Memory protection
- Triple-voted SRAM per input
- Pci interface
- 32-bit PCI 2.1, 33 MHz
- Form factor
- Single-slot 3U CompactPCI, conduction-cooled
About
The S930 is Aitech’s radiation-hardened analog and digital conversion board for space system I/O, providing high-channel-count analog signal acquisition in a single 3U CompactPCI slot. It features 51 analog input channels with 12-bit ADC resolution over a ±10V input range, protected by a low-pass filter cutoff below 50 Hz to reject high-frequency noise from spacecraft systems. Two 12-bit DAC output channels provide analog control outputs over the same ±10V range.
A dedicated 10V, 200 mA reference output is provided for sensor excitation, enabling self-contained sensor conditioning without external power regulation. Eleven bus voltage monitoring channels allow the board to simultaneously supervise spacecraft power bus health across multiple voltage rails. Triple-voted SRAM buffers on all input channels mitigate single event upsets in the data acquisition path.
The board interfaces via a 32-bit PCI 2.1 compliant CompactPCI bus at 33 MHz in a single-slot conduction-cooled 3U form factor. NASA GSFC 311-INST-001A Level-2 component qualification is available for flight programs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
