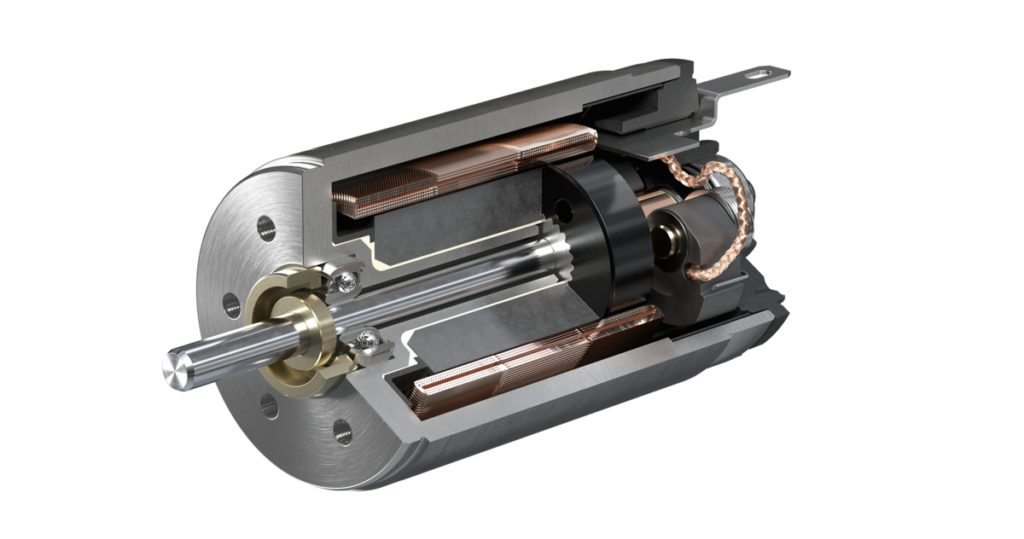

FAULHABER GXR
FAULHABER Drive Systems
The FAULHABER GXR series offers DC-motors with graphite commutation, providing high performance and reliability in a compact design.
Technical specifications
- Mass
- 19
- Number of pole pairs
- 1
- Operating temperature
- -30 ... +85 °C
- Operating temperature winding, max. permissible
- +125 °C
- Shaft bearings
- sintered bearings
- Shaft diameter
- 1,5
- Radial shaft load max. dynamic at 3 000 min-1 (3 mm from bea
- 1,2
- Axial shaft load max. dynamic at 3 000 min-1
- 0,2
- Axial shaft load max. static (shaft unsupported)
- 20
- Shaft play, max. radial
- 0,03
- Shaft play, max. axial
- 0,2
About
The FAULHABER GXR series represents a new generation of DC-motors with graphite commutation, designed for applications requiring high power density and robustness. These motors are characterized by their compact size and excellent performance, making them suitable for demanding environments. The GXR series is engineered to deliver precise and dynamic motion control, ensuring reliable operation even under challenging conditions. With a focus on efficiency and durability, these motors are an ideal choice for various industrial and aerospace applications where space is limited and performance is critical. The advanced graphite commutation system contributes to a long service life and consistent operation, making the GXR motors a dependable solution for complex drive tasks.
Documentation
- EN_TI_DC-MOTORS.pdf PDF source: www.faulhaber.com ↗
- DE_TI_DC-MOTORS.pdf PDF source: www.faulhaber.com ↗
- FR_TI_DC-MOTORS.pdf PDF source: www.faulhaber.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
