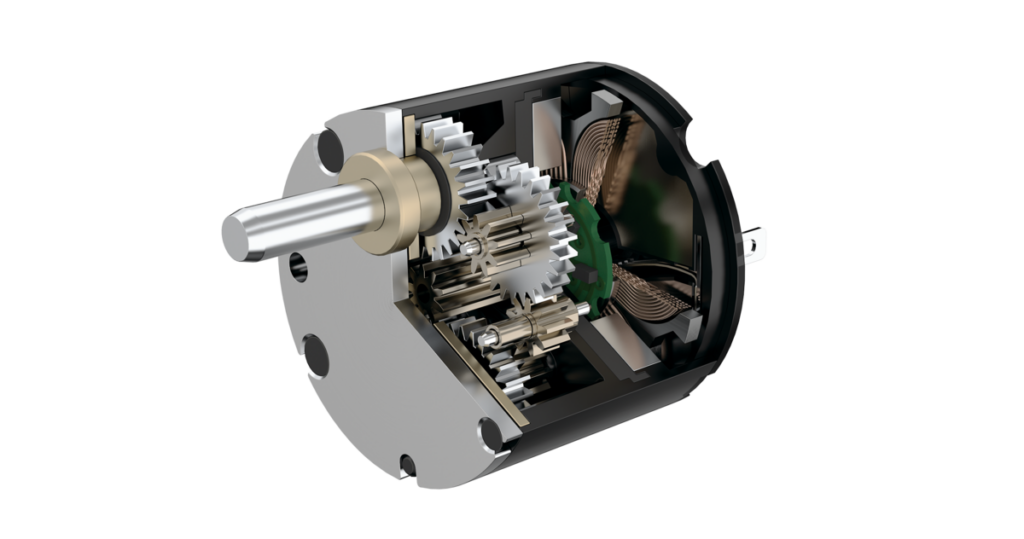

Flat DC-Micromotors and DC-Gearmotors
FAULHABER Drive Systems
FAULHABER flat DC-micromotors and DC-gearmotors are ideal for applications requiring high power in a compact design, offering a robust and reliable solution for various drive tasks.
Technical specifications
- Thermal resistance: – winding to housing
- 11 K/W
- Thermal resistance: – housing to ambient (external plastic f
- 28 K/W
- Thermal resistance: – housing to ambient (external metal fla
- 6 K/W
- Thermal time constant: – winding
- 8,1 s
- Thermal time constant: – housing (external plastic flange)
- 220 s
- Thermal time constant: – housing (external metal flange)
- 48 s
- Operating temperature range
- -30 ... +85 °C
- Operating temperature range: – winding, max. permissible
- +125 °C
- Shaft diameter
- 1,5 mm
- Radial shaft load max.: – dynamic at 3 000 min-¹ (3 mm from
- 1,2 N
- Axial shaft load max.: – dynamic at 3 000 min-¹
- 0,2 N
- Axial shaft load max.: – static (shaft unsupported)
- 20 N
- Shaft play, max.: – radial
- 0,03 mm
- Shaft play, max.: – axial
- 0,2 mm
- Speed up to nmax.
- 12 000 min-1
- Number of pole pairs
- 1
- Mass
- 19 g
- Housing material
- steel, nickel plated
About
FAULHABER flat DC-micromotors and DC-gearmotors are characterized by their compact design and high power density. These motors are particularly suitable for applications where space is limited but high performance is required. Their robust construction ensures reliability and a long service life, even in demanding environments. The product range includes various sizes and configurations, allowing for flexible integration into different systems. These motors are often used in medical devices, industrial automation, and aerospace applications due to their precision and efficiency. The flat design makes them an excellent choice for integration into compact assemblies without compromising on torque or speed.
