Geared linear actuators
FAULHABER Drive Systems

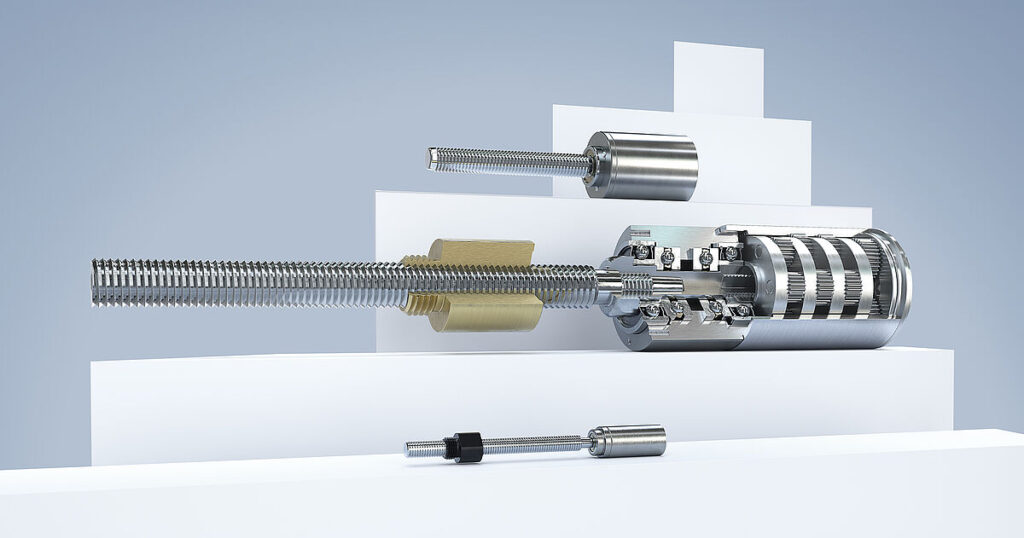

FAULHABER's geared linear actuators are powerful and robust, designed for precise linear motion in demanding applications, including those in aerospace and aviation.
Technical specifications
- Continuous output speed, max
- 120 mm/s
- Peak output speed, max
- 150 mm/s
- Continuous input speed, max
- 15000 min-¹
- Peak input speed, max
- 20000 min-¹
- Continuous axial force, avg.
- 305 N
- Peak axial force, dynamic, max
- 580 N
- Peak axial force, static, max
- 670 N
- Output power, max
- 27 W
- Efficiency of gearhead/coupler, max
- 95 %
- Efficiency of screw, max
- 90 %
- Radial load, max (15 mm from flange)
- 180 N
- Gearhead backlash, at no-load, typical
- 0.3 °
- Radial play (screw, 10 mm from flange)
- ≤ 0.05 mm
- Axial play – screw
- =0 mm
- Axial play – nut
- 10 µm
- Screw length from flange – standard
- 150 mm
- Screw length from flange – max
- 200 mm
- Length without motor gearhead L2
- 43.5 mm
About
FAULHABER’s geared linear actuators are engineered for applications requiring powerful and robust linear motion. These actuators combine the precision of FAULHABER motors with integrated gearheads to deliver high force and accurate positioning. They are particularly well-suited for environments where reliability and performance are critical, such as in cabin equipment, satellites, and space exploration systems. The design emphasizes durability and efficiency, making them a reliable choice for complex aerospace and aviation tasks. These actuators are part of FAULHABER’s extensive product range, which includes various motors, gearheads, encoders, and drive electronics, all designed to meet stringent industry standards.
