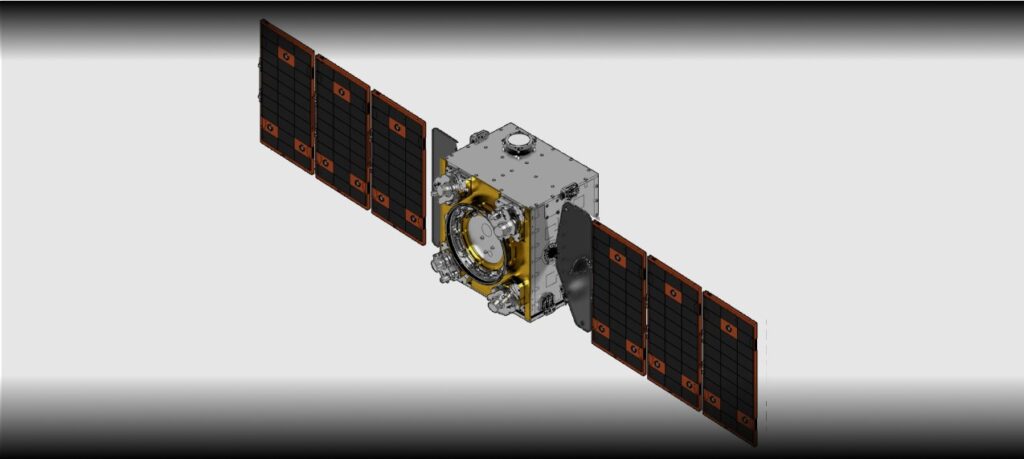

SPARTA-G70
Hemeria
The HEMERIA SPARTA-G70 is a nanosatellite platform optimized for geostationary orbit services, capable of hosting payloads up to 20 kg and providing significant power and data storage capabilities.
Key figurescomparable across the catalogue
- Payload capacity
- 15 kg
- Thrust
- 0.003 N
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Taille de la plateforme
- 460 × 600 × 340 mm
- Masse de la plateforme
- 50 kg
- Masse max. de la charge utile
- 15-20 kg
- Volume max. de la charge utile
- > 70 U
- Capacité énergétique de la batterie
- 216 Wh
- Puissance de la charge utile moyenne
- 100 W
- Puissance de la charge utile pointe
- 200 W
- Megs
- jusqu'à 200 W
- Débit sur la liaison montante
- 10 kbps (S-band)
- Débit sur la liaison descendante
- 10 kbps (S-band) · 10 Mbps (X-Band)
- Delta-v
- > 250 m/s
- Poussée
- 4 x 3,2 mN
- Précision de position
- 10 à 20 m
- Précision du mouvement
- 1 mm/s à 2 mm/s
- Erreur de pointage de l’attitude
- 0.04° à 3o
- Erreur de connaissance de l’attitude
- 0.02° à 3o
- Stockage des données pour la charge utile
- 28 Go (de base) + 32 Go (option)
- Durée de vie de la mission
- > 3 ans
- Modes de pointage scao
- Géocentrique / Soleil / Cible / Inertiel / Polynôme / Depuis la charge utile
About
The HEMERIA SPARTA-G70 is a satellite platform specifically designed for developing services in geostationary orbit. It is optimized for these orbits and described as a ‘nanosatellite patrouilleur’ (patrol nanosatellite). The platform has a compact size of 460 × 600 × 340 mm and a platform mass of 50 kg. It can accommodate a maximum payload mass of 15-20 kg and a maximum payload volume greater than 70U. The SPARTA-G70 features a battery capacity of 216 Wh, providing an average payload power of 100W and a peak power of 200W. It also supports MEGS up to 200W. Communication capabilities include an S-band uplink at 10 kbps and a downlink at 10 kbps (S-band) and 10 Mbps (X-Band). The platform offers a Delta-V greater than 250 m/s, with four thrusters each providing 3.2 mN of thrust. Attitude control is precise, with a position accuracy of 10 to 20 m, movement accuracy of 1 mm/s to 2 mm/s, attitude pointing error of 0.04° to 3°, and attitude knowledge error of 0.02° to 3°. Data storage for the payload is 28 GB (basic) with an optional additional 32 GB. The mission lifetime is stated to be greater than 3 years. The platform supports various SCAO pointing modes including Geocentric, Sun, Target, Inertial, Polynomial, and Payload-derived.
