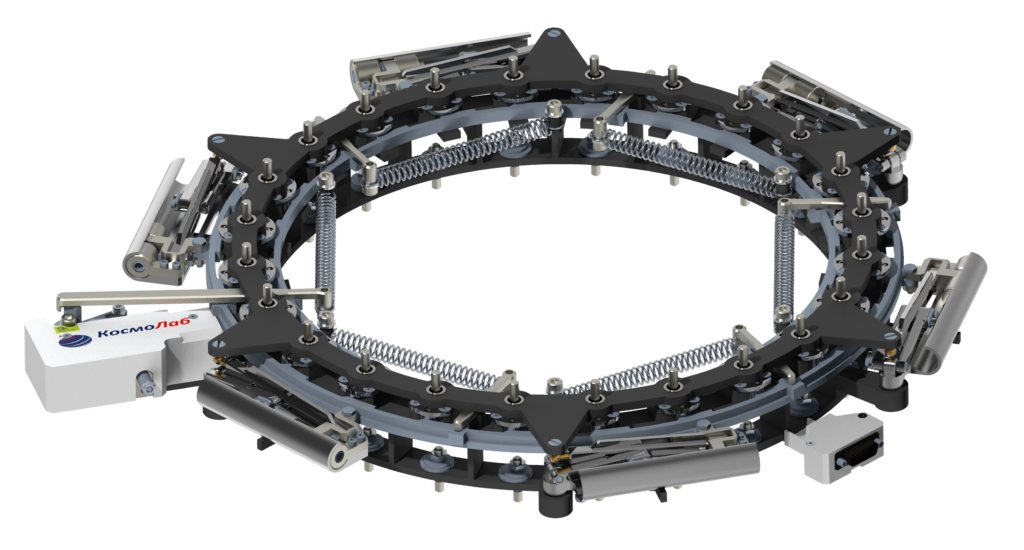

Deployment System 100 kg
KOSMOLAB Launch Services
The Deployment System 100 kg is a non-pyrotechnic separation mechanism designed for space satellites weighing up to 100 kg, ensuring smooth and shockless deployment.
Typed specifications31 values · 30 confirmed by the manufacturer
Discloses 14 of 14 fields engineers filter by in this category (category median 1). ✓ Manufacturer-confirmed data · 2026-09
- Mass
- 8 kg ✓ manufacturer datasheet p.2
- Release time
- 2 000 ms ✓ manufacturer manufacturer
- Release shock
- 0.5 g ✓ manufacturer manufacturer
- Operating temperature
- -60–60 °C ✓ manufacturer datasheet p.1
- TRL
- 7 ✓ manufacturer manufacturer
- Lead time
- 6–9 months ✓ manufacturer datasheet p.1
- Export status
- ITAR-free ✓ manufacturer manufacturer
- Separation type
- clamp band ✓ manufacturer manufacturer
- Interface diameter
- 400 mm ✓ manufacturer manufacturer
- Number of bolts or points
- 24 ✓ manufacturer manufacturer
- Max spacecraft mass
- 50 kg ✓ manufacturer min · datasheet p.0 100 kg max✓ manufacturer
- Max centre-of-gravity height
- 500 mm ✓ manufacturer manufacturer
- Separation velocity
- 0.5 m/s ✓ manufacturer min · datasheet p.0 2 m/s max✓ manufacturer
- Tip-off rate
- 2 °/s ✓ manufacturer max · datasheet p.0
- Release command type
- voltage pulse ✓ manufacturer manufacturer
- Release actuator voltage
- 28 V ✓ manufacturer manufacturer
- Command pulse duration
- 200 ms ✓ manufacturer manufacturer
- Cycles / reuses
- 20 ✓ manufacturer manufacturer
- Satellite class
- microsat 10-100 kg ✓ manufacturer max · datasheet p.0
- Missions flown
- 0 ✓ manufacturer manufacturer
- Separation switches, count
- 2 ✓ manufacturer manufacturer
- Stack height
- 60 mm ✓ manufacturer manufacturer
- Release current
- 2 A ✓ manufacturer manufacturer
- Launch vehicles
- Angara ✓ manufacturer Angara · manufacturer PSLV PSLV✓ manufacturer | Soyuz-2 Soyuz-2✓ manufacturer | Soyuz-2.1v Soyuz-2.1v✓ manufacturer | Start-1M Start-1M✓ manufacturer
- Indicative price
- 7 500 000 EUR min · from 7 500 000 RUB · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Mass
- 8.0 kg
- Max. satellite mass
- 100 kg
- Separation time
- ≤ 1 s
- Separation velocity
- 0.5 — 2.0 m/s
- Angular separation velocity
- ≤ 2 °/s
- Operating temperature
- −60°C to +60°C
About
The Deployment System 100 kg is engineered for the smooth and shockless deployment of space satellites with a maximum mass of 100 kg. A key feature of this system is the absence of pyrotechnics, which eliminates the shock and potential damage associated with traditional explosive separation mechanisms. This non-pyrotechnic approach ensures a gentle separation from the upper stage of a launch vehicle. The system is designed to operate within a wide temperature range of -60°C to +60°C, making it suitable for various space environments. It provides a separation time of less than or equal to 1 second, with a separation velocity ranging from 0.5 to 2.0 m/s and an angular separation velocity of less than or equal to 2 °/s. The system itself has a mass of 8.0 kg.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
