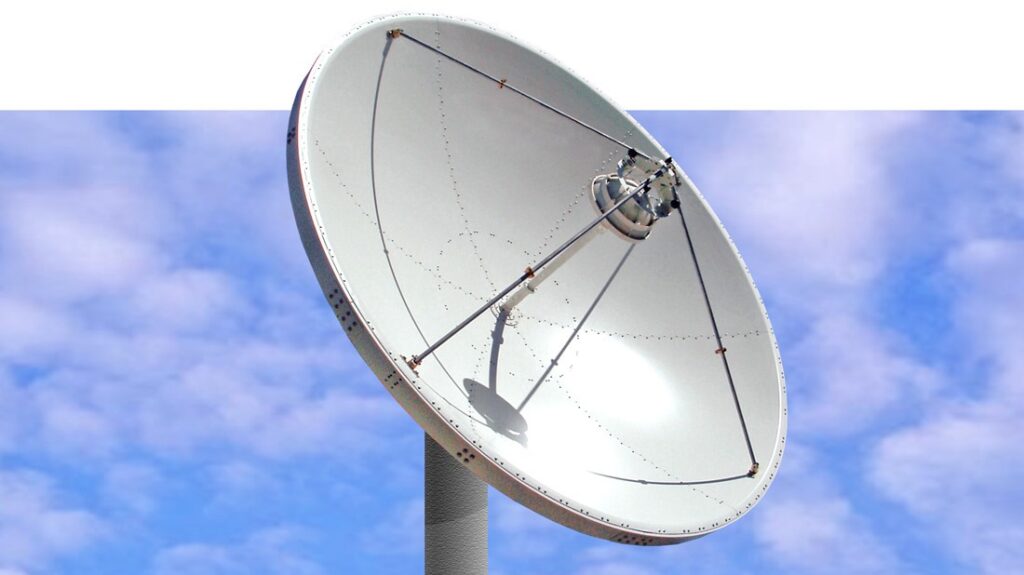

Kratos KPBESA40M.C2 4.0 Meter Earth Station Antenna
Kratos Defense & Security Solutions
A 4.0 meter low-cost Earth Station Antenna with high gain and exceptional pattern characteristics, designed for television broadcast and telecommunications networks.
Technical specifications
- Optics Type
- Dual Reflector Gregorian
- Reflector Material
- Precision-Formed Aluminum
- Reflector Segments
- 6
- Mount Type
- El over Az, Optional Manual or Motorized Mount
- Antenna Pointing Range, Coarse (Elevation)
- 0-90o (90o) (NOMINAL)
- Antenna Pointing Range, Coarse (Azimuth)
- 180o (120o) (NOMINAL)
- Polarization Range
- 180o (180o)
- Optional Hub/Enclosure Dimensions (Diameter)
- 1.22 m (48 in)
- Optional Hub/Enclosure Dimensions (Depth)
- 0.61 m (24 in)
- Reflector Paint
- Aluminum painted with highly diffusive white paint
- Ground Mount Material
- Hot-dipped galvanized steel, per ASTM-A123
- Hardware (Sizes ≤ 3/8 in)
- stainless steel, passivated per MIL-F-14072-E300
- Hardware (Sizes ≥ 3/8 in)
- hot-dipped galvanized stainless steel, passivated per ASTM-A123
- Operating Temperature
- -40o to 52oC (-40o to 125oF)
- Seismic (Earthquake)
- 1 G Vertical and Horizontal acceleration. Equivalent to a Richter Magnitude 8.3, and Grade 11 on the modified Mercalli Scale
- Operational Winds
- 45 mph (72 km/h) Gusts to 65 mph (105 km/h)
- Survival Winds
- 125 mph (200 km/h) in any position of operation
- Rain
- 4 in (102 mm) per hour
- Solar Radiation
- 360 BTU/hr/ft2 (1135 Watts/m2)
- Relative Humidity
- 100%
- Atmospheric Conditions
- As encountered by Moderately Corrosive Coastal and Industrial Areas.
- Warranty
- 3-year on all structural components
- Band Capabilities
- C, X, Ku Band
About
The Kratos KPBESA40M.C2 is a 4.0 Meter Earth Station Antenna featuring a dual reflector Gregorian optics system and close-tolerance manufacturing techniques, providing extremely accurate surface contour for high gain and controlled pattern characteristics. It is designed to meet the stringent requirements of television broadcast and telecommunications network operators, offering flexibility and electrical performance. The antenna system can be configured with linearly- or circularly-polarized 2- or 4-port combining networks. It offers a motorizable pedestal mount with 180-degree coarse azimuth coverage in three continuous overlapping ranges, and an optional low-cost mount utilizing a customer-provided pipe or Kratos provided flanged pipe mount. An optional equipment enclosure is available for mounting RF equipment. The antenna is used worldwide in broadcast applications and high-density data, voice, and communications networks. It is compliant with ITU-R S.580-6, 465-6, 732-1 (C, X, Ku Band) and US FCC 25.209 (X, Ku Band). It is built for maximum durability with minimal maintenance and comes with a 3-year warranty on all structural components.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
