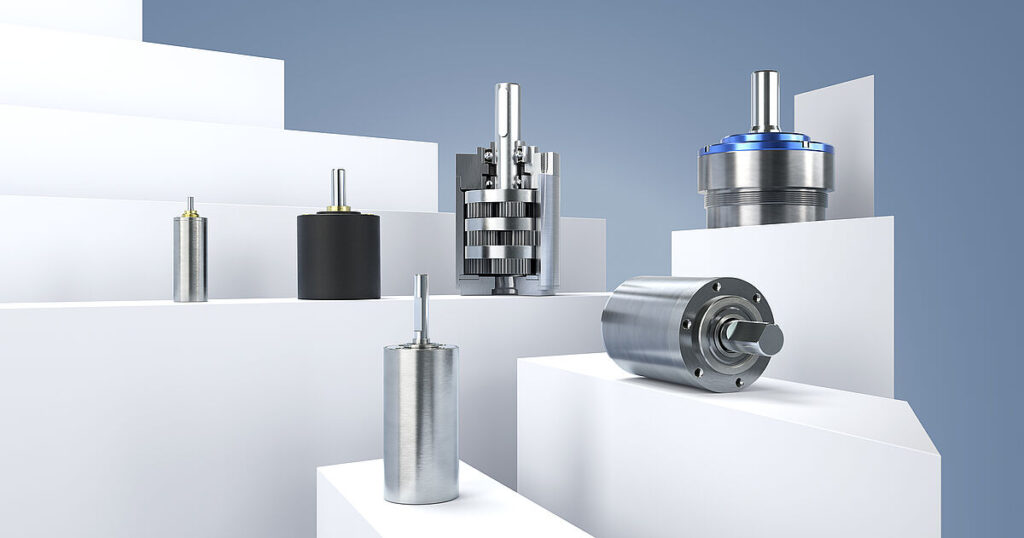

Planetary Gearheads
FAULHABER Drive Systems
FAULHABER Planetary Gearheads are designed for maximum torque transmission in a compact form factor, ideal for demanding applications.
Technical specifications
- Gearhead diameter
- 22 ... 42 mm
- Material
- stainless steel
- Continuous torque
- 0.45 ... 18 Nm
- Continuous input speed
- up to 15,000 min-1
- Intermittent torque
- 0.6 ... 25 Nm
- Intermittent input speed
- up to 20,000 min-1
- Radial load
- up to 390 N
- Reduction ratio
- from 3:1 up to 1294:1
About
FAULHABER Planetary Gearheads are characterized by their compact design and high torque transmission capabilities. They are particularly suitable for applications where high power density and precise motion control are critical. These gearheads are engineered to deliver reliable performance in challenging environments, making them a preferred choice for various industries, including aerospace and aviation. Their robust construction ensures durability and long operational life, even under continuous load. The precision engineering of FAULHABER gearheads allows for smooth and accurate power transmission, contributing to the overall efficiency and performance of the drive system. They are an integral component in sophisticated drive solutions, providing the necessary torque multiplication and speed reduction for optimal system operation.
Documentation
- EN_TI_PRECISION_GEARHEADS.pdf PDF source: www.faulhaber.com ↗
- DE_TI_PRECISION_GEARHEADS.pdf PDF source: www.faulhaber.com ↗
- FR_TI_PRECISION_GEARHEADS.pdf PDF source: www.faulhaber.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
