Skyloom Optical Data Transport Network (V’GER, Scotty, Uhura, Kirk)
Skyloom Global Corp.
Skyloom is deploying an optical data transport network in space, leveraging small geostationary relay nodes to provide low-latency and high-capacity data transportation services for LEO constellations and beyond. The network comprises V'GER (LEO-LEO/Ground/Airborne/Maritime OCT), Scotty (LEO user te
Key figurescomparable across the catalogue
- Data rate
- 20,000 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- V’ger data rate
- 1-10 Gbps
- V’ger link types
- LEO-LEO, LEO-Ground, LEO-Airborne, LEO-Maritime
- Scotty link type
- LEO-GEO
- Scotty LEO-GEO link speed
- up to 20 Gbps
- Scotty field of regard
- Hemispherical
- Uhura speed to orbit in GEO
- 5 days
- Uhura LEO - GEO oct data rate
- 20 Gbps
- Uhura LEO - GEO oct wavelength
- 1550 nm
- Uhura GEO - ground oct data rate
- 20 Gbps
- Uhura GEO - ground oct wavelength
- 1550 nm
- Uhura link availability (space to ground)
- > 99%
- Uhura first node coverage
- Asia Pacific
- Uhura first node planned deployment
- Q4 2024
- Kirk optical aperture
- <1m
About
Skyloom is establishing an optical data transport network in space designed to address the data transfer bottleneck for Earth Observation and other markets. This network utilizes laser-based communication systems, offering significantly higher capacity (10X to 100X more data than RF systems), super efficiency (smaller size, weight, and power requirements than RF), and enhanced security (less susceptible to interference and intercept). The network consists of several key components:

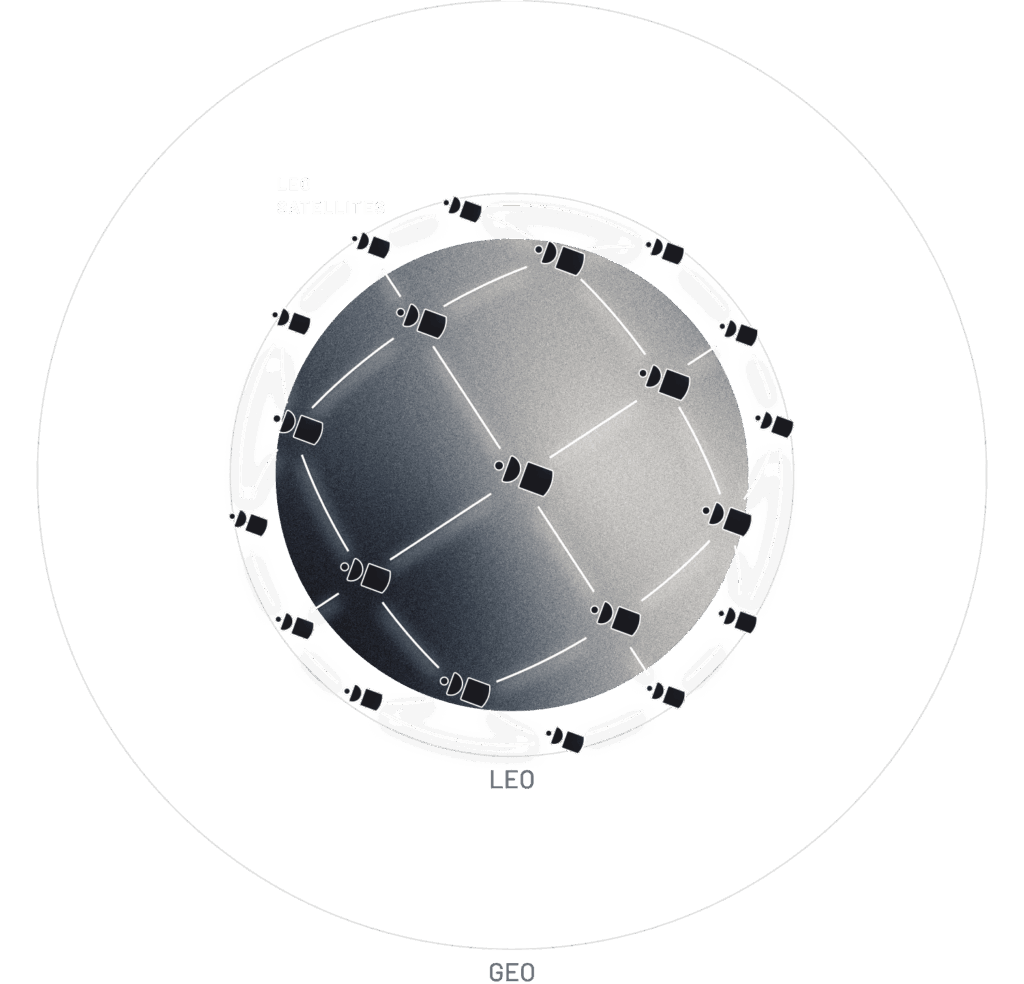

**V’GER Optical Inter-Satellite Link:** This product line comprises space-based, SDA-compliant multi-Gbps class autonomous lasercom terminals. V’GER enables high bandwidth connections for LEO-LEO, LEO-Ground, LEO-Airborne, and LEO-Maritime links, supporting planetary-scale backhaul and network services. It features a modular design and offers data rates from 1-10 Gbps.

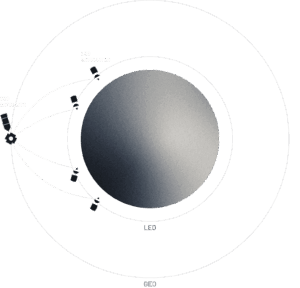

**Scotty Optical Inter-Satellite Link:** Scotty is the user terminal for LEO satellites, providing access to Skyloom’s network. It facilitates multi-Gbps data transfer from LEO to on-the-cloud by connecting LEO assets with Skyloom’s GEO nodes. This system allows LEO satellites to communicate with the Skyloom network without relying on short ground-LEO communication windows. Scotty supports LEO-GEO links up to 20 Gbps, features a hemispherical field of regard, autonomous acquisition and tracking, and is interoperable with the SDA OCT Standard.

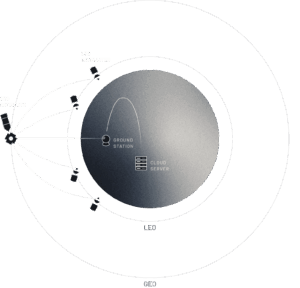

**Uhura Geostationary Relay Satellite:** Uhura is Skyloom’s small, high-capacity, multi-user optical relay satellite in geostationary orbit, designed for GEO-LEO and GEO-Ground data transfer. It enables real-time, super low latency data transmission by matching the speed of Earth’s rotation for an always-on connection to ground stations. Uhura features fully regenerative communications, gimbaled optical heads for data relay from LEO/MEO to ground, and an RF backup downlink guaranteeing >99% link availability from space to ground. It supports 20 Gbps LEO-GEO OCT (1550 nm) and 20 Gbps GEO-Ground OCT (1550 nm). The first node is planned for Asia Pacific coverage in Q4 2024.
**Kirk Optical Ground Station (OGS):** Kirk is Skyloom’s optical ground station, designed to be small, versatile, and installable at low cost at traditional ground stations, co-located with data centers, or tactically deployed. It features an optical aperture of <1m with adaptive optics and an RF antenna for downlink and TT&C as required.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
