DC Block, 1.85mm-m, DC-65GHz (Item #6546-6010-65)
XMA Corporation
A 1.85mm male-to-female DC block passive microwave component rated from DC to 65 GHz, used to block DC bias while passing RF signal through a coaxial line.
Technical specifications
- Item #
- 6546-6010-65
- Description
- DC Block, 1.85 mm-m, DC-65 GHz,
- Materials
- SS
- Types
- Dc Block
- Connector
- 1.85 mm
- Gender 1
- m
- Gender 2
- f
- Max frequency
- 65 GHz
- Volts
- 16
- Cryogenic
- no
About

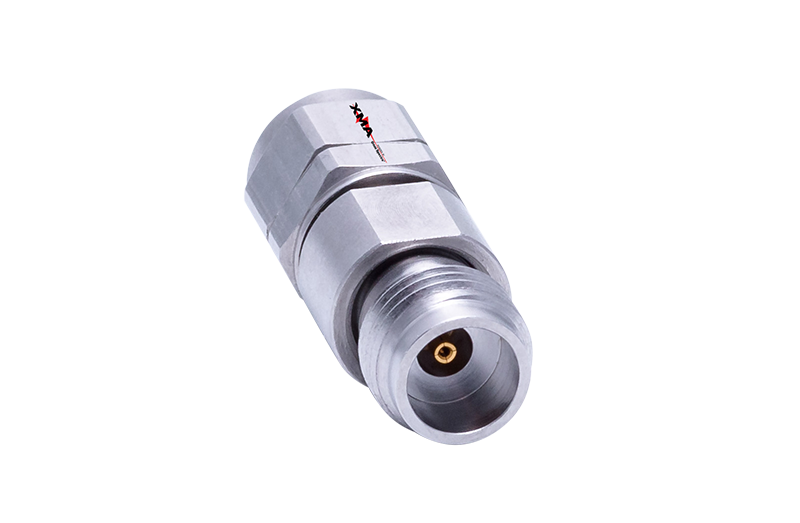

The 6546-6010-65 is a DC Block manufactured with a 1.85mm connector interface, featuring a male (Gender 1) and female (Gender 2) connector pair. It is constructed from stainless steel (SS) materials and is rated for operation from DC up to a maximum frequency of 65 GHz, making it suitable for high-frequency microwave signal paths where DC bias isolation is required. The unit has a voltage rating of 16 volts and is not cryogenic-rated (Cryogenic: no). As a passive inline component, it functions by allowing RF/microwave signals to pass through the coaxial path while blocking DC voltage from propagating along the line, protecting downstream equipment and enabling bias-tee style isolation in test setups and RF signal chains. The product page displays only a generic illustrative photo, noting the actual part may differ visually. The part is distributed through multiple stocking distributors including RFMW Ltd., East Coast Microwave Sales and Distribution LLC, Microwave Components LLC, DigiKey, PEI-Genesis Inc., and Mouser, with stock availability varying by distributor at time of listing.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
