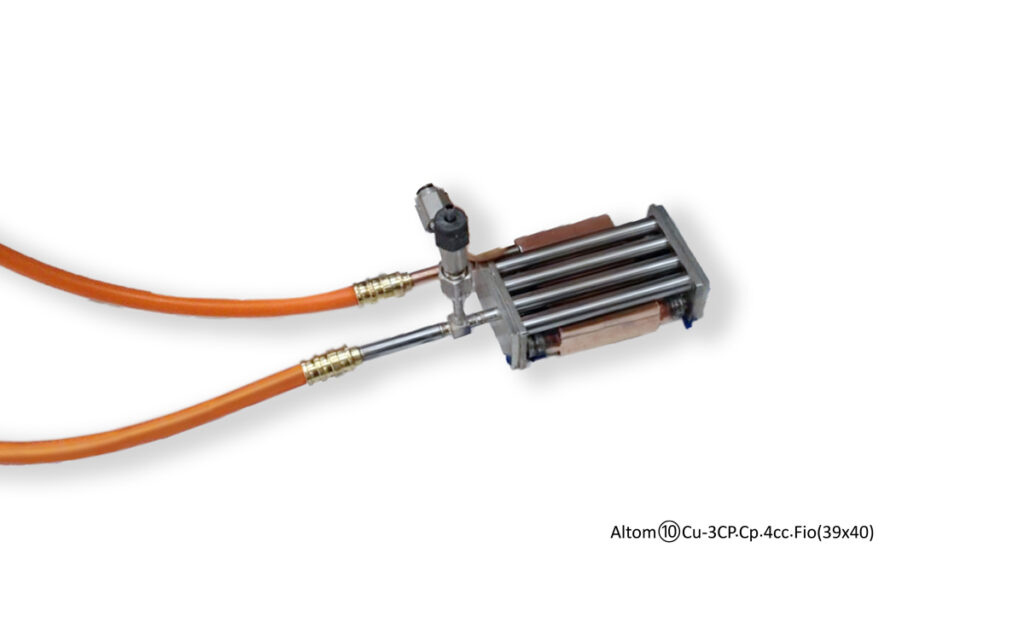

Altom10 Series — LHP Evaporator Modules for Microelectronics
Modular Loop Heat Pipe evaporator modules for microelectronics thermal management — up to 10 m separation, several thousand times the thermal conductivity of copper.
Description

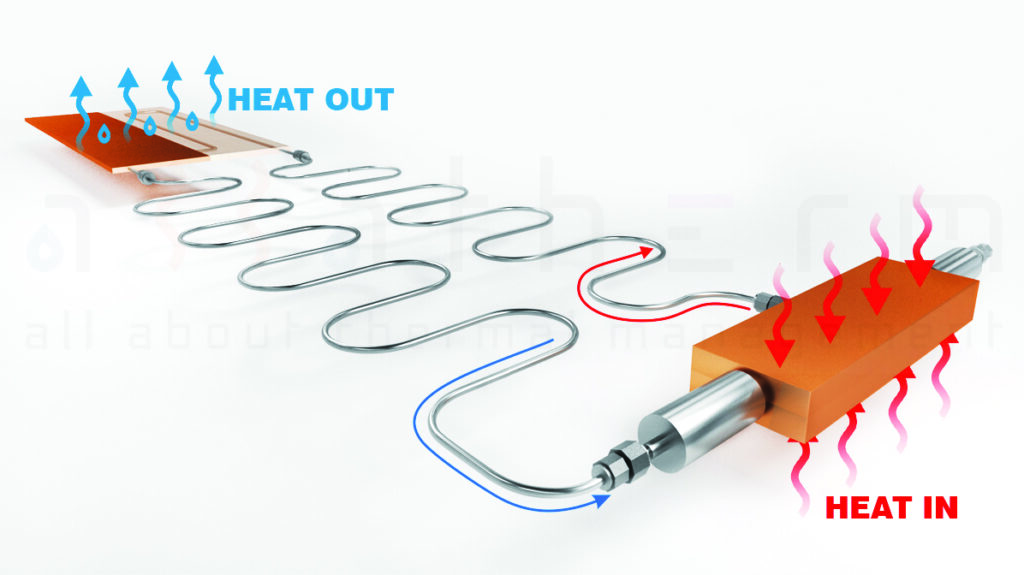

The Altom10 Series are compact, modular evaporator units for Loop Heat Pipe (LHP) systems targeting microelectronics cooling in space and high-reliability applications. Available in copper (Cu) and stainless steel (SS) variants, they are configurable across multiple charge chamber volumes (1–7 cc) and footprint sizes from 28×50 mm up to 100×50 mm. The modular approach allows assembly of multi-evaporator LHP arrays with the condenser located up to 10 meters away. Allatherm's LHP technology achieves effective thermal conductivity up to several thousand times greater than a solid copper rod of equivalent size, with no moving parts for maximum reliability. These modules have been proven in space and planetary missions.
Specifications
| Materials | Copper (Cu) and Stainless Steel (SS) |
|---|---|
| Charge chamber volume | 1–7 cc |
| Footprint range | 28×50 mm to 100×50 mm |
| Max condenser separation | Up to 10 m |
| Effective thermal conductivity | Up to thousands times solid copper |
| Moving parts | None |
| Applications | Space missions, microelectronics cooling |
