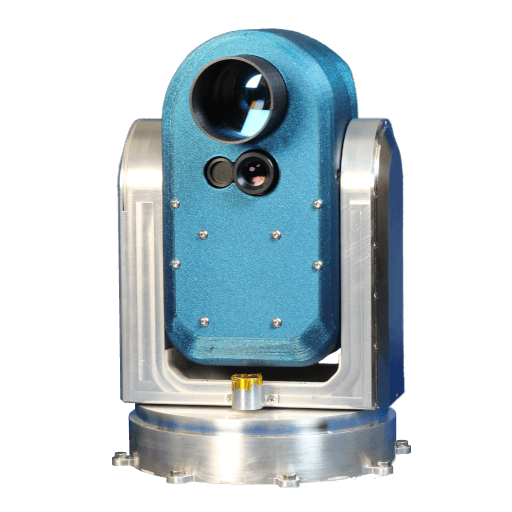

Cobalt
Cobalt is a self-contained optical communication terminal with an integrated gimbal and star cameras for autonomous orientation, simplifying integration with host spacecraft.
Description
Cobalt is a fully self-contained optical communication terminal designed to facilitate inter-satellite communication. It features an integrated gimbal and star cameras, enabling it to self-orient and significantly simplifying its integration with the host spacecraft. This design allows Cobalt to function as a high-speed data link, akin to an Ethernet cable, between satellites. A gimbal-less variant of Cobalt is also available upon request, offering flexibility for different mission requirements.
Specifications
| Dimensions | 295 mm tall, 255 mm diameter |
|---|---|
| Mass | 5.3 kg |
| Power | 20-30 W |
| Supply voltage | 40 VDC max |
| Interface | Ethernet (1000BASE-T) |
| Wavelength | 850 nm |
| Coarse Steering | max slew 10 deg/sec |
| Field of Regard | Hyper-hemisphere |
| Acquisition FOV | 2 degrees |
| Operating temperature | -20 to +55 °C |
| Storage temperature | -40 to +85 °C |
