Cobalt
Blue Cubed

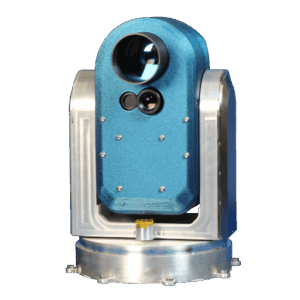

Cobalt is a self-contained optical communication terminal with an integrated gimbal and star cameras for autonomous orientation, simplifying integration with host spacecraft.
Typed specifications13 values
Discloses 1 of 9 fields engineers filter by in this category (category median 2).
- Mass
- 5.3 kg datasheet p.4
- Envelope (L×W×H)
- 295 mm tall, 255 mm diameter (dynamic) datasheet p.4
- Supply voltage
- 40 V max · datasheet p.4
- Power consumption
- 20 W min · mode dependent · datasheet p.4 30 W max · mode dependent
- Data interface
- 1000BASE-T datasheet p.4 Ethernet (1000BASE-T)
- Operating temperature
- -20 °C min · datasheet p.4 55 °C max
- Survival temperature
- -40 °C min · datasheet p.4 85 °C max
- Satellite class
- CubeSat datasheet p.2
- Slew speed
- 10 °/s max slew · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Dimensions
- 295 mm tall, 255 mm diameter
- Mass
- 5.3 kg
- Power
- 20-30 W
- Supply voltage
- 40 VDC max
- Interface
- Ethernet (1000BASE-T)
- Wavelength
- 850 nm
- Coarse Steering
- max slew 10 deg/sec
- Field of Regard
- Hyper-hemisphere
- Acquisition FOV
- 2 degrees
- Operating temperature
- -20 to +55 °C
- Storage temperature
- -40 to +85 °C
About
Cobalt is a fully self-contained optical communication terminal designed to facilitate inter-satellite communication. It features an integrated gimbal and star cameras, enabling it to self-orient and significantly simplifying its integration with the host spacecraft. This design allows Cobalt to function as a high-speed data link, akin to an Ethernet cable, between satellites. A gimbal-less variant of Cobalt is also available upon request, offering flexibility for different mission requirements.
Documentation
- 689a6f8f35805d95ea1458be_Cobalt slick V2.7 20250809 RENDER.pdf PDF source: cdn.prod.website-files.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
