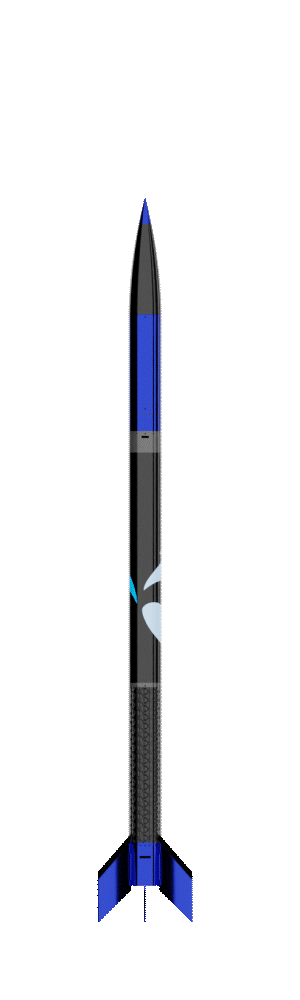

DORADO Sounding Rocket
Responsive, 100% explosives-free hybrid-propulsion suborbital sounding rocket delivering 20 kg to 100 km apogee.
Description

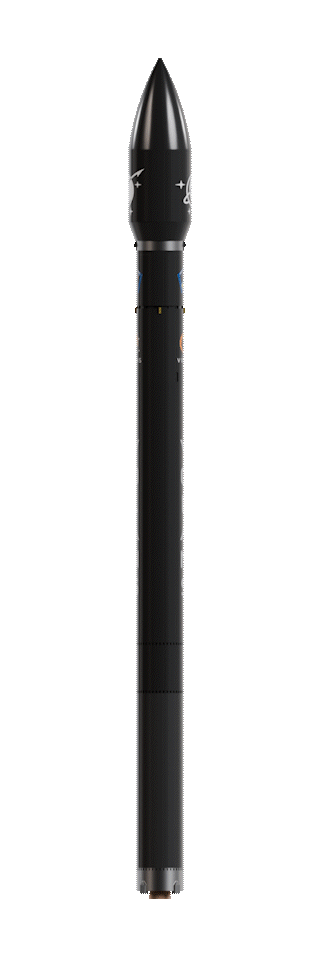

DORADO is Equatorial Space Systems' responsive suborbital launcher, designed to deliver small payloads on a suborbital trajectory for microgravity and atmospheric research. Like the company's orbital VOLANS vehicle, DORADO uses a 100% explosives-free hybrid HTP/HRF-1 propulsion system and ships fully inert, making it safe to manufacture, transport, and deploy to any launch range in the world without special explosive-handling permits.
ESS describes DORADO as the 'greenest sounding rocket in the world,' eliminating toxic propellant effluents and producing markedly less carbon output and greenhouse gas emissions than conventional solid- or liquid-fueled sounding rockets, while being the most operationally flexible suborbital launcher of its class.
Specifications
| Propulsion | Hybrid HTP oxidizer / HRF-1 fuel |
|---|---|
| Payload capacity | 20 kg |
| Apogee | 100 km |
| Microgravity access | ~3 minutes |
| Payload volume | 41 L |
| Payload bay length | 0.74 m |
| Payload bay diameter | 0.27 m |
| Explosive equivalence | Zero-TNT, 100% explosives-free, ships fully inert |
| TRL | 5-6 (technology demonstrated) |
