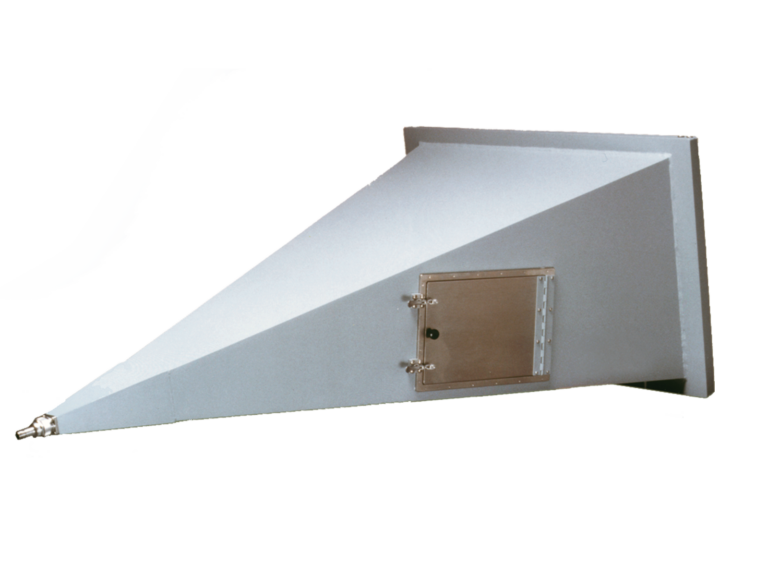

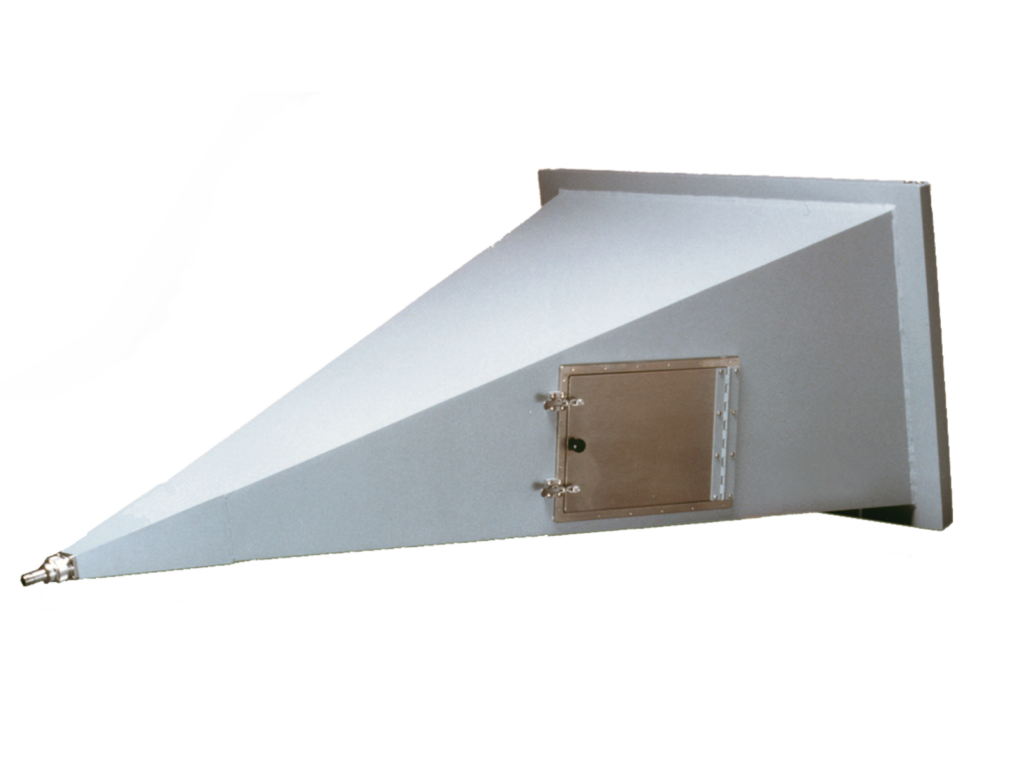

5402 GTEM Test Cell
Compact GTEM cell for radiated emissions and immunity testing — 10,000-point emissions scan in 15 minutes or less, IEC 61000-4-20 and ANSI C63.4 compliant.
Description
The Model 5402 GTEM Test Cell enables users to perform radiated emissions and radiated immunity tests in less time than either an Open Area Test Site or an anechoic chamber, spanning design qualification, pre-compliance, full compliance, and production sampling. A typical radiated emissions test (10,000-point scan) can be completed in 15 minutes or less, and a typical radiated immunity test can usually be completed in half the normal time. It suits self-contained devices with minimal cabling, fitting within a test volume 1/3 the height of the septum and 2/3 its width.
Specifications
| Compliance standards | IEC 61000-4-20, ANSI C63.4 |
|---|---|
| Typical radiated emissions scan time | 15 minutes or less (10,000-point scan) |
| Industries | Aerospace & Defense, Automotive, Commercial |
