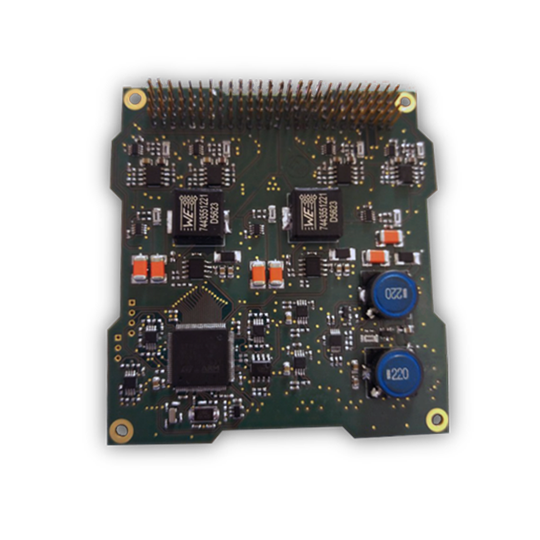

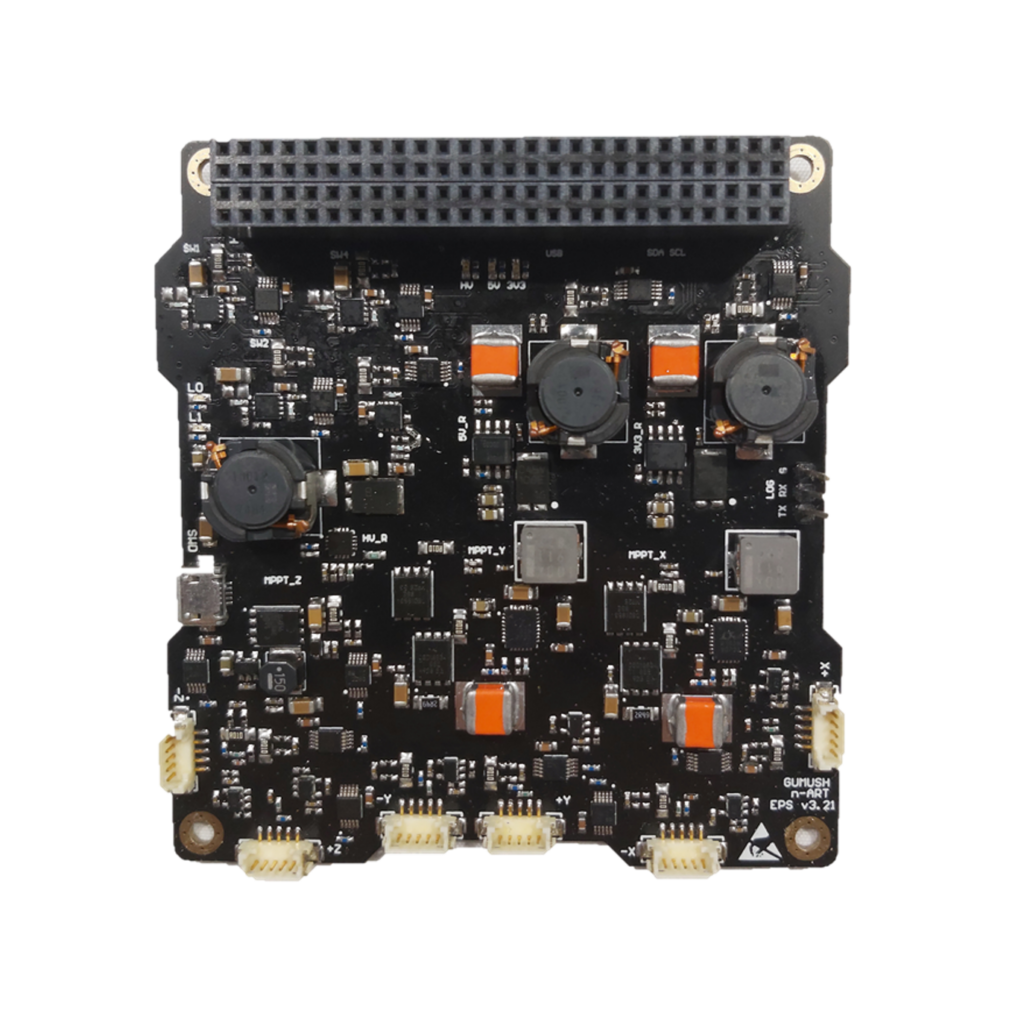

n-ART EPS Electric Power Subsystem
PC-104 form-factor CubeSat EPS with super capacitor backup, MPPT, up to 40 W power management, and 3.3V/5V/12V regulated buses at 95% regulator efficiency.
Description
The Gumush n-ART EPS Electric Power Subsystem provides superior life cycle, depth of discharge, efficiency, and reliability compared to alternatives. Uses super capacitors for far better life-cycle and a robust thermal operating envelope compared to popular battery options. Features a user-friendly development environment with different options for development and flight models. Components are selected from previous missions and/or thoroughly tested in TVAC to ensure best performance and high reliability on orbit.
Specifications
| Form Factor | PC-104 Bus Standard |
|---|---|
| Inhibit Switches | 3x, for safe flight |
| PDM Switches | 10x, for power distribution |
| MPPT | Maximum Power Point Tracking |
| Max Input Voltage | 20 V (all BCR) |
| Input Current per Channel | Up to 2 A |
| Regulated Buses | 3.3 V, 5 V, 12 V (or optional voltage) |
| Unregulated Bus | Battery voltage 6.2-8.3 V |
| 5V Bus Power | Up to 25 W |
| 3.3V Bus Power | Up to 16 W |
| 12V Bus Power | Up to 12 W |
| Total Power Management | Up to 40 W |
| Interfaces | I2C (current, temperature, voltage telemetry) |
| Regulator Efficiency | Up to 95% |
| Mass | 103 g |
| Dimensions | 86 x 93 x 21 mm |
| Optional Regulated Voltage | 8-35 V instead of 12 V |
| Qualification | Functional, Vibration, Thermal Cycling, Thermal Vacuum |
