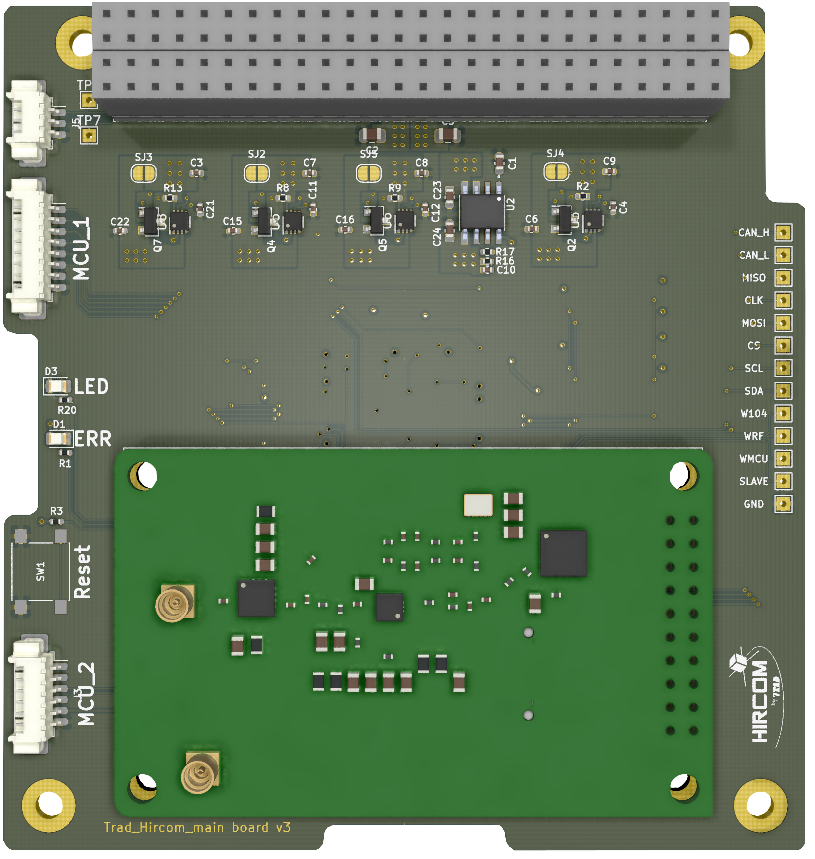

HIRCOM CubeSat UHF Transceiver
Radiation-resistant, CubeSat-compliant half-duplex UHF transceiver for space-to-ground TMTC links.
Description
The TRAD HIRCOM CubeSat UHF transceiver is a high-reliability, cost-effective half-duplex sub-system providing telemetry and telecommand (TMTC) communication links between space and ground segments over the UHF band. It is compliant with the CubeSat standard, built on a CubeSat Kit PC/104 form factor with the M80-5401442 connector, and uses GMSK/AFSK modulation with software-controlled operation. The card is designed for high reliability and radiation resilience, leveraging TRAD's radiation-testing and analysis expertise (established 1994) and its co-located CSUM space-center facilities (gamma-source irradiation lab). Connectors are customizable on demand. HIRCOM was TRAD's first product in its long-term push into the New Space market as a manufacturer of high-reliability components for CubeSats and small satellites.
Specifications
| Mass | 85 g |
|---|---|
| Width | 95 mm |
| Length | 90 mm |
| Height | 15 mm |
| Supply voltage | 3.3 V (transceiver and controller), 5 V (power amplifier) |
| Current consumption | 630 mW receiving mode, 4.8 W transmitting, 110 mW low power mode (@25°C) |
| Frequency | 400 to 438 MHz |
| Rf power | 32 dBm |
| Frequency stability | 0.5 ppm |
| Modulation | GMSK, AFSK |
| Interface | CubeSat Kit PC/104, connector M80-5401442 |
