150 W-class Xenon Hall-effect thruster for 50–300 kg smallsats — up to 10 mN thrust, 1,000–1,600 s Isp, integrated PPU, TRL 7, compact and modular design.

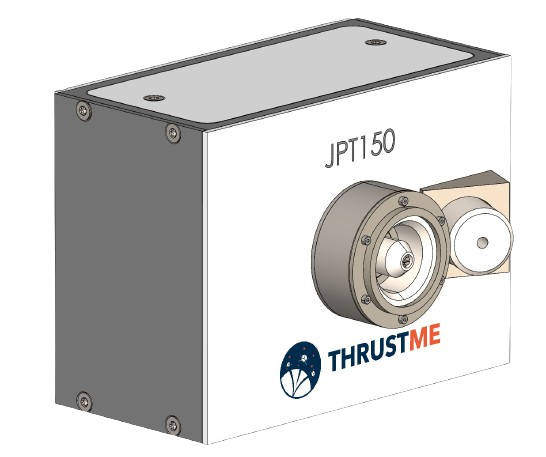

JPT150 Hall-Effect Thruster
150 W-class Xenon Hall-effect thruster for 50–300 kg smallsats — up to 10 mN thrust, 1,000–1,600 s Isp, integrated PPU, TRL 7, compact and modular design.
Description
The JPT150 is ThrustMe's 150 W-class xenon Hall-effect thruster designed for small satellites in the 50–300 kg range, delivering up to 10 mN thrust at 1,000–1,600 s specific impulse. The compact system integrates the thruster and power processing unit (PPU) in a single module, simplifying integration. The design is scalable and supports mission profiles requiring station-keeping, orbit raising, and deorbit. The thruster is optimized for reliability and long operational lifetime suitable for commercial constellation operators.
Specifications
| Propellant | Xenon |
|---|---|
| Thrust (max) | 10 mN |
| Specific impulse | 1,000 – 1,600 s |
| Input power | 150 W |
| Target satellite class | 50 – 300 kg |
| Integration | Integrated PPU |
| TRL | 7 |
