SPECTRAN V6 TABLET
Aaronia AG
A rugged, handheld real-time spectrum analyzer in a tablet form factor, offered in configurations up to 18 GHz for detecting and geolocating RF interference during live satellite ground station operation.
Key figurescomparable across the catalogue
- Data rate
- 960 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency range (family)
- 9 kHz up to 18 GHz (model-dependent, up to 140 GHz across full V6 line)
- Real-time bandwidth
- 44 MHz (up to 490 MHz on other V6 tablet variants)
- Sweep speed
- max. 3 THz/s; well over 1.5 THz/s at 18 GHz span
- Sensitivity (DANL)
- -170 dBm/Hz
- Internal storage
- max. 16 TB
- Operating system
- Windows 11 Pro / Linux
- Processor
- AMD Ryzen 7, 64 GB RAM
- Fft throughput
- 960 million FFT points/s
- I/q streaming
- Unlimited continuous true I/Q streaming via USB 3.0
About

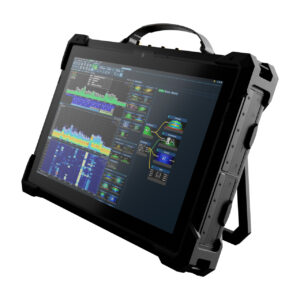

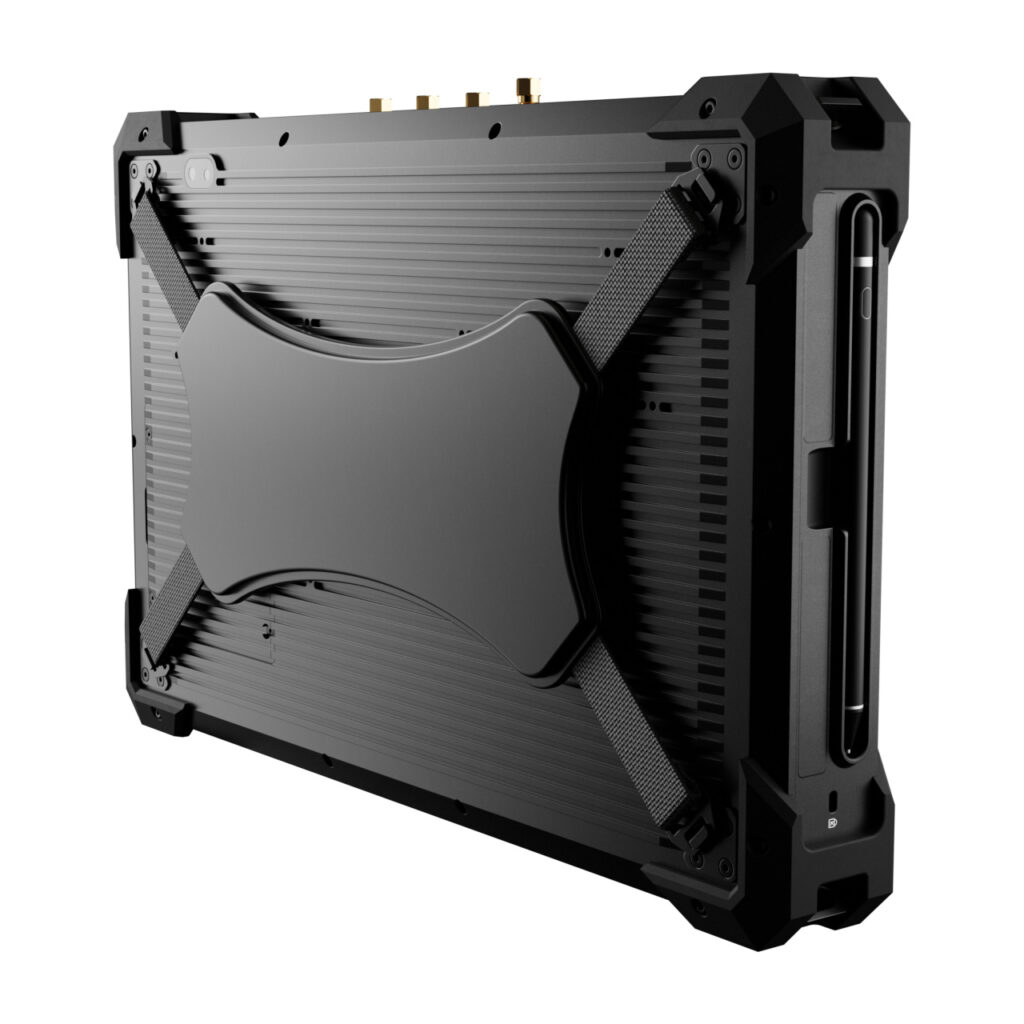

The Aaronia SPECTRAN V6 TABLET is a mobile, handheld real-time RF spectrum analyzer built into a compact, portable tablet form factor. It combines an AMD Ryzen 7 processor, 64 GB RAM, and ultra-fast PCIe 4.0 storage with a dedicated RF front end, giving field engineers desktop-class real-time spectrum analysis performance in a device that can be carried to an antenna site or ground station. Depending on configuration, the tablet family spans 9 kHz up to 140 GHz, with sweep speeds up to 3 THz/s and real-time bandwidths up to 490 MHz. The 18 GHz variant was introduced as the world’s first portable real-time spectrum analyzer capable of well over 1.5 THz/s sweep speed at an 18 GHz span, purpose-built to detect and locate RF interference during live operation of satellite ground stations. The device runs Aaronia’s RTSA-Suite PRO software on Windows 11 Pro or Linux, offers up to 16 TB of internal storage for continuous signal recording, and features a sunlight-readable, outdoor-rated touchscreen. Target users include satellite ground segment operators, SatCom interference hunters, spectrum regulators, and military/aerospace RF engineers.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
