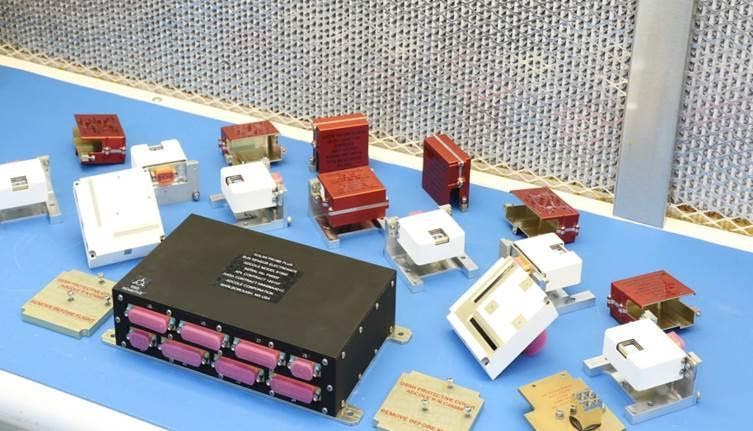

Sun Sensor Stimulator System
Adcole Space (Redwire)
Ground support equipment using infrared LEDs to optically stimulate Adcole sun sensor cells for functional verification, aliveness testing, and flight harness checkout during spacecraft integration.
Typed specifications5 values
Discloses 0 of 8 fields engineers filter by in this category (category median 4).
- Update rate
- 50 Hz product page
- Supply voltage
- 120–240 V product page
- Operating temperature
- -30 °C min · approximate · datasheet p.1 60 °C max · approximate
- Flight heritage
- decades of flight heritage combined with the agile and innovative culture of a commercial space platform datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Stimulus type
- Infrared LED optical illumination
- Function
- Sun sensor functional verification, aliveness testing, harness checkout
- Control interface
- Front panel controls and/or computer input
- Input power
- 100–240 VAC, 50/60 Hz
- Compatible sensors
- Adcole coarse and fine sun sensor families
- Status
- In Production
- Operating temperature
- -30° to +60°C
- Supply voltage
- 120 to 240 VAC
- Frequency
- 50 OR 60 HZ
About
The Adcole Space Sun Sensor Stimulator System is a dedicated ground support equipment (GSE) product that provides optical stimulus to sun sensor hardware for ground checkout operations. The system uses infrared LEDs to illuminate the cells of each sun sensor, simulating the solar illumination the sensor will experience in flight and enabling technicians to verify sun sensor functionality, sensor aliveness, and the integrity of flight harnesses.
The stimulator system includes control panels that contain the necessary circuitry to drive an array of individual stimulators matched to the configuration of the sun sensor being tested. Front panel controls and/or computer inputs allow both manual and automated test sequences. The system is powered from standard 100–240 VAC, 50 or 60 Hz power, making it compatible with international test facilities.
Sun sensor stimulators are essential for spacecraft-level integration and test (I&T), enabling functional checkout without requiring actual solar illumination or solar simulation facilities.
