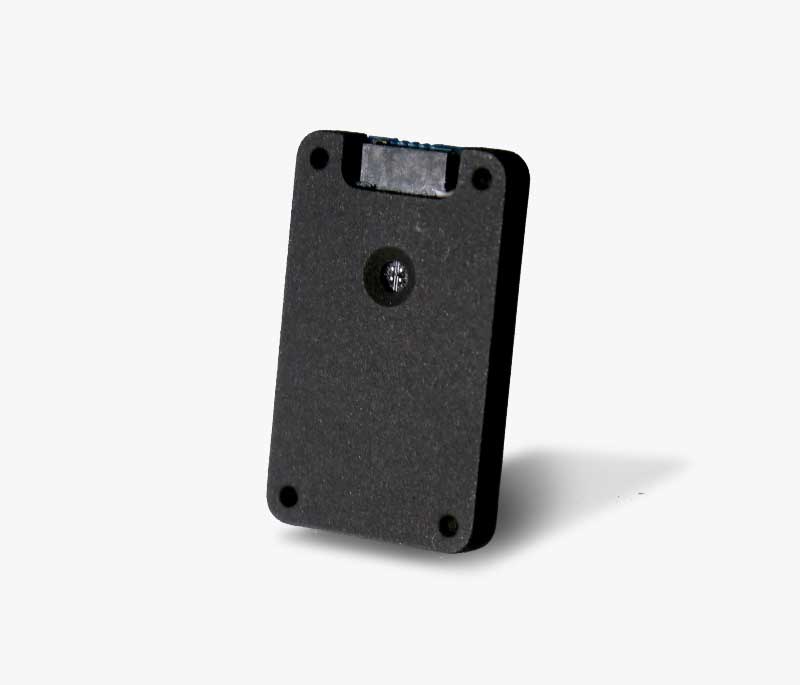

SS200
AAC Clyde Space
The SS200 is a compact and low-power sun sensor designed for attitude determination in CubeSats and small satellites.
Typed specifications29 values
Discloses 5 of 8 fields engineers filter by in this category (category median 4).
- Accuracy
- 0.3 ° max · +/- 45° · datasheet p.1 0.3 ° max · +/- 45° range | 0.3 ° max · +/-45° range, 1-sigma
- Mass
- 3 g datasheet p.2 3 g
- Envelope (L×W×H)
- 24.66 x 15.00 x 3.50 mm datasheet p.2
- Update rate
- 100 Hz max · datasheet p.1 100 Hz max · sampling rate up to (key highlights, p.1) | 10 Hz max · sampling rate up to (spec table, p.2) | 10 Hz max
- Output type
- digital I2C-compatible interface · datasheet p.1
- Field of view
- 110 ° datasheet p.1 110 ° total field of view | 110 °
- Supply voltage
- 5 V nom. · supply voltage · datasheet p.2 5 V
- Power consumption
- 0.015 W max · product page 0.002 W max · idle (< 1.5 mW) | 0.003–0.04 W active | 0.003–0.04 W sampling
- Data interface
- I2C datasheet p.1 I2C I2C-compatible interface
- Operating temperature
- -40 °C product page -45–85 °C electronics | -55–125 °C sensor
- Radiation tolerance (TID)
- 36 krad min · datasheet p.2 36 krad min · > 36 krad (Si)
- TRL
- 9 product page
- Flight heritage
- flying since 2018 datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Field of view
- ±60° (half-angle per axis)
- Accuracy
- <1° (1σ) in FOV
- Update rate
- Up to 100 Hz
- Interface
- I2C / Analog
- Supply voltage
- 3.3 V
- Power consumption
- <15 mW
- Operating temperature
- -40°C to +100°C
- Mass
- ~5 g
- Dimensions
- ~20 x 20 x 6 mm
- Radiation tolerance
- 10 KRad
- TRL level
- 9
- Albedo rejection
- Yes (software filter)
About
The SS200 is a sun sensor developed by AAC Hyperion, specifically designed for attitude determination in pico- and nano-satellite platforms, including CubeSats. It is characterized by its compact size and low power consumption, making it suitable for small satellite missions where space and power are at a premium. Sun sensors like the SS200 are crucial components in Attitude Determination and Control Systems (ADCS), providing essential data for spacecraft orientation by detecting the sun’s position relative to the satellite. While the provided text is brief, it highlights the SS200’s core function as a small, low-power sun sensor for small satellite applications.
