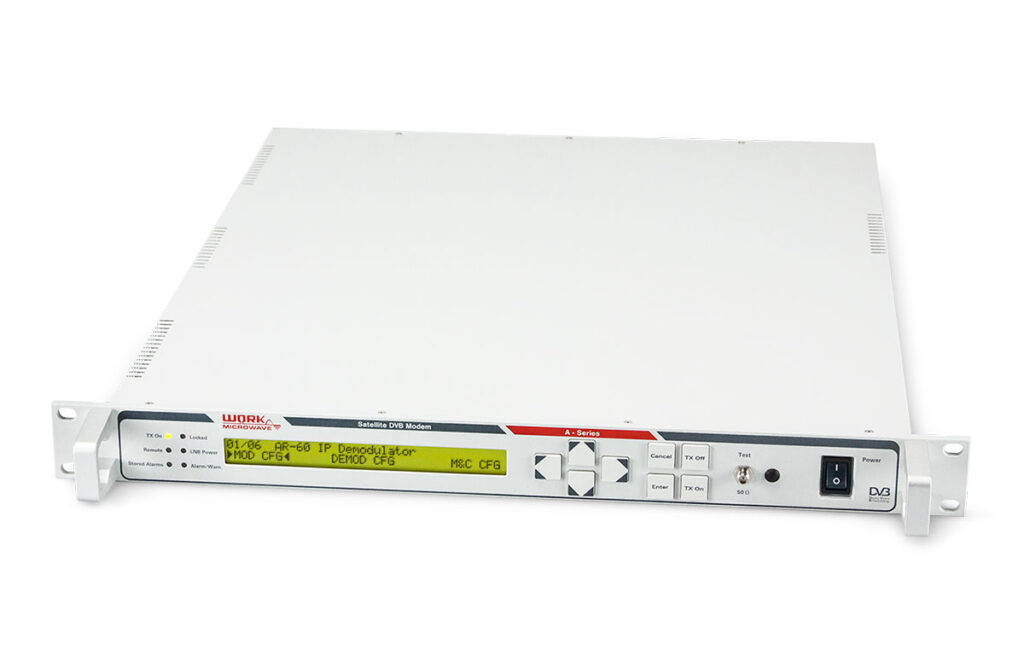

AR-60/AR-61 IP Demodulator

Typed specifications92 values

Discloses 4 of 13 fields engineers filter by in this category (category median 2).

Frequency bands

L

L-band input · datasheet p.2 L RX  |  IF (70/140 MHz) signal input 70/140 MHz w/ option IF  |  IF (70/140 MHz) RX

Mass

10 kg

max · depending on device type · datasheet p.3 10 kg max · up to approx. 10 kg depending on device type

Link protocols and waveforms

DVB-S2X

datasheet p.1 CCSDS CCSDS CADU frames  |  DVB-S2X ModCods  |  DVB-S2  |  DVB-S2 ModCods  +9

Frequency range

50–180 MHz

70/140 MHz input w/ option IF · datasheet p.2 950–2 150 MHz RX L-band input  |  680–2 300 MHz RX L-band w/ licenses RXL680 and RXL2300  |  50–180 MHz Signal input 70/140 MHz w/ option IF  |  950–2 150 MHz Signal input L-band  +1

Envelope (L×W×H)

483 x 44 x 505 mm³ (WxHxD)

datasheet p.3 483 x 44 x 505 WxHxD, 1 RU 19"

Data rate

360 000 kbps

datasheet p.1 360 000 kbps max · integrated; IP 360 Mbps or 80000 pps rx+tx processing  |  360 000 kbps max · IP data rate limits

RX sensitivity

-60 dBm

min · Input power, Signal input 70/140 MHz w/ option IF · datasheet p.2 -70 dBm min · Input power, Signal input L-band  |  15 dBm max · Input power, Signal input 70/140 MHz w/ option IF  |  -10 dBm max · Input power, Signal input L-band

Modulation

QPSK to 32APSK

DVB-S2 normal, short · datasheet p.1 QPSK to 256APSK DVB-S2X normal, short, linear  |  64APSK DVB-S2X  |  128APSK DVB-S2X, printed as 128PSK  |  256APSK DVB-S2X, printed as 256PSK  +13

Supply voltage

100–240 V

AC nominal · datasheet p.3 90–264 V max  |  90–264 V AC max  |  100–240 V nom.

Power consumption

45 W

typical · datasheet p.3 45 W typical (65 VA)  |  45 W typical mains power consumption  |  45 W typ.

Data interface

Ethernet

Data network · datasheet p.3 Ethernet data network and M&C network, RJ-45 10/100/1000Base-T  |  Ethernet M&C network  |  Ethernet RTP/UDP/IP over Ethernet

Operating temperature

0–50 °C

datasheet p.3 -30–60 °C w/ option EXT

Function

demodulator

Satellite Demodulator · datasheet p.1

Link use

payload data downlink

LEO downlinks · datasheet p.1 ground modem receiver for DVB signals: networks, LEO downlinks, government…

TX chains

0

demodulator · datasheet p.1

RF connector

BNC

10 MHz reference input w/ option RT · datasheet p.3 BNC 70/140 MHz input w/ option IF, 50/75 Ohm  |  F L-band input, F female, 75 Ohm  |  other RX time stamp synchronization: SMC male, 26 pin w/ option RT  |  BNC Signal input 70/140 MHz w/ option IF  +1

Connector

2x RJ-45 Ethernet; F female L-band in; BNC female IF in (option IF); BNC 10 MHz ref and SMC timestamp (option RT); IEC C14 mains

datasheet p.3 BNC female 10 MHz reference input w/ option RT  |  1x Ethernet RJ-45 Data network  |  1x Ethernet RJ-45 M&C network  |  IEC C14 Mains power  +3

Survival temperature

-30–80 °C

datasheet p.3 -30–80 °C storage

Duplex

simplex

demodulator (receive only) · datasheet p.1

Warranty

3 years

datasheet p.1

Max RX input level

15 dBm

max · 70/140 MHz input power -60...15 dBm, total aggregate, option IF · datasheet p.2 -10 dBm max · L-band input power -70...-10 dBm, total aggregate

Data interface speed

1 000 Mbps

max · Ethernet 10/100/1000Base-T · datasheet p.3
