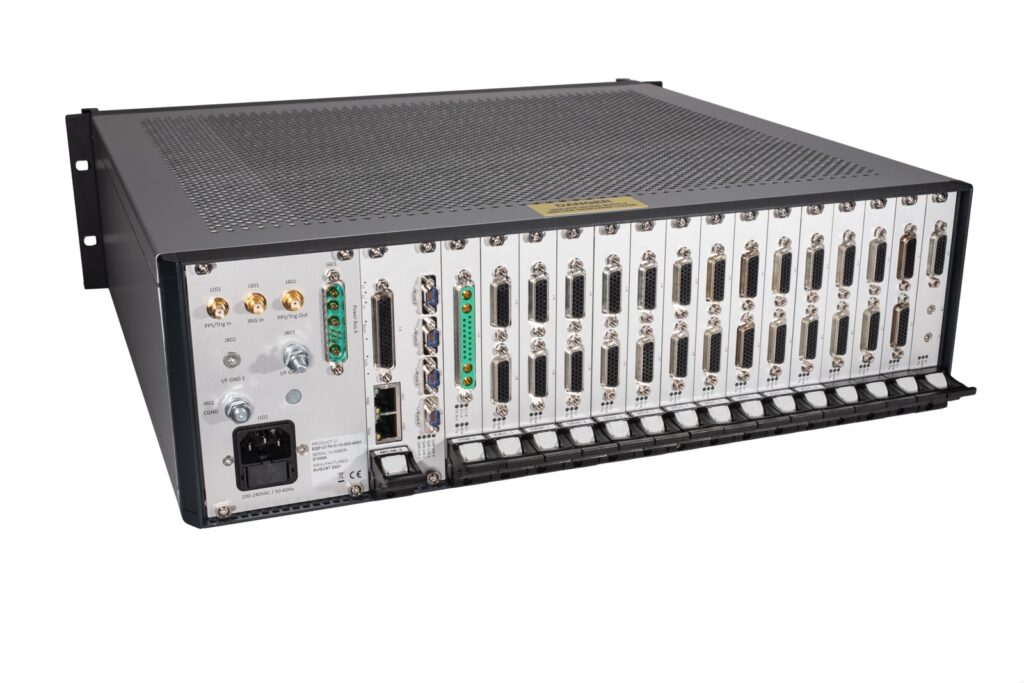

LVDS Front-End
CELESTIA Satellite Test & Simulation
LVDS Data/Clock interface unit for satellite flight equipment across all AIT levels — up to 4 parallel channels, up to 2Gbps at 16-bit.
Key figurescomparable across the catalogue
- Data rate
- 16,000 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Channels
- Up to 4 parallel inputs/outputs (8-bit)
- Data rate
- Up to 1 Gbps per channel (8-bit), teaming to 16-bit at 2 Gbps
- Clocking
- >125 MHz
- Compliance
- TIA/EIA-644-A
- Data streaming
- 10Gbit LAN
About
The LVDS Front-End provides Low-Voltage Differential Signaling (LVDS) Data/Clock interfaces (electrical and protocol) to satellite flight equipment. Can be used on all AIT levels (bread-boarding, module, unit, instrument, panel, and satellite). Typically connects to a Payload, Mass Memory Unit, Laser Communication Terminal or RF Transponders.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
