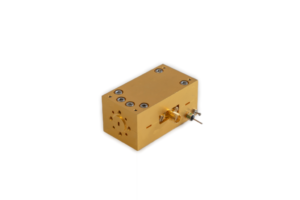

W-Band Bandpass Filter (WB-9296FLTR)

The WB-9296FLTR is a compact, robust waveguide module engineered in Dublin for space and aerospace applications. It provides sharp out-of-band rejection with low in-band insertion loss and serves as a drop-in solution for system integrators who need a qualified, characterised filter. The filter delivers low insertion loss across the full 4 GHz passband, housed in a precision machined housing with a WR-10 waveguide interface, and offers steep skirt selectivity with strong out-of-band rejection. Target applications include high-throughput satellite ground terminals and feeder links, 94 GHz imaging and surveillance radar, W-Band point-to-point and 6G fixed wireless backhaul links, passive and active atmospheric radiometry, W-Band test and measurement front ends, and receiver chain pre-select filtering in aerospace payloads. As a passive filter element, it is commonly used alongside Celtonn’s other W-Band modules — such as the W-Band Receiver Module and Low Noise Amplifiers — to build complete W-Band RF front-end chains for satellite and radar systems.
