About celtonn

Celtonn is an Irish deep-tech company based at the NovaUCD incubator at University College Dublin, developing precision millimetre-wave (mmWave) RF components for satellite communications, aerospace, and 6G applications across the W-Band (92–96 GHz) to D-Band frequency range. The company's W-Band transmitters and mmWave RF components target high-throughput satellite communication payloads, next-generation inter-satellite links, and terrestrial 6G wireless infrastructure requiring compact, high-frequency RF electronics. Celtonn serves satellite manufacturers, aerospace system integrators, and 6G technology developers requiring specialised mmWave RF components designed for demanding frequency and performance specifications.

Products

9

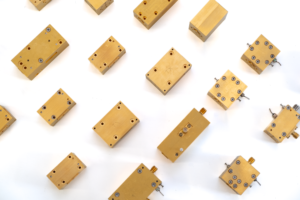

Connectorized K-Band components for GEO/MEO/LEO satellite payloads — passive IQ mixer, 27-32 GHz with 24 GHz local oscillator.

1 2

High-frequency RF subsystem for satellite communications — high-performance passive IQ mixer for up/down conversion.

1 2

Connectorized Ka-Band analog phase shifters with continuously variable phase control — over 350-400 degrees of phase range for beam steering and phased array calibration.

1 2

Connectorized Ka-Band power amplifier delivering >23dB gain and 20dBm saturated output power across 26-34 GHz — for HTS payloads and feeder links.

1 3

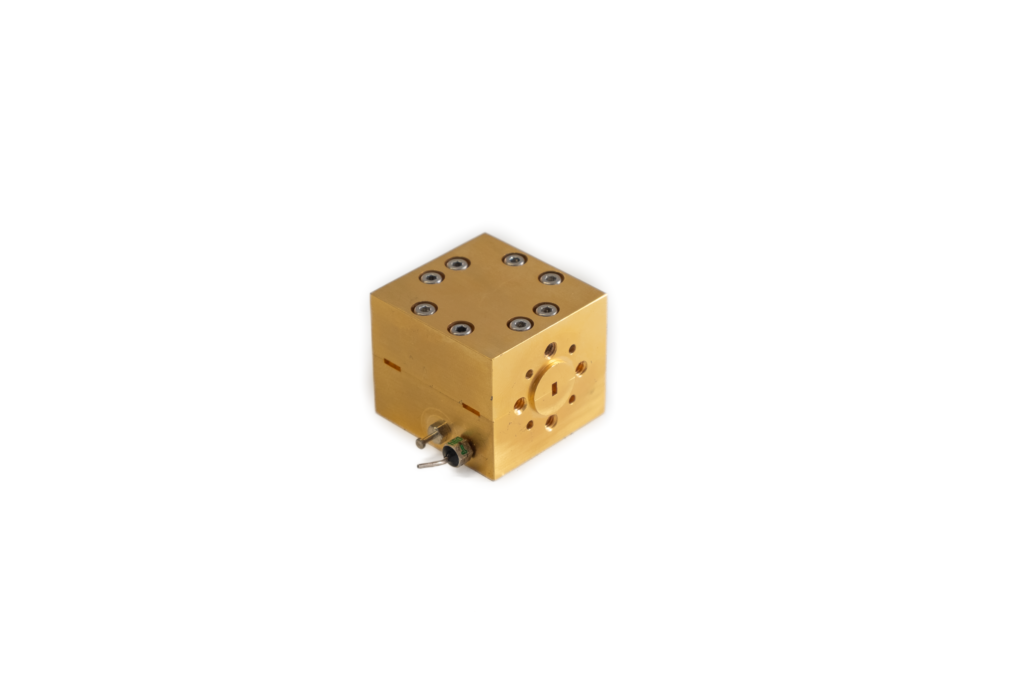

WB-LNA-86 and WB-LNA-94 are Celtonn's banded W-Band low noise amplifier modules covering 84-92 GHz with 35 dB gain and 3.5 dB noise figure, in a WR10 waveguide package.

1 8

High-gain, low-noise W-Band LNA modules with WR10 waveguide terminals — 89-97 GHz operation for communication and radar systems.

1 2

WB-9296FLTR is a compact WR-10 waveguide bandpass filter covering 92-96 GHz with sharp out-of-band rejection, engineered in Dublin for space and aerospace applications.

1 4

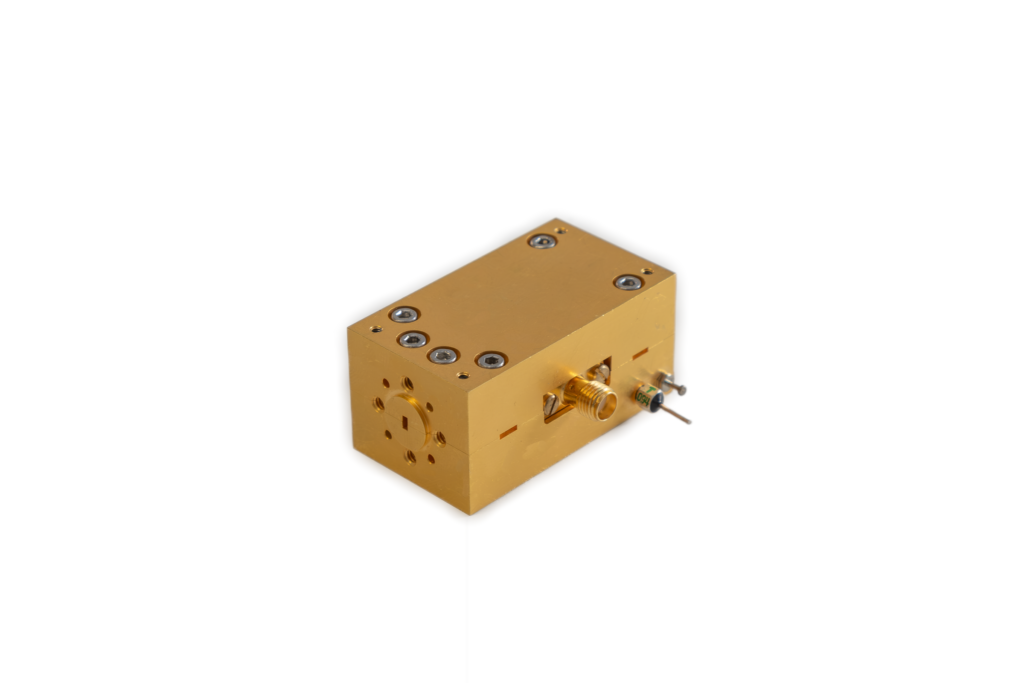

WB-RX-9296-LN is Celtonn's highly sensitive W-Band receiver module operating nominally from 92-96 GHz, with a 3.5 dB noise figure and WR10 waveguide interface.

1 8

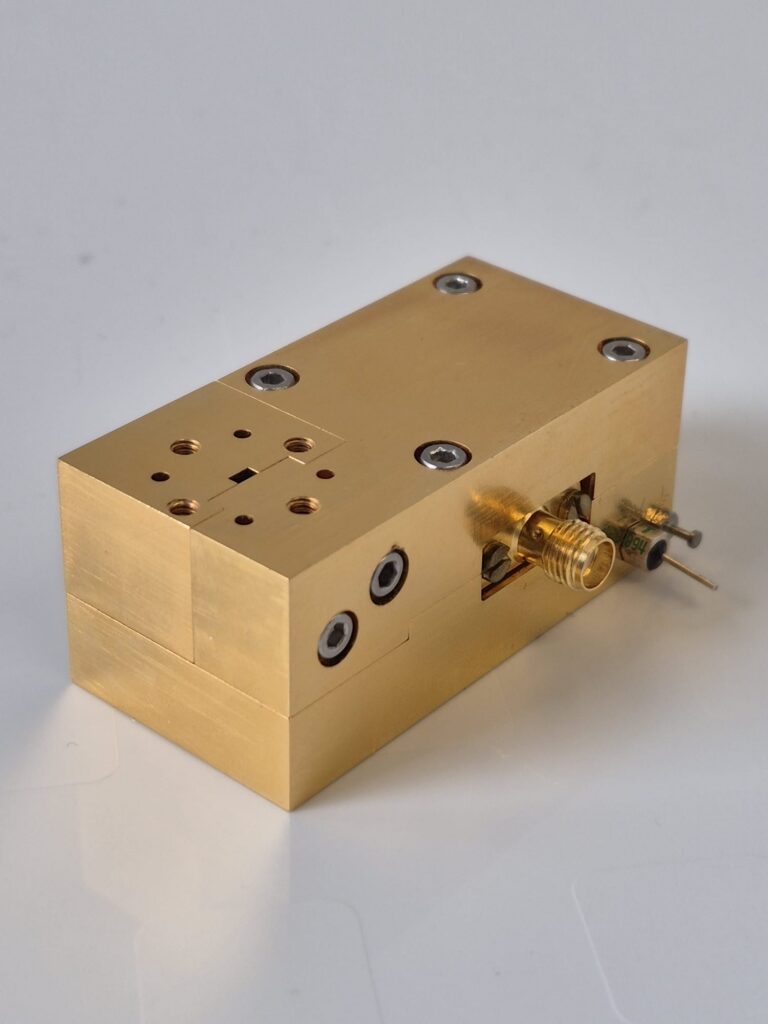

WB-TX-9296MP is Celtonn's medium-power heterodyned W-Band transmitter module operating nominally from 92-96 GHz, customizable for most W-Band frequencies.

1 8
