Compact Redundancy Switch 1:1, 2:1
WORK Microwave

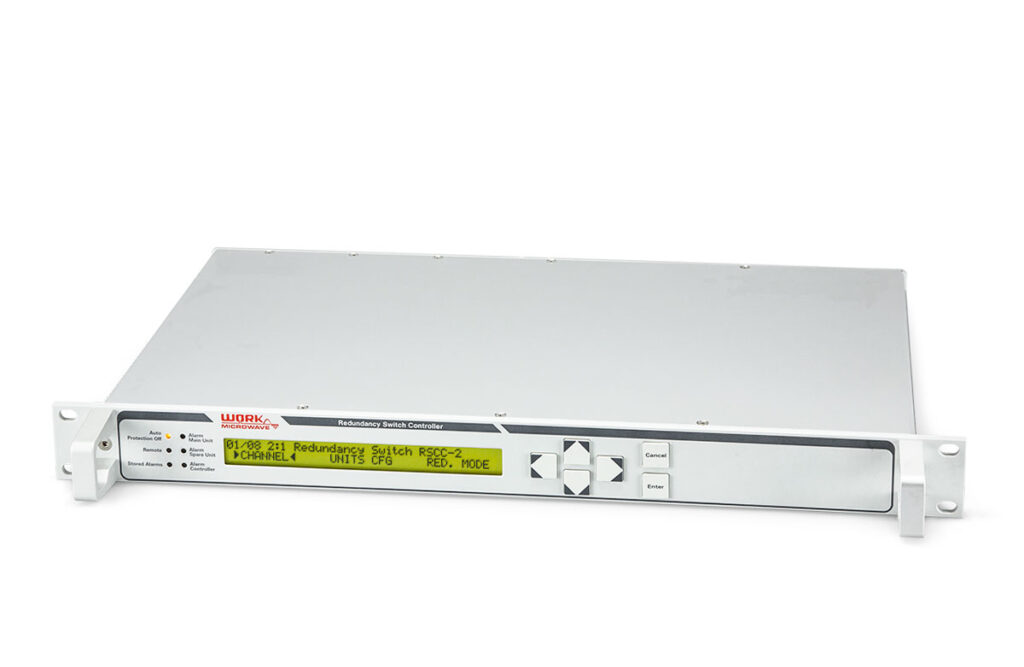

The Compact Redundancy Switch 1:1, 2:1 is a compact redundancy system designed for various applications, featuring automatic or manual switching and redundant power supply.
Technical specifications
- Impedance
- 75 Ω
- Power handling
- 1 W (switching)
- Frequency
- 0…2.5 GHz
- V.S.W.R.
- 1.20 (0…1 GHz), 1.30 (1…2.5 GHz)
- Insertion loss
- 0.2 dB (0…1 GHz), 0.3 dB (1…2.5 GHz)
- Isolation
- 80 dB (0…1 GHz), 70 dB (1…2.5 GHz)
- Interface
- RS232, RS422/RS485, TCP/IP over Ethernet
- Data rate
- 10 or 100 Mbps
- Switching delay
- typical 100 ms, max. 400 ms
- Operating temperature
- -30°C … 60°C
- Storage temperature
- -30°C … 80°C
- Relative Humidity
- < 95 % non-condensing
- Supply voltage
- 100 … 240 V AC nominal, 90… 264 V AC max
- Power Consumption
- Max: 25 VA / 7 W
- Mass
- approx. 5 kg
About
The WORK Microwave Compact Redundancy Switch 1:1, 2:1 is a versatile and compact redundancy system available in RSCC-1 and RSCC-2 models. It incorporates transfer relays on both the input and output for reliable signal management. Users can choose between automatic or manual switching modes to suit their operational needs. For enhanced reliability, the system is equipped with a redundant power supply. An optional feature includes uplink power control, further expanding its capabilities. This product is part of the Redundancy Switches product line and is suitable for DTH Broadcast applications. It supports a wide range of frequency bands including L-Band, S-Band, C-Band, X-Band, Ku-Band, K-Band, DBS-Band, and Ka-Band.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
