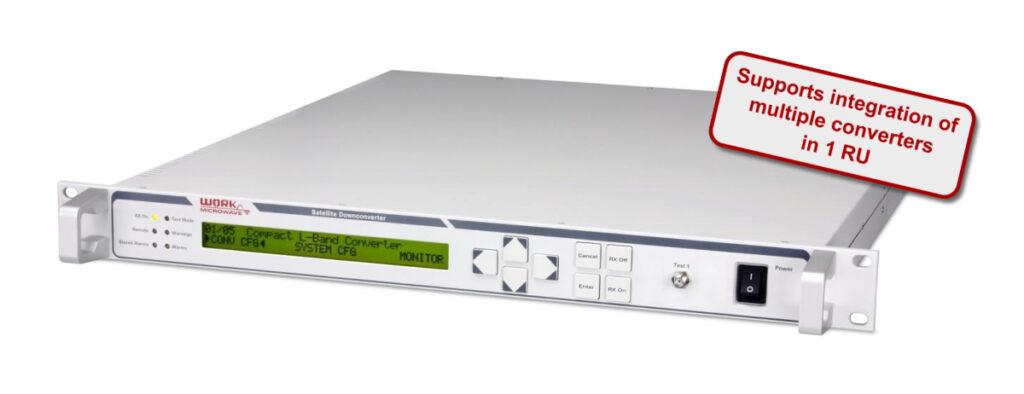

Compact Satellite Up- and Downconverter
WORK Microwave
Compact frequency converter for Single/Dual channel L-Band, offering a cost-effective option for satellite operators, integrators, and teleports for standard and customized applications.
Technical specifications
- Product Line
- Upconverters, Downconverters
- Application
- DTH Broadcast, Teleport Infrastructure
- Item Number
- VSCU-L / VSCD-L
- Bands
- L, S, C, X, Ku, K(DBS), Ka, Q-Band
- Output
- L-Band
- Optional Switchable IF
- 70 MHz and 140 MHz
- Phase Noise
- < -67 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10^-7 / year
- Adjustable Gain Slope Equalizer
- +8 dB / GHz max.
- Channels
- Single / Dual
About
The Compact Satellite Up- and Downconverter from WORK Microwave provides frequency downconverters for S- to Q-band, available in both indoor and outdoor configurations, suitable for standard and customized applications. This compact frequency converter for Single/Dual channel L-Band is a new cost-effective solution for satellite operators, integrators, and teleports. It supports various bands including L, S, C, X, Ku, K(DBS), Ka, and Q-Band, with L-Band output. Key features include an optional switchable IF of 70 MHz and 140 MHz, a variable attenuator on both input and output, and very low phase noise (< -67 dBc/Hz @ 10 Hz). The converter also boasts a high stable OCXO with long-term stability of < 10^-7 / year, optional adjustable gain slope equalizer (+8 dB / GHz max.), and digital gain compensation.
