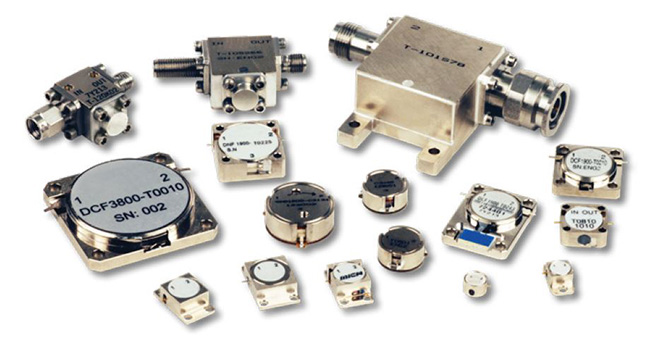

Ferrite Circulators and Isolators
Mercury Systems
Mercury Systems offers ferrite circulators and isolators optimized for harsh environments, available as off-the-shelf or custom-designed solutions.
Key figurescomparable across the catalogue
- Power
- 2,500 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Freq Start (GHz)
- 0.500
- Freq Stop (GHz)
- 36
- Isolation dB (min)
- 12
- Insertion Loss (max)
- 2.4
- VSWR
- 1.12:1
- Power (Watts) (peak/avg)
- 2.5kW/16
- Operating Temp Range (°C)
- -54 to +85
About
Mercury Systems provides ferrite circulators and isolators, leveraging years of experience in designing standard components and complex solutions. Our ferrite specialists handle everything from material selection to circuit layout, ensuring a tailored ferrite for your specific application. These components are optimized for harsh environments, making them suitable for demanding mission-critical applications. We also offer the ability to maximize performance through integrated microwave assemblies, utilizing our broad RF component portfolio to develop fully customized solutions that simplify system integration.
Documentation
- dnf1300t0700-ferrite.pdf PDF source: www.mrcy.com ↗
- dnf1300t0410-ferrite.pdf PDF source: www.mrcy.com ↗
- dnf1300t0501-ferrite.pdf PDF source: www.mrcy.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
