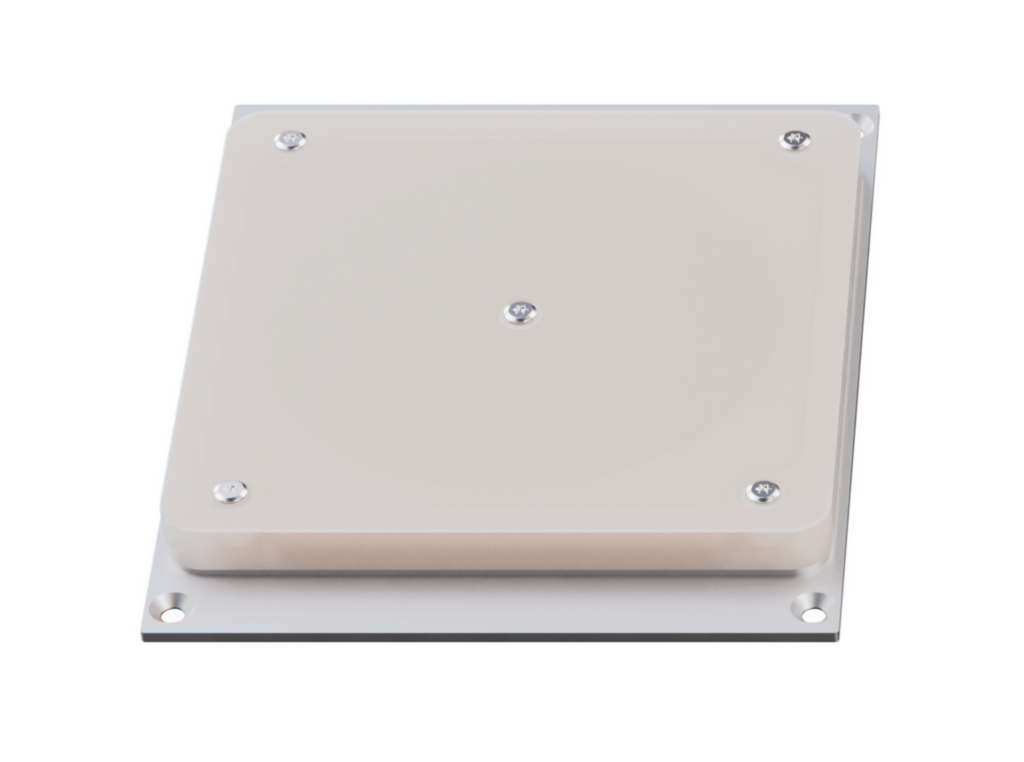

NanoCom ANT1090-P
GomSpace
The NanoCom ANT1090-P is a compact patch antenna specifically designed for ADS-B signal reception, available in active and passive versions for integration with GomSpace SDR transceivers or dedicated ADS-B receivers.
Typed specifications55 values
Discloses 8 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- other ADS-B signal reception · datasheet p.4
- Peak gain
- 4.5 dBi datasheet p.4 4.5 dBi Highlighted Features | 4.5 dBi min · > 4.5, realized gain at centre frequency, Type A & D backplat… | 4.5 dBi min · > 4.5, realized gain at centre frequency, Type B & C backplates | 4.5 dBi min · Realized Gain, centre frequency with Type A & D backplates +1
- Mass
- 135 g datasheet p.6 135 g approximate, depending on mounting plate
- Frequency range
- 1 090 MHz datasheet p.4 1 090 MHz Highlighted Features | 1 085–1 095 MHz active version, LNA frequency band | 1 085–1 095 MHz LNA frequency band, -40~85 °C | 1 085–1 095 MHz patch antenna performance, Type A & D backplates +1
- Beamwidth (-3 dB)
- 60 ° min · > 60, 3 dB beam width, Type A & D backplates attached to stru… · datasheet p.7 80 ° min · > 80, 3 dB beam width, Type B & C backplates | 60 ° min · 3 dB beam width with Type A & D backplates | 80 ° min · 3 dB beam width with Type B & C backplates
- Envelope (L×W×H)
- 100.0 x 100.0 x 12.0 mm datasheet p.6 100.0 x 100.0 x 12.0 approximate, depending on mounting plate
- Polarization
- RHCP datasheet p.4 circular antenna performance, generally | RHCP patch antenna performance, Type A & D backplates | RHCP patch antenna performance, Type B & C backplates | RHCP with Type A & D backplates +1
- Antenna type
- patch datasheet p.4 patch patch antenna designed especially for ADS-B signal reception
- Supply voltage
- 5 V nom. · VDC typ., active version · datasheet p.6 5.75 V DC supply voltage for LNA, active version | 5.75 V max · absolute maximum rating, DC supply voltage for LNA, active ve… | 4–5.25 V VDC, DC supply voltage for LNA, active version, min-max
- Operating temperature
- -40–85 °C absolute maximum ratings, Toperation · datasheet p.6
- Passive or active
- active with LNA Active Version: integrated antenna and LNA/filters · datasheet p.4 passive Passive Version: direct connection from the patch antenna to …
- RF connector
- SSMCX datasheet p.6 SSMCX
- Connector
- SSMCX connector datasheet p.6
- Survival temperature
- -40–85 °C absolute maximum ratings, Tstorage · datasheet p.6
- Satellite class
- nanosat 1-10 kg nano-satellite · datasheet p.5
- Fits satellite size
- 1U plates can also be mounted on 1U and 2U nano-satellite · datasheet p.5 6U Type A / B mounting plates | 3U Type A / C / D mounting plates | 2U plates can also be mounted on 1U and 2U nano-satellite | 3U +1
- Axial ratio
- 3 dB max · < 3, axial ratio within ±40 degrees theta, Type B & C backplates · datasheet p.7 6 dB max · < 6, axial ratio within ±40 degrees theta, Type A & D backplates
- Max RF power
- 0.001 W limiter function, Pout is kept lower than · datasheet p.7 0.001 W LNA maximum RF output power (Pout, max) | 0 W max · Pin, input RF power level to LNA, 25 °C
- RF ports
- 1 one standard SSMCX connector on the back of the antenna sandw… · datasheet p.6
- Mounting
- Four different mounting plates, all 1.5 mm aluminium: Type A used on the A-side of a 3U or 6U structure; Type B used on the B-side of a 6U structure; Type C used on the top or bottom of a 3U structure (does not exceed the height of the structure rails); T datasheet p.5
- Insertion loss
- -0.35 dB max · passive version, insert loss, -40~85 °C · datasheet p.7
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency
- 1090 MHz
- Antenna type
- Right-Hand Circular Polarization (RHCP)
- Gain
- 4.5 dBi
- Configurations
- Active and Passive versions
- PCB substrate
- Rogers 4003C
- RF connectors
- SSMCX (compression connectors)
- Mounting
- Flexible sandwich construction with aluminum shield
About
The NanoCom ANT1090-P is GomSpace’s specialized patch antenna engineered for optimal ADS-B signal reception. This compact antenna offers flexibility with both active and passive versions, allowing for seamless integration with GomSpace SDR transceivers or a dedicated ADS-B receiver. Its unique design incorporates an integrated antenna along with a Low Noise Amplifier (LNA) and filters. This integration is crucial for ensuring low signal loss and achieving optimal RF performance, which is vital for reliable data reception in demanding environments. The product’s focus on ADS-B reception suggests applications in tracking aircraft from space, a common use case for small satellites.
Documentation
- Data-Sheet-NanoCom-ANT1090_P.pdf PDF source: gomspace.com ↗
- Option-Sheet-NanoCom-ANT1090_P.pdf PDF source: gomspace.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
