IF Upconverter
WORK Microwave
Frequency Upconverters for L- to Q-band, available in indoor and outdoor configurations for standard and customized applications.
Technical specifications
- Bands
- L, S, C, X, Ku, K(DBS), Ka, Q-Band
- IF Frequencies
- 70 MHz, 140 MHz, 230 MHz or 720 MHz
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10^-7 / year
- Product Line
- Upconverters
- Item Number
- VSCU
About

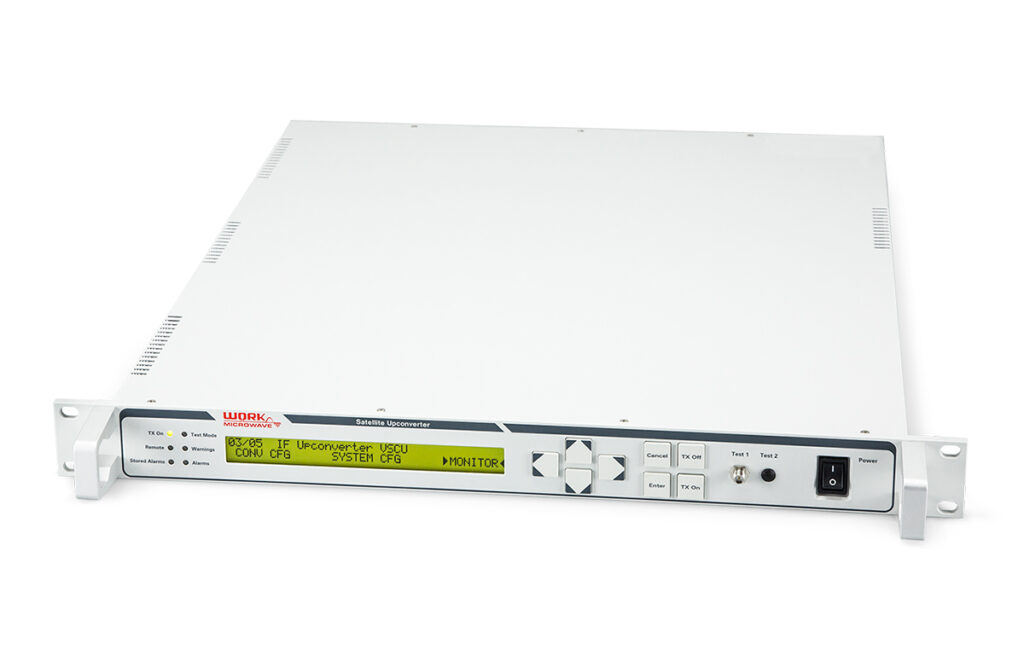

The WORK Microwave IF Upconverter is a versatile frequency upconverter designed for a wide range of applications, supporting L- to Q-band frequencies. These upconverters are available in both indoor and outdoor versions, catering to standard and customized requirements. Key features include support for L, S, C, X, Ku, K(DBS), Ka, and Q-Band operations, with selectable IF frequencies of 70 MHz, 140 MHz, 230 MHz, or 720 MHz. The unit boasts very low phase noise, specified at less than -50 dBc/Hz @ 10 Hz, ensuring high signal integrity. It also incorporates a highly stable OCXO with a long-term stability of less than 10^-7 per year. An adjustable gain slope equalizer is included as a standard feature, alongside digital gain compensation for precise signal management. An optional switchable IF further enhances its adaptability. These upconverters are suitable for DTH Broadcast and Teleport Infrastructure applications.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
