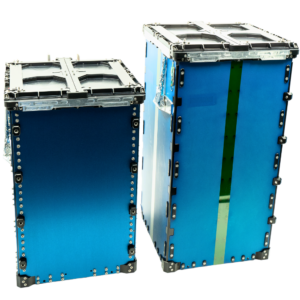

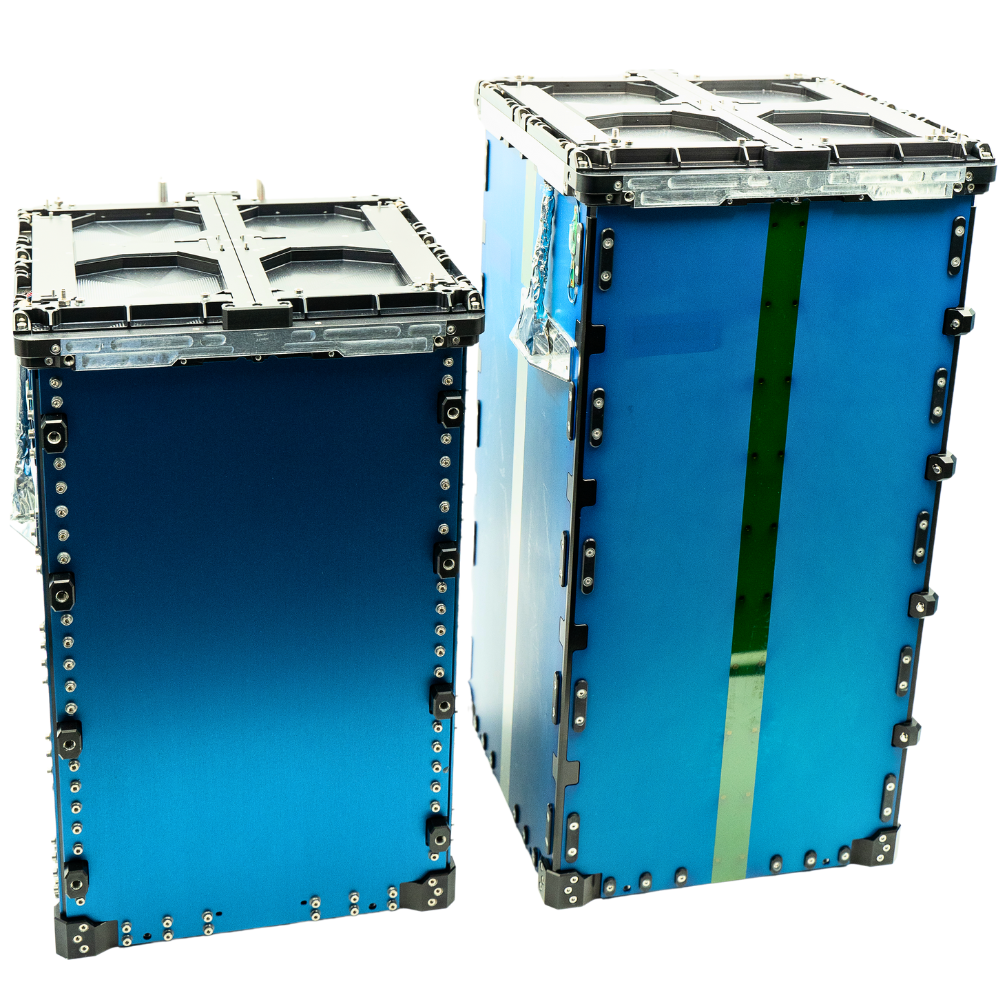

QuadPack Deployer
ISISPACE Group
Versatile lightest-in-class CubeSat deployer for 1U–16U satellites with 100% success rate over 250+ units delivered.
Typed specifications4 values
Discloses 0 of 17 fields engineers filter by in this category (category median 3).
- Mass
- 6.6–8.1 kg product page
- Envelope (L×W×H)
- 12UXL: 272 x 273 x 434.4 mm; 16U: 272 x 273 x 524.5 mm product page 12UXL: 365.4 x 273 x 547.7 mm; 16U: 365.4 x 273 x 635.8 mm
- Flight heritage
- 10+ years, 100% success rate product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- 12uxl quadpack configurations
- 1XL (1x 12UXL satellite), 2XL (2x 6UXL satellite), 3XL (2x 3UXL + 1x 6UXL), 4XL (4x 3UXL satellite)
- 16u quadpack configurations
- 1.4 (1x 16U satellite), 2.4 (2x 8U satellite)
- Mass
- 6.6 – 8.1 kg
- Closed envelope (L x W x H)
- 12UXL: 272 x 273 x 434.4 mm; 16U: 272 x 273 x 524.5 mm

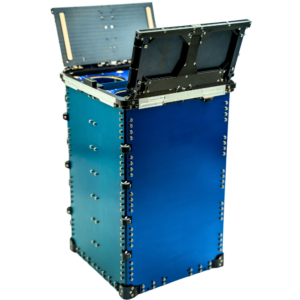

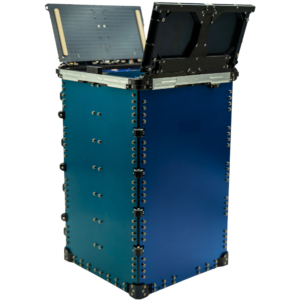

- Open envelope (L x W x H)
- 12UXL: 365.4 x 273 x 547.7 mm; 16U: 365.4 x 273 x 635.8 mm
- Release speed
- 0.8 – 1.8 m/s
- Payload mass
- max 24 kg (can be increased)
- Units delivered
- 250+
- Flight heritage
- 10+ years, 100% success rate
About

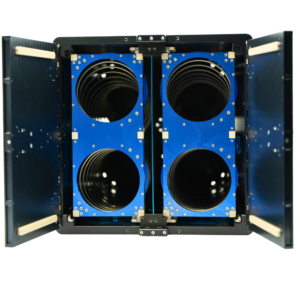

The ISISPACE QuadPack is a versatile and lightest-in-class CubeSat deployer, designed to accommodate 1U to 16U configurations, ensuring compatibility with a wide range of satellite sizes. Its compact, modular design optimizes volume efficiency and enables seamless integration with launch vehicles, while built-in sequencers provide precise deployment timing for multi-satellite missions.
The QuadPack supports deployment of CubeSats with release velocity under 1.8 m/s. With over a decade of flight heritage and a 100% success rate, it is the golden standard for CubeSat missions. The deployer is available in 12UXL (1XL, 2XL, 3XL, 4XL) and 16U (1.4, 2.4) configurations. All XL deployers can accommodate non-XL sizes via a provided spacer.
Qualification and Acceptance Testing includes Functional Test, Thermal Cycling, Vibration Test (QT only). Over 201 QuadPack deployers have been launched to date.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
