Deep Space Deployer
ISISPACE Group
ESA-approved multi-staged separation system for deep space exploration, enabling pre-release health checks of satellites in space.
Typed specifications5 values
Discloses 0 of 14 fields engineers filter by in this category (category median 1).
- Mass
- 4.9 kg product page
- Envelope (L×W×H)
- 6UXL product page 272 x 156.7 x 432.4 mm | 272 x 206.77 x 555.05 mm
- Flight heritage
- ESA Hera mission product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Compatible satellite size
- 6UXL
- Mass
- 4.9 kg

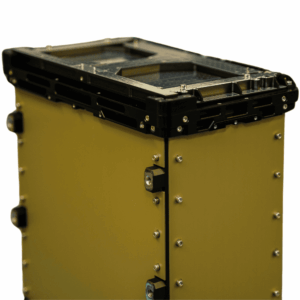

- Closed envelope (L x W x H)
- 272 x 156.7 x 432.4 mm

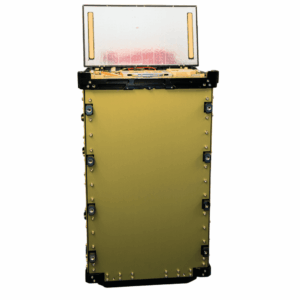

- Open envelope (L x W x H)
- 272 x 206.77 x 555.05 mm
- Release speed
- 3 cm/s (can be modified)
- Payload mass
- max 12.5 kg
- CUBESAT release system (CRS)
- Facilitates low velocity release of the satellite
- Umbilical disconnect system (UDS)
- Facilitates satellite communication and charging during transit
- Qualification
- ESA-approved
- Flight heritage
- ESA Hera mission
About

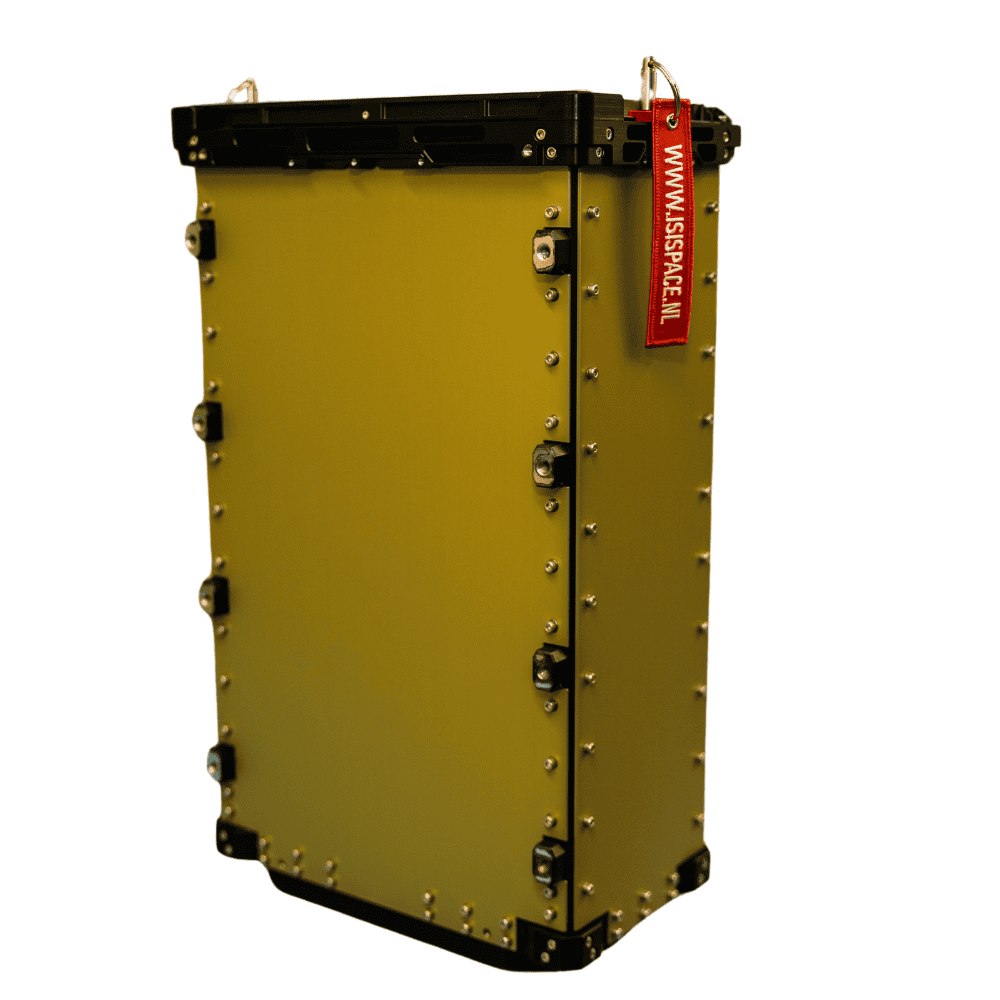

The ISISPACE Deep Space Deployer (DSD) is an ESA-approved multi-staged separation system designed for deep space exploration missions. It uniquely enables health checks of satellites while exposed to space prior to release, ensuring payloads are fully operational before venturing into deep space.

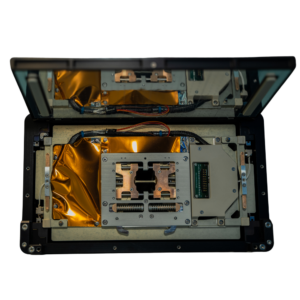

The DSD features two key systems: a Configurable Release System (CRS) enabling precise, low-velocity deployments at 3 cm/s, and a Umbilical Disconnect System (UDS) that facilitates satellite communication and charging during transit to the deployment point.
Designed for 6UXL satellites, the DSD has been flight-proven on ESA’s Hera mission. The system provides a closed envelope of 272 x 156.7 x 432.4 mm and an open envelope of 272 x 206.77 x 555.05 mm, supporting payloads up to 12.5 kg.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
