Tulip
ISISPACE Group
Modular multi-payload adapter interfacing launch vehicle structure to microsatellites and CubeSat deployers, supporting up to 6 petals.
Typed specifications2 values
Discloses 0 of 14 fields engineers filter by in this category (category median 1).
- Mass
- 70.1 kg product page
- Envelope (L×W×H)
- ~2 m product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Mass (two petals)
- ~38 kg (estimate)
- Mass (four petals)
- 70.1 kg
- Mass (six petals)
- ~100 kg (estimate)
- Payload fairing envelope diameter
- ~2 m
- Interface to lv
- 36x D24 thread holes
- Interface to payload (Central Module)
- 24x D15 or 12x D8 thread holes
- Interface to payload (Petals Module)
- 24x D15 or 12x D8 thread holes
- Modular petals
- Up to 6 petals; each can house microsatellites or deployers
- Central hub
- Option to attach a microsatellite
About

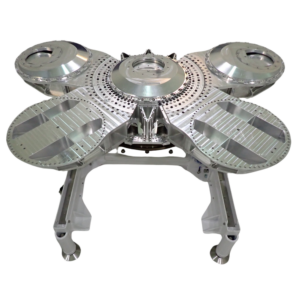

The Tulip from ISISPACE is engineered to interface between the launch vehicle structure and payloads. It comes with a payload fairing envelope diameter of approximately 2 meters, providing various configuration options for diverse mission requirements.

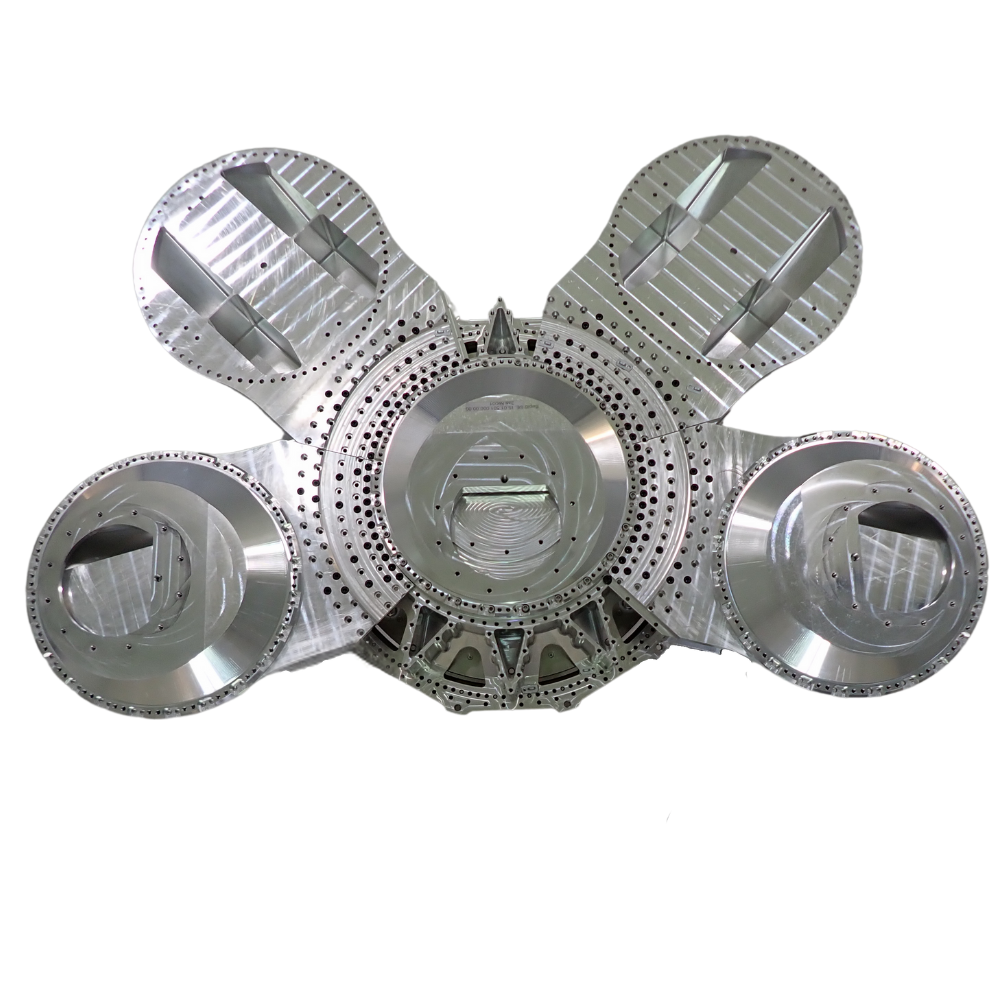

Tulip includes up to six modular petals, each capable of housing microsatellites or deployers. Its central hub provides an option to attach a microsatellite, maximising payload efficiency. The petal configuration allows scalable hosting: two petals (~38 kg), four petals (70.1 kg), or six petals (~100 kg).
The interface to the launch vehicle uses 36x D24 thread holes, while the payload interface on both the Central Module and Petals Module uses 24x D15 or 12x D8 thread holes. Tulip can accommodate a wide range of mission configurations from rideshare to dedicated multi-satellite deployment missions.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
