VHF/UHF antenna for 1U-3U
Innovative Space Logistics
The ISISPACE VHF/UHF antenna is a flexible and reliable communication solution for 1U-3U CubeSat missions, featuring up to four 55 cm tape spring antennas and a redundant system.
Typed specifications10 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 90 g max · product page
- Frequency range
- 145 MHz product page
- Envelope (L×W×H)
- 98 x 98 x 7 mm product page
- Supply voltage
- 3 V product page 5 V
- Power consumption
- 2 W product page 0.04 W max | 0.06 W max
- Operating temperature
- -20 °C product page -5 °C
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Mass
- < 90 g
- Dimensions
- 98 x 98 x 7 mm
- Power
- < 40 mW
- Supply voltage
- 3V3 model
- Power (2)
- < 60 mW
- Supply voltage (2)
- 5 V model
- Power (3)
- 2 W
- Interface
- Miniature 9 pin OMNETICS connector
- Interface (2)
- I2C
- Frequency
- 145 MHz – 868 MHz
- Operating temperature
- -20°C to +60°C
- Deployment Temperature Range
- -5°C to +60°C
- Bandwidth
- >50 Mhz
- Bandwidth (2)
- >10 MHhz
About

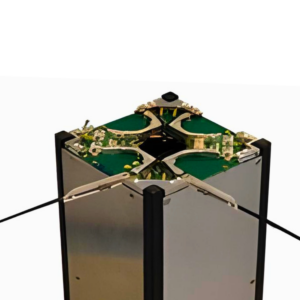

The ISISPACE VHF/UHF antenna is engineered as an ideal communication solution for CubeSat missions, specifically tailored for 1U-3U platforms. It offers exceptional flexibility and reliability, crucial for demanding space environments. The system incorporates up to four 55 cm tape spring antennas, ensuring robust signal transmission and reception. A key feature is its redundant system, which enhances operational resilience and reliability throughout the mission duration. Designed for seamless integration, the antenna includes a large cutout in its center and miniature RF connectors. Its compatibility with various UHF/VHF radios makes it a versatile component for a wide array of mission requirements. Furthermore, the top face of the antenna system is designed to accommodate additional components such as solar panels, patch antennas, and sensors, providing significant adaptability for different CubeSat configurations and mission objectives.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
