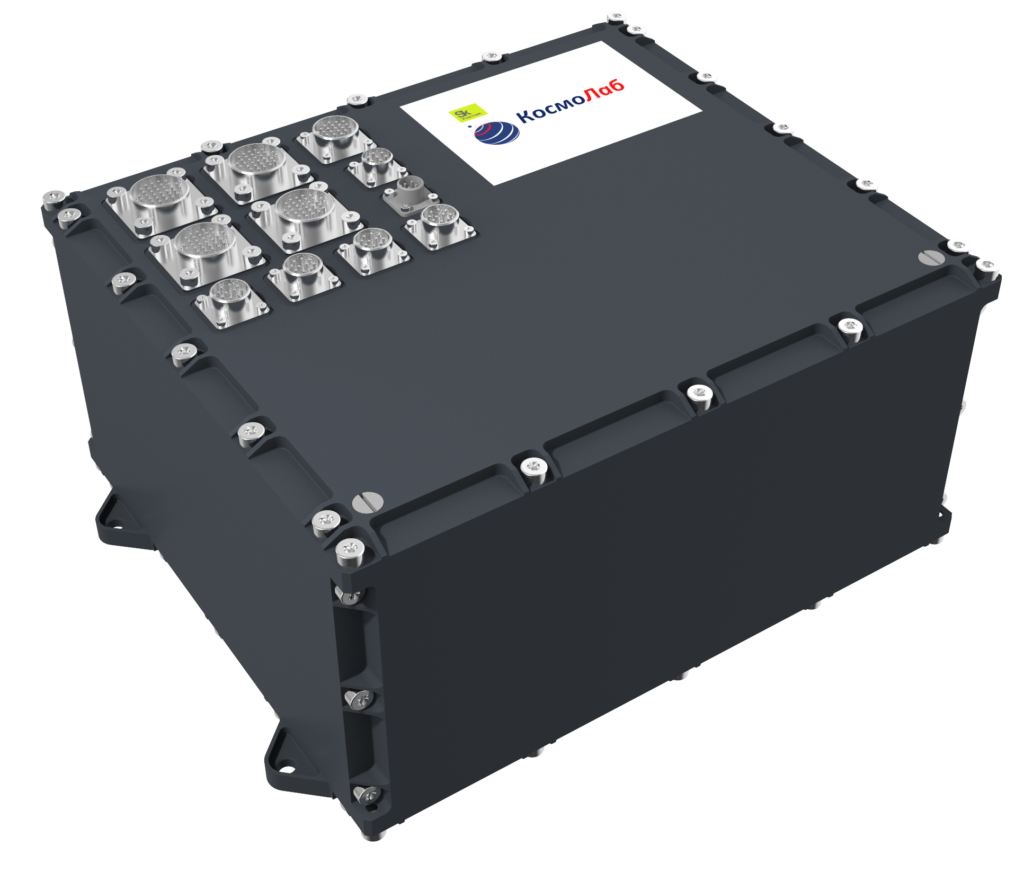

Deployment Sequencer BU-12
KOSMOLAB Launch Services
The Deployment Sequencer BU-12 receives an activation signal from a launch vehicle to initiate a mission cyclogram, providing output signals for satellite deployment and returning telemetry information.
Typed specifications24 values · 23 confirmed by the manufacturer
Discloses 9 of 10 fields engineers filter by in this category (category median 1). ✓ Manufacturer-confirmed data · 2026-09
- Mass
- 4.5 kg ✓ manufacturer datasheet p.1
- Envelope (L×W×H)
- 300 × 235 × 145 ✓ manufacturer manufacturer
- Supply voltage
- 28 V ✓ manufacturer Payload supply voltage · datasheet p.1
- Power consumption
- 140 W ✓ manufacturer manufacturer
- Operating temperature
- -35–60 °C ✓ manufacturer datasheet p.1
- TRL
- 9 ✓ manufacturer manufacturer
- Lead time
- 6 months ✓ manufacturer typ. · indicative · manufacturer
- Export status
- ITAR-free ✓ manufacturer manufacturer
- Release command type
- dry contact (relay closure) ✓ manufacturer manufacturer
- Release actuator voltage
- 28 V ✓ manufacturer manufacturer
- Command pulse duration
- 100 ms ✓ manufacturer manufacturer
- Release channels
- 12 ✓ manufacturer manufacturer
- Cycles / reuses
- 1 ✓ manufacturer manufacturer
- Flight heritage
- TPK SERIES deployer have been flight-qualified as part of the Angara-A5 launch vehicle (2024 launch). All satellites were successfully deployed into target orbits. ✓ manufacturer datasheet p.2
- Missions flown
- 1 ✓ manufacturer manufacturer
- Release current
- 5 A ✓ manufacturer manufacturer
- Output type
- relay (dry contact) ✓ manufacturer manufacturer
- Energy per output channel
- 56 J ✓ manufacturer manufacturer
- Launch vehicles
- Angara ✓ manufacturer Angara · manufacturer PSLV PSLV✓ manufacturer | Soyuz-2 Soyuz-2✓ manufacturer | Soyuz-2.1v Soyuz-2.1v✓ manufacturer | Start-1M Start-1M✓ manufacturer
- Indicative price
- 1 500 000 EUR min · from 1500000 RUB · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Dimensions (L×W×H)
- 300 × 235 × 145 mm
- Mass
- 4.5 kg
- Payload supply voltage
- 28 V
- Current per channel
- 2 A
- Max total current
- 4 A
- Battery capacity
- 4 Ah
- Control channels
- 12
- Operating temperature
- −35°C to +60°C
About
The Deployment Sequencer BU-12 is a crucial component for space missions, designed to manage the deployment of satellites. Upon receiving an activation signal from the launch vehicle, it initiates a pre-programmed mission cyclogram. This sequencer then provides targeted output signals to trigger the deployment mechanisms for each satellite. In addition to controlling deployment, the BU-12 also transmits telemetry information back to the launch vehicle, confirming the successful actuation of the mechanisms and the deployment of the satellites. This ensures reliable and verifiable satellite release during orbital insertion.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
