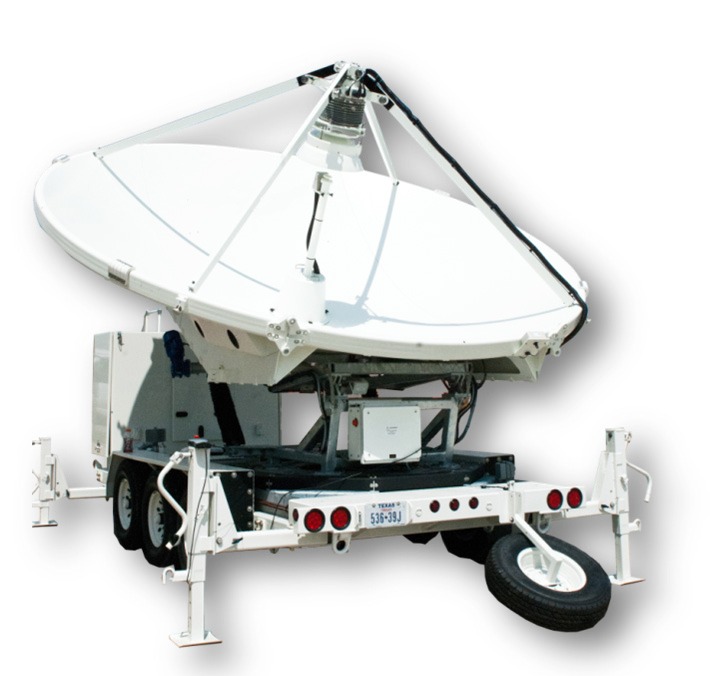

Kratos 4.6 Meter Trifold™ Transportable Satellite Antenna
Kratos Defense & Security Solutions
A transportable satellite antenna system designed for worldwide use in data, voice, and communications networks, offering broad adjustments for non-critical positioner/trailer orientation and horizon-to-horizon geostationary satellite viewing.
Technical specifications
- Optics Type
- Dual Reflector Gregorian
- Reflector Construction
- Dual Piece Aluminum Spinning
- Reflector Segments
- 3
- Mount Configuration
- Elevation over Azimuth Heavy Duty Positioner
- Antenna Pointing Range, Coarse/(Continuous) Elevation
- 5-90º (NOMINAL)
- Antenna Pointing Range, Coarse/(Continuous) Azimuth
- ±146º from Center (NOMINAL)
- Polarization
- ±90º
- Reflector Material
- Aluminum painted with highly diffusive white paint
- Ground Mount Material
- Hot-dipped galvanized steel, per ASTM-A123 for structural steel
- Hardware Sizes ≤ 3/8 in (9.5mm)
- stainless steel, passivated per MIL-F-14072-E300
- Hardware Sizes ≥ 3/8 in (9.5mm)
- hot-dipped galvanized stainless steel, passivated per ASTM-A123
- Operational Wind Loading
- 30 mph (48 km/h) Gusting to 45 mph (72 km/h)
- Operational Wind Loading with gain degradation
- 45 mph (72 km/h) Gusting to 65 mph (105 km/h)
- Stow Elevation Wind Loading
- 65 mph (105 km/h) Gusting to 85 mph (137 km/h)
- Wind Survival in “Stow” Position, with Trailer outriggers fully extended and anchored
- 125 mph (200 km/h)
- Operating Temperature
- -40º to 52ºC (-40º to 125ºF)
- Rain
- 4 in (102 mm) per hour
- Solar Radiation
- 360 BTU/hr/ft2 (1135 Watts/m2)
- Ice (survival)
- 1 in (2.5 cm) on all surfaces
- Relative Humidity
- 100%
- Shock and Vibration
- As encountered by commercial Air, Rail and Truck shipment
- Atmospheric Conditions
- As encountered by Moderately Corrosive Coastal and Industrial Areas
- MTBF
- >15,000 Hhours
- MTTR
- <30 Minutes
About
The Kratos 4.6 Meter Trifold™ is a transportable satellite antenna system, designed for worldwide use in various applications serving data, voice and communications networks. It provides a broad range of adjustments for non-critical Positioner/Trailer orientation and the ability to view geostationary satellites, horizon-to-horizon, from any location worldwide. The system offers a high quality and dependable antenna platform, supported by the worldwide Kratos service and support network. Its electrical performance and versatility allow configuration with a variety of transmit and receive feed assemblies, including multiple linearly or circularly polarized C-band, X-band, X-band Low Passive Intermodulation (PIM), Ku-band, K-band, and Ka-band feed systems, each designed for easy removal for transport. The antenna system design consists of a spun aluminum reflector, a removable subreflector, heavy duty elevation over azimuth Positioner, and an optional heavy duty Trailer for transport. It provides a complete solution for mobile communications, configurable for commercial and military applications. Features include Tracking and Auto Acquisition, UHF to Ka-Band Capabilities, various configuration and integration options, Three Axis Motorization, MTBF of >15,000 hours, MTTR of <30 minutes, and air transportability on C-141, C-17, C-5, C-130. Its rugged aluminum and steel construction provides 125 mph (200 km/h) wind survival in the stow position and 30 mph (48 km/hr) gusting to 45 mph (72 km/h) in any position of operation. It complies with ITU-R S.580-6, 465-6, 732-1 (C, X, Ku, K, Ka Band) and US FCC 25.209 (X, Ku, K, Ka Band).
